GE JBP61WC Specification
GE Appliances
Specification Created 7/00

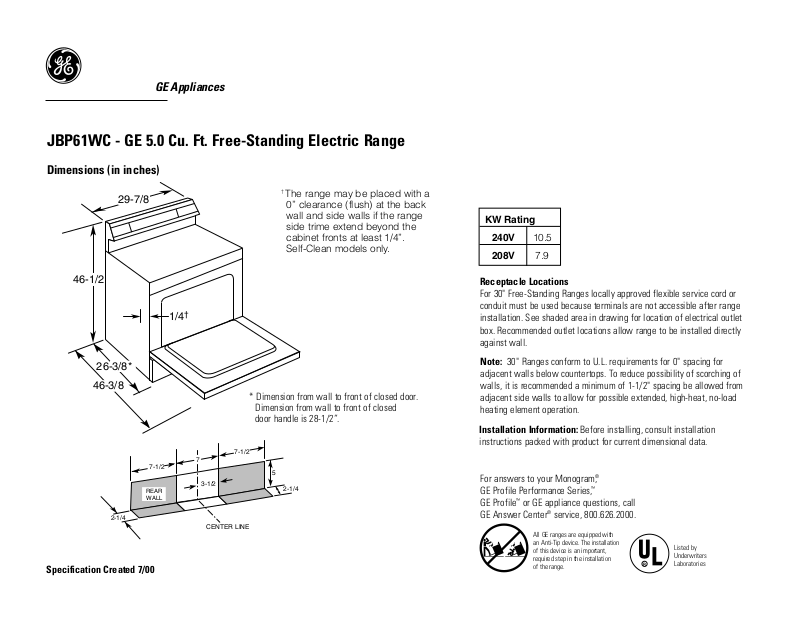

JBP61WC - GE 5.0 Cu. Ft. Free-Standing Electric Range
Dimensions (in inches)
26-3/8*
46-3/8
29-7/8
46-1/2
1/4
†
Note: 30" Ranges conform to U.L. requirements for 0" spacing for
adjacent walls below countertops. To reduce possibility of scorching of
walls, it is recommended a minimum of 1-1/2" spacing be allowed from
adjacent side walls to allow for possible extended, high-heat, no-load
heating element operation.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
Receptacle Locations
For 30" Free-Standing Ranges locally approved flexible service cord or
conduit must be used because terminals are not accessible after range
installation. See shaded area in drawing for location of electrical outlet
box. Recommended outlet locations allow range to be installed directly
against wall.
KW Rating
240V 10.5
208V 7.9
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
* Dimension from wall to front of closed door.
Dimension from wall to front of closed
door handle is 28-1/2”.
CENTER LINE
2-1/4
7-1/2
7-1/2
7
5
2-1/4
3-1/2
REAR
WALL
R
Listed by
Underwriters
Laboratories
†
The range may be placed with a
0” clearance (flush) at the back
wall and side walls if the range
side trime extend beyond the
cabinet fronts at least 1/4”.
Self-Clean models only.
GE Appliances
Specification Created 7/00
JBP61WC - GE 5.0 Cu. Ft. Free-Standing Electric Range
HOT
S
U
RF
A
C
E
U
N
ITS
HOT
PREHEATED
OVEN ON
H
O
U
RM
IN
CLOCK
TIMER
O
N
/
O
F
F
T
E
M
P
R
E
C
A
L
L
O
V
E
N
L
IG
H
T
Features and Benefits
• Super Large 5.0 Cu. Ft. Oven Capacity
• Self-Cleaning Oven with Self-Cleaning Latch
• One-Piece Upswept Patterned Glass-Ceramic Cooktop
• Two 6" and Two 8" Ribbon Heating Elements
• QuickSet II Oven Controls
• Digital Temperature Display
• Audible Preheat Signal
• Auto Oven Shut-Off with Override
• 2 Oven Shelves
• Dual Bake Element
• Hot Surface Lights
• Oven “On” Lights
• Infinite Heat Controls
• Self-Clean Cool-Down Time Display
• Interior Oven Light
• Porcelain-Enameled Broiler Pan with Chrome-Plated Grid
• Frameless Glass Oven Door with Window
• Designer-Style Handle
• Color-Matched Extra-Large Storage Drawer
• Model JBP61WCWW - White on white
