GE JBP60BYWH Specification
GE Appliances

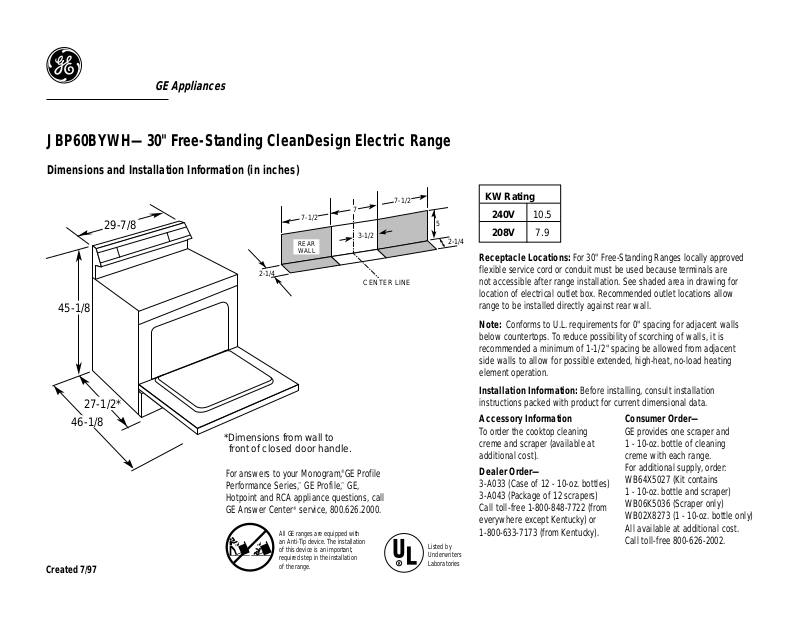

JBP60BYWH—30" Free-Standing CleanDesign Electric Range
Dimensions and Installation Information (in inches)
45-1/8
27-1/2*
46-1/8
Created 7/97
29-7/8
7-1/2
REAR
WALL
2-1/4
7
3-1/2
CENTER LINE
*Dimensions from wall to
front of closed door handle.
For answers to your Monogram,®GE Profile
Performance Series,™GE Profile,™GE,
Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
7-1/2
R
5
2-1/4
Listed by
Underwriters
Laboratories
KW Rating
240V 10.5
208V 7.9
Receptacle Locations: For 30" Free-Standing Ranges locally approved
flexible service cord or conduit must be used because terminals are
not accessible after range installation. See shaded area in drawing for
location of electrical outlet box. Recommended outlet locations allow
range to be installed directly against rear wall.
Note: Conforms to U.L. requirements for 0" spacing for adjacent walls
below countertops. To reduce possibility of scorching of walls, it is
recommended a minimum of 1-1/2" spacing be allowed from adjacent
side walls to allow for possible extended, high-heat, no-load heating
element operation.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
Accessory Information
To order the cooktop cleaning
creme and scraper (available at
additional cost).
Dealer Order—
3-A033 (Case of 12 - 10-oz. bottles)
3-A043 (Package of 12 scrapers)
Call toll-free 1-800-848-7722 (from
everywhere except Kentucky) or
1-800-633-7173 (from Kentucky).
Consumer Order—
GE provides one scraper and
1 - 10-oz. bottle of cleaning
creme with each range.
For additional supply, order:
WB64X5027 (Kit contains
1 - 10-oz. bottle and scraper)
WB06K5036 (Scraper only)
WB02X8273 (1 - 10-oz. bottle only)
All available at additional cost.
Call toll-free 800-626-2002.
GE Appliances
JBP60BYWH—30" Free-Standing CleanDesign Electric Range
Features and Benefits
REAR
HOT COOKTOP
FRONT
•White Model
• Black Patterned Glass-Ceramic Cooktop
• Two 8” and Two 6” Ribbon Heating Elements
• Self-Cleaning Oven
• QuickSet I Oven Controls
• Porcelain-Enameled Broiler Pan With Chrome-Plated Grid
• One Oven Shelf
• Oven Interior Light
• Black Frameless Lift-Off Glass Oven Door
• Designer-Style Handle
Created 7/97
• Black Backguard
• Model JBP60BYWH—White
