GE JBP60BH Specification
GE Appliances
R
25-3/8*
47-5/8
29-7/8
46-7/8
CENTER LINE
2-1/4
7-1/2
7-1/2
7
5
2-1/4
3-1/2
REAR
WALL

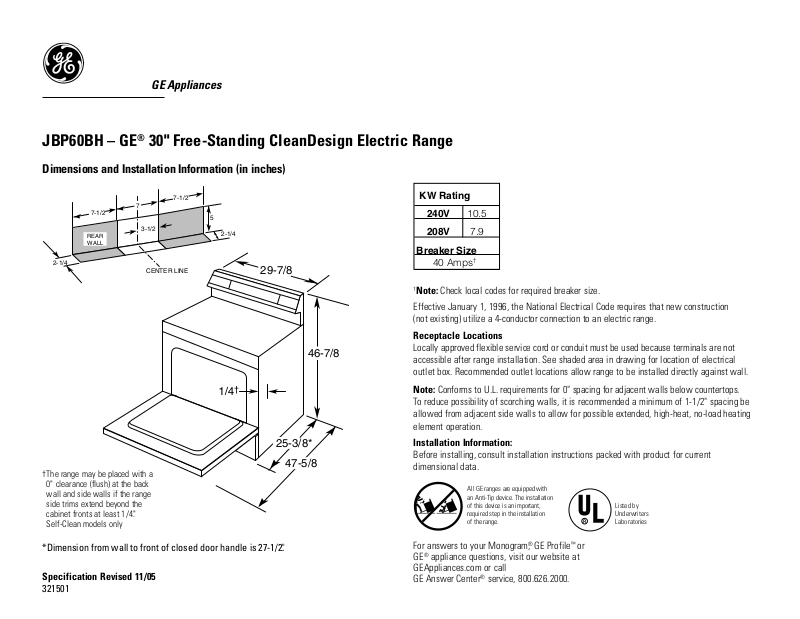

JBP60BH – GE® 30" Free-Standing CleanDesign Electric Range
Dimensions and Installation Information (in inches)
KW Rating
240V 10.5
208V 7.9
† The range may be placed with a
0" clearance (flush) at the back
wall and side walls if the range
side trims extend beyond the
cabinet fronts at least 1/4".
Self-Clean models only
*Dimension from wall to front of closed door handle is 27-1/2".
Specification Revised 11/05
321501
Breaker Size
40 Amps
†
Note: Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical Code requires that new construction
(not existing) utilize a 4-conductor connection to an electric range.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not
accessible after range installation. See shaded area in drawing for location of electrical
outlet box. Recommended outlet locations allow range to be installed directly against wall.
Note: Conforms to U.L. requirements for 0" spacing for adjacent walls below countertops.
To reduce possibility of scorching walls, it is recommended a minimum of 1-1/2" spacing be
allowed from adjacent side walls to allow for possible extended, high-heat, no-load heating
element operation.
Installation Information:
Before installing, consult installation instructions packed with product for current
dimensional data.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
GE Appliances
B
R
O
IL
S
E
L
F
C
L
E
A
N
O
V
E
N
L
IG
H
T
C
L
O
C
K
T
IM
E
C
O
N
T
R
O
L
S
O
V
E
N
C
O
N
T
R
O
L
S
O
N
O
F
F
K
I
T
C
H
E
N
L
I
G
H
T
O
N
O
F
F
B
A
K
E
S
T
A
R
T
O
N
C
L
E
A
R
O
F
F
JBP60BH – GE® 30" Free-Standing CleanDesign Electric Range
Features and Benefits
• Self-Clean Oven – Conveniently cleans the oven cavity without the need for scrubbing.
• Super-Large Oven Capacity – Provides an impressively large oven interior for cooking more
dishes and large meals at one time.
• QuickSet III Oven Controls – Feature an easy to use design which lets you set precise cooking
temperatures.
• Ribbon Heating Elements – Provide powerful heat beneath a smooth glass surface to ensure
even heat and fast warm-up times.
• Ceramic Glass Cooktop – A smooth cooktop surface makes cleaning quick and easy.
• Dual Element Bake – Alternates the upper broiling element and the lower baking element
for even heating and optimal baking results.
Specification Revised 11/05
321501
• Six Rack Positions – Provides flexibility and allows consumers to make the most of available
oven capacity.
• Model JBP60BHWH – White (black door and white patterned cooktop)
