GE JBP58LYWH Specification
GE Appliances
Created 6/98

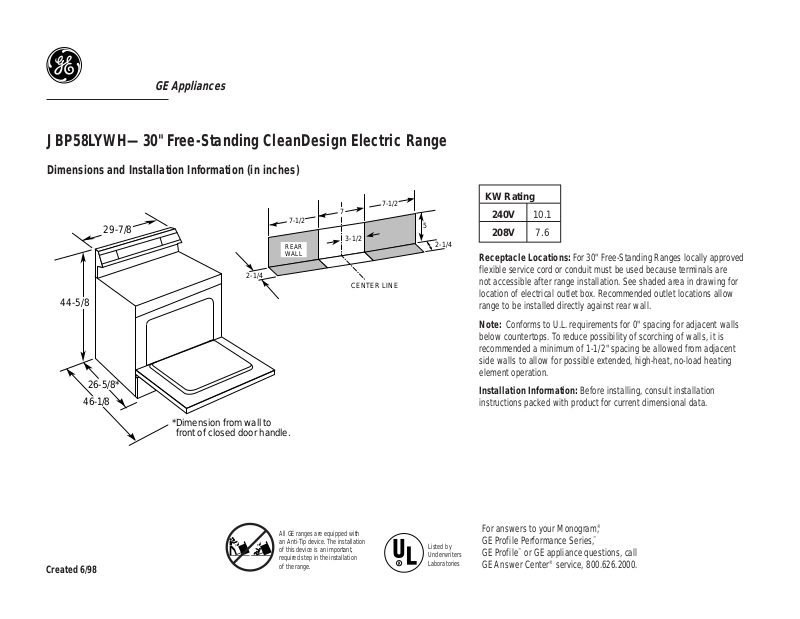

JBP58LYWH—30" Free-Standing CleanDesign Electric Range
Dimensions and Installation Information (in inches)
KW Rating
240V 10.1
208V 7.6
26-5/8*
46-1/8
29-7/8
44-5/8
*Dimension from wall to
front of closed door handle.
Receptacle Locations: For 30" Free-Standing Ranges locally approved
flexible service cord or conduit must be used because terminals are
not accessible after range installation. See shaded area in drawing for
location of electrical outlet box. Recommended outlet locations allow
range to be installed directly against rear wall.
Note: Conforms to U.L. requirements for 0" spacing for adjacent walls
below countertops. To reduce possibility of scorching of walls, it is
recommended a minimum of 1-1/2" spacing be allowed from adjacent
side walls to allow for possible extended, high-heat, no-load heating
element operation.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
CENTER LINE
2-1/4
7-1/2
7-1/2
7
5
2-1/4
3-1/2
REAR
WALL
R
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
GE Appliances
Created 6/98
JBP58LYWH—30" Free-Standing CleanDesign Electric Range
REAR
FRONT
O
F
F
L
O
M
E
D
H
I
O
F
F
L
O
M
E
D
H
I
O
F
F
L
O
M
E
D
H
I
O
F
F
L
O
M
E
D
H
I
Features and Benefits
•Clean-Well™ Cooktop System with High Spill Rims
•Self-Cleaning Oven
•1 Oven Shelf
•QuickSet I Oven Controls
•One 8" and Three 6" Ribbon Heating Elements
•Infinite Heat Controls
•Upswept Porcelain-Enameled Cooktop
•Porcelain-Enameled Broiler Pan with Chrome-Plated Grid
•Hot Surface Indicator Light
•Black Frameless Lift-Off Glass Oven Door
•Designer-Style Handle
•JBP58LYWH - White
