GE JBP26BBWH Specification
GE Appliances
Specification Revised 4/99

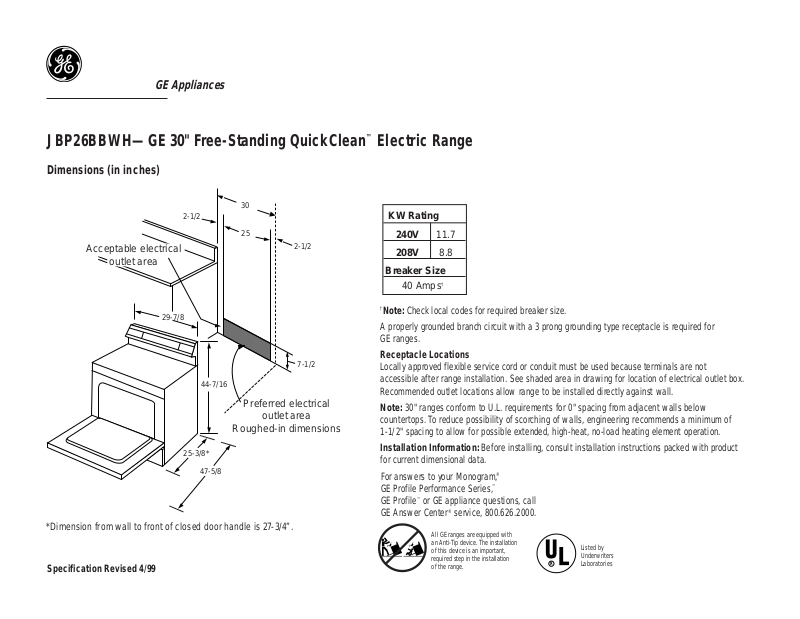

JBP26BBWH—GE 30" Free-Standing QuickClean™Electric Range
Dimensions (in inches)
30
25
2-1/2
7-1/2
29-7/8
25-3/8*
47-5/8
44-7/16
2-1/2
Acceptable electrical
outlet area
Preferred electrical
outlet area
Roughed-in dimensions
*Dimension from wall to front of closed door handle is 27-3/4”.
R
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
†
Note: Check local codes for required breaker size.
A properly grounded branch circuit with a 3 prong grounding type receptacle is required for
GE ranges.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not
accessible after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing from adjacent walls below
countertops. To reduce possibility of scorching of walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended, high-heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions packed with product
for current dimensional data.
KW Rating
240V 11.7
208V 8.8
Breaker Size
40 Amps
†
GE Appliances
Specification Revised 4/99
JBP26BBWH—GE 30" Free-Standing QuickClean™Electric Range
Features and Benefits
• Super Large 5.0 Cu. Ft. Oven Capacity
• Clean-Well™ Cooktop System
• Self-Cleaning Oven
• Lift-Up Upswept Porcelain-Enameled Cooktop with Dual Support Rods
• Two 8" and Two 6" Plug-in Calrod™ Heating Elements
• TrueTemp™ System with QuickSet III Oven Controls
• SmartLogic™ Oven Controls
• Chrome Removable One-Piece Drip Bowls
• Digital Temperature Display
• Electonic Clock and Minute Timer
• Six-Pass Power Bake Element
• 2 Oven Shelves
• Auto Oven Shut-Off with Override
• Delay Clean Option
• Audible Preheat Signal with Light
• Heating Element "On" Indicator Light
• Dual Bake Element
• Porcelain-Enameled Broiler Pan with Chrome-Plated Grid
• Frameless Lift-Off Glass Oven Door with Window
• Color-Matched Removable Full-Width Storage Drawer
• Designer-Style Handle
• Model JBP26WBWW - White on white
• Model JBP26ABAA - Almond on almond
• Model JBP26BBWH - White
• Model JBP26BBAD - Almond
