GE JBP24WH, JBP24BH, JBP24EH Specification
GE Appliances
30
25
29-7/8
46-7/8
2-1/2
7-1/2
25-3/8*
47-5/8
2-1/2
Acceptable electrical
outlet area
30_install_fse_ge.eps
*Dimension from wall to front of
closed oven door handle is 27-3/4
on models JBP84/81/80/72/70/66/
65/64/35/27/24 and JBS55.
R

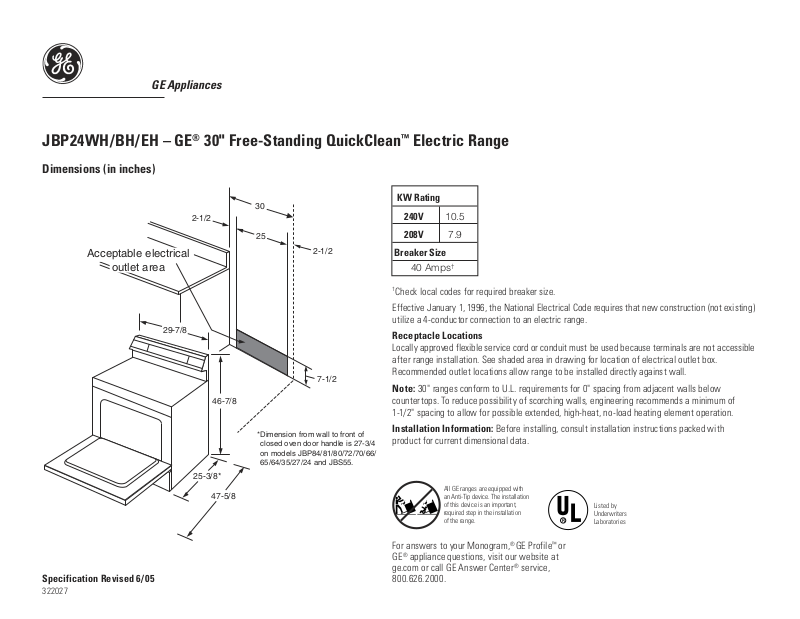

JBP24WH/BH/EH – GE® 30" Free-Standing QuickClean™ Electric Range
Dimensions (in inches)
KW Rating
Specification Revised 6/05
322027
240V 10.5
208V 7.9
Breaker Size
40 Amps
†
Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical Code requires that new construction (not existing)
utilize a 4-conductor connection to an electric range.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing from adjacent walls below
countertops. To reduce possibility of scorching walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended, high-heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions packed with
product for current dimensional data.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
GE Appliances
B
R
O
IL
S
E
LF
CLEA
N
OVEN
L
I
G
H
T
CL
O
CK
T
IM
E
C
O
N
T
R
O
L
S
OV
E
N
C
O
N
T
R
O
L
S
ON
OF
F
KITC
HE
N
L
I
G
H
T
ON
OF
F
BAK
E
ST
AR
T
ON
CLEA
R
OF
F
JBP24WH/BH/EH – GE® 30" Free-Standing QuickClean™ Electric Range
Features and Benefits
• Self-Clean Oven – Conveniently cleans the oven cavity without the need for scrubbing.
• Super-Large Oven Capacity – Provides an impressively large oven interior for cooking
more dishes and large meals at one time.
• QuickSet III Oven Controls – Feature the easy to use design that allows you to set precise
cooking temperatures.
• Coil Heating Elements – Provide consistent and even heat on the cooktop with a plug-in
element that is removable for easy cleaning.
• ClearView™ Window – Features a convenient viewing area to check the progress of food.
• Dual Element Bake – Alternates the upper broiling element and the lower baking element
for even heating and optimal baking results.
Specification Revised 6/05
322027
• Chrome Drip Bowls – Contain minor spills and are removable for easy cleaning.
• Model JBP24WHWW – White on white (white door and white cooktop)
• Model JBP24BHWH – White (black door and white cooktop)
• Model JBP24BHCT – Bisque (black door and bisque cooktop)
• Model JBP24EHBB – Black (black door and black cooktop)
