GE JBP24DM Specification
30
25
29-7/8
46-7/8
2-1/2
7-1/2
25-3/8
47-5/8
2-1/2
Acceptable electrical
outlet area
30_install_fse_ge.eps
Dimension from wall to front of
closed oven door handle is 27-3/4.

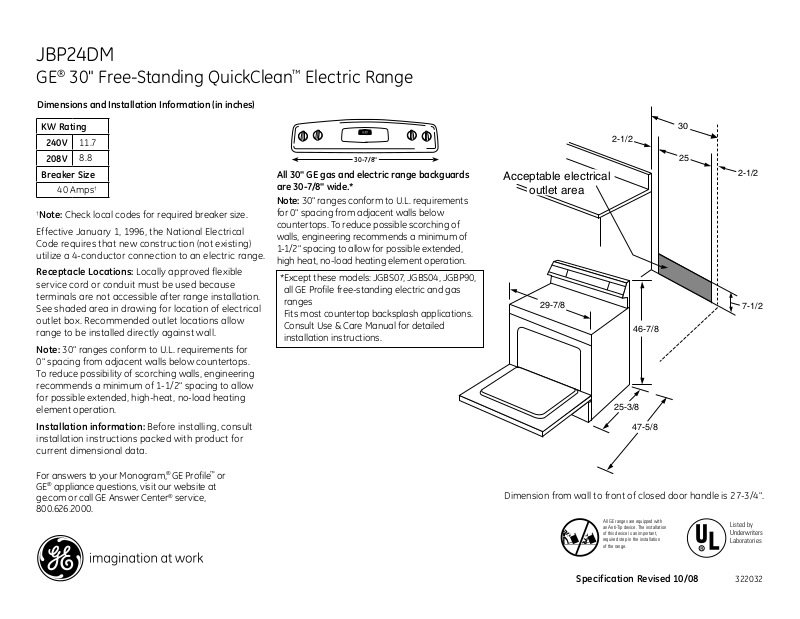

JBP24DM
GE® 30" Free-Standing QuickClean™ Electric Range
Dimensions and Installation Information (in inches)
KW Rating
240V
208V
Breaker Size
†
Note: Check local codes for required breaker size.
Effective January 1, 1996, the National Electrical
Code requires that new construction (not existing)
utilize a 4-conductor connection to an electric range.
Receptacle Locations: Locally approved flexible
service cord or conduit must be used because
terminals are not accessible after range installation.
See shaded area in drawing for location of electrical
outlet box. Recommended outlet locations allow
range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for
0" spacing from adjacent walls below countertops.
To reduce possibility of scorching walls, engineering
recommends a minimum of 1-1/2" spacing to allow
for possible extended, high-heat, no-load heating
element operation.
Installation information: Before installing, consult
installation instructions packed with product for
current dimensional data.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
11.7
8.8
40 Amps
†
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
* Except these models: JGBS07, JGBS04, JGBP90,
all GE Profile free-standing electric and gas
ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
30-7/8"
Dimension from wall to front of closed door handle is 27-3/4".
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
Specification Revised 10/08
322032
B
R
O
IL
S
E
L
F
C
LE
A
N
O
V
E
N
L
IG
H
T
C
L
O
CK
T
I
ME
C
O
N
T
R
O
LS
O
VE
N
C
O
N
T
RO
L
S
ON
O
F
F
K
I
T
C
H
E
N
L
I
G
H
T
O
N
O
F
F
B
A
K
E
S
T
A
R
T
O
N
C
LE
A
R
O
FF
JBP24DM
GE® 30" Free-Standing QuickClean™ Electric Range
Features and Benefits
• Self-Clean Oven - Conveniently cleans the oven cavity without the need for scrubbing
• Super-Large Oven Capacity - Provides an impressively large oven interior for cooking
more dishes and large meals at once
• QuickSet III Oven Controls - Feature an easy to use design that lets you set precise
cooking temperatures
• Coil Heating Elements - Provides consistent and even heat on the cooktop with a
plug-in element that is removable for easy cleaning
• Dual Element Bake - Alternates the upper broiling element and the lower baking
element for even heating and optimal baking results
• Big Hearth Window - Features an enhanced shape to add an elegant appearance
and make viewing trouble-free
• Chrome Drip Bowls - Contain minor spills and are removable for easy cleaning
• CleanWell
™
Cooktop System - Ensures spills are properly contained, while providing
convenient cleaning access
• Six Rack Positions - Provides flexibility and allows consumers to make the most of
available oven capacity
• Porcelain Upswept Cooktop - Features raised edges to help contain spills and make
clean-up easy
• Model JBP24DMWW – White on white (white door and white cooktop)
• Model JBP24DMBB – Black on black (black door and black cooktop)
Specification Revised 10/08
