GE JBP24BBCT Specification
GE Appliances
Specification Created 6/01

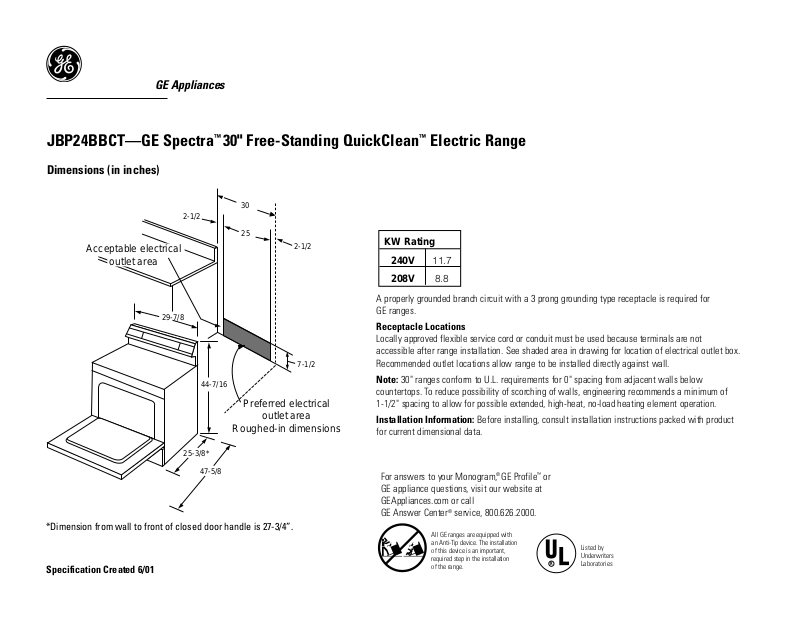

JBP24BBCT—GE Spectra™ 30" Free-Standing QuickClean™Electric Range
Dimensions (in inches)
30
25
2-1/2
7-1/2
29-7/8
25-3/8*
47-5/8
44-7/16
2-1/2
Acceptable electrical
outlet area
Preferred electrical
outlet area
Roughed-in dimensions
*Dimension from wall to front of closed door handle is 27-3/4”.
R
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
A properly grounded branch circuit with a 3 prong grounding type receptacle is required for
GE ranges.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not
accessible after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing from adjacent walls below
countertops. To reduce possibility of scorching of walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended, high-heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions packed with product
for current dimensional data.
KW Rating
240V 11.7
208V 8.8
GE Appliances
Specification Created 6/01
JBP24BBCT—GE Spectra™ 30" Free-Standing QuickClean™Electric Range
F
R
O
N
T
R
E
A
R
O
FF
O
FF
F
R
O
N
T
R
E
A
R
O
FF
O
FF
O
V
E
N
C
L
E
A
N
IN
G
–
M
O
VE D
O
OR LA
TC
H
TO
R
IG
H
T. TUR
N
O
VE
N
KN
O
B T
O "C
LEA
N
."
P
R
E
H
E
A
T
E
D
O
V
E
N
O
N
H
O
U
R
M
I
N
CLOCK
TIMER
O
N
/
O
F
F
TE
M
P RE
CA
LL
SU
RFA
CE
UN
ITS
O
VEN
LIG
H
T
Features and Benefits
•Super Large 5.0 Cu. Ft. Oven Capacity
•Self-Cleaning Oven
•Clean-Well™ Cooktop System
•Lift-Up Upswept Porcelain-Enameled Cooktop with Dual Support Rods
•Two 6" and Two 8" Plug-in Calrod™ Heating Elements
•QuickSet II Oven Controls
•Removable One-Piece Drip Bowls
•Electonic Clock and Minute Timer
•Digital Temperature Display
•2 Oven Shelves
•Infinite Heat Controls
•Auto Oven Shut-Off with Override
•Audible Preheat Signal with Light
•Heating Element "On" Indicator Light
•Dual Bake Element
•Self-Clean Cool-Down Time Display
•Interior Oven Light
•Porcelain-Enameled Broiler Pan with Chrome-Plated Grid
•Frameless Lift-Off Glass Oven Door with Window
•Color-Matched Removable Full-Width Storage Drawer
•Designer-Style Handle
• Model JBP24WBWW - White on white
• Model JBP24BBWH - White
• Model JBP24BBAD - Almond
• Model JBP24BBCT - Bisque
