GE JBP22BM User Manual
CENTER LINE
2-1/4
7-1/2
7-1/2
7
5
2-1/4
3-1/2
REAR
WALL
25-3/8
47-5/8
46-1/4
Dimension from wall to front of
closed door handle is 28-3/4".
29-7/8
CENTER LINE
2-1/4
7-1/2
7-1/2
7
5
2-1/4
3-1/2
REAR
WALL

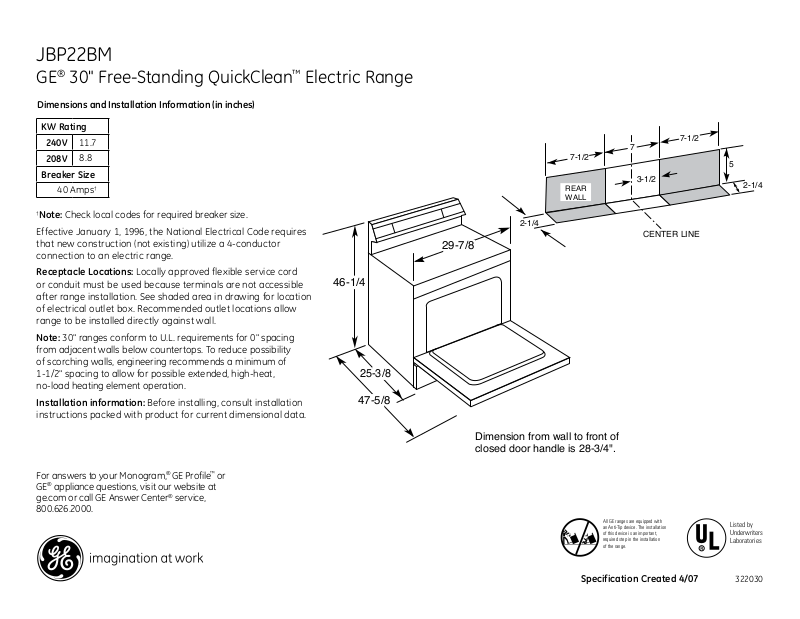

JBP22BM
GE® 30" Free-Standing QuickClean™ Electric Range
Dimensions and Installation Information (in inches)
KW Rating
240V
208V
Breaker Size
†
Note: Check local codes for required breaker size.
Effective January 1, 1996, the National Electrical Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.
Receptacle Locations: Locally approved flexible service cord
or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing
from adjacent walls below countertops. To reduce possibility
of scorching walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended, high-heat,
no-load heating element operation.
Installation information: Before installing, consult installation
instructions packed with product for current dimensional data.
11.7
8.8
40 Amps
†
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 4/07
Listed by
Underwriters
Laboratories
322030
B
R
O
IL
S
E
L
F
CL
E
A
N
O
V
E
N
L
IGHT
CL
O
C
K
T
I
M
E CO
N
T
R
O
L
S
O
VE
N
CO
N
T
R
O
L
S
O
N
O
F
F
K
IT
C
H
E
N
L
I
G
H
T
O
N
OF
F
B
A
K
E
S
TA
R
T
O
N
C
LE
A
R
O
FF
JBP22BM
GE® 30" Free-Standing QuickClean™ Electric Range
Features and Benefits
• Self-Clean Oven - Conveniently cleans the oven cavity without the need for scrubbing
• Super-Large Oven Capacity - Provides an impressively large oven interior for cooking
more dishes and large meals at once
• QuickSet III Oven Controls - Feature an easy to use design that lets you set precise
cooking temperatures
• Coil Heating Elements - Provides consistent and even heat on the cooktop with a
plug-in element that is removable for easy cleaning
• ClearView
of food
• Dual Element Bake - Alternates the upper broiling element and the lower baking
element for even heating and optimal baking results
• Chrome Drip Bowls - Contain minor spills and are removable for easy cleaning
• CleanWell
convenient cleaning access
™
Window - Features a convenient viewing area to check the progress
™
Cooktop System - Ensures spills are properly contained, while providing
• Six Rack Positions - Provides flexibility and allows consumers to make the most of
available oven capacity
• Porcelain Upswept Cooktop - Features raised edges to help contain spills and make
clean-up easy
• Frameless Glass Oven Door - Offers an easy-to-clean and stylish design that blends
seamlessly into existing cabinetry
• Model JBP22BMWH – White (black door and white cooktop)
• Model JBP22BMCT – Bisque (black door and bisque cooktop)
Specification Created 4/07
322030
