GE JBP21BH Specification
Specification Revised 7/03
322002
GE Appliances

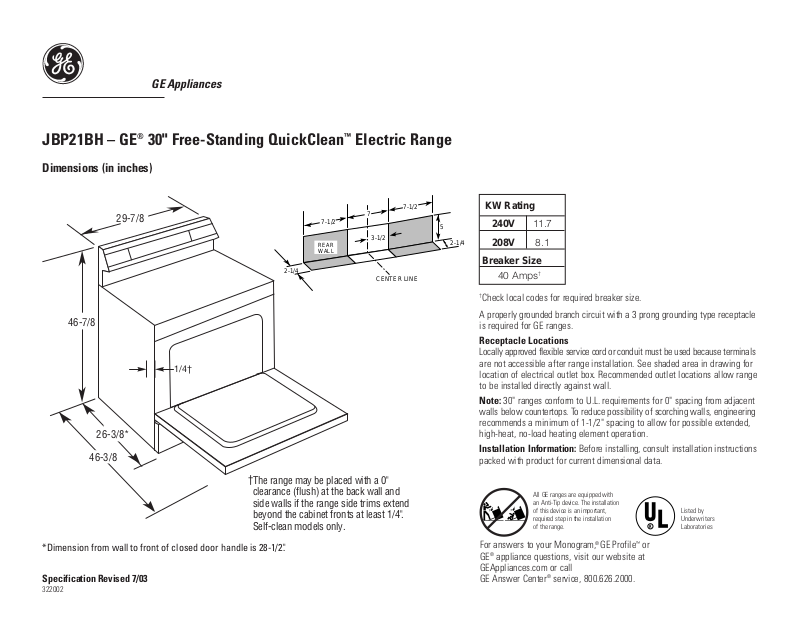

JBP21BH – GE®30" Free-Standing QuickClean™Electric Range
Dimensions (in inches)
*Dimension from wall to front of closed door handle is 28-1/2".
†
Check local codes for required breaker size.
A properly grounded branch circuit with a 3 prong grounding type receptacle
is required for GE ranges.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals
are not accessible after range installation. See shaded area in drawing for
location of electrical outlet box. Recommended outlet locations allow range
to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing from adjacent
walls below countertops. To reduce possibility of scorching walls, engineering
recommends a minimum of 1-1/2" spacing to allow for possible extended,
high-heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
KW Rating
240V 11.7
208V 8.1
Breaker Size
40 Amps
†
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
26-3/8*
46-3/8
29-7/8
46-7/8
1/4†
The range may be placed with a 0"
clearance (flush) at the back wall and
side walls if the range side trims extend
beyond the cabinet fronts at least 1/4".
Self-clean models only.
†
CENTER LINE
2-1/4
7-1/2
7-1/2
7
5
2-1/4
3-1/2
REAR
WALL
Specification Revised 7/03
322002
GE Appliances
JBP21BH – GE®30" Free-Standing QuickClean™Electric Range
BRO
IL
S
E
LF
CLEAN
OVEN
LIG
HT
CLOCK
T
I
M
E
C
O
N
T
R
O
L
S
OVE
N
C
O
N
T
R
O
L
S
ON
OF
F
KITCHEN
L
I
G
H
T
ON
OF
F
BAKE
START
ON
CLEAR
OFF
Features and Benefits
• Self-Clean Oven – Conveniently cleans the oven cavity without the need for scrubbing.
• Super-Large Oven Capacity – Provides an impressively large oven interior for cooking more
dishes and large meals at one time.
• QuickSet III Oven Controls – Feature the easy to use design that allows you to set precise
cooking temperatures.
• Coil Heating Elements – Provide consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning.
• Dual Element Bake – Alternates the upper broiling element and the lower baking element
for even heating and optimal baking results.
• Chrome Drip Bowls – Contain minor spills and are removable for easy cleaning.
• CleanWell Cooktop System – Ensures spills are properly contained, while providing convenient
cleaning access.
• Model JBP21WHWW – White on white (white door and white cooktop)
• Model JBP21BHWH – White (black door and white cooktop)
• Model JBP21BHCT – Bisque (Black door and bisque cooktop)
