GE JBP18LYWH Specification
Revised 6/98
GE Appliances

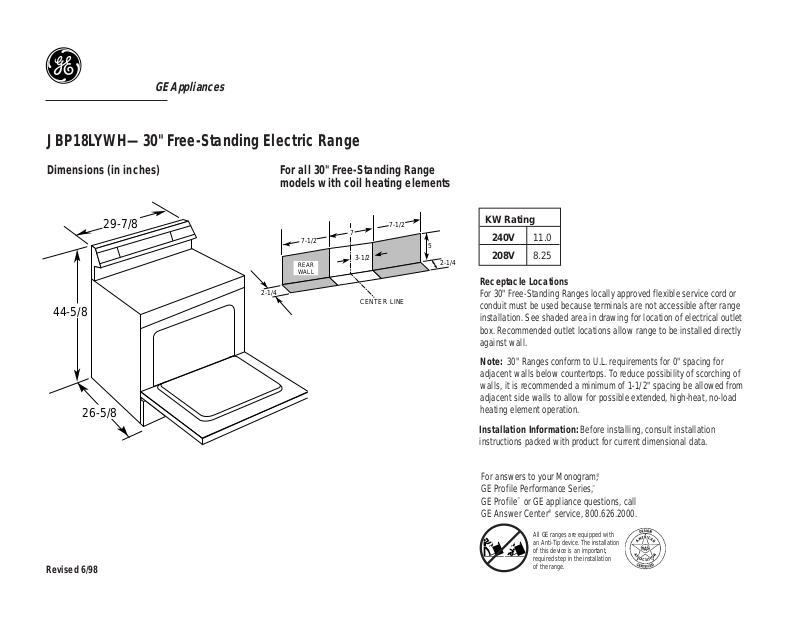

JBP18LYWH—30" Free-Standing Electric Range
Dimensions (in inches) For all 30" Free-Standing Range
models with coil heating elements
26-5/8
29-7/8
44-5/8
Note: 30" Ranges conform to U.L. requirements for 0" spacing for
adjacent walls below countertops. To reduce possibility of scorching of
walls, it is recommended a minimum of 1-1/2" spacing be allowed from
adjacent side walls to allow for possible extended, high-heat, no-load
heating element operation.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
Receptacle Locations
For 30" Free-Standing Ranges locally approved flexible service cord or
conduit must be used because terminals are not accessible after range
installation. See shaded area in drawing for location of electrical outlet
box. Recommended outlet locations allow range to be installed directly
against wall.
CENTER LINE
2-1/4
7-1/2
7-1/2
7
5
2-1/4
3-1/2
REAR
WALL
KW Rating
240V 11.0
208V 8.25
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Revised 6/98
GE Appliances
JBP18LYWH—30" Free-Standing Electric Range
LOCK
FRONT
REAR
REAR
FRONT
OFF
HILO
MED
OFF
HILO
MED
OFF
HILO
MED
OFF
HILO
MED
Features and Benefits
•Lift-Up Upswept Porcelain-Enameled Cooktop
•One 8" and Three 6" Plug-In Heating Elements
•Chrome Removable One-Piece Drip Bowls
•Self-Cleaning Oven
•Porcelain-Enameled Broiler Pan with Chrome-Plated Grid
•1 Oven Shelf
•Heating Element "On" Indicator Lights
•Oven "On" Light
•Black Glass Lift-Off Oven Door
•Black Visor Handle
•Model JBP18LYWH–White
