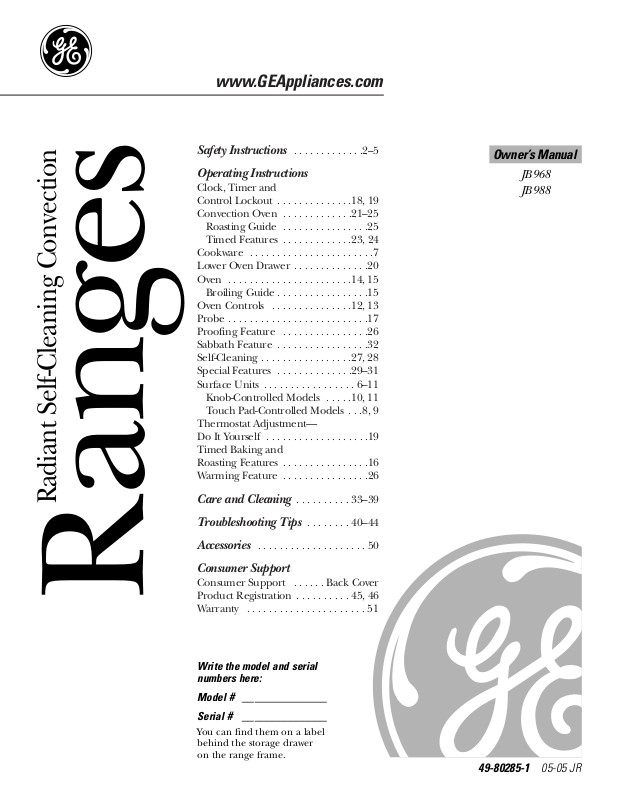

Safety Instructions . . . . . . . . . . . . .2–5

Operating Instructions

Clock, Timer and

Control Lockout . . . . . . . . . . . . . .18, 19

Convection Oven . . . . . . . . . . . . .21–25

Roasting Guide . . . . . . . . . . . . . . . .25

Timed Features . . . . . . . . . . . . .23, 24

Cookware . . . . . . . . . . . . . . . . . . . . . . .7

Lower Oven Drawer . . . . . . . . . . . . . .20

Oven . . . . . . . . . . . . . . . . . . . . . . .14, 15

Broiling Guide . . . . . . . . . . . . . . . . .15

Oven Controls . . . . . . . . . . . . . . .12, 13

Probe . . . . . . . . . . . . . . . . . . . . . . . . . .17

Proofing Feature . . . . . . . . . . . . . . . .26

Sabbath Feature . . . . . . . . . . . . . . . . .32

Self-Cleaning . . . . . . . . . . . . . . . . .27, 28

Special Features . . . . . . . . . . . . . .29–31

Surface Units . . . . . . . . . . . . . . . . . 6–11

Knob-Controlled Models . . . . .10, 11

Touch Pad-Controlled Models . . .8, 9 Thermostat Adjustment—

Do It Yourself . . . . . . . . . . . . . . . . . . .19

Timed Baking and

Roasting Features . . . . . . . . . . . . . . . .16

Warming Feature . . . . . . . . . . . . . . . .26

Care and Cleaning . . . . . . . . . . 33–39

Troubleshooting Tips . . . . . . . . 40–44

Accessories . . . . . . . . . . . . . . . . . . . . 50

Consumer Support

Consumer Support . . . . . . Back Cover

Product Registration . . . . . . . . . . 45, 46

Warranty . . . . . . . . . . . . . . . . . . . . . . 51

www.GEAppliances.com

JB968 JB988

Owner’s Manual

49-80285-1 05-05 JR

Write the model and serial numbers here:

Model

# ______________

Serial # ______________

You can find them on a label behind the storage drawer on the range frame.

Ranges

Radiant Self-Cleaning Convection

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock, or to prevent property damage, personal injury, or loss of life.

All ranges can tip and injury could result.

To prevent accidental tipping of the range, attach it to the wall and floor by installing the Anti-Tip device supplied.

If the Anti-Tip device supplied with the range does not fit this application, use the universal Anti-Tip device WB2X7909.

To check if the device is installed and engaged properly, remove the storage drawer and inspect the rear leveling leg. Make sure it fits securely into the slot.

If you pull the range out from the wall for any reason, make sure the device is properly engaged when you push the range back against the wall. If it is not, there is a possible risk of the range tipping over and causing injury if you or a child stand, sit or lean on an open door.

Please refer to the Anti-Tip device information in this manual. Failure to take this precaution could result in tipping of the range and injury.

WARNING ANTI-TIP DEVICE

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation fan or hood.

When using electrical appliances, basic safety precautions should be followed, including the following:

■ Use this appliance only for its intended

purpose as described in this Owner’s Manual.

■ Be sure your appliance is properly installed and

grounded by a qualified installer in accordance with the provided installation instructions.

■ Have the installer show you the location of

the circuit breaker or fuse. Mark it for easy reference.

■ Do not attempt to repair or replace any

part of your range unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

■ Before performing any service, disconnect

the range power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.

■ Do not leave children alone—children should

not be left alone or unattended in an area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

■ Do not allow anyone to climb, stand or hang

on the door, storage drawer or cooktop. They could damage the range and even tip it over, causing severe personal injury.

SAFETY PRECAUTIONS

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

www.GEAppliances.com

■ Do not store flammable materials in an oven

or near the cooktop.

■ CAUTION: Items of interest to children

should not be stored in cabinets above a range or on the back of a range—children climbing on the range to reach items could be seriously injured.

■ Never wear loose-fitting or hanging garments

while using the appliance. Be careful when reaching for items stored over the range. Flammable material could be ignited if brought in contact with hot surface units or heating elements and may cause severe burns.

■ Use only dry pot holders—moist or damp

pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot surface units or heating elements. Do not use a towel or other bulky cloth in place of pot holders.

■ Do not use water on grease fires. Never pick

up a flaming pan. Turn the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.

■ Flaming grease outside a pan can be put

out by covering it with baking soda or, if available, by using a multi-purpose dry chemical or foam-type fire extinguisher.

■ Flame in the oven can be smothered

completely by closing the oven door and turning the oven off or by using a multipurpose dry chemical or foam-type fire extinguisher.

■ For your safety, never use your appliance

for warming or heating the room.

■ Do not let cooking grease or other flammable

materials accumulate in or near the range.

■ Do not touch the surface units, the heating

elements or the interior surface of the oven. These surfaces may be hot enough to burn even though they are dark in color. During and after use, do not touch, or let clothing or other flammable materials contact the surface units, areas nearby the surface units or any interior area of the oven; allow sufficient time for cooling first.

■ Potentially hot surfaces include the cooktop,

areas facing the cooktop, oven vent opening, surfaces near the opening, crevices around the oven door.

■ REMEMBER: The inside surface of the oven

may be hot when the door is opened.

■ Do not store or use combustible materials,

gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■ Keep the hood and grease filters clean

to maintain good venting and to avoid grease fires.

■ Teach children not to play with the controls

or any other part of the range.

■ Always keep dish towels, dish cloths, pot

holders and other linens a safe distance from your range.

■ Always keep wooden and plastic utensils and

canned food a safe distance from your range.

■ Always keep combustible wall coverings,

curtains or drapes a safe distance from your range.

WARNING!

SAFETY PRECAUTIONS

Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.

COOK MEAT AND POULTRY THOROUGHLY…

Do not operate the oven or cooktop controls if the glass is broken. Food splatter or cleaning solution may penetrate a broken control panel or cooktop and create a risk of electrical shock. Contact a qualified technician immediately should your glass control panel or cooktop become broken.

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

Use proper pan size—select cookware having flat bottoms large enough to cover the surface unit heating element. The use of undersized cookware will expose a portion of the surface unit to direct contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will also improve efficiency.

■ Never leave the surface units unattended at

high heat settings. Boilovers cause smoking and greasy spillovers that may catch on fire.

■ Only certain types of glass, glass ⁄ceramic,

earthenware or other glazed containers are suitable for cooktop service; others may break because of the sudden change in temperature.

■ To minimize the possibility of burns, ignition

of flammable materials and spillage, the handle of a container should be turned toward the center of the range without extending over nearby surface units.

■ Always turn the surface units off before

removing cookware.

■ When preparing flaming foods under the

hood, turn the fan on.

■ Use care when touching the cooktop.

The glass surface of the cooktop will retain heat after the controls have been turned off.

■ Keep an eye on foods being fried at high or

medium high heat settings.

■ Foods for frying should be as dry as possible.

Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.

■ Use little fat for effective shallow or deep

fat frying. Filling the pan too full of fat can cause spillovers when food is added.

■ If a combination of oils or fats will be used

in frying, stir together before heating, or as fats melt slowly.

■ Always heat fat slowly, and watch as it heats.

■ Use a deep fat thermometer whenever

possible to prevent overheating fat beyond the smoking point.

■ Avoid scratching the glass cooktop. The

cooktop can be scratched with items such as sharp instruments, rings or other jewelry, and rivets on clothing.

■ Large scratches or impacts to glass doors or

cooktops can lead to broken or shattered glass.

■ Do not operate the radiant surface units if the

glass is broken. Spillovers or cleaning solution may penetrate a broken cooktop and create a risk of electrical shock. Contact a qualified technician immediately should your glass cooktop become broken.

■ Never use the glass cooktop surface as a

cutting board.

■ Do not place or store items that can melt or

catch fire on the glass cooktop, even when it is not being used.

■ Be careful when placing spoons or other stirring

utensils on glass cooktop surface when it is in use. They may become hot and could cause burns.

■ Clean the cooktop with caution. If a wet

sponge or cloth is used to wipe spills on a hot surface unit, be careful to avoid steam burns. Some cleaners can produce noxious fumes if applied to a hot surface.

NOTE: We recommend that you avoid wiping any surface unit areas until they have cooled and the indicator light has gone off. Sugar spills are the exception to this. Please see the Cleaning the glass cooktop section.

■ When the cooktop is cool, use only the

CERAMA BRYTE®Ceramic Cooktop Cleaner and the CERAMA BRYTE Ceramic Cooktop Cleaning Pad to clean the cooktop.

■ To avoid possible damage to the cooking

surface, do not apply cleaning cream to the glass surface when it is hot.

■ After cleaning, use a dry cloth or paper towel

to remove all cleaning cream residue.

■ Read and follow all instructions and warnings

on the cleaning cream labels.

■ Do not use plastic wrap to cover food. Plastic

may melt onto the surface and be very difficult to remove.

RADIANT SURFACE UNITS

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

SAVE THESE INSTRUCTIONS

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

www.GEAppliances.com

■ Do not heat unopened food containers.

Pressure could build up and the container could burst, causing an injury.

■ Keep the oven vent unobstructed.

■ Keep the oven free from grease buildup.

■ Place the oven rack in the desired position

while the oven is cool. If racks must be handled when hot, do not let pot holder contact the heating elements.

■ When using cooking or roasting bags in the

oven, follow the manufacturer’s directions.

■ Pulling out the rack to the stop-lock is a

convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls.

■ Do not use the oven to dry newspapers.

If overheated, they can catch on fire.

■ Do not use the oven for a storage area. Items

stored in an oven can ignite.

■ Do not leave paper products, cooking utensils

or food in the oven when not in use.

■ Do not use aluminum foil to line oven bottoms,

except as suggested in this manual. Improper installation of aluminum foil may result in a risk of electric shock or fire.

Stand away from the range when opening the oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes.

WARNING!

OVEN

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used.

■ Do not clean the door gasket. The door gasket

is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

■ Before self-cleaning the oven, remove the

convection roasting rack, broiler pan, grid and other cookware.

■ Shiny, silver-colored oven racks (on some

models) should be removed from the oven before beginning the self-clean cycle.

■ Gray porcelain-coated oven racks (on some

models) may be cleaned in the oven during the self-clean cycle.

■ Be sure to wipe up excess spillage before

starting the self-cleaning operation.

■ If the self-cleaning mode malfunctions, turn

the oven off and disconnect the power supply. Have it serviced by a qualified technician.

■ Clean only parts listed in this Owner’s Manual.

SELF-CLEANING UPPER OVEN

■ The purpose of the WARM setting of the lower

oven drawer is to hold hot cooked foods at serving temperature. Always start with hot food; cold food cannot be heated or cooked in the WARM setting of the lower oven drawer.

■ Do not use the drawer to dry newspapers.

If overheated, they can catch on fire.

■ Do not leave paper products, plastics, canned

food or combustible materials in the drawer.

■ Never leave jars or cans of fat drippings in or

near your drawer.

■ Do not warm food in the drawer for more than

two hours.

■ Never place, use or self-clean the lower oven

drawer pan in the upper oven.

■ Do not touch the heating element or the interior

surface of the drawer. These surfaces may be hot enough to burn.

REMEMBER: The inside surface of the drawer may be hot when the drawer is opened.

■ Use care when opening the drawer. Open the

drawer a crack and let hot air or steam escape before removing or replacing food. Hot air or steam which escapes can cause burns to hands, face and/or eyes.

■ Do not use aluminum foil to line the lower

oven drawer. Foil is an excellent heat insulator and will trap heat beneath it. This will upset the performance of the drawer and it could damage the interior finish.

LOWER OVEN DRAWER (on some models)

Temperature Limiter

Every radiant surface unit has a temperature limiter.

The temperature limiter protects the glass cooktop from getting too hot.

The temperature limiter may cycle the units off for a time if:

■ The pan boils dry.

■ The pan bottom is not flat.

■ The pan is off center.

■ There is no pan on the unit.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

About the radiant surface units.

NOTE: Throughout this manual, features and appearance may vary from your model.

Never cook directly on the glass. Always use cookware.

About the radiant surface units

The radiant cooktop features heating units beneath a smooth glass surface.

Cooktop temperatures increase with the number of surface units that are on. With 3 or 4 units turned on, surface temperatures are high. Always use caution when touching the cooktop.

An indicator light will come on when the surface unit is turned on.

The appropriate HOT SURFACE indicator light will glow when its corresponding radiant element is turned on and will remain on until the surface has cooled below 150°F.

NOTE:

Hot surface indicator light will:

■ Come on when the surface unit is

turned on.

■ Stay on even after the unit is turned off.

■ Glow brightly until the unit has cooled

below 150°F.

NOTE: A slight odor is normal when a new cooktop is used for the first time. It is caused by the heating of new parts and insulating materials and will disappear in a short time.

NOTE: On models with light-colored glass cooktops, it is normal for the cooking zones to change color when hot or cooling down. This is temporary and will disappear as the glass cools to room temperature.

It is safe to place hot cookware from the oven or surface on the glass cooktop when the surface is cool.

Even after the surface units are turned off, the glass cooktop retains enough heat to continue cooking. To avoid overcooking, remove pans from the surface units when the food is cooked. Avoid placing anything on the surface unit until it has cooled completely.

■ Water stains (mineral deposits) are removable

using the cleaning cream or full strength white vinegar.

■ Use of window cleaner may leave an iridescent

film on the cooktop. The cleaning cream will remove this discoloration.

■ Don’t store heavy items above the cooktop.

If they drop onto the cooktop, they can cause damage.

■ Do not use the surface as a cutting board.

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;;;

;

;;;

;

;;

;

;;;;

;

;;

;

;;

;

;;

Always place the pan in the center of the surface unit you are cooking on.

;

;;

;

;;

;

;;;;

;

;;

;

;;

;

Do not slide cookware across the control or cooktop surface because it can scratch the glass. The glass is scratch-resistant, not scratchproof.

SURFACE COOKING

OFF CENTER

DRAGGING

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Stainless Steel:

recommended

Aluminum:

heavy weight recommended

Good conductivity. Aluminum residues sometimes appear as scratches on the cooktop, but can be removed if cleaned immediately. Because of its low melting point, thin weight aluminum should not be used.

Copper Bottom:

recommended

Copper may leave residues which can appear as scratches. The residues can be removed, as long as the cooktop is cleaned immediately. However, do not let these pots boil dry. Overheated metal can bond to glass cooktops. An overheated copper bottom pot will leave a residue that will permanently stain the cooktop if not removed immediately.

Porcelain Enamel Covered Cast Iron:

recommended

As long as the cookware is covered completely with porcelain enamel, this cookware is recommended. Caution is recommended for cast iron cookware that is not completely covered with smooth porcelain enamel, as it may scratch the glass ceramic cooktop.

Glass-ceramic:

usable, but not recommended

Poor performance. May scratch the surface.

Stoneware:

usable, but not recommended

Poor performance. May scratch the surface.

Check pans for flat bottoms by using a straight edge.

Pans with rounded, curved, ridged or warped bottoms are not recommended.

Home Canning Tips

Be sure the canner is centered over the surface unit.

Make sure the canner is flat on the bottom.

To prevent burns from steam or heat, use caution when canning.

Use recipes and procedures from reputable sources. These are available from manufacturers such as Ball®and Kerr®and the Department of Agriculture Extension Service.

Flat-bottomed canners are recommended. Use of water bath canners with rippled bottoms may extend the time required to bring the water to a boil.

www.GEAppliances.com

The following information will help you choose cookware which will give good performance on glass cooktops.

Use only flat-bottomed woks.

Wok Cooking

We recommend that you use only a flat-bottomed wok. They are available at your local retail store.

Do not use woks that have support rings.

Do not use round-bottom woks. You could be seriously burned if the wok tipped over.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

To turn on a single surface unit:

Touch the ON/OFF pad, then touch the (+)/(–) pad.

Use the (+)/(–) pad to choose the desired power setting.

To turn off a single surface unit, touch the ON/OFF pad again.

Single Surface Unit—Cook Settings

Surface Unit Cook Settings

The controls for the radiant surface units allow for 10 different heat settings: LO, 2–9 and HI. The heating element may not visibly glow at low heat settings.

NOTE: When changing from a high heat setting to a lower heat setting, the surface unit may stop glowing. This is normal. The unit is still on and hot.

NOTE: This cooktop has a rapid heat-up feature. If the cooktop is cool when turned on, it will glow red for a short period of time until the desired power setting is reached.

Tri-Ring Burner

To use the multi-size burner:

Touch the ON/OFF pad for the front right surface unit.

Use the (+)/(–) pad to set the desired power setting.

Touch the BURNER SIZE pad as needed to select the desired burner size. When first selected, the 12″ size is on. Touch again for the 9″ and again for the 6″.

The light next to the BURNER SIZE pad indicates which size surface unit is on.

To turn the surface unit off, touch the ON/OFF pad.

■ At high or medium-high settings, never

leave food unattended. Boilovers cause smoking; greasy spillovers may catch on fire.

■ It is safe to place hot cookware

from the oven or surface units on the glass-ceramic surface when it is cool.

NOTE: Cooktop temperatures increase with the number of surface units that are on. With 3 or more units turned on, surface temperatures are high, so be careful when touching the cooktop. The hot surface indicator light(s) will remain lit after the surface unit is off until the surface has cooled below 150°F.

Using Heat Settings

Using the surface units—Touch pad-controlled models.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Precise Warm Feature

To turn on the precise warm feature:

Touch the ON/OFF pad, then touch the PRECISE WARM pad. The surface unit will turn on to warmer setting W3 (medium setting).

Use the (+)/(–) pad to choose additional settings between W1 (lowest setting) and W5 (highest setting).

To change from the warmer settings to regular cooking settings, press the PRECISE WARM pad again. The surface unit will be on power setting LO. The surface unit may then be set to the desired regular cooking setting using the (+)/(–) pads. To turn off the surface unit, whether using regular cooking settings or warmer settings, touch the ON/OFF pad.

Food Type Control Setting

Breads/Pastries W1 Vegetables W2 Sauces W3 Soups (cream) W3 Stews W4 Hot Beverages W5 Soups (liquid) W5

The chart above shows initial suggested settings only. The temperature, type and amount of food, type of pan and the time held will affect the quality of the food.

CAUTION: Do not warm food on a

PRECISE WARM surface unit setting for more

than 2 hours.

Do not use plastic wrap to cover food. Plastic may melt onto the surface and be very difficult to remove.

Use only cookware recommended for top-of-range cooking.

CAUTION: Always start with

hot food. Do not use to heat cold food.

Placing uncooked or cold food on a precise warm setting could result in foodborne illness.

For best results, all food on PRECISE WARM should be covered with a lid or

aluminum foil.

Always use pot holders or oven mitts when removing food from a precise warm surface unit as cookware will be hot.

A hot surface indicator light will glow when the glass surface is hot and will remain on until the surface has cooled below 150°F.

www.GEAppliances.com

All single burners may be used for either regular cooking or precise warming.

Consumer Support

Troubleshooting Tips

Care and Cleaning Operating Instructions Safety Instructions

How to Set

Push the knob in and turn in either direction to the setting you want.

At both OFF and HI the control clicks into position. You may hear slight clicking sounds during cooking, indicating the control is keeping the power level you set.

A HOT SURFACE indicator light, on the cooktop, will glow when any radiant element is turned on. It will remain on until the surface is cooled to approximately 150°F.

Hot surface indicator light will:

■ come on when the unit is hot to the touch.

■ stay on even after the unit is turned off.

■ glow until the unit is cooled to approximately

150°F.

Be sure you turn the control knob to OFF when you finish cooking.

Using the Bridge Burner (on some models)

To use the bridge burner, turn the left front control knob to the BRIDGE BURNER settings.

For full bridge surface unit operation, also turn on the left rear surface unit.

To use only the front surface unit, turn the control knob to the FRONT BURNER settings.

Using the surface units—Knob-controlled models.

Tri-Ring Surface Element (on some models)

The rear center surface element offers 3 cooking areas to match the size of the cookware you are using.

To use the largest cooking area, push in and turn the SELECTOR knob to 12 ″. Push and turn the control knob to the desired setting.

To use the medium cooking area, press and turn the SELECTOR knob to 9 ″. Push down and turn the control knob to the desired setting.

To use the smallest cooking area, turn the

SELECTOR

knob to 6″. Push and turn

the control knob to the desired setting. This will activate only the smallest inside heating area.

BURNER

SIZE

12"

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

www.GEAppliances.com

Using the Warming Zone (on some models)

The WARMING ZONE is located in the back center of the glass surface. Always start with hot food. Do not use to heat cold food. Placing uncooked or cold food on the WARMING ZONE could result in foodborne illness.

To use the WARMING ZONE:

Touch the WARMING ZONE ON/OFF pad.

Touch the 1 (LO), 2 (MED) or 3 (HI) pad to select the desired control setting.

Touch the START pad. “WARMER ON” will be in the control display.

To turn off the WARMING ZONE:

Touch the WARMING ZONE ON/OFF pad.

NOTE: The CLEAR/OFF pad will not turn off the WARMING ZONE.

For best results, all foods on the WARMING ZONE should be covered with a lid or aluminum foil.

Always use pot holders or oven mitts when removing food from the WARMING ZONE, as cookware will be hot.

A HOT surface indicator light will glow when the glass surface is hot and will remain on until the surface is cool enough to touch. Lower settings may not heat the glass surface enough to cause the HOT surface indicator light to come on.

NOTE: The WARMING ZONE will not glow red like the cooking elements.

Food Type Control Setting

Sauces LO Soups (cream) Medium Stews Medium Vegetables Medium Hot Beverages HI Soups (other than cream) HI Breads/Pastries LO

The chart above shows initial suggested settings only. The temperature, type and amount of food, type of pan and the time held will affect the quality of the food.

CAUTION: Do not leave food on the

WARMING ZONE for more than 2 hours.

■ Do not use plastic wrap to cover food. Plastic

may melt onto the surface and be very difficult to clean.

■ Use only cookware recommended for

top-of-range cooking.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

BAKE Pad

Touch to select the bake function.

BROIL HI/LO Pad

Touch to select the broil function.

CONVECTION BAKE Pad

Touch to select baking with the convection function.

CONVECTION ROAST Pad

Touch to select roasting with the convection function.

PROOF Pad

Touch to select a warm environment useful for rising yeast-leavened products.

START Pad

Must be touched to start any cooking or cleaning function.

Display

Shows the time of day, oven temperature, whether the oven is in the bake, broil or self-cleaning mode and the times set for the timer or automatic oven operations.

If “F– and a number or letter” flash in the display and the oven control signals, this indicates a function error code. Touch the CLEAR/OFF pad. Allow the oven to

cool for one hour. Put the oven back into operation. If the function error code repeats, disconnect the power to the oven and call for service.

If your oven was set for a timed oven operation and a power outage occurred, the clock and all

programmed functions must be reset.

The time of day will flash in the display when there has been a power outage.

SELF CLEAN STD/LO Pad

Touch to select self-cleaning function. See the Using the self-cleaning oven section.

OVEN LIGHT ON/OFF Pad

Touch to turn the oven light on or off.

DELAY START Pad

Use along with COOKING TIME or SELF CLEAN STD/LO pads to set the oven

to start and stop automatically at a time you set.

COOKING TIME Pad

Touch this pad and then touch the number pads to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out.

CLEAR/OFF Pad

Touch to cancel ALL oven operations except the clock and timer.

CLOCK Pad

Touch before setting the clock.

Number Pads

Use to set any function requiring numbers such as the time of day on the clock, the timer, the oven temperature, the internal food temperature, the start time and length of operation for timed baking and self-cleaning.

KITCHEN TIMER ON/OFF Pad

Touch to select the timer feature.

PROBE Pad

Touch when using the probe to cook food.

WARM Pad

Touch to keep cooked foods warm. See the

How to Set the Oven for Warming section.

RANGE LOCKOUT Pad

Touch this pad, then touch START to lock/unlock the range touch pad controls.

Oven Control, Clock and Timer Features and Settings

Features and appearance may vary.

On some models

Using the oven controls.

NOTE: Throughout this manual, features and appearance may vary from your model.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

BAKE Pad

Touch to select the bake function.

BROIL HI/LO Pad

Touch to select the broil function.

CONVECTION BAKE Pad

Touch to select baking with the convection function.

CONVECTION ROAST Pad

Touch to select roasting with the convection function.

PROOF Pad

Touch to select a warm environment useful for rising yeast-leavened products.

START Pad

Must be touched to start any cooking or cleaning function.

Display

Shows the time of day, oven temperature, whether the oven is in the bake, broil or self-cleaning mode and the times set for the timer or automatic oven operations.

If “F– and a number or letter” flash in the display and the oven control signals, this indicates a function error code. Touch the CLEAR/OFF pad. Allow the oven to

cool for one hour. Put the oven back into operation. If the function error code repeats, disconnect the power to the oven and call for service.

If your oven was set for a timed oven operation and a power outage occurred, the clock and all

programmed functions must be reset.

The time of day will flash in the display when there has been a power outage.

SELF CLEAN STD/LO Pad

Touch to select self-cleaning function. See the Using the self-cleaning oven section.

OVEN LIGHT ON/OFF Pad

Touch to turn the oven light on or off.

DELAY START Pad

Use along with COOKING TIME or SELF CLEAN STD/LO pads to set the oven

to start and stop automatically at a time you set.

COOKING TIME Pad

Touch and then touch the number pads to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out.

CLEAR/OFF Pad

Touch to cancel ALL oven operations except the clock and timer.

CLOCK Pad

Touch before setting the clock.

Number Pads

KITCHEN TIMER ON/OFF Pad

Touch to select the timer feature.

PROBE Pad

Touch when using the probe to cook food.

WARM Pad

Touch to keep cooked foods warm. See the

How to Set the Oven for Warming section.

WARMING ZONE ON/OFF Pad

Touch to select the warming zone function.

Oven Control, Clock and Timer Features and Settings

Features and appearance may vary.

On some models

www.GEAppliances.com

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Aluminum Foil

You can use aluminum foil to line the broiler pan and broiler grid. However, you must mold the foil tightly to the grid and cut slits in it just like the grid.

Without the slits, the foil will prevent fat and meat juices from draining into the broiler pan. The juices could become hot enough to catch on fire. If you do not cut the slits, you are essentially frying, not broiling.

Do not use aluminum foil on the bottom of the oven.

Never entirely cover a rack with aluminum foil. This will disturb the heat circulation and result in poor baking.

A smaller sheet of foil may be used to catch a spillover by placing it on a lower rack several inches below the food.

Cut slits in the foil just like the grid.

Preheating and Pan Placement

Preheat the oven if the recipe calls for it. Preheating is necessary for good results when baking cakes, cookies, pastry and breads.

To preheat, set the oven at the correct temperature. The control will beep when the oven is preheated and the display will show your set temperature. This will take approximately 10–15 minutes.

Baking results will be better if baking pans are centered in the oven as much as possible. If baking with more than one pan, place the pans so each has at least 1″ to 11⁄2″ of air space around it.

If baking four cake layers at the same time, place two layers on rack B and two layers on rack D. Stagger pans on the rack so one is not directly above the other.

Type of Food Rack Position

Frozen pies (on cookie sheet) D Angel food cake A Bundt or pound cakes B or C Biscuits, muffins, brownies, C or D

cookies, cupcakes, layer cakes, pies

Casseroles C or D Turkey on offset rack A

Before you begin…

The racks have stops, so that when placed correctly on the supports, they will stop before coming completely out, and will not tilt.

When placing and removing cookware, pull the rack out until it stops.

On some models, the bake heating element is under the oven floor. Do not place foods on the oven bottom for cooking.

To remove a rack, pull it toward you, tilt the front end up and pull it out.

To replace, place the end of the rack (stop-locks) on the support, tilt up the front and push the rack in.

CAUTION: When you are using a

rack in the lowest position (A), you will need to use caution when pulling the rack out. We recommend that you pull the rack out several inches and then, using two pot holders, pull the rack out by holding the sides of it. The rack is low and you could be burned if you place your hand in the middle of the rack and pull all the way out. Be very careful not to burn your hand on the door when using the rack in the lowest position (A).

The oven has 6 rack positions.

How to Set the Upper Oven for Baking or Roasting

Touch the BAKE pad.

Touch the number pads to set the desired temperature.

Touch the START pad.

NOTE: You will hear the convection fan while the oven is preheating. The fan will stop after the oven is preheated and the display shows your set temperature. This is normal.

Check food for doneness at minimum time on recipe. Cook longer if necessary.

Touch the CLEAR/OFF pad when cooking is complete.

Do not place foods directly on the oven floor.

Offset rack

Using the upper oven.

To avoid possible burns, place the racks in the desired position before you turn the oven on.

Flat rack

Offset rack

How to Set the Upper Oven for Broiling

Leave the door open to the broil stop position. The door stays open by itself, yet the proper temperature is maintained in the oven.

Place the meat or fish on the broiler grid in the broiler pan.

Follow suggested rack positions in the Broiling Guide.

Touch the BROIL HI/LO pad once for

HI Broil.

To change to LO Broil, touch the BROIL HI/LO pad again.

Use LO Broil to cook foods such as poultry or thick cuts of meat thoroughly without over-browning them.

Touch the START pad.

When broiling is finished, touch the

CLEAR/OFF pad.

NOTE: Broil and self-clean settings will not work

if the temperature probe is plugged in.

The size, weight, thickness, starting temperature and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature.

† The U.S. Department of Agriculture

says “Rare beef is popular, but you should know that cooking it to only 140°F means some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)

If your range is connected to 208 volts, rare steaks may be broiled by preheating the broiler and positioning the oven rack one position higher.

www.GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Broiling Guide

Quantity and/ Shelf First Side Second Side

Food or Thickness Position Time (min.) Time (min.) Comments

Ground Beef 1 lb. (4 patties) E 9 6 Space evenly. Up to 8

Well Done 1/2 to 3/4″ thick E 11 10 patties take about the

same time.

Beef Steaks

Rare† 1″ thick F 7 5 Steaks less than 1″ Medium 1 to 11⁄2 lbs. E 9 6–7 thick cook through Well Done E 11 8–9 before browning. Pan

frying is recommended. Slash fat.

Rare† 11⁄2″ thick D 14 11 Medium 2 to 21⁄

2 lbs. D 18 14–16

Well Done D 22 20 Chicken 1 whole cut up C 25 10 Broil skin-side-down

2 to 21⁄2 lbs., first. split lengthwise 2 Breasts C 25 10–15

Lobster Tails 2–4 C 18–20 Do not Cut through back of

10 to 12 oz. each turn shell. Spread open.

over. Brush with melted

butter before broiling and after half of broiling time.

Fish Fillets 1/4 to 1/2″ thick E 6 5 Handle and turn very

carefully. Brush with lemon butter before and during cooking, if desired.

Ham Slices 1/2″ thick D 6 6 Increase time 5 to 10 (precooked) minutes per side for

11⁄2″ thick or home- cured ham.

Pork Chops 2 (1/2″ thick) E 10 10 Slash fat. Well Done 2 (1″ thick) about 1 lb. D 15 15

Salmon Steaks 2 (1″ thick) D 10 7–8 Grease pan. Brush

4 (1″ thick) about 1 lb. D 12 10 steaks with melted

butter.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

How to Set an Immediate Start and Automatic Stop

The oven will turn on immediately and cook for a selected length of time. At the end of the cooking time the oven will turn off automatically.

Touch the BAKE pad.

Touch the number pads to set the desired oven temperature.

Touch the COOKING TIME pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

Touch the number pads to set the desired length of cooking time. The minimum cooking time you can set is 1 minute.

The oven temperature that you set and the cooking time that you entered will be in the display.

Touch the START pad.

NOTE: An attention tone will sound if you are using timed baking and do not touch the START pad.

The oven will turn ON, and the display will show the cooking time countdown and the changing temperature starting at 100°F. (The temperature display will start to change once the oven temperature reaches 100°F.) When the oven reaches the temperature you set, 3 beeps will sound.

The oven will continue to cook for the set amount of time, then turn off automatically, unless the WARM feature was set. See the How to Set the Oven for Warming section.

Touch the CLEAR/OFF pad to clear the display if necessary. Remove the food from the oven. Remember, even though the oven turns off automatically, food left in the oven will continue cooking after the oven turns off.

How to Set a Delayed Start and Automatic Stop

The oven will turn on at the time of day you set, cook for a specific length of time and then turn off automatically.

Make sure the clock shows the correct time of day.

Touch the BAKE pad.

Touch the number pads to set the desired oven temperature.

Touch the COOKING TIME pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

Touch the number pads to set the desired length of cooking time. The minimum cooking time you can set is 1 minute.

The oven temperature that you set and the cooking time that you entered will be in the display.

Touch the DELAY START pad.

Touch the number pads to set the time of day you want the oven to turn on and start cooking.

Touch the START pad.

NOTE: An attention tone will sound if you are using timed baking and do not touch the START pad.

NOTE: If you would like to check the times you have set, touch the DELAY START pad to check the start time you have set or touch the COOKING TIME pad to check the length of cooking time you have set.

When the oven turns ON at the time of day you set, the display will show the cooking time countdown and the changing temperature starting at 100°F. (The temperature display will start to change once the oven temperature reaches 100°F.) When the oven reaches the temperature you set, beeps will sound.

The oven will continue to cook for the set amount of time, then turn off automatically, unless the WARM feature was set. See the How to Set the Oven for Warming section.

Using the timed baking and roasting features.

NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for

more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Insert the probe fully into the food.

Plug the probe into the outlet in the oven. Make sure it’s pushed all the way in. Close the oven door. Make sure the probe cable is not touching the broil element.

Touch the PROBE pad.

Touch the number pads to set the desired internal food or meat temperature. The maximum internal temperature for the food that you can set is 200ºF.

Touch the BAKE pad.

Touch the number pads to set the desired oven temperature.

Touch the START pad.

The display will flash if the probe is inserted into the outlet and you have not set a probe temperature and touched the START pad.

After the internal temperature of the food reaches 100°F, the changing internal temperature will be shown in the display.

When the internal temperature of the food reaches the number you have set, the probe and the oven turn off and the oven control signals. To stop the signal, touch the CLEAR/OFF pad. Use hot pads to remove the probe from the food. Do not use tongs to pull on it—they might damage it.

■ If the probe is removed from the oven while

probe cooking, the oven will not automatically turn off.

To change the oven temperature during the Bake/Roast cycle, touch the BAKE pad and then the number pads to set the new temperature.

■ You can use the Kitchen Timer even though

you cannot use timed oven operations while using the probe.

Use of probes other than the one provided with this product may result in damage to the probe or oven control.

Use the handles of the probe and plug when inserting and removing them from the food and outlet.

■ To avoid damaging your probe, do not use

tongs to pull on the cable when removing it.

■ To avoid breaking the probe, make sure food

is completely defrosted before inserting.

After preparing the meat and placing it on a trivet or on the broiler pan grid, follow these directions for proper probe placement.

Insert the probe completely into the meat. It should not touch bone, fat or gristle.

NOTE: Failure to fully insert the probe into the meat may result in poor cooking performance because the probe will sense the oven air vs. the food temperature.

■ Never leave your probe inside the oven during

a self-cleaning or broil cycle.

■ Do not store the probe in the oven.

CAUTION: To prevent possible burns,

do not unplug the probe from the oven outlet until the oven has cooled.

For roasts with no bone, insert the probe into the meatiest part of the roast. For bone-in ham or lamb, insert the probe into the center of the lowest large muscle.

Insert the probe into the center of dishes such as meat loaf or casseroles.

Insert the probe into the meatiest part of the inner thigh from below and parallel to the leg of a whole turkey.

NOTE: Self-clean and Broil settings will not work if the temperature probe is plugged in.

The temperature probe has a skewer-like probe at one end and a plug at the other end that goes into the outlet in the oven.

How to Set the Upper Oven For Baking/Roasting When Using the Probe

(on some models)

Plug

Cable

Handles

Probe

Using the probe. (on some models) www.GEAppliances.com

For many foods, especially roasts and poultry, internal food temperature is the best test for doneness. The temperature probe takes the guesswork out of roasting by cooking foods to the exact doneness you want.

Read and remove label

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

To Set the Clock

The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The time of day cannot be changed during a timed baking or self-cleaning cycle.

Touch the CLOCK pad.

Touch the number pads.

Touch the START pad.

Make sure the clock is set to the correct time of day.

To Set the Kitchen Timer

Touch the KITCHEN TIMER ON/OFF pad.

Touch the number pads until the amount of time you want shows in the display. For example, to set 2 hours and 45 minutes, touch 2, 4 and 5 in that order. If you make a mistake touch the KITCHEN TIMER ON/OFF pad and begin again.

Touch the START pad.

After touching the START pad, SET disappears; this tells you the time is counting down, although

the display does not change until one minute has passed. Seconds will not be shown in the display until the last minute is counting down.

When the Kitchen Timer reaches :00, the control will beep 3 times followed by one beep every 6 seconds until the KITCHEN TIMER ON/OFF pad is touched.

The 6-second tone can be canceled by following the steps in the Special features of your oven control section under Tones at the End of a Timed Cycle.

The Kitchen Timer is a minute timer only. The Kitchen Timer does not control

oven operations. The maximum setting on the Kitchen Timer is 9 hours and 59 minutes.

To Reset the Kitchen Timer

If the display is still showing the time remaining, you may change it by touching the KITCHEN TIMER ON/OFF pad, then touch the number pads until the time you want appears in the display.

If the remaining time is not in the display (clock, delay start or cooking time are in the display), recall the remaining time by touching the KITCHEN TIMER ON/OFF pad and then touching the number pads to enter the new time you want.

To Cancel the Kitchen Timer

Touch the KITCHEN TIMER ON/OFF pad twice.

Your control will allow you to lock out the touch pads so they cannot be activated when pressed.

To lock/unlock the touch pad controls:

Touch the RANGE LOCKOUT pad, then touch the START pad.

The surface unit displays (on models so equipped) will show LC and the oven display will show Loc On for several seconds, then they will go blank until a cooking pad is touched.

To unlock the control, touch the RANGE LOCKOUT pad, then touch the START pad.

If the range control is locked and a cooking pad is touched, the appropriate surface display (on models so equipped) or the oven display will show that the control is locked.

■ The RANGE LOCKOUT mode affects all

touch pads. No touch pads will work when this feature is activated.

Range Lockout (on some models)

Using the clock, kitchen timer and control lockout.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

To Adjust the Thermostat

Touch the BROIL HI/LO and BAKE pads at the same time until the display shows SF.

Touch the BAKE pad. A two digit number shows in the display.

Touch BAKE again to alternate between increasing and decreasing the oven temperature.

The oven temperature can be adjusted up to (+) 35ºF hotter or (-) 35ºF cooler. Touch the number pads the same way you read them. For example, to change the oven temperature 15ºF, touch 1 and 5.

When you have made the adjustment, touch the START pad to go back to the time of day display. Use your oven as you would normally.

Adjust the upper oven thermostat—Do it yourself!

You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself.

Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven. These thermometers may vary 20–40 degrees.

NOTE: This adjustment will only affect baking and roasting temperatures; it will not affect broiling, convection or self-cleaning temperatures. The adjustment will be retained in memory after a power failure.

The type of margarine will affect baking performance!

Most recipes for baking have been developed using high fat products such as butter or margarine (80% fat). If you decrease the fat, the recipe may not give the same results as with a higher fat product.

Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low fat spreads. The lower the fat content of a spread product, the more noticeable these differences become.

Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low fat spreads, on the other hand, contain less fat and more water. The high moisture content of these spreads affects the texture and flavor of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least 70% vegetable oil.

Your control will allow you to lock out the touch pads so they cannot be activated when pressed.

To lock/unlock the touch pad controls:

Touch and hold the 9 and 0 pads at the same time until the control beeps.

The oven display will show Loc On for several seconds, then it will go blank until a cooking pad is touched.

To unlock the control, touch and hold the 9 and 0 pads at the same time until the control beeps.

If the range control is locked and a cooking pad is touched, the oven display will show that the control is locked.

■ On models with CONTROL LOCKOUT only,

the oven will be locked out. The knob-controlled surface units will still be active.

Control Lockout (on some models)

www.GEAppliances.com

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the lower oven drawer. (on some models)

To Use the Lower Oven Drawer

Push in and turn the lower oven drawer knob to any desired setting.

Allow the lower oven drawer to preheat.

■ The ON signal light is located above the

knob and glows when the knob is in the ON position. It remains ON until the knob is moved to the OFF position.

■ The “Heating” signal light is located

below the knob and glows when the heating elements are active. Preheat is complete after the “Heating” signal has turned off for the first time after the knob is turned on.

NOTES:

■ Always use the included drawer rack when

using the lower oven drawer.

■ The lower oven drawer cannot be used during

a self-clean cycle of the upper oven.

■ Do not put food, foil or cookware directly on

the bottom of the lower oven drawer. Always use the included drawer rack.

■ If foods require a cover, use only foil or lids

able to withstand baking temperatures. Do not use plastic.

■ Maximum height of foods that can be baked

in the lower oven drawer is 3

⁄2″.

■ Do not put liquid or water in the lower oven

drawer.

■ Never place plastics, paper, canned foods or

combustible material in the lower oven drawer.

The lower oven drawer may be used to bake foods using the same times and temperatures as a standard oven. Foods ideal for baking in the lower oven drawer include pizza, frozen foods, casseroles, biscuits, rolls and many desserts.

Push in and turn the lower oven drawer knob to any desired setting.

When Using the Lower Oven Drawer Warm Setting

The WARM SETTING of the lower oven drawer can be used to keep hot cooked foods at serving temperatures. Always start with hot food. Do not use the WARM SETTING to heat cold food other than crisping crackers, chips or dry cereal.

NOTE: The beginning temperature of the food, the amount of food, the type of food, the container and the amount of time the food is in the drawer will affect the quality and ending temperature of the food.

Push in and turn the control knob to the warm setting.

The lower oven drawer uses less energy than the upper oven. Allow the following approximate times for preheating:

Desired Lower Preheat Oven Temperature Time

WARM 10 minutes

350°F 15 minutes

425°F 25 minutes

Because heated air is circulated evenly throughout the oven, foods can be baked with excellent results using multiple racks.

Multi-rack baking may increase cook times slightly for some foods but the overall result is time saved. Cookies, muffins, biscuits and other quickbreads give very good results with multi-rack baking.

To cook food on more than one rack in convection bake, use CONVECTION BAKE MULTI.

When baking on 3 racks, place one offset rack in the third (C) position, the flat rack in the fourth (D) position and one offset rack in the sixth (F) position.

For two-rack baking, place one offset rack in the second (B) rack position. Place the flat rack in the fourth (D) rack position.

Multi-Rack Convection Baking

Multi-rack position.

When convection baking with only 1 rack, use CONVECTION BAKE 1 RACK and follow the rack positions recommended in the Using the oven section.

■ Ideal for baked foods cooked on 1 rack.

1-Rack Convection Baking

The convection oven comes with two convection baking modes started by touching the CONVECTION BAKE MULTI/ 1 RACK pad once or twice, depending on your cooking need:

MULTI—for convection cooking on more than one rack. Touch the CONVECTION

BAKE MULTI/1 RACK pad once. See the Multi-Rack Convection Baking section below.

1 RACK—for convection cooking on one rack only. Touch the CONVECTION BAKE

MULTI/1 RACK pad twice. See the 1-Rack Convection Baking section below.

Introduction

Convection Fan Operation

In a convection oven, a fan circulates hot air over, under and around the food.

This circulating hot air is evenly distributed throughout the oven cavity. As a result, foods are evenly cooked and browned—often in less time with convection heat.

NOTE: To maximize cooking evenness, the fan is designed to rotate in both directions, with a pause in between. This is normal.

The convection fan shuts off when the oven door is opened. DO NOT leave the door open for long periods of time while using convection cooking or you may shorten the life of the convection heating element.

Using the convection oven. (on some models) www.GEAppliances.com

Adapting Recipes…

You can use your favorite recipes in the convection oven.

When convection baking, the Auto Recipe™Conversion feature automatically reduces the set regular baking temperature by the recommended 25°F. See Auto Recipe™Conversion in the Special Features section.

■ Use pan size recommended.

■ Some package instructions for frozen

casseroles or main dishes have been developed using commercial convection ovens. For best results in this oven, preheat the oven and use the temperature on the package.

Flat rack

Offset racks

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Touch the CONVECTION BAKE MULTI/ 1 RACK pad once for multi-rack

convection baking. This mode is used for cooking food items on more than one rack (i.e., 2, 3 or more racks) at the same time in convection bake. See the Multi-Rack Convection Baking section for more information.

Touch the CONVECTION BAKE MULTI/ 1 RACK pad twice for one rack convection baking. This mode is used for cooking food items on only one rack in convection bake.

Touch the CONVECTION ROAST pad for convection roasting.

Touch the number pads to set the oven temperature.

Touch the START pad.

NOTE: If the Auto Recipe™Conversion Feature is on, it will automatically reduce the set regular baking temperature by 25°F to the appropriate convection temperature in convection bake mode.

See Auto Recipe™Conversion in the Special Features section.

To change the oven temperature, touch the CONVECTION BAKE MULTI/1 RACK or CONVECTION ROAST pad and then the number pads to set the new temperature.

When the oven starts to heat, the changing temperature, starting at 100°F, will be displayed. When oven reaches the temperature you set, 3 beeps will sound.

Touch CLEAR/OFF pad when finished.

■ You will hear a fan while cooking with

convection. The fan will stop when the door is opened, but the heat will not turn off.

■ You may hear the oven clicking during

baking. This is normal.

■ In convection bake modes, for maximum cooking

evenness, the fan is designed to rotate in both directions, with a pause in between. This is normal.

Cookware for Convection Cooking

Before using your convection oven, check to see if your cookware leaves room for air circulation in the oven. If you are baking with several pans, leave space between them. Also, be sure the pans do not touch each other or the walls of the oven.

Paper and Plastic

Heat-resistant paper and plastic containers that are recommended for use in regular baking can also be used for convection baking, but should not be used at temperatures higher than the temperature recommended by the cookware manufacturer. Plastic cookware

that is heat-resistant to temperatures of 400°F can also be used.

Metal and Glass

Any type of cookware will work in your convection oven. However, metal pans heat the fastest and are recommended for convection baking.

■ Darkened or matte-finished pans will bake

faster than shiny pans.

■ Glass or ceramic pans cook more slowly.

For recipes like oven-baked chicken, use a pan with low sides. Hot air cannot circulate well around food in a pan with high sides.

How to Set the Upper Oven for Convection Baking or Roasting

Roasting rack

Grid

Post

Broiler pan

When baking cookies, you will get the best results if you use a flat cookie sheet instead of a pan with low sides.

Using the convection oven. (on some models)

Convection Roast

■ Good for large tender cuts of meat, uncovered.

The convection fan circulates the heated air evenly over and around the food. Meat and poultry are browned on all sides as if they were cooked on a rotisserie. Using the roasting rack provided, heated air will be circulated over, under and around the food being roasted. The heated air seals in juices quickly for a moist and tender product while, at the same time, creating a rich golden brown exterior.

When you are convection roasting, it is important that you use the broiler pan

and grid and the special roasting rack for best convection roasting results. The pan is used to catch grease spills and the grid is used to prevent grease spatters, while the rack allows the heated air to circulate under the meat and increase browning on the underside of the meat or poultry.

■ Place the grid on the broiler pan

and put the roasting rack over them, making sure the posts on the roasting rack fit into the holes in broiler pan.

■ Place the meat on the roasting rack.

How to Set an Immediate Start and Automatic Stop

The upper oven will turn on immediately and cook for a selected length of time. At the end of the cooking time, the oven will turn off automatically.

Make sure the clock shows the correct time of day.

Touch the CONVECTION BAKE MULTI/1 RACK pad once for multirack convection baking. This mode is used for cooking food items on more than one rack (i.e., 2, 3 or more racks) at the same time in convection bake. See Multi-Rack Baking section for more information.

Touch the CONVECTION BAKE MULTI/ 1 RACK pad twice for one rack convection baking. This mode is used for cooking food items on only one rack in convection bake.

Touch the CONVECTION ROAST pad for convection roasting.

ouch

the number pads to set the

oven temperature.

ouch

the COOKING TIME pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

Touch the number pads to set the desired length of cooking time. The minimum cooking time you can set is 1 minute. The oven temperature that you set and the cooking time that you entered will be in the display.

Touch the START pad.

The oven will turn ON, and the display will show the cooking time countdown and the changing temperature starting at 100°F. (The temperature display will start to change once the oven temprature reaches 100°F.) When the oven reaches the temperature you set, 3 beeps will sound.

NOTE: If the Auto Recipe™Conversion Feature is on, it will automatically reduce the set regular baking temperature by 25°F to the appropriate convection temperature in convection bake mode. See Auto Recipe™Conversion in the Special Features section.

The oven will continue to cook for the set amount of time, then turn off automatically, unless the WARM

feature was set. See the

How to Set the Oven for Warming section.

After the oven turns off, the end-of-cycle tone will sound.

Using the timed features for convection cooking. www.GEAppliances.com

You will hear a fan while cooking with these features. The fan will stop when the door is opened, but the heat will not turn off.

NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

How to Set a Delayed Start and Automatic Stop

The upper oven will turn on at the time of day you set, cook for a specific length of time and then turn off automatically.

Make sure the clock shows the correct time of day.

Touch the CONVECTION BAKE MULTI/ 1 RACK pad twice for one rack convection baking. This mode is used for cooking food items on only one rack in convection bake.

Touch the CONVECTION ROAST pad for convection roasting.

Touch the number pads to set the oven temperature.

Touch the COOKING TIME pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

Touch the number pads to set the desired length of cooking time. The minimum cooking time you can set is 1 minute.

The oven temperature that you set and the cooking time that you entered will be in the display.

Touch the DELAY START pad.

Touch the number pads to set the time of day you want the oven to turn on and start cooking.

Touch the START pad.

NOTE: An attention tone will sound if you are using timed baking or roasting and do not touch the START pad.

NOTE: If you would like to check the times you have set, touch the DELAY START pad to check the start time you have set, or touch the COOKING TIME pad to check the length of cooking time you have set.

The oven will continue to cook for the programmed amount of time, then shut off automatically, unless the WARM

feature

was set. See the How to Set the Oven for Warming section.

After the oven turns off, the end-of-cycle tone will sound.

Touch the CLEAR/OFF pad to clear the display if necessary. Remove the food from the oven. Remember, even though the oven shuts off automatically, food left in the oven will continue cooking after the oven turns off.

Using the timed features for convection cooking.

How to Set the Upper Oven for Convection Roasting when Using the Probe

Place the oven rack in the position that centers the food between the top and bottom of the oven. Insert the probe into the meat. Make sure it is pushed all the way in.

Plug the probe into the outlet in the oven. Make sure it is pushed all the way in. Close the oven door.

Touch the PROBE pad.

Touch the number pads to set the desired internal meat temperature.

NOTE: The maximum internal temperature for the food that you can set is 200°F.

Touch the CONVECTION ROAST pad.

Touch the number pads to set the desired oven temperature.

The display will flash PROBE and the oven control will signal if the probe is inserted into the outlet, and you have not set a probe temperature and pressed the START pad.

Touch the START pad.

When the oven starts to heat, the word LO will be in the display.

After the internal temperature of the meat reaches 100°F, the changing internal temperature will be shown in the display.

When the internal temperature of the meat reaches the number you have set, the probe and the oven turn off and the oven control signals. To stop the signal, touch the CLEAR/OFF pad. Use hot pads to remove the probe from the food. Do not use tongs to pull on it— they might damage it.

NOTE: If the probe is removed from the oven while probe cooking, the oven will not automatically turn off.

CAUTION: To prevent possible burns,

do not unplug the probe from the oven outlet until the oven has cooled.

NOTE:

■ You will hear a fan while cooking with this

feature. The fan will stop when the door is opened, but the heat will not turn off.

■ You can use the Kitchen Timer even though you

cannot use timed oven operations.

■ Never leave your probe inside the oven during

a self-cleaning cycle.

■ Do not store the probe in the oven.

■ Probe not for use in Broil or Self-Clean functions.

For best results when roasting large turkeys and roasts, we recommend using the probe included in the convection oven.

To change the oven temperature during the Convection Roast cycle, touch the CONVECTION ROAST pad and then touch the number pads to set the new desired temperature.

Convection Roasting Guide

Meats Minutes/Lb. Oven Temp. Internal Temp.

Beef Rib, Boneless Rib, Rare 20–24 325°F 140°F†

Top Sirloin Medium 24–28 325°F 160°F (3 to 5 lbs.) Well 28–32 325°F 170°F

Beef Tenderloin Rare 10–14 325°F 140°F†

Medium 14–18 325°F 160°F

Pork Bone-In, Boneless (3 to 5 lbs.) 23–27 325°F 170°F

Chops (1/2 to 1″ thick) 2 chops 30–35 total 325°F 170°F

4 chops 35–40 total 325°F 170°F 6 chops 40–45 total 325°F 170°F

Ham Canned, Butt, Shank (3 to 5 lbs. fully cooked) 14–18 325°F 140°F Lamb Bone-In, Boneless (3 to 5 lbs.) Medium 17–20 325°F 160°F

Well 20–24 325°F 170°F

Seafood Fish, Whole (3 to 5 lbs.) 30–40 total 400°F

Lobster Tails (6 to 8 oz. each) 20–25 total 350°F

Poultry Whole Chicken (21⁄2 to 31⁄2 lbs.) 24–26 350°F 180°–185°F

Cornish Hens, Unstuffed (1 to 11⁄

2 lbs.) 50–55 total 350°F 180°–185°F

Stuffed (1 to 11⁄

2 lbs.) 55–60 total 350°F 180°–185°F

Duckling (4 to 5 lbs.) 24–26 325°F 180°–185°F

Turkey, Whole* Unstuffed (10 to 16 lbs.) 8–11 325°F 180°–185°F Unstuffed (18 to 24 lbs.) 7–10 325°F 180°–185°F

Turkey Breast (4 to 6 lbs.) 16–19 325°F 170°F

* Stuffed birds generally require 30–45 minutes additional roasting time. Shield legs and breast with foil to prevent

overbrowning and drying of skin.

† The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F means

some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)

Using the convection oven. www.GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

How to Set the Upper Oven For Warming (on some models)

The WARM feature keeps cooked foods hot.

This feature is not designed to reheat cold food.

To use the WARM feature, touch the WARM pad and then the START pad.

To use the WARM feature after Timed Baking or Roasting, follow these steps:

Touch the mode of cooking that you want to use (BAKE, CONVECTION

BAKE MULTI, CONVECTION BAKE 1 RACK or CONVECTION ROAST).

Touch the number pads to set the oven temperature.

Touch the COOKING TIME pad.

Touch the number pads to set the desired length of cooking time.

Touch the WARM pad.

Touch the START pad.

To Crisp Stale Items

■ Place food in low-sided dishes or pans.

■ For best results, place the food items in

a single layer. Do not stack.

■ Leave them uncovered.

■ Check crispness after 20–30 minutes.

Add time as needed.

IMPORTANT NOTES:

■ Food should be kept hot in its cooking container

or transferred to a heat-safe serving dish.

■ For moist foods, cover them with an oven-safe

lid or aluminum foil.

■ Fried or crisp foods do not need to be covered,

but can become too dry if warmed for too long.

■ Repeated opening of the door allows the hot

air to escape and the food to cool.

■ Allow extra time for the temperature inside the

oven to stabilize after adding items.

■ With large loads it may be necessary to cover

some of the cooked food items.

■ Remove serving spoons, etc., before placing

containers in the oven.

■ Do not use plastic containers, lids or

plastic wrap.

CAUTION: Plastic containers, lids or

plastic wrap will melt if placed in the oven. Melted plastic may not be removable and is not covered under your warranty.

How to Set the Upper Oven For Proofing (on some models)

Place the covered dough in a dish in the oven on shelf B or C.

NOTE: For best results, cover the dough with a cloth or with greased plastic wrap (the plastic may need to be anchored underneath the container so the oven fan will not blow it off).

Touch the PROOF pad and then the START pad.

The display will read PrF (proof).

The oven interior light turns on and remains on during proofing.

The proofing feature automatically provides the optimum temperature for the proofing process, and therefore does not have a temperature adjustment.

Set the KITCHEN TIMER ON/OFF for the minimum proof time.

When proofing is finished, touch the CLEAR/OFF pad.

■ To avoid lowering the oven temperature and

lengthening proofing time, do not open the oven door unnecessarily.

■ Check bread products early to avoid

over-proofing.

NOTE:

■ Do not use the proofing mode for warming

food or keeping food hot. The proofing oven temperature is not hot enough to hold foods at safe temperatures. Use the WARM feature to keep food warm.

■ Proofing will not operate when oven is above

125°F. “HOT” will show in the display.

Using the proofing and warming features.

The proofing feature maintains a warm environment useful for rising yeast-leavened products.

How to Set the Upper Oven for Cleaning

The oven door must be closed and all controls set correctly for the cycle to work properly.

Touch the SELF CLEAN STD/LO pad once for a 4-hour clean time or twice for a 3-hour clean time.

A 3-hour self-clean time is recommended for use when cleaning small, contained spills. A self-clean time of 4 hours or longer is recommended for a dirtier oven.

If a time other than 4 hours or 3 hours is needed, use the number pads and enter the desired clean time.

You can change the clean time to any time between 21⁄2 hours and 5 hours, depending on how dirty your oven is.

Touch the START pad.

The door locks automatically. The display will show the clean time remaining. It will not be possible to open the oven door until the temperature drops below the lock temperature and the LOCKED light goes off.

When the LOCKED light goes off, you will be able to open the door.

■ The word LOCKED will flash and the

word door will display if you set the clean cycle and forget to close the oven door.

■ To stop a clean cycle, touch the

CLEAR/OFF pad. When the LOCKED light goes off indicating the oven has cooled below the locking temperature, you will be able to open the door.

Wipe up heavy soil on the oven bottom.

Before a Clean Cycle

We recommend venting your kitchen with an open window or using a ventilation fan or hood during the first self-clean cycle.

Remove the convection roasting rack, broiler pan, broiler grid, probe, all cookware and any aluminum foil from the oven.

NOTE:

■ If your oven is equipped with shiny,

silver-colored oven racks, remove them before you begin the self-clean cycle.

■ If your oven is equipped with gray

porcelain-coated oven racks, they may be left in the oven during the self-clean cycle.

The shiny, silver-colored oven racks (on some models) and the convection roasting rack can be self-cleaned, but they will darken, lose their luster and become hard to slide.

Soil on the front frame of the range and outside the gasket on the door will need to be cleaned by hand. Clean these areas with hot water, soap-filled steel-wool pads or cleansers such as Soft Scrub®. Rinse well with clean water and dry.

Do not clean the gasket. The fiberglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, replace it.

Wipe up any heavy spillovers on the oven bottom.

Make sure the oven light bulb cover is in place and the oven light is off.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another wellventilated room.

Using the self-cleaning upper oven. www.GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

After a Clean Cycle

You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools.

If white spots remain, remove them with a soapfilled steel wool pad and rinse thoroughly with a vinegar and water mixture.

These deposits are usually a salt residue that cannot be removed by the clean cycle.

If the oven is not clean after one clean cycle, repeat the cycle.

■ You cannot set the oven for cooking or

another self-clean cycle until the oven is cool enough for the door to unlock.

■ While the oven is self-cleaning, you can

touch the CLOCK pad to display the time of day. To return to the clean countdown, touch the SELF CLEAN STD/LO pad.

■ If the racks become hard to slide, apply

a small amount of cooking oil to a paper towel and wipe the edges of the oven racks with the paper towel.

How to Delay the Start of Cleaning

Touch the SELF CLEAN STD/LO pad once for a 4-hour clean time or twice for a 3-hour clean time.

A 3-hour self-clean time is recommended for use when cleaning small, contained spills. A self-clean time of 4 hours or longer is recommended for a dirtier oven.

If a time other than 4 hours or 3 hours is needed, use the number pads and enter the desired clean time.

You can change the clean time to any time between 21⁄2 hours and 5 hours, depending on how dirty your oven is.

Touch the DELAY START pad.

Using the number pads, enter the time of day you want the clean cycle to start.

Touch the START pad.

The door locks automatically. The display will show the start time. It will not be possible to open the oven door until the temperature drops below the lock temperature and the LOCKED light goes off.

When the LOCKED light goes off, you will be able to open the door.

Using the self-cleaning upper oven.

The oven door must be closed and all controls set correctly for the cycle to work properly.

12-Hour Shutdown

With this feature, should you forget and leave the oven on, the control will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function.

If you wish to turn OFF this feature, follow the steps below.

Touch the BROIL HI/LO and BAKE pads at the same time until the display shows SF.

Touch the DELAY START pad until no shdn (no shut-off) appears in the display.

Touch the START pad to activate the no shut-off and leave the control set in this special features mode.

Fahrenheit or Celsius Temperature Selection

Your oven control is set to use the Fahrenheit temperature selections, but you may change this to use the Celsius selections.

Touch the BROIL HI/LO and BAKE pads at the same time until the display shows SF.

Touch the COOKING TIME and BROIL HI/LO pads at the same time. The display will show F (Fahrenheit).

Touch the COOKING TIME and BROIL HI/LO pads again at the same time. The display will show C (Celsius).

Touch the START pad.

Tones at the End of a Timed Cycle

At the end of a timed cycle, 3 short beeps will sound followed by one beep every 6 seconds until the CLEAR/OFF pad is touched. This continual 6-second beep may be canceled.

To cancel the 6-second beep:

Touch the BROIL HI/LO and BAKE pads at the same time until the display shows SF.

Touch the KITCHEN TIMER ON/OFF pad. The display shows CON BEEP (continuous beep). Touch the KITCHEN TIMER ON/OFF pad again. The display shows BEEP. (This cancels the one beep every 6 seconds.)

Touch the START pad.

Special features of your oven control. www.GEAppliances.com

Your new touch pad control has additional features that you may choose to use. The following are the features and how you may activate them.

The special feature modes can only be activated while the display is showing the time of day. They remain in the control’s memory until the steps are repeated.

When the display shows your choice, touch the START pad. The special features will remain in memory after a power failure, except for the Sabbath feature, which will have to be reset.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

12-Hour, 24-Hour or Clock Blackout

Your control is set to use a 12-hour clock.

If you would prefer to have a 24-hour military time clock or black out the clock display, follow the steps below.

Touch the BROIL HI/LO and BAKE pads at the same time until the display shows SF.

Touch the CLOCK pad once. The display will show 12 hr. If this is the choice you want, touch the START pad.

Touch the CLOCK pad again to change to the 24 hour military time clock. The display will show 24 hr. If this is the choice you want, touch the START pad.

Touch the CLOCK pad again to black out the clock display. The display will show OFF. If this is the choice you want, touch the START pad.

NOTE: If the clock is in the black-out mode you will not be able to use the Delay Start function.

Tone Volume

This feature allows you to adjust the tone volumes to a more acceptable volume. There are three possible volume levels.

Touch the BROIL HI/LO and BAKE pads at the same time until the display shows SF.

Touch the OVEN LIGHT ON/OFF pad. The display will show 2 BEEP. This is the middle volume level.

Touch the OVEN LIGHT ON/OFF pad again. The display will show 3 BEEP. This is the loudest volume level.

Touch the OVEN LIGHT ON/OFF pad again. The display will show 1 BEEP. This is the quietest volume level.

For each time the level is changed, a tone will sound to provide an indication of the volume level.

Choose the desired sound level (1 BEEP, 2 BEEP, 3 BEEP).

Touch the START pad to activate the level shown.

Special features of your oven control.

www.GEAppliances.com

Auto Recipe™Conversion

When using convection bake, the Auto Recipe

™

Conversion feature will automatically convert entered regular baking temperatures to convection baking temperatures.

This feature is activated so that the display will show the actual converted (reduced) temperature. For example, if you enter a regular recipe temperature of 350°F and press the START pad, the display will show CON and the converted temperature of 325°F.

To deactivate the feature:

Press the BAKE and BROIL HI/LO pads at the same time until the display shows SF.

Press the CONVECTION BAKE MULTI/1 RACK pad. The display will show CON ON. Press the

CONVECTION BAKE MULTI/1 RACK

pad again. The display will show CON OFF.

Press the START pad.

To reactivate the feature, repeat steps 1–3 above but press the START pad when

CON ON is in the display.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

The Sabbath feature can be used for baking/roasting only. It cannot be used for convection, broiling, self-cleaning or Delay Start cooking.

NOTE: The oven light comes on automatically (on some models) when the door is opened and goes off when the door is closed. The bulb may be removed. See the Oven Light Replacement section. On models with a light switch on the control panel, the oven light may be turned on and left on.

How to Set for Regular Baking/Roasting

Make sure the clock shows the correct time of day and the oven is off.

Touch and hold both the BROIL HI/LO and BAKE pads, at the same time, until the display shows SF.

NOTE: If bake or broil appears in the

display, the BROIL HI/LO and BAKE pads were not touched at the same time. Touch the CLEAR/OFF pad and begin again.

Tap the DELAY START pad until SAb bAtH appears in the display.

Touch the START pad and ⊃ will appear in the display.

Touch the BAKE pad. No signal will be given.

Using the number pads, enter the desired temperature between 170°F and 550°F. No signal or temperature will be given.

Touch the START pad.

After a random delay period of approximately 30 seconds to 1 minute, ⊃ will appear in the display indicating that the oven is baking/ roasting. If ⊃ doesn’t appear in the display, start again at Step 4.

To adjust the oven temperature, touch the BAKE pad, enter the new temperature using the number pads and touch the START pad.

NOTE: The CLEAR/OFF and COOKING TIME pads are active during the Sabbath feature.

⊃

How to Set for Timed Baking/Roasting—Immediate Start and Automatic Stop

Make sure the clock shows the correct time of day and the oven is off.

Touch and hold both the BROIL HI/LO and BAKE pads, at the same time, until the display shows SF.

NOTE: If bake or broil appears in the

display, the BROIL HI/LO and BAKE pads were not touched at the same time. Touch the CLEAR/OFF pad and begin again.

Tap the DELAY START pad until SAb bAtH appears in the display.

Touch the START pad and ⊃ will appear in the display.

Touch the COOKING TIME pad.

Touch the number pads to set the desired length of cooking time between 1 minute and 9 hours and 99 minutes. The cooking time that you entered will be displayed.

Touch the START pad.

Touch the BAKE pad. No signal will be given.

Using the number pads, enter the desired temperature. No signal or temperature will be given.

Touch the START pad.

After a random delay period of approximately 30 seconds to 1 minute, ⊃ will appear in the display indicating that the oven is

baking/roasting.

If ⊃

doesn’t appear in the display, start again at Step 7.

To adjust the oven temperature, touch the BAKE pad, enter the new temperature using the number pads and touch the START pad.

When cooking is finished, the display will change from ⊃ to ⊃ and 0:00 will appear, indicating that the oven has turned OFF but is still set in Sabbath. Remove the cooked food.

⊃

How to Exit the Sabbath Feature

Touch the CLEAR/OFF pad.

If the oven is cooking, wait for a random delay period of approximately 30 seconds to 1 minute, until only ⊃ is in the display.

Touch and hold both the BROIL HI/LO and BAKE pads, at the same time, until the display shows SF.

Tap the DELAY START pad until 12 shdn or no shdn appears in the display.

Choose 12 shdn, indicating that the oven will automatically turn off after 12 hours or no shdn, indicating that the oven will not automatically turn off after 12 hours.

Press START when the option that you want is in the display (12 shdn or no shdn).

NOTE: If a power outage occurred while the oven was in Sabbath, the oven will automatically turn off and stay off even when the power returns. The oven control must be reset.

When the display shows ⊃ the oven is set in Sabbath. When the display shows ⊃ the oven is baking/roasting.

⊃

When the display shows ⊃ the oven is set in Sabbath. When the display shows ⊃ the oven is baking/roasting.

⊃

Using the Sabbath feature.

(Designed for use on the Jewish Sabbath and Holidays) (On some models)

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

If your range is removed for cleaning, servicing or any reason, be sure the anti-tip device is re-engaged properly when the range is replaced. Failure to take this precaution could result in tipping of the range and cause injury.

Care and cleaning of the range. www.GEAppliances.com

Be sure all controls are off and all surfaces are cool before cleaning any part of the range.

How to Remove Protective Shipping Film and Packaging Tape

Carefully grasp a corner of the protective shipping film with your fingers and slowly peel it from the appliance surface. Do not use any sharp items to remove the film. Remove all of the film before using the appliance for the first time.

To assure no damage is done to the finish of the product, the safest way to remove the adhesive from packaging tape on new appliances is an application of a household liquid dishwashing detergent. Apply with a soft cloth and allow to soak.

NOTE: The adhesive must be removed from all parts. It cannot be removed if it is baked on.

Control Knobs

The control knobs may be removed for easier cleaning.

Make sure the knobs are in the OFF positions and pull them straight off the stems for cleaning.

The knobs can be cleaned in a dishwasher or they may also be washed with soap and water. Make sure the inside of the knobs are dry before replacing.

Replace the knobs in the OFF position to ensure proper placement.

Oven Vent

The oven vent is located above the right rear surface unit.

This area could become hot during oven use.

It is normal for steam to come out of the vent.

The vent is important for proper air circulation. Never block this vent.

Control Panel

If desired, the touch pads may be deactivated before cleaning.

See the Range Lockout or Control Lockout information in the Using the clock, timer and control lockout section in this manual.

Clean up splatters with a damp cloth.

You may also use a glass cleaner.

Remove heavier soil with warm soapy water. Do not use abrasives of any kind.

Reactivate the touch pads after cleaning.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

The gasket is designed with a gap at the bottom to allow for proper air circulation.

Do not rub or clean the door gasket— it has an extremely low resistance to abrasion.

If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced.

Lift-Off Oven Door

The door is very heavy. Be careful when removing and lifting the door.

Do not lift the door by the handle.

To remove the door:

Fully open the door.

Pull the hinge locks down toward the door frame, to the unlocked position. A tool, such as a small flat-blade screwdriver, may be required.

Firmly grasp both sides of the door at the top.

Close door to the door removal position, which is halfway between the broil stop position and fully closed.

Lift door up and out until the hinge arm is clear of the slot.

To replace the door:

Firmly grasp both sides of the door at the top.

With the door at the same angle as the removal position, seat the indentation of the hinge arm into the bottom edge of the hinge slot. The notch in the hinge arm must be fully seated into the bottom of the slot.

Fully open the door. If the door will not fully open, the indentation is not seated correctly in the bottom edge of the slot.

Push the hinge locks up against the front frame of the oven cavity to the locked position.

Close the oven door.

Indentation

Bottom

edge

of slot

Hinge arm

Cleaning the Oven Door

To clean the inside of the door:

■ Because the area inside the gasket is

cleaned during the self-clean cycle, you do not need to clean this by hand.

■ The area outside the gasket and

the door liner can be cleaned with a soap-filled steel wool or plastic pad, hot water and detergent. Rinse well with a vinegar and water solution.

To clean the outside of the door:

■ Use soap and water to thoroughly

clean the top, sides and front of the oven door. Rinse well. You may also use a glass cleaner to clean the glass on the outside of the door. Do not let water drip into the vent openings.

■ If any stain on the door vent trim is

persistent, use a soft abrasive cleaner and a sponge-scrubber for best results.

■ Spillage of marinades, fruit juices,

tomato sauces and basting materials containing acids may cause discoloration and should be wiped up immediately. When surface is cool, clean and rinse.

■ Do not use oven cleaners, cleaning

powders or harsh abrasives on the outside of the door.

Care and cleaning of the range.

Removal position

Hinge lock

Slot

Push hinge locks up to lock.

Pull hinge locks down to unlock.

Hinge

arm

www.GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Removable Lower Oven Drawer Pan

NOTE: Allow lower oven drawer to cool before

removing pan.

NOTE: Wipe spills promptly after each use.

■ Never place, use or self-clean the lower

oven drawer pan in the upper oven.

■ Lower oven drawer has a removable

pan for easy cleaning. Clean with hot soapy water and a sponge or dish towel. Dry with a clean cloth. Replace the pan in the lower oven drawer.

NOTE: For models with an electric warming drawer or lower oven drawer, before performing any adjustments, cleaning or service, disconnect the range electrical power supply at the household distribution panel by removing the fuse or switching off the circuit breaker. Make sure the drawer heating element is cool.

Care and cleaning of the range.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Broiler Pan and Grid

Do not clean the broiler pan or grid in a selfcleaning oven.

After broiling, remove the broiler pan from the oven. Remove the grid from the pan. Carefully pour out the grease from the pan into a proper container.

Wash and rinse the broiler pan and grid in hot water with a soap-filled or plastic scouring pad.

If food has burned on, sprinkle the grid with detergent while hot and cover with wet paper towels or a dishcloth. Soaking the pan will remove burned-on foods.

Both the broiler pan and grid may be cleaned with a commercial oven cleaner.

Both the broiler pan and grid can also be cleaned in a dishwasher.

Do not store a soiled broiler pan and grid anywhere in the range.

Oven Heating Elements

Do not clean the broil element. Any soil will burn off when the element is heated. Clean the oven floor with warm, soapy water.

On some models, the bake element is not exposed and is under the oven floor. If spillovers, residue or ash accumulate on the oven floor, wipe up before self-cleaning.

Storage Drawer Removal (on some models)

To remove the drawer:

Pull the drawer out until it stops.

Lift the front of the drawer until the stops clear the guides.

Remove the drawer.

To replace the drawer:

Place the drawer rails on the guides.

Push the drawer back until it stops.

Lift the front of the drawer and push back until the stops clear the guides.

Lower the front of the drawer and push back until it closes.

Stop guide

Rail

Oven Light Replacement

CAUTION: Before replacing your oven light bulb,

disconnect the electrical power to the range at the main fuse or circuit breaker panel.

Be sure to let the light cover and bulb cool completely.

To remove the cover:

Hold a hand under the cover so it doesn’t fall when released. With fingers of the same hand, firmly push back the wire cover holder. Lift off the cover.

Do not remove any screws to remove the cover.

Replace bulb with a 40-watt appliance bulb.

To replace the cover:

Place it into groove of the light receptacle. Pull wire forward to the center of the cover until it snaps into place.

Connect electrical power to the range.

Wire cover holder.

Wipe up heavy soil on the oven bottom.

Stainless Steel Surfaces (on some models)

Painted Surfaces

Painted surfaces include the door, top of the control panel and the drawer front. Clean these with soap and water or a vinegar and water solution.

Do not use commercial oven cleaners, cleaning powders, steel wool or harsh abrasives on any painted surface.

Roasting rack

Offset racks

Flat rack

Oven Racks and Convection Roasting Rack

The convection roasting rack should be removed from the oven before beginning the self-clean cycle. Clean with an abrasive cleanser or steel wool. After cleaning, rinse the rack with clean water and dry with a clean cloth.

If your oven is equipped with shiny, silver-colored oven racks, they should be removed from the oven before beginning the self-clean cycle. Clean with an abrasive cleanser or steel wool. After cleaning, rinse the racks with clean water and dry with a clean cloth.

If your oven is equipped with gray porcelain-coated oven racks, they may be cleaned in the oven during the self-clean cycle.

NOTE: The shiny, silver-colored oven racks (on some models) and the convection roasting rack may be cleaned in the self-cleaning oven. However, the racks will darken in color, lose their luster and become hard to slide if cleaned during the self-cleaning cycle.

To make the racks slide more easily, apply a small amount of vegetable oil to a paper towel and wipe the edges of the oven racks with the paper towel. Do not spray with Pam

or other

lubricant sprays.

www.GEAppliances.com

Do not use a steel-wool pad; it will scratch the surface.

Shake bottle well.

Place a small amount of Stainless Steel Appliance Cleaner on a damp cloth or damp paper towel.

Clean a small area (approximately 8″ x 8″), rubbing with the grain of the stainless steel if applicable.

Dry and buff with a clean, dry paper towel or soft cloth.

Repeat as necessary.

NOTE: If a mineral oil-based stainless steel appliance cleaner has been used before to clean the appliance, wash the surface with dishwashing liquid and water prior to using the Stainless Steel Appliance Cleaner. After washing the surface with dishwashing liquid and water, use a generous amount of Stainless Steel Appliance Cleaner to clean the appliance.

To Order

To order Stainless Steel Appliance Cleaner, please call our toll-free number:

National Parts Center 800.626.2002 www.GEAppliances.com Stainless Steel Appliance

Cleaner # PM10X311

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Allow the cooktop to cool.

Use a single-edge razor blade scraper at approximately a 45° angle against the glass surface and scrape the soil. It will be necessary to apply pressure to the razor scraper in order to remove the residue.

After scraping with the razor scraper, spread a few drops of CERAMA BRYTE®Ceramic Cooktop Cleaner on the entire burned residue area. Use the CERAMA BRYTE

Cleaning Pad to remove any remaining residue.

For additional protection, after all residue has been removed, polish the entire surface with CERAMA BRYTE

Ceramic Cooktop Cleaner

and a paper towel.

Burned-On Residue

WARNING: DAMAGE to your glass surface may

occur if you use scrub pads other than those recommended.

Allow the cooktop to cool.

Spread a few drops of CERAMA BRYTE®Ceramic Cooktop Cleaner on the entire burned residue area.

Using the included CERAMA BRYTE®Cleaning Pad for Ceramic Cooktops, rub the residue area, applying pressure as needed.

If any residue remains, repeat the steps listed above as needed.

For additional protection, after all residue has been removed, polish the entire surface with CERAMA BRYTE

Ceramic Cooktop Cleaner

and a paper towel.

The CERAMA BRYTE®Ceramic Cooktop Scraper and all recommended supplies are available through our Parts Center. See instructions under “To Order Parts” section on next page.

NOTE: Do not use a dull or nicked blade.

Heavy, Burned-On Residue

Use a CERAMA BRYTE®Cleaning Pad for Ceramic Cooktops.

Normal Daily Use Cleaning

ONLY use CERAMA BRYTE®Ceramic Cooktop Cleaner on the glass cooktop. Other creams may not be as effective.

To maintain and protect the surface of your glass cooktop, follow these steps:

Before using the cooktop for the first time, clean it with CERAMA BRYTE®Ceramic Cooktop Cleaner. This helps protect the top and makes cleanup easier.

Daily use of CERAMA BRYTE

Ceramic Cooktop Cleaner will help keep the cooktop looking new.

Shake the cleaning cream well. Apply a few drops of CERAMA BRYTE

Ceramic Cooktop Cleaner

directly to the cooktop.

Use a paper towel or CERAMA BRYTE®Cleaning Pad for Ceramic Cooktops to clean the entire cooktop surface.

Use a dry cloth or paper towel to remove all cleaning residue. No need to rinse.

NOTE: It is very important that you DO NOT heat the cooktop until it has been cleaned thoroughly.

Clean your cooktop after each spill. Use CERAMA BRYTE®Ceramic Cooktop Cleaner.

Cleaning the glass cooktop.

To order CERAMA BRYTE®Ceramic Cooktop Cleaner and the cooktop scraper, please call our toll-free number:

National Parts Center 800.626.2002 www.GEAppliances.com

CERAMA BRYTE®Ceramic

Cooktop Cleaner . . . . . . . . . . .# WX10X300

CERAMA BRYTE®Ceramic

Cooktop Scraper . . . . . . . . . . .# WX10X0302

Kit . . . . . . . . . . . . . . . . . . . . . . . .# WB64X5027

(Kit includes cream and cooktop scraper)

CERAMA BRYTE

Cleaning Pads for

Ceramic Cooktops . . . . . . . . .# WX10X350

Sugary spillovers (such as jellies, fudge, candy, syrups) or melted plastics can cause pitting of the surface of your cooktop (not covered by the warranty) unless the spill is removed while still hot. Special care should be taken when removing hot substances.

Be sure to use a new, sharp razor scraper.

Do not use a dull or nicked blade.

To Order Parts

To clean the rubber-like seal at the outer edge of the glass, wipe it with cooktop cream when needed.

Rubber-like Seal

Metal Marks and Scratches

Be careful not to slide pots and pans across your cooktop. It will leave metal markings on the cooktop surface.

These marks are removable using the CERAMA BRYTE®Ceramic Cooktop Cleaner with the CERAMA BRYTE®Cleaning Pad for Ceramic Cooktops.

If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave black discoloration on the cooktop.

This should be removed immediately before heating again or the discoloration may be permanent.

WARNING: Carefully check the

bottom of pans for roughness that would scratch the cooktop.

www.GEAppliances.com

Damage from Sugary Spills and Melted Plastic

Turn off all surface units. Remove hot pans.

Wearing an oven mitt: a. Use a single-edge razor blade

scraper (CERAMA BRYTE

Ceramic Cooktop Scraper) to move the spill to a cool area on the cooktop.

b. Remove the spill with paper

towels.

Any remaining spillover should be left until the surface of the cooktop has cooled.

Don’t use the surface units again until all of the residue has been completely removed.

NOTE: If pitting or indentation in the glass surface has already occurred, the cooktop glass will have to be replaced. In this case, service will be necessary.

Glass surface—potential for permanent damage.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes What To Do

Surface units will not Improper cookware • Use pans which are flat and match the diameter of maintain a rolling boil being used. the surface unit selected. or cooking is not

In some areas, the power • Cover pan with a lid until desired heat is obtained.

fast enough

(voltage) may be low.

Surface units do A fuse in your home may be • Replace the fuse or reset the circuit breaker. not work properly blown or the circuit breaker

tripped.

Cooktop controls • Check to see the correct control is set for the surface improperly set. unit you are using.

Surface unit stops This is normal. The unit glowing when turned is still on and hot. to a lower setting

Scratches (may appear Incorrect cleaning • Scratches are not removable. Tiny scratches will become as cracks) on cooktop methods being used. less visible in time as a result of cleaning. glass surface

Cookware with rough bottoms • To avoid scratches, use the recommended cleaning being used or coarse particles procedures. Make sure bottoms of cookware are clean (salt or sand) were between before use, and use cookware with smooth bottoms. the cookware and the surface of the cooktop.

Cookware has been slid across the cooktop surface.

Areas of discoloration Food spillovers not cleaned • See the Cleaning the glass cooktop section. on the cooktop before next use.

Hot surface on a model • This is normal. The surface may appear discolored with a light-colored cooktop. when it is hot. This is temporary and will disappear

as the glass cools.

Plastic melted to Hot cooktop came into • See the Glass surface—potential for permanent damage the surface contact with plastic placed section in the Cleaning the glass cooktop section.

on the hot cooktop.

Pitting (or indentation) Hot sugar mixture spilled • Call a qualified technician for replacement. of the cooktop on the cooktop.

Frequent cycling Improper cookware • Use only flat cookware to minimize cycling. off and on of being used. surface units

Oven light does Light bulb is loose. • Tighten or replace the bulb. not work

Oven will not work Plug on range is not completely • Make sure electrical plug is plugged into a live, properly

inserted in the electrical outlet. grounded outlet.

A fuse in your home may be • Replace the fuse or reset the circuit breaker. blown or the circuit breaker tripped.

Oven controls improperly set. • See the Using the oven section.

Oven too hot. • Allow the oven to cool to below locking temperature.

Before you call for service…

Problem Possible Causes What To Do

Food does not bake Oven controls improperly set. • See the Using the oven section. or roast properly

Rack position is incorrect • See the Using the oven section. or the rack is not level.

Incorrect cookware or • See the Using the oven section. cookware of improper size being used.

Oven thermostat needs • See the Adjust the oven thermostat—Do it yourself! adjustment. section.

Food does not Oven controls improperly set. • Make sure you touch the BROIL HI/LO pad. broil properly

Improper rack position • See the Broiling Guide. being used.

Cookware not suited • Use the broiling pan and grid that came with your range. for broiling.

The probe is plugged into the • Unplug and remove the probe from the oven. outlet in the oven. (on some models)

Aluminum foil used on the • See the Using the oven section. the broiling pan and grid has not been fitted properly and slit as recommended.

In some areas the power • Preheat the broil element for 10 minutes. (voltage) may be low.

• Broil for the longest period of time recommended in

the Broiling Guide.

Oven temperature Oven thermostat • See the Adjust the oven thermostat—Do it yourself! too hot or too cold needs adjustment. section.

Storage drawer Rear drawer support is • Reposition the drawer. See the Storage Drawer is crooked on top of the guide rail. Removal instructions in the Care and cleaning of your

range section.

• Check to make sure drawer is properly seated

if removed.

Storage drawer Power cord may be • Reposition the drawer and power cord. See the won’t close obstructing drawer Storage Drawer Removal instructions in the Care and

in the lower back cleaning of your range section. of the range.

Rear drawer support is • Reposition the drawer. See the Storage Drawer on top of the guide rail. Removal instructions in the Care and cleaning of your

range section.

www.GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Troubleshooting Tips

Problem Possible Causes What To Do

Clock and timer do Plug on range is not completely • Make sure electrical plug is plugged into a live, properly not work inserted in the electrical outlet. grounded outlet.

A fuse in your home • Replace the fuse or reset the circuit breaker. may be blown or the circuit breaker tripped.

Oven controls improperly set. • See the Using the clock and timer section.

Oven will not self-clean The oven temperature is • Allow the range to cool and reset the controls.

too high to set a self-clean operation.

Oven controls improperly set. • See the Using the self-cleaning oven section.

The probe is plugged into • Remove the probe from the oven. the outlet in the oven. (on some models)

“Crackling” or This is the sound of the • This is normal. “popping” sound metal heating and cooling

during both the cooking and cleaning functions.

Excessive smoking Excessive soil. • Touch the CLEAR/OFF pad. Open the windows to during a clean cycle rid the room of smoke. Wait until the LOCKED light

goes off. Wipe up the excess soil and reset the clean cycle.

Oven door will not Oven too hot. • Allow the oven to cool below locking temperature. open after a clean cycle

Oven not clean after a Oven controls not properly set. • See the Using the self-cleaning oven section. clean cycle

Oven was heavily soiled. • Clean up heavy spillovers before starting the clean

cycle. Heavily soiled ovens may need to self-clean again or for a longer period of time.

“LOCKED” flashes The self-clean cycle has been • Close the oven door. in the display selected but the door is not

closed.

“LOCKED” light is The oven door is locked • Touch the CLEAR/OFF pad. Allow the oven to cool. on when you want because the temperature to cook inside the oven has not

dropped below the locking temperature.

“F—and a number You have a function error code. • Disconnect all power to the range for at least 30 or letter” flash seconds and then reconnect power. If the function in the display error code repeats, call for service.

Before you call for service…

Problem Possible Causes What To Do

Loc On appears in the The controls have • See the Range lockout or Control lockout section oven display or LC been locked. to unlock. in the surface display

Control signals after You forgot to enter a • Touch the BAKE pad and desired temperature or entering cooking time bake temperature or the SELF CLEAN STD/LO pad and desired clean time. or start time cleaning time.

Display goes blank A fuse in your home may be • Replace the fuse or reset the circuit breaker.

blown or the circuit breaker tripped.

The clock is in the • See the Special features of your oven control section. black-out mode.

Display flashes Power failure. • Reset the clock.

Unable to get the Oven control pads were • The BROIL HI/LO and BAKE pads must be touched at display to show “SF” not touched properly. the same time and held for 3 seconds.

“Probe” appears in This is reminding you to • Enter a probe temperature. the display enter a probe temperature (on some models) after plugging in the probe.

Power outage, Power outage or surge. • Reset the clock. If the oven was in use, you must reset clock flashes it by touching the CLEAR/OFF pad, setting the clock

and resetting any cooking function.

Steam from the vent When using the convection • This is normal.

feature, it is normal to see steam coming out of the oven vent. As the number of racks or amount of food being cooked increases, the amount of visible steam will increase.

“Burning” or “oily” This is normal in a new oven • To speed the process, set a self-clean cycle for a odor emitting from and will disappear in time. minimum of 3 hours. See the Using the self-cleaning the vent oven section.

Strong odor An odor from the insulation • This is temporary.

around the inside of the oven is normal for the first few times the oven is used.

Fan noise A convection fan may • This is normal. To maximize cooking evenness,

automatically turn on the fan is designed to operate in both directions, and off. with a pause in between.

• The convection fan will operate during preheat

of the bake cycle. The fan will turn off after the oven is heated to the set temperature. This is normal.

www.GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Before you call for service…

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Problem Possible Causes What To Do

Oven racks are The shiny, silver-colored • Apply a small amount of vegetable oil to a paper difficult to slide racks were cleaned in a towel and wipe the edges of the oven racks with

self-clean cycle. the paper towel. Do not spray with Pam®or other

lubricant sprays.

Drawer does not slide The drawer is out • Fully extend the drawer and push it all the way in. smoothly or drags of alignment. See the Care and cleaning of the range section.

Drawer is over-loaded or • Reduce weight. Redistribute drawer contents. load is unbalanced.

Lower oven drawer or A fuse in your home may be • Replace the fuse or reset the circuit breaker. warming drawer will blown or the circuit breaker not work tripped.

Controls improperly set. • See the Electric warming drawer or Lower oven

drawer section.

Excessive condensation Liquid in drawer. • Remove liquid. in the drawer

Uncovered foods. • Cover food with lid or aluminum foil.

Temperature setting too high. • Reduce temperature setting.

Food dries out in the Moisture escaping. • Cover food with lid or aluminum foil. lower oven drawer or

Drawer not fully closed. • Push drawer in until latch engages.

warming drawer

Troubleshooting Tips

General Electric Company

Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150

GE Service Protection Plus

™

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus

™

—comprehensive protection on all your appliances—

No Matter What Brand!

Benefits Include:

• Backed by GE

• All brands covered

• Unlimited service calls

• All parts and labor costs included

• No out-of-pocket expenses

• No hidden deductibles

• One 800 number to call

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It’s that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

We’ll Cover Any Appliance. Anywhere. Anytime.*

Please place in envelope and mail to:

✁

Cut here

Consumer Product Ownership Registration

Important

Mail Today!

GE Appliances

GE Consumer & Industrial Louisville, Kentucky www.GEAppliances.com

First

Name

Mr. ■■ Ms. ■■ Mrs. ■■ Miss ■■

Street

Address

City

State

Date Placed

In Use

Month

Day

Year

Zip

Code

Apt. #

Last

Name

Phone

Number

Consumer Product Ownership Registration

Dear Customer: Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

Important: If you did not get a registration card with your

product, detach and return the form below to ensure that your product is registered, or register online at www.GEAppliances.com.

Model Number Serial Number

✁

Cut here

Complete and mail your Consumer Product Ownership Registration today.

Have the peace of mind of knowing we can contact you in the unlikely event of

safety modification.

After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is

800.GE.CARES (800.432.2737).

Read your Owner’s Manual carefully. It will help you operate your new appliance properly.

Model Number Serial Number

E-mail Address*

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important

communications from GE Appliances (GEA).

■■ Check here if you do not want to receive communications from GEA’s carefully selected partners.

FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS.

For information about GEA’s privacy and data usage policy, go to www.GEAppliances.com and click on “Privacy Policy” or call 800.626.2224.

Notes.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Notes.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Notes.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Accessories.

Looking For Something More?

You can find these accessories and many more at www.GEAppliances.com, or call 800.626.2002 (during normal business hours). Have your model number ready.

Tired of discolored racks? Wishing you had extra-heavy-duty oven racks?

NOW AVAILABLE for your range:

GE’

s innovative, self-cleanable porcelain-coated oven racks!

• Heavy Duty

• Durable

• Able to be cleaned in a self-cleaning oven

Visit www.GEAppliances.com for more information.

Surface Elements & Drip Pans Oven Racks Broiler Pan

Oven Elements Light Bulbs Knobs

Cleaner Cleaning Pads Scraper

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, on-line, 24 hours a day, visit us at www.GEAppliances.com, or call 800.GE.CARES (800.432.2737).

For The Period Of: GE Will Provide:

One Year Any part of the range which fails due to a defect in materials or workmanship. During this

From the date of the full one-year warranty, GE will also provide, free of charge, all labor and in-home service to original purchase replace the defective part.

Five Years A replacement glass cooktop if it should crack due to thermal shock, discolor, crack at the

From the date of the rubber seal between the glass cooktop and the porcelain edge, or if the pattern wears off. original purchase

A replacement radiant surface unit if it should burn out.

During this limited additional four-year warranty, you will be responsible for any labor or in-home service.

■ Service trips to your home to teach you how to use

the product.

■ Improper installation, delivery or maintenance.

■ Failure of the product if it is abused, misused,

or used for other than the intended purpose or used commercially.

■ Damage to the glass cooktop caused by use of

cleaners other than the recommended cleaning creams and pads.

■ Damage to the glass cooktop caused by hardened

spills of sugary materials or melted plastic that are not cleaned according to the directions in the Owner’s Manual.

■ Replacement of house fuses or resetting

of circuit breakers.

■ Damage to the product caused by accident, fire,

floods or acts of God.

■ Incidental or consequential damage caused

by possible defects with this appliance.

■ Damage caused after delivery.

What GE Will Not Cover:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

GE Electric Range Warranty.

Printed in the United States

GE Appliances Website www.GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™” your questions, and so much more...

Schedule Service www.GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio www.GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call

800.TDD.GEAC (800.833.4322).

Extended Warranties www.GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories www.GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park Louisville, KY 40225

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the preprinted registration card included in the packing material.

GE JB988 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Operating Instructions

Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Broiling Guide

Probe

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Consumer Support
