GE JB970SBSS Specification
Specification Revised 4/99

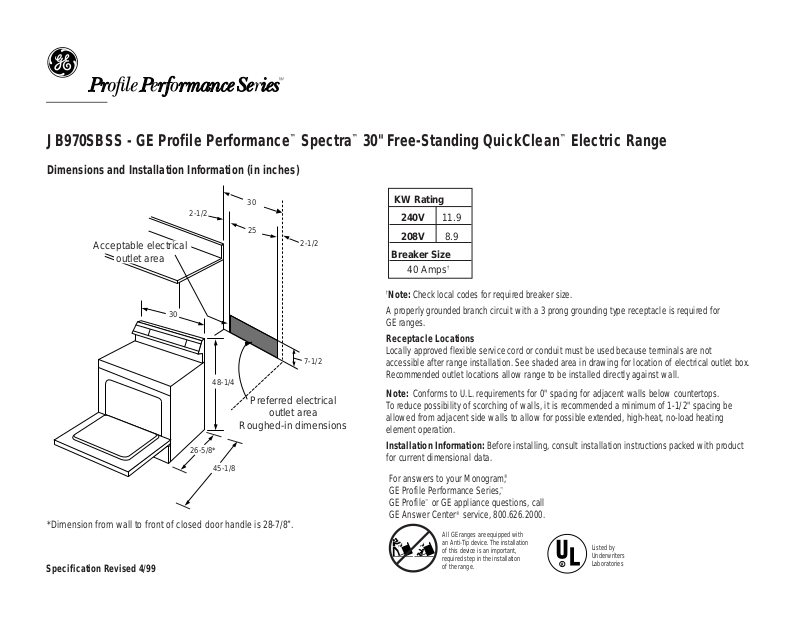

JB970SBSS - GE Profile Performance™Spectra™30" Free-Standing QuickClean™Electric Range
Dimensions and Installation Information (in inches)
*Dimension from wall to front of closed door handle is 28-7/8”.
30
25
2-1/2
7-1/2
30
26-5/8*
45-1/8
48-1/4
2-1/2
Acceptable electrical
outlet area
Preferred electrical
outlet area
Roughed-in dimensions
R
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
†
Note: Check local codes for required breaker size.
A properly grounded branch circuit with a 3 prong grounding type receptacle is required for
GE ranges.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not
accessible after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: Conforms to U.L. requirements for 0" spacing for adjacent walls below countertops.
To reduce possibility of scorching of walls, it is recommended a minimum of 1-1/2" spacing be
allowed from adjacent side walls to allow for possible extended, high-heat, no-load heating
element operation.
Installation Information: Before installing, consult installation instructions packed with product
for current dimensional data.
KW Rating
240V 11.9
208V 8.9
Breaker Size
40 Amps
†
Specification Revised 4/99
JB970SBSS - GE Profile Performance™Spectra™30" Free-Standing QuickClean™Electric Range
WARMING
ZONE
OFF
OVEN
LIGHT
BAKE BROIL
BAKE
ROAST
PROBE
CONVECTION
CONVECTION
SELF
CLEAN
HI LO
ON OFF
COOKING
TIME
KITCHEN
TIMER
DELAY
START
CLOCK
START
12345
67890
OVEN
Convection
TIME CONTROLS
OVEN CLEANING –
MOVE DOOR LATCH TO RIGHT. TOUCH "SELF CLEAN" PAD. TOUCH "START" PAD.
BROIL
CLEAN
BAKE
O
N
PROBE COOK
HR
TIMER
STOP
CLOCK CLEAN
START
DELAY
S
E
T
S
E
T
CONV
LOCKED DOOR
HOT SURFACE
CLEAR
OFF
OFF
H
I
L
O
8
7
6
5
4
3
2
1
9
OFF
H
I
L
O
8
7
6
5
4
3
2
1
9
OFF
H
I
L
O
8
7
6
5
4
3
2
1
9
OFF
H
I
L
O
8
7
6
5
4
3
2
1
9
Features and Benefits
•3.7 Cu. Ft. Oven Capacity with 3 Oven Shelves
•Self-Cleaning Convection Oven with Auto Self-Clean Latch
•Black One-Piece Upswept Patterned Glass-Ceramic Cooktop
•One 6" (with Warming Zone), Two 7" (with Bridge Element) and One 6"/9"
Dual Heating Element
•TrueTemp™ System with QuickSet V Controls
•Six-Pass Power Bake Element
•SmartLogic™ Oven Controls
•Convection Bake and Convection Roast with Automatic Meat Thermometer
•Digipad Numeric Entry
•Roasting Rack and Porcelain-Enameled Broiler Pan with Chrome-Plated Grid
•Time Bake with Delay Bake Option
•Auto Oven Shut-Off with Override
•Audible Preheat Signal
•Hot Surface Lights
•Oven "On" Light
•Delay Clean Option
•Stainless Steel Frameless Glass Oven Door with Window
•Full-Width Fluorescent Cooktop Night Light
•Stainless Steel Tubular Designer-Style Handle
•Stainless Steel Extra-Large Storage Drawer
• Model JB970SBSS - Stainless Steel
