GE JB968TK, JB968KK, JB968BK Specification

JB968TK/KK/BK

R

30

25

29-7/8

46-1/2

2-1/2

7-1/2

25-3/8*

47-5/8

2-1/2

Acceptable electrical

outlet area

30_install_fse_profile.eps

*Dimension from wall to front of
closed oven door handle is 27-3/8
on JB988/968/910/900 models
and 27-3/4 on model JBP49.

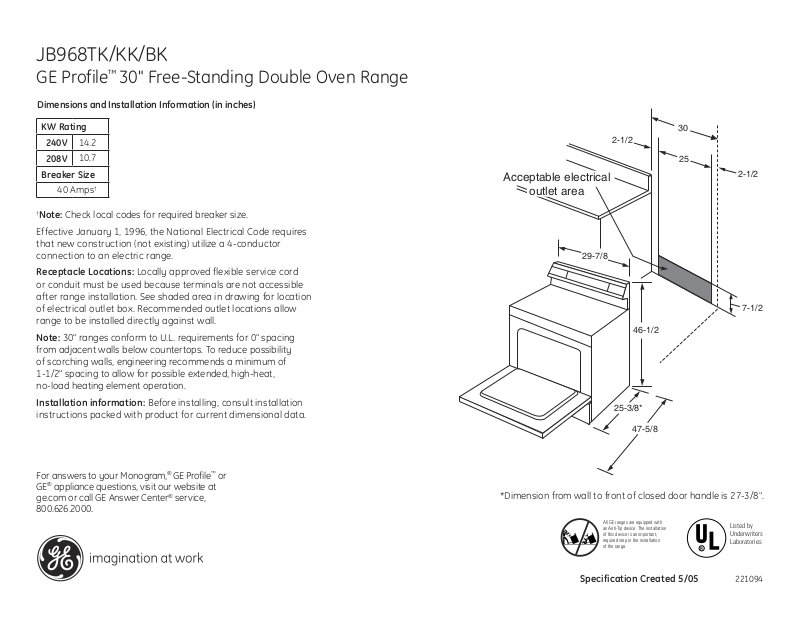

GE Profile™ 30" Free-Standing Double Oven Range

Dimensions and Installation Information (in inches)

KW Rating

240V

208V

Breaker Size

†

Note: Check local codes for required breaker size.

Effective January 1, 1996, the National Electrical Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.

Receptacle Locations: Locally approved flexible service cord
or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.

Note: 30" ranges conform to U.L. requirements for 0" spacing
from adjacent walls below countertops. To reduce possibility
of scorching walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended, high-heat,
no-load heating element operation.

Installation information: Before installing, consult installation
instructions packed with product for current dimensional data.

14.2

10.7

40 Amps

†

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

*Dimension from

wall to front of closed door handle

All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

is 27-3/8"

Listed by
Underwriters
Laboratories

Specification Created 5/05

.

221094

JB968TK/KK/BK

DOU

BLE OV

EN

GE Profile™ 30" Free-Standing Double Oven Range

Features and Benefits

• Precise Air™ Convection System - Delivers even air and heat circulation for superior
baking and roasting results

• Single/Multi-Rack Convection Bake - Provides ideal airflow throughout the oven,
ensuring optimal results on both racks

• Hidden Bake Oven Interior - Hides previously exposed bottom element to deliver
a clean interior appearance

• Lower Oven - Offers an additional 1.2 cu. ft. of capacity for convenient baking from
140 degrees to 450 degrees

• 12"/9"/6" Tri-Ring Element - Provides three cooking areas in one for the ultimate in
cooking versatility

• Self-Clean Oven - Conveniently cleans the oven cavity without the need for scrubbing

• TrueTemp™ System - Delivers even heat distribution and maximum oven control

• QuickSet V Glass Touch Oven Controls - Feature a smooth glass design that is
easy-to-operate and easy-to-clean

• Self-Clean Heavy-Duty Oven Racks - Double coated procelain-enameled racks no
longer require hand cleaning

• Bridge Element - Combines three cooktop elements into one large cooking area,
ideal for oversized cooking pans

• Warming Zone - Provides low heat capability for foods, making meal coordination simple

• Super-Large 5.3 Cu. Ft. Oven Capacity - Provides an impressively large oven interior
for cooking more dishes and large meals at one time

• Model JB968TKWW – True white (white glass door and true white cooktop)

• Model JB968KKCC – True bisque (bisque glass door and true bisque cooktop)

• Model JB968BKBB - Black on black (black glass door and black patterned cooktop)

Specification Created 5/05

221094
