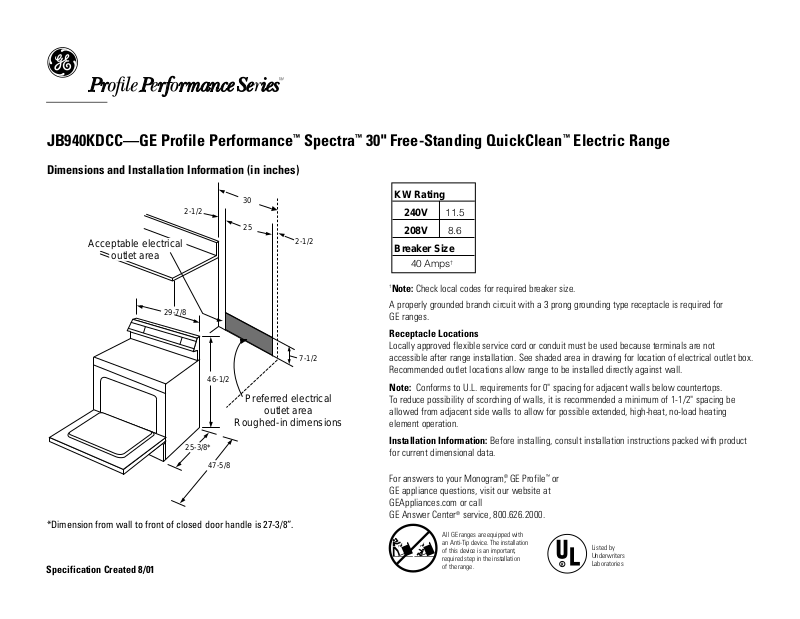

Specification Created 8/01
JB940KDCC—GE Profile Performance™Spectra™30" Free-Standing QuickClean™Electric Range
Dimensions and Installation Information (in inches)
*Dimension from wall to front of closed door handle is 27-3/8”.
30
25
2-1/2
7-1/2
29-7/8
25-3/8*
47-5/8
46-1/2
2-1/2
Acceptable electrical
outlet area
Preferred electrical
outlet area
Roughed-in dimensions
R
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
®
service, 800.626.2000.
†
Note: Check local codes for required breaker size.
A properly grounded branch circuit with a 3 prong grounding type receptacle is required for
GE ranges.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not
accessible after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: Conforms to U.L. requirements for 0" spacing for adjacent walls below countertops.
To reduce possibility of scorching of walls, it is recommended a minimum of 1-1/2" spacing be
allowed from adjacent side walls to allow for possible extended, high-heat, no-load heating
element operation.
Installation Information: Before installing, consult installation instructions packed with product
for current dimensional data.
KW Rating
240V 11.5
208V 8.6
Breaker Size
40 Amps
†
Page 2
Specification Created 8/01
JB940KDCC—GE Profile Performance™Spectra™30" Free-Standing QuickClean™Electric Range
R
E
A
R
H
O
T
F
RO
N
T
O
F
F
C
on
vec
tio
n
H
I
L
O
8
7
6
5
4
3
2
9
O
V
E
N
L
I
G
H
T
T
O
P
L
I
G
H
T
B
A
K
E
B
R
O
IL
B
A
K
E
R
O
A
S
T
P
R
O
B
E
CO
NV
E
CTION
CO
N
VE
CT
IO
N
CONTRO
L LOCKOU
T
S
E
L
F
C
L
E
A
N
H
I
L
O
O
N
O
F
F
C
OO
KIN
G
TIM
E
KITC
H
EN
TIM
ER
D
ELA
Y
STA
R
T
C
LO
CK
START
CLEAR
OFF
1
2
3
4
5
6
7
8
9
0
O
V
EN
T
IM
E
C
O
N
T
R
O
L
S
O
F
F
H
I
L
O
8
7
6
5
4
3
2
9
R
EA
R
H
O
T
F
RO
N
T
O
F
F
H
I
L
O
8
7
6
5
4
3
2
9
O
F
F
H
I
L
O
8
7
6
5
4
3
2
9
W
A
R
M
Features and Benefits
• 4.5 Cu. Ft. Oven Capacity with 3 Oven Shelves
• Self-Cleaning Convection Oven with Auto Self-Clean Latch
• CleanDesign Oven Interior
• One-Piece Upswept Patterned Glass-Ceramic Cooktop
• Two 6" (with Warming Option), One 8" and One 6"/9" Dual Heating Element
• TrueTemp
™
System with QuickSet V Controls
• Six-Pass Power Bake Element
• SmartLogic
™
Oven Controls
• Convection Bake and Convection Roast with Automatic Meat Thermometer
• Digital Temperature Display
• Digipad Numeric Entry
• Glass Touch Controls with Oven Function Icons
• Porcelain-Enameled Broiler Pan with Chrome-Plated Grid
• Time Bake with Delay
• Auto Oven Shut-Off with Override
• Audible Preheat Signal
• Dual Bake Element
• Roasting Rack
• Hot Surface Lights
• Oven "On" Light
• Frameless Glass Oven Door with Big View Window
• Full-Width Fluorescent Cooktop Night Light
• Sure-Grip Designer-Style Handle
• Color-Matched Extra-Large Storage Drawer
• Model JB940WBWW - White on white
• Model JB940BBBB - Black on black
• Model JB940ABAA - Almond on almond
• Model JB940CBCC - Bisque
• Model JB940TDWW - True White
• Model JB940KDCC - True Bisque
