GE JB910SK Specification
JB910SK
R
30
25
29-7/8
46-1/2
2-1/2
7-1/2
25-3/8*
47-5/8
2-1/2
Acceptable electrical
outlet area
30_install_fse_profile.eps
*Dimension from wall to front of
closed oven door handle is 27-3/8
on JB988/968/910/900 models
and 27-3/4 on model JBP49.

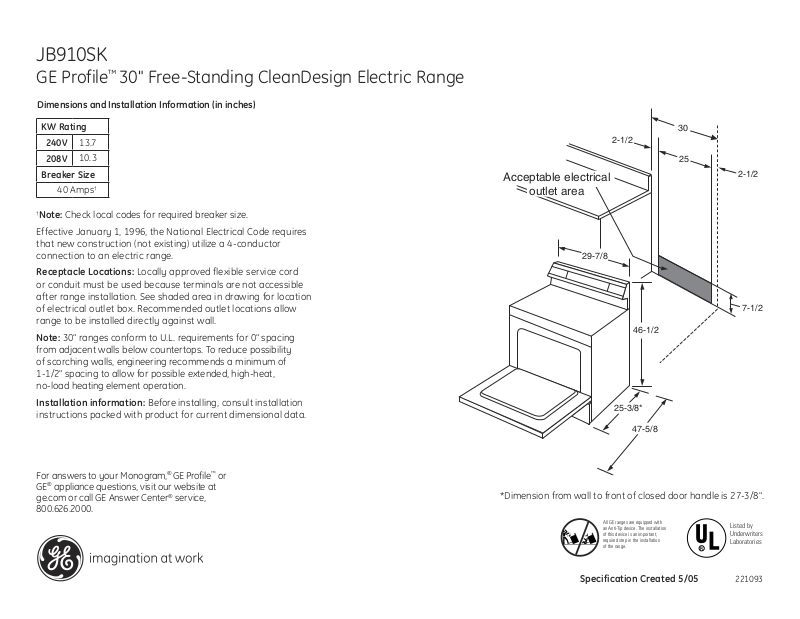

GE Profile™ 30" Free-Standing CleanDesign Electric Range
Dimensions and Installation Information (in inches)
KW Rating
240V
208V
Breaker Size
†
Note: Check local codes for required breaker size.
Effective January 1, 1996, the National Electrical Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.
Receptacle Locations: Locally approved flexible service cord
or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing
from adjacent walls below countertops. To reduce possibility
of scorching walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended, high-heat,
no-load heating element operation.
Installation information: Before installing, consult installation
instructions packed with product for current dimensional data.
13.7
10.3
40 Amps
†
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
*Dimension from
wall to front of closed door handle
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
is 27-3/8"
Listed by
Underwriters
Laboratories
Specification Created 5/05
.
221093
JB910SK
DOU
BLE OV
EN
GE Profile™ 30" Free-Standing CleanDesign Electric Range
Features and Benefits
• Precise Air™ Convection System - Delivers even air and heat circulation for superior baking
and roasting results
• Single/Multi-Rack Convection Bake - Provides ideal airflow throughout the oven,
ensuring optimal results on both racks
• Hidden Bake Oven Interior - Hides previously exposed bottom element to deliver
a clean interior appearance
• Warming Drawer - Convenient drawer keeps breads, desserts or just-cooked foods warm
and ready-to-serve
• Dual Size Ribbon Element - Offers a convenient choice of using a 9" or 12" heating
element, depending on the size of the pan
• Self-Clean Oven - Conveniently cleans the oven cavity without the need for scrubbing
• Self-Clean Heavy-Duty Oven Racks - Double coated procelain-enameled racks no longer
require hand cleaning
• Bridge Element - Combines three cooktop elements into one large cooking area, ideal for
oversized cooking pans
• TrueTemp™ System - Delivers even heat distribution and maximum oven control
• QuickSet V Glass Touch Oven Controls - Feature a smooth glass design that is
easy-to-operate and easy-to-clean
• Warming Zone - Provides low heat capability for foods, making meal coordination simple
• Super-Large 5.3 Cu. Ft. Oven Capacity - Provides an impressively large oven interior
for cooking more dishes and large meals at one time
• Model JB910SKSS – Stainless steel with black accents
Specification Created 5/05
221093
