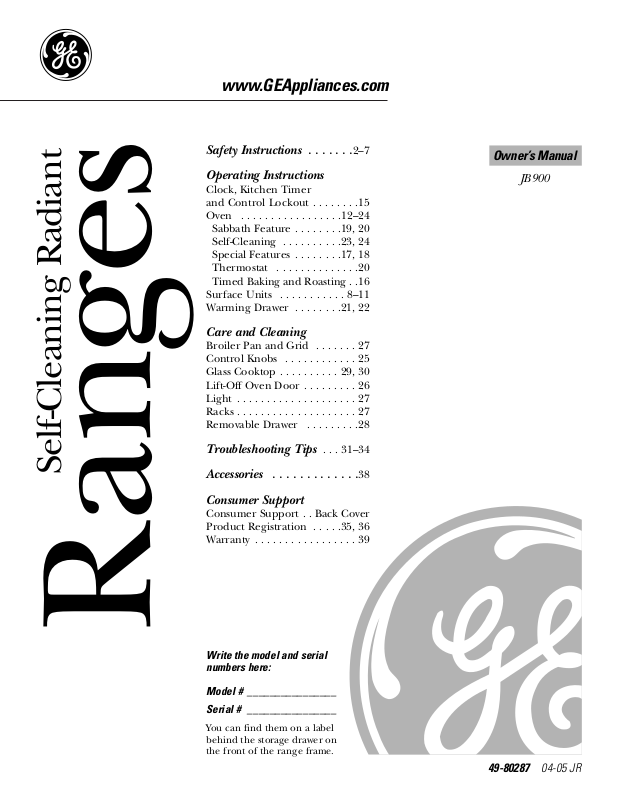

GE JB900 User Manual

JB900
Owner’s Manual
Ranges
Self-Cleaning Radiant
49-80287 04-05 JR
Safety Instructions . . . . . . .2–7

Operating Instructions

Clock, Kitchen Timer
Oven . . . . . . . . . . . . . . . . .12–24
Sabbath Feature . . . . . . . .19, 20
Self-Cleaning . . . . . . . . . .23, 24
Special Features . . . . . . . .17, 18
Thermostat . . . . . . . . . . . . . .20
Timed Baking and Roasting . .16
Surface Units . . . . . . . . . . . 8–11
Warming Drawer . . . . . . . .21, 22

Care and Cleaning

Broiler Pan and Grid . . . . . . . 27
Control Knobs . . . . . . . . . . . . 25
Glass Cooktop . . . . . . . . . . 29, 30
Lift-Off Oven Door . . . . . . . . . 26
Light . . . . . . . . . . . . . . . . . . . . 27
Racks . . . . . . . . . . . . . . . . . . . . 27
Removable Drawer . . . . . . . . .28
Troubleshooting Tips . . . 31–34
Accessories . . . . . . . . . . . . .38

Consumer Support

Consumer Support . . Back Cover
Product Registration . . . . .35, 36
Warranty . . . . . . . . . . . . . . . . . 39
www.GEAppliances.com
Write the model and serial numbers here:
Model # ________________
Serial # ________________
You can find them on a label behind the storage drawer on the front of the range frame.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock, or to prevent property damage, personal injury, or loss of life.
All ranges can tip and injury could result.
To prevent accidental tipping of the range, attach it to the wall and floor by installing the Anti-Tip device supplied.
If the Anti-Tip device supplied with the range does not fit this application, use the universal Anti-Tip device WB2X7909.
To check if the device is installed and engaged properly, remove the kick panel or storage drawer and inspect the rear leveling leg. Make sure it fits securely into the slot.
If you pull the range out from the wall for any reason, make sure the device is properly engaged when you push the range back against the wall. If it is not, there is a possible risk of the range tipping over and causing injury if you or a child stand, sit or lean on an open door.
Please refer to the Anti-Tip device information in this manual. Failure to take this precaution could result in tipping of the range and injury.
WARNING ANTI-TIP DEVICE
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.
The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation fan or hood.
2

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
GEAppliances.com
When using electrical appliances, basic safety precautions should be followed, including the following:
Use this appliance only for its intended
purpose as described in this Owner’s Manual.
Be sure your appliance is properly
installed and grounded by a qualified installer in accordance with the provided installation instructions.
Have the installer show you the location
of the circuit breaker or fuse. Mark it for easy reference.
Do not attempt to repair or replace any
part of your range unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
Before performing any service, disconnect
the range power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.
Do not leave children alone—children
should not be left alone or unattended in an area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
Do not allow anyone to climb, stand or
hang on the door, storage drawer or cooktop. They could damage the range and even tip it over, causing severe personal injury.
SAFETY PRECAUTIONS
3
WARNING!
SAFETY PRECAUTIONS
Do not operate the oven or cooktop controls if the glass is broken. Food splatter or cleaning solution may penetrate a broken control panel and create a risk of electrical shock. Contact a qualified technician immediately should your glass control panel become broken.
Do not store flammable materials in
an oven or near the cooktop.
CAUTION: Items of interest to
children should not be stored in cabinets above a range or on the backsplash of a range—children climbing on the range to reach items could be seriously injured.
Never wear loose-fitting or hanging
garments while using the appliance. Be careful when reaching for items stored over the range. Flammable material could be ignited if brought in contact with hot surface units or heating elements and may cause severe burns.
Use only dry pot holders—moist or damp
pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot surface units or heating elements. Do not use a towel or other bulky cloth in place of pot holders.
Do not use water on grease fires. Never
pick up a flaming pan. Turn the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.
Flaming grease outside a pan can be put
out by covering it with baking soda or, if available, by using a multi-purpose dry chemical or foam-type fire extinguisher.
Flame in the oven can be smothered
completely by closing the oven door and turning the oven off or by using a multi­purpose dry chemical or foam-type fire extinguisher.
4
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
For your safety, never use your appliance
for warming or heating the room.
Do not let cooking grease or other
flammable materials accumulate in or near the range.
Do not touch the surface units, the
heating elements or the interior surface of the oven. These surfaces may be hot enough to burn even though they are dark in color. During and after use, do not touch, or let clothing or other flammable materials contact the surface units, areas nearby the surface units or any interior area of the oven; allow sufficient time for cooling first.
Potentially hot surfaces include the
cooktop, areas facing the cooktop, oven vent opening, surfaces near the opening, crevices around the oven door.
REMEMBER : The inside surface of the oven
may be hot when the door is opened.
Do not store or use combustible materials,
gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Keep the hood and grease filters clean
to maintain good venting and to avoid grease fires.
Teach children not to play with the
controls or any other part of the range.
Always keep dish towels, dish cloths, pot
holders and other linens a safe distance from your range.
Always keep wooden and plastic utensils
and canned food a safe distance from your range.
Always keep combustible wall coverings,
curtains or drapes a safe distance from your range.
WARNING!
SAFETY PRECAUTIONS
Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F. and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.
COOK MEAT AND POULTRY THOROUGHLY…
Do not operate the oven or cooktop controls if the glass is broken. Food splatter or cleaning solution may penetrate a broken control panel and create a risk of electrical shock. Contact a qualified technician immediately should your glass control panel become broken.
Use proper pan size—select cookware having flat bottoms large enough to cover the surface unit heating element. The use of undersized cookware will expose a portion of the surface unit to direct contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will also improve efficiency.
RADIANT SURFACE UNITS
Never leave the surface units unattended
at high heat settings. Boilovers cause smoking and greasy spillovers that may catch on fire.
Only certain types of glass, glass ⁄ceramic,
earthenware or other glazed containers are suitable for cooktop service; others may break because of the sudden change in temperature.
To minimize the possibility of burns,
ignition of flammable materials and spillage, the handle of a container should be turned toward the center of the range without extending over nearby surface units.
Always turn the surface units off before
removing cookware.
When preparing flaming foods under
the hood, turn the fan on.
Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
GEAppliances.com
Use care when touching the cooktop. The
glass surface of the cooktop will retain heat after the controls have been turned off.
Keep an eye on foods being fried at high
or medium high heat settings.
Foods for frying should be as dry as
possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.
Use little fat for effective shallow or deep
fat frying. Filling the pan too full of fat can cause spillovers when food is added.
If a combination of oils or fats will be
used in frying, stir together before heating, or as fats melt slowly.
Always heat fat slowly, and watch as it heats.
Use a deep fat thermometer whenever
possible to prevent overheating fat beyond the smoking point.
Avoid scratching the glass cooktop.
The cooktop can be scratched with items such as sharp instruments, rings or other jewelry, and rivets on clothing.
Do not operate the radiant surface units if
the glass is broken. Spillovers or cleaning solution may penetrate a broken cooktop and create a risk of electrical shock. Contact a qualified technician immediately should your glass cooktop become broken.
Never use the glass cooktop surface as
a cutting board.
Do not place or store items that can melt
or catch fire on the glass cooktop, even when it is not being used.
Be careful when placing spoons or other
stirring utensils on glass cooktop surface when it is in use. They may become hot and could cause burns.
Clean the cooktop with caution. If a wet
sponge or cloth is used to wipe spills on a hot surface unit, be careful to avoid steam burns. Some cleaners can produce noxious fumes if applied to a hot surface.
NOTE: We recommend that you avoid wiping any surface unit areas until they have cooled and the indicator light has gone off. Sugar spills are the
exception to this. Please see the Cleaning the glass cooktop section.
When the cooktop is cool, use only
CERAMA BRYTE
®
Ceramic Cooktop
Cleaner and the CERAMA BRYTE
®
Cleaning Pad to clean the cooktop.
To avoid possible damage to the cooking
surface, do not apply cleaning cream to the glass surface when it is hot.
After cleaning, use a dry cloth or paper
towel to remove all cleaning cream residue.
Read and follow all instructions and
warnings on the cleaning cream labels.
Large scratches or impacts to glass doors
or cooktops can lead to broken or shattered glass.
Do not leave any items on the cooktop.
The hot air from the vent may ignite flammable items and will increase pressure in closed containers, which may cause them to burst.
Do not leave plastic items on the
cooktop—they may melt if left too close to the vent.
Do not lift the cooktop. Lifting the
cooktop can lead to damage and improper operation of the range.
RADIANT SURFACE UNITS
5
6
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
Do not heat unopened food containers.
Pressure could build up and the container could burst, causing an injury.
Keep the oven vent unobstructed.
Keep the oven free from grease buildup.
Place the oven rack in the desired position
while the oven is cool. If racks must be handled when hot, do not let pot holder contact the heating elements.
When using cooking or roasting bags
in the oven, follow the manufacturer’s directions.
Pulling out the rack to the stop-lock is a
convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls.
Do not use the oven to dry newspapers.
If overheated, they can catch on fire.
Do not use the oven for a storage area.
Items stored in an oven can ignite.
Do not leave paper products, cooking
utensils or food in the oven when not in use.
Do not use aluminum foil to line oven
bottoms, except as suggested in this manual. Improper installation of aluminum foil may result in a risk of electric shock or fire.
Stand away from the range when opening the oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes.
WARNING!
OVEN
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used.
Do not clean the door gasket. The door
gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.
Before self-cleaning the oven, remove the
broiler pan, grid and other cookware.
Take the racks out of the oven before you
begin the self-clean cycle or they may discolor, unless your oven is equipped with gray porcelain-coated oven racks.
Be sure to wipe off excess spillage before
starting the self-cleaning operation.
If the self-cleaning mode malfunctions,
turn the oven off and disconnect the power supply. Have it serviced by a qualified technician.
Clean only parts listed in this Owner’s
Manual.
SELF-CLEANING OVEN
The purpose of the warming drawer is
to hold hot cooked foods at serving temperature. Always start with hot food; cold food cannot be heated or cooked in the warming drawer.
Do not use the drawer to dry newspapers.
If overheated, they can catch on fire.
Do not leave paper products, plastics, canned
food or combustible materials in the drawer.
Never leave jars or cans of fat drippings
in or near your drawer.
Do not warm food in the drawer for more
than two hours.
Never place, use or self-clean the lower
oven drawer pan in the upper oven.
Do not touch the heating element or the
interior surface of the drawer. These surfaces may be hot enough to burn.
REMEMBER: The inside surface of the drawer may be hot when the drawer is opened.
Use care when opening the drawer. Open
the drawer a crack and let hot air or steam escape before removing or replacing food. Hot air or steam which escapes can cause burns to hands, face and/or eyes.
Do not use aluminum foil to line the lower
oven drawer. Foil is an excellent heat insulator and will trap heat beneath it. This will upset the performance of the drawer and it could damage the interior finish.
WARMING DRAWER
Safety InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
GEAppliances.com
7
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Using the surface units.
Throughout this manual, features and appearance may vary from your model.
How to Set
Push the knob in and turn in either direction to the setting you want.
At both OFF and HI the control clicks into position. You may hear slight clicking sounds during cooking, indicating the control is keeping the power level you set.
A HOT COOKTOP indicator light will glow when any radiant element is turned on, and will remain on until the surface is cooled to approximately 150°F.
Indicator light will:
come on when the unit is turned on or hot to
the touch.
stay on even after the unit is turned off.
glow until the unit is cooled to approximately
150°F.
Be sure you turn the control knob to OFF when you finish cooking.
Dual Surface Unit Control Knob
The dual surface unit has 2 cooking sizes to select from so you can match the size of the unit to the size of the cookware you are using.
To use the small surface unit, turn the control knob to the SMALL BURNER settings.
To use the large surface unit, turn the control knob to the LARGE BURNER settings.
8
Using the Warming Zone
The WARMING ZONE, located in the back center of the glass surface, will keep hot, cooked food at serving temperature. Always start with hot food. Do not use to heat cold food. Placing uncooked or cold food on the WARMING ZONE could result in food-borne illness.
Push and turn the control knob to any desired setting.
For best results, all foods on the WARMING ZONE should be covered with a lid or aluminum foil. When warming pastries or breads, the cover should be vented to allow moisture to escape.
Always use potholders or oven mitts when removing food from the WARMING ZONE, as cookware and plates will be hot.
CAUTION: Do not warm food on the
WARMING ZONE for more than two hours.
NOTE: The surface warmer will not glow red like
the cooking elements.
A HOT surface indicator light will glow when the glass surface is hot and will remain on until the surface is cool enough to touch. Lower settings may not heat the glass surface enough to cause the HOT surface indicator light to come on.
A WARMING ZONE indicator light will glow when the unit is on.
Do not use plastic wrap to cover food. Plastic
may melt onto the surface and be very difficult to clean.
Use only cookware recommended for
top-of-range cooking.
WARMER GUIDE SETTING FOOD
(Low) Bread/Pastries (Medium) Chocolate/Butter (Medium) Sauces, Stews,
Cream Soups (Medium) Vegetables (High) Soups (liquid) (High) Tea or Coffee
The Warmer Guide is for reference only and the SETTING that you need will depend on the amount and type of food, the starting temperature of the food and the length of the holding time.
9
GEAppliances.com
Throughout this manual, features and appearance may vary from your model.
Home Canning Tips
Be sure the canner is centered over the surface unit.
Make sure the canner is flat on the bottom.
To prevent burns from steam or heat, use caution when canning.
Use recipes and procedures from reputable sources. These are available from manufacturers such as Ball®and Kerr®and the Department of Agriculture Extension Service.
Flat-bottomed canners are recommended. Use of water bath canners with rippled bottoms may extend the time required to bring the water to a boil.
Use only flat-bottomed woks.
Wok Cooking
We recommend that you use only a flat-bottomed wok. They are available at your local retail store.
Do not use woks that have support rings.
Do not use round bottom woks. You could be seriously burned if the wok tipped over.
Temperature Limiter
Every radiant surface unit has a temperature limiter.
The temperature limiter protects the glass cooktop from getting too hot.
The temperature limiter may cycle the units off for a time if:
The pan boils dry.
The pan bottom is not flat.
The pan is off center.
There is no pan on the unit.
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Using the surface units.
The following information will help you choose cookware which will give good performance on glass cooktops.
Never cook directly on the glass. Always use cookware.
About the radiant surface units…
The radiant cooktop features heating units beneath a smooth glass surface.
NOTE: A slight odor is normal when a new cooktop is used for the first time. It is caused by the heating of new parts and insulating materials and will disappear in a short time.
NOTE: On models with light colored glass cooktops, it is normal for the cooking zones to change color when hot or cooling down. This is temporary and will disappear as the glass cools to room temperature.
The surface unit will cycle on and off to maintain your selected control setting.
It is safe to place hot cookware on the glass surface even when the cooktop is cool.
Even after the surface units are turned off, the glass cooktop retains enough heat to continue cooking. To avoid overcooking, remove pans from the surface units when the food is cooked. Avoid placing anything on the surface unit until it has cooled completely.
Do not slide cookware across the cooktop because it can scratch the glass—the glass is scratch resistant, not scratch proof.
Water stains (mineral deposits) are removable
using the cleaning cream or full strength white vinegar.
Use of window cleaner may leave an
iridescent film on the cooktop. The cleaning cream will remove this discoloration.
Don’t store heavy items above the cooktop.
If they drop onto the cooktop, they can cause damage.
Do not use the surface as a cutting board.
;;
;
;;
;
;
;;
;
;
;;
;;
;
;;
;
;
;
;
;
;
;
;
;
;
;
;;
;;
;
;
;
;
;
;;
;
;;
;
;;;;
;
;;
;
;;
;;
;
;;
;
;
;
;
;
;
;
;;
;
;;;
;
;
;;
;
;;
;
;;;;;;
;
;;;;;
Always place the pan in the center of the surface unit you are cooking on.
10
SURFACE COOKING
OFF CENTER
DRAGGING
11
Selecting types of cookware. GEAppliances.com
Stainless Steel:
recommended
Aluminum:
heavy weight recommended
Good conductivity. Aluminum residues sometimes appear as scratches on the cooktop, but can be removed if cleaned immediately. Because of its low melting point, thin weight aluminum should not be used.
Copper Bottom:
recommended
Copper may leave residues which can appear as scratches. The residues can be removed, as long as the cooktop is cleaned immediately. However, do not let these pots boil dry. Overheated metal can bond to glass cooktops. An overheated copper bottom pot will leave a residue that will permanently stain the cooktop if not removed immediately.
Porcelain Enamel Covered Cast Iron:
recommended
As long as the cookware is covered completely with porcelain enamel, this cookware is recommended. Caution is recommended for cast iron cookware that is not completely covered with smooth porcelain enamel, as it may scratch the glass ceramic cooktop.
Glass-ceramic:
usable, but not recommended
Poor performance. May scratch the surface.
Stoneware:
usable, but not recommended
Poor performance. May scratch the surface.
Check pans for flat bottoms by using a straight edge.
Pans with rounded, curved, ridged or warped bottoms are not recommended.
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
12
Safety InstructionsOperating Instructions
Care and Cleaning
Troubleshooting TipsConsumer Support
BAKE Pad
Touch to select the bake function.
BROIL HI/LO Pad
Touch to select the broil function.
Display
Shows the time of day, oven temperature, whether the oven is in the bake, broil or self-cleaning mode and the times set for the timer or automatic oven operations.
If “F– and a number or letter” flash in the display and the oven control signals, this indicates a function error code. Touch the CLEAR/OFF pad. Allow the oven to
cool for one hour. Put the oven back into operation. If the function error code repeats, disconnect the power to the oven and call for service.
If your oven was set for a timed oven operation and a power outage occurred, the clock and all
programmed functions must be reset.
The time of day will flash in the display when there has been a power outage.
CLEAR/OFF Pad
Touch to cancel ALL oven operations except the clock and timer.
COOKING TIME Pad
Touch and then touch the number pads to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out.
DELAY START Pad
Use along with COOKING TIME or SELF CLEAN STD/LO pads to set the oven
to start and stop automatically at a time you set.
SELF CLEAN STD/LO Pad
Touch to select self-cleaning function. See the Using the self-cleaning oven section.
OVEN LIGHT ON/OFF Pad
Touch to turn the oven light on or off.
START Pad
Must be touched to start any cooking or cleaning function.
Number Pads
Use to set any function requiring numbers such as the time of day on the clock, the timer, the oven temperature, the internal food temperature, the start time and length of operation for timed baking and self-cleaning.
CLOCK Pad
Touch before setting the clock.
KITCHEN TIMER ON/OFF Pad
Touch to select the timer feature.
Oven Control, Clock and Timer Features and Settings
Using the oven controls.
Preheating and Pan Placement
Preheat the oven if the recipe calls for it. Preheating is necessary for good results when baking cakes, cookies, pastry and breads.
To preheat, set the oven at the correct temperature. The control will beep when the oven is preheated and the display will show your set temperature. This will take approximately 6–10 minutes.
Baking results will be better if baking pans are centered in the oven as much as possible. If baking with more than one pan, place the pans so each has at least 1 to 11⁄2of air space around it. If baking four cake layers at the same time, place two layers on rack B and two layers on rack D. Stagger pans on the rack so one is not directly over the other.
Using the oven. GEAppliances.com
To avoid possible burns, place the shelves in the desired position before you turn the oven on.
Before you begin…
The shelves have stop-locks, so that when placed correctly on the shelf supports (A through F), they will stop before coming completely out, and will not tilt.
When placing and removing cookware, pull the shelf out to the bump on the shelf support.
To remove a shelf, pull it toward you, tilt the front end up and pull it out.
To replace, place the end of the shelf (stop-locks) on the support, tilt up the front and push the shelf in.
CAUTION: When you are using the
shelf in the lowest position (A), you will need to use caution when pulling the shelf out. We recommend that you pull the shelf out several inches and then, using two pot holders, pull the shelf out by holding the sides of it. The shelf is low and you could be burned if you place your hand in the middle of the shelf and pull all the way out. Be very careful not to burn your hand on the door when using the shelf in the lowest position (A).
The oven has 6 shelf positions.
How to Set the Oven for Baking or Roasting
Touch the BAKE pad.
Touch the number pads to set the oven temperature.
To change the oven temperature during the Bake cycle, touch the BAKE pad and set the new temperature.
Touch the START pad. When the oven starts to heat, the changing temperature will be in the display. The display starts changing once the temperature reaches 100°F.
Touch the CLEAR/OFF pad when baking is finished.
Type of Food Shelf Position
Frozen pies (on cookie sheet) D
Angel food cake A
Bundt or pound cakes B or C
Biscuits, muffins, brownies, C or D cookies, cupcakes, layer cakes, pies
Casseroles C or D
Turkey A
Aluminum Foil
Never cover the oven bottom with aluminum foil.
You can use aluminum foil to line the broiler pan and broiler grid. However, you must mold the foil tightly to the grid and cut slits in it just like the grid.
Aluminum foil may also be used to catch a spillover. To do so, place a small sheet of foil on a lower shelf several inches below the food.
Never entirely cover a shelf with aluminum foil. This will disturb the heat circulation and result in poor baking.
Cut slits in the foil just like the grid.
Center baking pans in the oven.
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
13
14
Using the oven.
Safety Instructions
Operating Instructions
Care and CleaningTroubleshooting TipsConsumer Support
How to Set the Upper Oven for Broiling
Leave the door open to the broil stop position. The door stays open by itself, yet the proper temperature is maintained in the oven.
Place the meat or fish on the broiler grid in the broiler pan.
Follow suggested rack positions in the Broiling Guide.
Touch the BROIL HI/LO pad once for
HI Broil.
To change to LO Broil, touch the BROIL HI/LO pad again.
Use LO Broil to cook foods such as poultry or thick cuts of meat thoroughly without over-browning them.
Touch the START pad.
When broiling is finished, touch the CLEAR/OFF pad.
The size, weight, thickness, starting temperature and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature.
The U.S. Department of Agriculture
says “Rare beef is popular, but you should know that cooking it to only 140°F means some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)
If your range is connected to 208 volts, rare steaks may be broiled by preheating the broiler and positioning the oven rack one position higher.
Broiling Guide
Quantity and/ Shelf First Side Second Side
Food or Thickness Position Time (min.) Time (min.) Comments
Ground Beef 1 lb. (4 patties) E 9 6 Space evenly. Up to 8
Well Done 1/2 to 3/4thick E 11 10 patties take about the
same time.
Beef Steaks
Rare† 1thick F 7 5 Steaks less than 1 Medium 1 to 11⁄2
lbs. E 9 6–7 thick cook through
Well Done E 11 8–9 before browning. Pan
frying is recommended. Slash fat.
Rare† 1
1
2thick D 14 11 Medium 2 to 21⁄2 lbs. D 18 14–16 Well Done D 22 20
Chicken 1 whole cut up C 25 10 Broil skin-side-down
2 to 21⁄2 lbs., first. split lengthwise 2 Breasts C 25 10–15
Lobster Tails 2–4 C 18–20 Do not Cut through back of
10 to 12 oz. each turn shell. Spread open.
over. Brush with melted
butter before broiling and after half of broiling time.
Fish Fillets 1/4 to 1/2thick E 6 5 Handle and turn very
carefully. Brush with lemon butter before and during cooking, if desired.
Ham Slices 1/2thick D 6 6 Increase time 5 to 10 (precooked) minutes per side for
11⁄2″ thick or home- cured ham.
Pork Chops 2 (1/2thick) E 10 10 Slash fat. Well Done 2 (1thick) about 1 lb. D 15 15
Salmon Steaks 2 (1thick) D 10 7–8 Grease pan. Brush
4 (1thick) about 1 lb. D 12 10 steaks with melted
butter.
To Set the Clock
The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The time of day cannot be changed during a timed baking or self-cleaning cycle.
Touch the CLOCK pad.
Touch the number pads.
Touch the START pad.
Make sure the clock is set to the correct time of day.
To Set the Kitchen Timer
Touch the KITCHEN TIMER ON/OFF pad.
Touch the number pads until the amount of time you want shows in the display. For example, to set 2 hours and 45 minutes, touch 2, 4 and 5 in that order. If you make a mistake, touch the KITCHEN TIMER ON/OFF pad and begin again.
Touch the START pad.
After touching the START pad, SET disappears; this tells you the time is counting down, although
the display does not change until one minute has passed. Seconds will not be shown in the display until the last minute is counting down.
When the Kitchen Timer reaches :00, the control will beep 3 times followed by one beep every 6 seconds until the KITCHEN TIMER ON/OFF pad is touched.
The 6-second tone can be canceled by following the steps in the Special features of your oven control section under Tones at the End of a Timed Cycle.
The Kitchen Timer is a minute timer only. The Kitchen Timer does not control
oven operations. The maximum setting on the Kitchen Timer is 9 hours and 59 minutes.
To Reset the Kitchen Timer
If the display is still showing the time remaining, you may change it by touching the KITCHEN TIMER ON/OFF pad, then touch the number pads until the time you want appears in the display.
If the remaining time is not in the display (clock, delay start or cooking time are in the display), recall the remaining time by touching the KITCHEN TIMER ON/OFF pad and then touching the number pads to enter the new time you want.
To Cancel the Kitchen Timer
Touch the KITCHEN TIMER ON/OFF pad twice.
Your control will allow you to lock out the touch pads so they cannot be activated when pressed or when cleaning the control panel.
To activate this feature:
Touch the 9 and 0 touch pads at the same time until the control beeps twice. The display will show LOC continuously and the time of day if not blacked out.
NOTE: All cooking and timing functions will be cancelled when locking out the control.
To unlock the control, touch and hold the 9 and 0 pads at the same time until the control beeps twice, and LOC will be removed from the display.
Control Lockout
15
Using the clock, kitchen timer and control lockout. GEAppliances.com
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
16
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
How to Set an Immediate Start and Automatic Stop
The oven will turn on immediately and cook for a selected length of time. At the end of the cooking time the oven will turn off automatically.
Touch the BAKE pad.
Touch the number pads to set the desired oven temperature.
Touch the COOKING TIME pad.
NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.
Touch the number pads to set the desired length of cooking time. The minimum cooking time you can set is 1 minute.
The oven temperature that you set and the cooking time that you entered will be in the display.
Touch the START pad.
NOTE: An attention tone will sound if you are using timed baking and do not touch the START pad.
The oven will turn ON, and the display will show the cooking time countdown and the changing temperature starting at 100°F. (The temperature display will start to change once the oven temperature reaches 100°F.) When the oven reaches the temperature you set, 3 beeps will sound.
The oven will continue to cook for the set amount of time, then turn off automatically, unless the WARM feature was set. See the How to Set the Oven for Warming section.
Touch the CLEAR/OFF pad to clear the display if necessary. Remove the food from the oven. Remember, even though the oven turns off automatically, food left in the oven will continue cooking after the oven turns off.
How to Set a Delayed Start and Automatic Stop
The oven will turn on at the time of day you set, cook for a specific length of time and then turn off automatically.
Make sure the clock shows the correct time of day.
Touch the BAKE pad.
Touch the number pads to set the desired oven temperature.
Touch the COOKING TIME pad.
NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.
Touch the number pads to set the desired length of cooking time. The minimum cooking time you can set is 1 minute.
The oven temperature that you set and the cooking time that you entered will be in the display.
Touch the DELAY START pad.
Touch the number pads to set the time of day you want the oven to turn on and start cooking.
Touch the START pad.
NOTE: An attention tone will sound if you are using timed baking and do not touch the START pad.
NOTE: If you would like to check the times you have set, touch the DELAY START pad to check the start time you have set or touch the COOKING TIME pad to check the length of cooking time you have set.
When the oven turns ON at the time of day you set, the display will show the cooking time countdown and the changing temperature starting at 100°F. (The temperature display will start to change once the oven temperature reaches 100°F.) When the oven reaches the temperature you set, beeps will sound.
The oven will continue to cook for the set amount of time, then turn off automatically, unless the WARM feature was set. See the How to Set the Oven for Warming section.
Touch the CLEAR/OFF pad to clear the display if necessary. Remove the food from the oven. Remember, even though the oven turns off automatically, food left in the oven will continue cooking after the oven turns off.
Using the timed baking and roasting features.
NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for
more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.
12-Hour Shutdown
With this feature, should you forget and leave the oven on, the control will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function.
If you wish to turn OFF this feature, follow the steps below.
Touch the BAKE and BROIL HI/LO pads at the same time until the display shows SF.
Touch the DELAY START pad until no shdn (no shut-off) appears in the display.
Touch the START pad to activate the no shut-off and leave the control set in this special features mode.
Fahrenheit or Celsius Temperature Selection
Your oven control is set to use the Fahrenheit temperature selections but you may change this to use the Celsius selections.
Touch the BAKE and BROIL HI/LO pads at the same time until the display shows SF.
Touch the COOKING TIME and BROIL HI/LO pads at the same time. The display will show F (Fahrenheit).
Touch the COOKING TIME and BROIL HI/LO pads again at the same time. The display will show C (Celsius).
Touch the START pad.
Tones at the End of a Timed Cycle
At the end of a timed cycle, 3 short beeps will sound followed by one beep every 6 seconds until the CLEAR/OFF pad is touched. This continual 6-second beep may be canceled.
To cancel the 6-second beep:
Touch the BAKE and BROIL HI/LO pads at the same time until the display shows SF.
Touch the KITCHEN TIMER ON/OFF pad. The display shows CON BEEP (continuous beep). Touch the KITCHEN TIMER ON/OFF pad again. The display shows BEEP. (This cancels the one beep every 6 seconds.)
Touch the START pad.
Cook and Hold
Your new control has a cook and hold feature that keeps cooked foods warm for up to 3 hours after the cooking function is finished.
To activate this feature, follow the steps below.
Touch the BAKE and BROIL HI/LO pads at the same time until the display shows SF.
Touch the COOKING TIME pad. The display will show Hld OFF.
Touch the COOKING TIME pad again to activate the feature. The display will show Hld ON.
Touch the START pad to activate the cook and hold feature and leave the control set in this special features mode.
Special features of your oven control. GEAppliances.com
Your new touch pad control has additional features that you may choose to use. The following are the features and how you may activate them.
The special feature modes can only be activated while the display is showing the time of day. They remain in the control’s memory until the steps are repeated.
When the display shows your choice, touch the START pad. The special features will remain in memory after a power failure, except for the Sabbath feature, which will have to be reset.
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
17
18
12-Hour, 24-Hour or Clock Blackout
Your control is set to use a 12-hour clock.
If you would prefer to have a 24-hour military time clock or black out the clock display, follow the steps below.
Touch the BAKE and BROIL HI/LO pads at the same time until the display shows SF.
Touch the CLOCK pad once. The display will show 12 hr. If this is the choice you want, touch the START pad.
Touch the CLOCK pad again to change to the 24 hour military time clock. The display will show 24 hr. If this is the choice you want, touch the START pad.
Touch the CLOCK pad again to black out the clock display. The display will show OFF. If this is the choice you want, touch the START pad.
NOTE: If the clock is in the black-out mode, you will not be able to use the Delay Start function.
Special features of your oven control.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
The Sabbath feature can be used for baking/roasting only. It cannot be used for convection, broiling, self-cleaning or Delay Start cooking.
NOTE: The oven light comes on automatically (on some models) when the door is opened and goes off when the door is closed. The bulb may be removed. See the Oven Light Replacement section. On models with a light switch on the control panel, the oven light may be turned on and left on.
How to Set Sabbath Feature for Regular Baking/Roasting
Make sure the clock shows the correct time of day and the oven is off.
Touch and hold both the BAKE and BROIL HI/LO pads, at the same time, until the display shows SF.
NOTE: If bake or broil appears in the
display, the BAKE and BROIL HI/LO pads were not touched at the same time. Touch the CLEAR/OFF pad and begin again.
Tap the DELAY START pad until SAb bAtH appears in the display.
Touch the START pad and will appear in the display.
Touch the BAKE pad. No signal will be given.
Using the number pads, enter the desired temperature between 170°F and 550°F. No signal or temperature will be given.
Touch the START pad.
After a random delay period of approximately 30 seconds to 1 minute, will appear in the display indicating that the oven is baking/ roasting. If doesn’t appear in the display, start again at Step 4.
To adjust the oven temperature, touch the BAKE pad, enter the new temperature using the number pads and touch the START pad.
NOTE: The CLEAR/OFF and COOKING TIME pads are active during the Sabbath feature.
How to Set Sabbath Feature for Timed Baking/Roasting— Immediate Start and Automatic Stop
Make sure the clock shows the correct time of day and the oven is off.
Touch and hold both the BAKE and BROIL HI/LO pads, at the same time, until the display shows SF.
NOTE: If bake or broil appears in the
display, the BAKE and BROIL HI/LO pads were not touched at the same time. Touch the CLEAR/OFF pad and begin again.
Tap the DELAY START pad until SAb bAtH appears in the display.
Touch the START pad and will appear in the display.
Touch the COOKING TIME pad.
Touch the number pads to set the desired length of cooking time between 1 minute and 9 hours and 59 minutes. The cooking time that you entered will be displayed.
Touch the START pad.
Touch the BAKE pad. No signal will be given.
Using the number pads, enter the desired temperature. No signal or temperature will be given.
Touch the START pad.
After a random delay period of approximately 30 seconds to 1 minute, will appear in the display indicating that the oven is
baking/roasting.
If
doesn’t appear in the display, start again at Step 7.
To adjust the oven temperature, touch the BAKE pad, enter the new temperature using the number pads and touch the START pad.
When cooking is finished, the display will change from to ⊃ and 0:00 will appear, indicating that the oven has turned OFF but is still set in Sabbath. Remove the cooked food.
How to Exit the Sabbath Feature
Touch the CLEAR/OFF pad.
If the oven is cooking, wait for a random delay period of approximately 30 seconds to 1 minute, until only is in the display.
Touch and hold both the BAKE and BROIL HI/LO pads, at the same time, until the display shows SF.
Tap the DELAY START pad until 12 shdn or no shdn appears in the display.
Choose 12 shdn, indicating that the oven will automatically turn off after 12 hours or no shdn, indicating that the oven will not automatically turn off after 12 hours.
Touch START when the option that you want is in the display (12 shdn or no shdn).
NOTE: If a power outage occurred while the oven was in Sabbath, the oven will automatically turn off and stay off even when the power returns. The oven control must be reset.
When the display shows the oven is set in Sabbath. When the display shows the oven is baking/roasting.
When the display shows the oven is set in Sabbath. When the display shows the oven is baking/roasting.
Using the Sabbath feature.
(Designed for use on the Jewish Sabbath and Holidays) (On some models)
GEAppliances.com
Safety Instructions Operating Instructions Care and Cleaning
Troubleshooting Tips Consumer Support
19
20
To Adjust the Thermostat
Touch the BAKE and BROIL HI/LO pads at the same time until the display shows SF.
Touch the BAKE pad. A two digit number shows in the display.
Touch BAKE again to alternate between increasing and decreasing the oven temperature.
The oven temperature can be adjusted up to (+) 35ºF hotter or (-) 35ºF cooler. Touch the number pads the same way you read them. For example, to change the oven temperature 15ºF, touch 1 and 5.
When you have made the adjustment, touch the START pad to go back to the time of day display. Use your oven as you would normally.
Adjust the oven thermostat—Do it yourself!
You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself.
Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven. These thermometers may vary 20–40 degrees.
NOTE: This adjustment will only affect baking and roasting temperatures; it will not affect broiling, convection or self-cleaning temperatures. The adjustment will be retained in memory after a power failure.
The type of margarine will affect baking performance!
Most recipes for baking have been developed using high fat products such as butter or margarine (80% fat). If you decrease the fat, the recipe may not give the same results as with a higher fat product.
Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low fat spreads. The lower the fat content of a spread product, the more noticeable these differences become.
Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low fat spreads, on the other hand, contain less fat and more water. The high moisture content of these spreads affects the texture and flavor of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least 70% vegetable oil.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
21
The warming drawer will keep hot, cooked foods at serving temperature. Always start with hot food. Do not use to heat cold food other than crisping crackers, chips or dry cereal.
Using the warming drawer. GEAppliances.com
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
To Use the Warming Drawer
Push and turn the control knob to any desired setting.
When Using the Warming Drawer
The warming drawer will keep hot, cooked foods warm. Always start with hot food. Do not use to heat cold food other than crisping crackers, chips or dry cereal.
Do not line the warming drawer or pan with aluminum foil. Foil is an excellent heat insulator and will trap heat beneath it. This will upset the performance of the drawer and could damage the interior finish.
Allow approximately 25 minutes for the warming drawer to preheat.
Do not put liquid or water in the
warming drawer.
All foods placed in the warming drawer
should be covered with a lid or aluminum foil. When warming pastries or breads, the cover should be vented to allow moisture to escape.
Food should be kept hot in its cooking
container or transferred to a heat-safe serving dish.
CAUTION: Plastic containers or plastic wrap will melt if in direct contact with the drawer, pan or a hot utensil. Melted plastic may not be removable and is not covered under your warranty.
Remove serving spoons, etc., before
placing containers in warming drawer.

WARMING DRAWER

Temperature Selection Chart
To keep several different foods hot, set the control to the food needing the highest setting.
The temperature, type and amount
of food, and the time held will affect the quality of the food.
Repeated opening of the drawer allows
the hot air to escape and the food to cool.
With large loads it may be necessary to
use a higher warming drawer setting and cover some of the cooked food items.
Do not use plastic containers or
plastic wrap.
CAUTION: Do not keep food in the warming drawer for more than two hours.
Food Type Control Setting
Bacon HI Breads LO Casserole MED Chicken, fried HI Ham HI Muffins LO Pies LO Pizza HI Potatoes, baked HI Tortilla Chips LO
To Crisp Stale Items
Place food in low-sided dishes or pans.
Preheat on LO setting.
Check crispness after 45 minutes. Add
time as needed.
To Warm Serving Bowls and Plates
To warm serving bowls and plates, set the control on LO.
Use only heat-safe dishes.
If you want to heat fine china, please
check with the manufacturer of the dishes for their maximum heat tolerance.
You may warm empty serving dishes
while preheating the drawer.
CAUTION: Dishes will be hot. Use pot holders or mitts when removing hot dishes.
Using the warming drawer.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
22
How to Set the Oven for Cleaning
Touch the SELF CLEAN pad once for a 3-hour clean time or twice for a 4-hour clean time.
A 3-hour self-clean time is recommended for use when cleaning small, contained spills. A self-clean time of 4 hours or longer is recommended for a dirtier oven.
If a time other than 4 hours or 3 hours is needed, use the number pads and enter the desired clean time.
You can change the clean time to any time between 21⁄2 hours and 5 hours, depending on how dirty your oven is.
Touch the START pad.
The door locks automatically. The display will show the clean time remaining. It will not be possible to open the oven door until the temperature drops below the lock temperature and the LOCKED light goes off.
When the LOCKED light goes off, you will be able to open the door.
The word LOCKED will flash and the
word door will display if you set the clean cycle and forget to close the oven door.
To stop a clean cycle, touch the
CLEAR/OFF pad. When the LOCKED light goes off, indicating the oven has cooled below the locking temperature, you will be able to open the door.
23
Before a Clean Cycle
Using the self-cleaning oven. GEAppliances.com
The oven door must be closed and all controls set correctly for the cycle to work properly.
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
Wipe up heavy soil on the oven bottom.
We recommend venting your kitchen with an open window or using a ventilation fan or hood during the first self-clean cycle.
Remove the broiler pan, broiler grid, all cookware and any aluminum foil from the oven.
NOTE:
If your oven is equipped with shiny,
silver-colored oven racks, remove them before you begin the self-clean cycle.
If your oven is equipped with gray
porcelain-coated oven racks, they may be left in the oven during the self-clean cycle.
The shiny, silver-colored oven racks (on some models) and the convection roasting rack can be self-cleaned, but they will darken, lose their luster and become hard to slide.
Soil on the front frame of the range and outside the gasket on the door will need to be cleaned by hand. Clean these areas with hot water, soap-filled steel-wool pads or cleansers such as Soft Scrub®. Rinse well with clean water and dry.
Do not clean the gasket. The fiberglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, replace it.
Wipe up any heavy spillovers on the oven bottom.
Make sure the oven light bulb cover is in place and the oven light is off.
IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another well­ventilated room.
24
After a Clean Cycle
You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools.
If white spots remain, remove them with a soap­filled steel wool pad and rinse thoroughly with a vinegar and water mixture.
These deposits are usually a salt residue that cannot be removed by the clean cycle.
If the oven is not clean after one clean cycle, repeat the cycle.
You cannot set the oven for cooking or
another self-clean cycle until the oven is cool enough for the door to unlock.
While the oven is self-cleaning, you
can touch the CLOCK pad to display the time of day. To return to the clean countdown, touch the SELF CLEAN pad.
If the shelves become hard to slide,
apply a small amount of cooking oil to a paper towel and wipe the edges of the oven shelves with the paper towel.
How to Delay the Start of Cleaning
Touch the SELF CLEAN pad once for a 3-hour clean time or twice for a 4-hour clean time.
A 3-hour self-clean time is recommended for use when cleaning small, contained spills. A self-clean time of 4 hours or longer is recommended for a dirtier oven.
If a time other than 4 hours or 3 hours is needed, use the number pads and enter the desired clean time.
You can change the clean time to any time between 21⁄2 hours and 5 hours, depending on how dirty your oven is.
Touch the DELAY START pad.
Using the number pads, enter the time of day you want the clean cycle to start.
Touch the START pad.
The door locks automatically. The display will show the start time. It will not be possible to open the oven door until the temperature drops below the lock temperature and the LOCKED light goes off.
When the LOCKED light goes off, you will be able to open the door.
Using the self-cleaning oven.
The oven door must be closed and all controls set correctly for the cycle to work properly.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Care and cleaning of the range. GEAppliances.com
Be sure all controls are off and all surfaces are cool before cleaning any part of the range.
If your range is removed for cleaning, servicing or any reason, be sure the anti-tip device is reengaged properly when the range is replaced. Failure to take this precaution could result in tipping of the range and cause injury.
Oven Vent
The oven vent is located behind the right rear surface unit.
This area could become hot during oven use.
It is normal for steam to come out of the vent and moisture may collect underneath it when the oven is in use.
The vent is important for proper air circulation. Never block this vent.
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
25
How to Remove Protective Shipping Film and Packaging Tape
Carefully grasp a corner of the protective shipping film with your fingers and slowly peel it from the appliance surface. Do not use any sharp items to remove the film. Remove all of the film before using the appliance for the first time.
To assure no damage is done to the finish of the product, the safest way to remove the adhesive from packaging tape on new appliances is an application of a household liquid dishwashing detergent. Apply with a soft cloth and allow to soak.
NOTE: The adhesive must be removed from all parts. It cannot be removed if it is baked on.

Control Knobs

The control knobs may be removed for easier cleaning.
Make sure the knobs are in the OFF positions and pull them straight off the stems for cleaning.
The knobs can be cleaned in a dishwasher or they may also be washed with soap and water. Make sure the inside of the knobs are dry before replacing.
Replace the knobs in the OFF position to ensure proper placement.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Lift-Off Oven Door

The door is very heavy. Be careful when removing and lifting the door.
Do not lift the door by the handle.
To remove the door:
Fully open the door.
Pull the hinge locks down toward the door frame, to the unlocked position. A tool, such as a small flat­blade screwdriver, may be required.
Firmly grasp both sides of the door at the top.
Close door to the door removal position, which is halfway between the broil stop position and fully closed.
Lift door up and out until the hinge arm is clear of the slot.
To replace the door:
Firmly grasp both sides of the door at the top.
With the door at the same angle as the removal position, seat the indentation of the hinge arm into the bottom edge of the hinge slot. The notch in the hinge arm must be fully seated into the bottom of the slot.
Fully open the door. If the door will not fully open, the indentation is not seated correctly in the bottom edge of the slot.
Push the hinge locks up against the front frame of the oven cavity to the locked position.
Close the oven door.
To clean the inside of the door:
Do not allow excess water to run into
any holes or slots in the door.
Because the area inside the gasket is
cleaned during the self-clean cycle, you do not need to clean this by hand.
The area outside the gasket and the
door liner can be cleaned with a soap­filled steel wool or plastic pad, hot water and detergent. Rinse well with a vinegar and water solution.
To clean the outside of the door:
Use soap and water to thoroughly
clean the top, sides and front of the oven door. Rinse well. You may also use a glass cleaner to clean the glass on the outside of the door. Do not let water drip into the vent openings.
If any stain on the door vent trim is
persistent, use a soft abrasive cleaner and a sponge-scrubber for best results.
Spillage of marinades, fruit juices,
tomato sauces and basting materials containing acids may cause discoloration and should be wiped up immediately. When surface is cool, clean and rinse.
Do not use oven cleaners, cleaning
powders or harsh abrasives on the outside of the door.
The gasket is designed with a gap at the bottom to allow for proper air circulation.
Do not rub or clean the door gasket—it has an extremely low resistance to abrasion.
If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced.
Control Panel
It’s a good idea to wipe the control panel after each use of the oven. Use a damp cloth to clean or rinse. For cleaning, use mild soap and water or a 50/50 solution of vinegar and water. For rinsing, use clean water. Polish dry with a soft cloth.
Do not use abrasive cleansers, strong liquid cleaners, plastic scouring pads or oven cleaners on the control panel—they will damage the finish.
Painted Surfaces
Painted surfaces include the sides of the range and the door, top of control panel and the drawer front. Clean these with soap and water or a vinegar and water solution.
Do not use commercial oven cleaners, cleaning powders, steel wool or harsh abrasives on any painted surface.
26
Care and cleaning of the range.
Removal position
Indentation
Bottom
edge
of slot
Hinge arm
Hinge lock
Hinge lock
Slot
Push hinge locks up to lock.
Pull hinge locks down to unlock.
Hinge
arm
27
GEAppliances.com
Oven Heating Elements
Do not clean the bake element or the broil element. Any soil will burn off when the elements are heated.
To clean the oven floor, gently lift the bake element. Clean with warm soapy water.
Oven Racks
Clean the oven racks with an abrasive cleanser or scouring pad. After cleaning, rinse the shelves with clean water and dry with a clean cloth.
If your oven is equipped with gray porcelain-coated oven racks, they may be cleaned in the oven during the self­clean cycle.
NOTE:
If your oven is equipped with shiny, silver-
colored oven racks, remove them before you begin the self-clean cycle.
If your oven is equipped with gray porcelain-
coated oven racks, they may be left in the oven during the self-clean cycle.
To make the racks slide more easily, apply a small amount of vegetable oil to a paper towel and wipe the edges of the oven racks with the paper towel. Do not spray with Pam
®
or other lubricant sprays.

Broiler Pan and Grid

Do not clean the broiler pan or grid in a self-cleaning oven.
After broiling, remove the broiler pan from the oven. Remove the grid from the pan. Carefully pour out the grease from the pan into a proper container.
Wash and rinse the broiler pan and grid in hot water with a soap-filled or plastic scouring pad.
If food has burned on, sprinkle the grid with detergent while hot and cover with wet paper towels or a dishcloth. Soaking the pan will remove burned-on foods.
Both the broiler pan and grid may be cleaned with a commercial oven cleaner.
Both the broiler pan and grid can also be cleaned in a dishwasher.
After broiling, remove the broiler pan from the oven. Do not store a soiled broiler pan and grid anywhere in the range.
Oven Light Replacement
CAUTION: Before replacing your oven light
bulb, disconnect the electrical power to the range at the main fuse or circuit breaker panel.
Be sure to let the light cover and bulb cool completely.
To remove the cover:
Hold a hand under the cover so it doesn’t fall when released. With fingers of the same hand, firmly push back the wire cover holder. Lift off the cover.
Do not remove any screws to remove the cover.
Replace bulb with a 40-watt appliance bulb.
To replace the cover:
Place it into groove of the light receptacle. Pull wire forward to the center of the cover until it snaps into place.
Connect electrical power to the range.
Wire cover holder.
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
Removable Warming Drawer Pan
NOTE: Allow warming drawer to cool before
removing pan.
NOTE: Wipe spills promptly after each use.
Never place, use or self-clean the
warming drawer pan in the upper oven.
Warming drawer has a removable pan
for easy cleaning. Clean with hot soapy water and a sponge or dish towel. Dry with a clean cloth. Replace the pan in the warming drawer.
NOTE: For models with a warming drawer, before performing any adjustments, cleaning or service, disconnect the range electrical power supply at the household distribution panel by removing the fuse or switching off the circuit breaker. Make sure the warming drawer heating element is cool.
Care and cleaning of the range.
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
28
Allow the cooktop to cool.
Use a single-edge razor blade scraper at approximately a 45° angle against the glass surface and scrape the soil. It will be necessary to apply pressure to the razor scraper in order to remove the residue.
After scraping with the razor scraper, spread a few drops of CERAMA BRYTE
®
Ceramic Cooktop Cleaner on the entire burned residue area. Use the CERAMA BRYTE®Cleaning Pad to remove any remaining residue.
For additional protection, after all residue has been removed, polish the entire surface with CERAMA BRYTE
®
Ceramic Cooktop Cleaner
and a paper towel.
Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
29
Cleaning the glass cooktop. GEAppliances.com
Burned-On Residue
WARNING: DAMAGE to your glass surface may
occur if you use scrub pads other than those recommended.
Allow the cooktop to cool.
Spread a few drops of CERAMA BRYTE®Ceramic Cooktop Cleaner on the entire burned residue area.
Using the included CERAMA BRYTE®Cleaning Pad for Ceramic Cooktops, rub the residue area, applying pressure as needed.
If any residue remains, repeat the steps listed above as needed.
For additional protection, after all residue has been removed, polish the entire surface with CERAMA BRYTE
®
Ceramic Cooktop Cleaner
and a paper towel.
The CERAMA BRYTE®Ceramic Cooktop Scraper and all recommended supplies are available through our Parts Center. See instructions under “To Order Parts” section on next page.
NOTE: Do not use a dull or nicked blade.
Heavy, Burned-On Residue
Use a CERAMA BRYTE®Cleaning Pad for Ceramic Cooktops.
Normal Daily Use Cleaning
ONLY use CERAMA BRYTE®Ceramic Cooktop Cleaner on the glass cooktop. Other creams may not be as effective.
To maintain and protect the surface of your glass cooktop, follow these steps:
Before using the cooktop for the first time, clean it with CERAMA BRYTE®Ceramic Cooktop Cleaner. This helps protect the top and makes clean-up easier.
Daily use of CERAMA BRYTE
®
Ceramic Cooktop Cleaner will help keep the cooktop looking new.
Shake the cleaning cream well. Apply a few drops of CERAMA BRYTE
®
Ceramic Cooktop Cleaner
directly to the cooktop.
Use a paper towel or CERAMA BRYTE®Cleaning Pad for Ceramic Cooktops to clean the entire cooktop surface.
Use a dry cloth or paper towel to remove all cleaning residue. No need to rinse.
NOTE: It is very important that you DO NOT heat the cooktop until it has been cleaned thoroughly.
Clean your cooktop after each spill. Use CERAMA BRYTE®Ceramic Cooktop Cleaner.
30
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Cleaning the glass cooktop.
Turn off all surface units. Remove hot pans.
Wearing an oven mitt:
a. Use a single-edge razor blade
scraper (CERAMA BRYTE
®
Ceramic Cooktop Scraper) to move the spill to a cool area on the cooktop.
b. Remove the spill with
paper towels.
Any remaining spillover should be left until the surface of the cooktop has cooled.
Don’t use the surface units again until all of the residue has been completely removed.
NOTE: If pitting or indentation in the glass surface has already occurred, the cooktop glass will have to be replaced. In this case, service will be necessary.
Damage from Sugary Spills and Melted Plastic
Our testing shows that if you are cooking high sugar mixtures such as jelly or fudge and have a spillover, it can cause permanent damage to the glass surface unless the spillover is immediately removed.
Be careful not to slide pots and pans across your cooktop. It will leave metal markings on the cooktop surface.
These marks are removable using the CERAMA BRYTE
®
Ceramic Cooktop Cleaner with the CERAMA BRYTE®Cleaning Pad for Ceramic Cooktops.
If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave black discoloration on the cooktop.
This should be removed immediately before heating again or the discoloration may be permanent.
WARNING: Carefully check the
bottom of pans for roughness that would scratch the cooktop.
Metal Marks and Scratches
To order CERAMA BRYTE®Ceramic Cooktop Cleaner and the cooktop scraper, please call our toll-free number:
National Parts Center 800.626.2002 CERAMA BRYTE
®
Ceramic
Cooktop Cleaner . . . . . . . . . . .# WX10X300
CERAMA BRYTE
®
Ceramic
Cooktop Scraper . . . . . . . . . . .# WX10X0302
Kit . . . . . . . . . . . . . . . . . . . . . . . .# WB64X5027
(Kit includes cream and cooktop scraper)
CERAMA BRYTE®Cleaning Pads for
Ceramic Cooktops . . . . . . . . .# WX10X350
To Order Parts
Glass surface—potential for permanent damage.
To clean the rubber-like seal at the outer edge of the glass, wipe it with cooktop cream when needed.
Rubber-like Seal

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Before you call for service… GEAppliances.com
Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.
Problem Possible Causes What To Do
Surface units will not Improper cookware Use pans which are flat and match the diameter maintain a rolling boil being used. of the surface unit selected. or cooking is not fast enough
Surface units do not Cooktop controls Check to see the correct control is set for the surface work properly improperly set. unit you are using.
A fuse in your home may be Replace the fuse or reset the circuit breaker. blown or the circuit breaker tripped.
Scratches (may appear Incorrect cleaning Scratches are not removable. Tiny scratches will become as cracks) on cooktop methods being used. less visible in time as a result of cleaning. glass surface
Cookware with rough bottoms To avoid scratches, use the recommended cleaning being used or coarse particles procedures. Make sure bottoms of cookware are clean (salt or sand) were between before use, and use cookware with smooth bottoms. the cookware and the surface of the cooktop.
Cookware has been slid across the cooktop surface.
Areas of discoloration Food spillovers not cleaned See the Cleaning the glass cooktop section. on the cooktop before next use.
Hot surface on a model This is normal. The surface may appear discolored with a light colored glass when it is hot. This is temporary and will disappear cooktop. as the glass cools.
Plastic melted to Hot cooktop came into See the Glass surface—potential for permanent damage the surface contact with plastic placed section in the Cleaning the glass cooktop section.
on the hot cooktop.
Pitting (or indentation) Hot sugar mixture spilled Call a qualified technician for replacement. of the cooktop on the cooktop.
Frequent cycling Improper cookware Use only flat cookware to minimize cycling. off and on of being used. surface units
Control signals after You forgot to enter a Press the BAKE pad and desired temperature or the entering cooking time bake temperature or SELF CLEAN pad and desired clean time. or delay start cleaning time.
Food does not bake Oven controls improperly set. See the Using the oven section. or roast properly
Rack position is incorrect See the Using the oven section. or the rack is not level.
Incorrect cookware or See the Using the oven section. cookware of improper size being used.
Oven thermostat needs See the Adjust the oven thermostat—Do it yourself! adjustment. section.
31
32
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Troubleshooting Tips
Before you call for service…
Problem Possible Causes What To Do
Clock and timer Plug on range is not completely Make sure electrical plug is plugged into a live, properly do not work inserted in the electrical outlet. grounded outlet.
A fuse in your home may Replace the fuse or reset the circuit breaker. be blown or the circuit breaker tripped.
Oven controls improperly set. See the Using the clock and timer section.
Oven light does Light bulb is loose or defective. Tighten or replace the bulb. not work
Switch operating light Call for service. is broken.
Food does not Door not open to the broil stop See the Using the oven section. broil properly position as recommended.
Oven controls improperly set. Make sure you press the BROIL HI/LO pad.
Improper rack position See the Broiling Guide. being used.
Cookware not suited for Use the broiling pan and grid that came with your range. broiling.
Aluminum foil used on the See the Using the oven section. the broiling pan and grid has not been fitted properly and slit as recommended.
In some areas the power Preheat the broil element for 10 minutes. (voltage) may be low.
Broil for the longest period of time recommended
in the Broiling Guide.
Oven temperature Oven thermostat See the Adjust the oven thermostat—Do it yourself! too hot or too cold needs adjustment. section.
Oven will not work Plug on range is not Make sure electrical plug is plugged into a live,
completely inserted in properly grounded outlet. the electrical outlet.
A fuse in your home may Replace the fuse or reset the circuit breaker. be blown or the circuit breaker tripped.
Oven controls improperly set. See the Using the oven section.
Safety Instructions
Operating Instructions
Safety Instructions
Operating Instructions Care and Cleaning
Troubleshooting Tips Consumer Support
GEAppliances.com
Problem Possible Causes What To Do
Oven will not self-clean The oven temperature is Allow the oven to cool to room temperature and
too high to set a self-clean reset the controls. operation.
Oven controls improperly set. See the Using the self-cleaning oven section.
“Crackling” or This is the sound of the This is normal. “popping” sound metal heating and cooling
during both the cooking and cleaning functions.
Excessive smoking Excessive soil. Press the CLEAR/OFF pad. Open the windows to during a clean cycle rid the room of smoke. Wait until the LOCKED door
light goes off. Wipe up the excess soil and reset the clean cycle.
Oven door will not Oven too hot. Allow the oven to cool below locking temperature, open after a and LOCKED or CLEAN no longer appears in the display. clean cycle
Oven not clean after Oven controls not properly set. See the Using the self-cleaning oven section. a clean cycle
Oven was heavily soiled. Clean up heavy spillovers before starting the clean
cycle. Heavily soiled ovens may need to self-clean again or for a longer period of time.
“LOCK DOOR” flashes The self-clean cycle has been Close the oven door. in the display selected but the door is not
closed.
LOCKED DOOR light The oven door is locked Press the CLEAR/OFF pad. Allow the oven to cool. is on when you want because the temperature to cook inside the oven has not
dropped below the locking temperature.
“F— and a number You have a function Disconnect all power to the range for at least or letter” flash error code. 30 seconds and then reconnect power. If the function in the display error code repeats, call for service.
33
34
Problem Possible Causes What To Do
Display goes blank A fuse in your home may be Replace the fuse or reset the circuit breaker.
blown or the circuit breaker tripped.
The clock is in the See the Special features of your oven control section. black-out mode.
Display flashes Power failure. Reset the clock.
Unable to get the Oven control pads were The BAKE and BROIL HI/LO pads must be pressed display to show “SF” not pressed properly. at the same time and held for 3 seconds.
Power outage, Power outage or surge. Reset the clock. If the oven was in use, you must reset clock flashes it by pressing the CLEAR/OFF pad, setting the clock
and resetting any cooking function.
“Burning” or “oily” This is normal in a new To speed the process, set a self-clean cycle for a odor emitting from oven and will disappear minimum of 3 hours. See the Using the self-cleaning the vent in time. oven section.
Strong odor An odor from the insulation This is temporary.
around the inside of the oven is normal for the first few times the oven is used.
Drawer does not slide Drawer is over-loaded or Reduce weight. Redistribute drawer contents. smoothly or drags load is unbalanced.
Warming drawer will A fuse in your home may be Replace the fuse or reset the circuit breaker. not work blown or the circuit breaker
tripped.
Controls improperly set. See the Warming drawer section.
Excessive condensation Liquid in drawer. Remove liquid. in the drawer
Uncovered foods. Cover food with lid or aluminum foil.
Temperature setting too high. Reduce temperature setting.
Food dries out in the Moisture escaping. Cover food with lid or aluminum foil. warming drawer
Drawer not fully closed. Push drawer in until latch engages.
Troubleshooting Tips
Before you call for service…
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
35
General Electric Company
Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150
GE Service Protection Plus
GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus
—comprehensive protection on all your appliances—
No Matter What Brand!
Benefits Include:
Backed by GE
All brands covered
Unlimited service calls
All parts and labor costs included
No out-of-pocket expenses
No hidden deductibles
One 800 number to call
You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It’s that simple.
Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.
*All brands covered, up to 20 years old, in the continental U.S.
We’ll Cover Any Appliance. Anywhere. Anytime.*
Please place in envelope and mail to:
Cut here
36
Consumer Product Ownership Registration
Important
Mail Today!
GE Appliances
GE Consumer & Industrial Louisville, Kentucky www.GEAppliances.com
First
Name
Mr. ■ Ms. ■ Mrs. Miss
Street
Address
City
State
Date Placed
In Use
Month
Day
Year
Zip
Code
Apt. #
Last
Name
Phone
Number
_
_
Consumer Product Ownership Registration
Dear Customer: Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
Important: If you did not get a registration card with your
product, detach and return the form below to ensure that your product is registered, or register online at www.GEAppliances.com.
1
23
Model Number Serial Number
Cut here
Complete and mail your Consumer Product Ownership Registration today.
Have the peace of mind of knowing we can contact you in the unlikely event of a safety modification.
After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is
800.GE.CARES (800.432.2737).
Read your Owner’s Manual carefully. It will help you operate your new appliance properly.
Model Number Serial Number
E-mail Address*
* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important
communications from GE Appliances (GEA).
Check here if you do not want to receive communications from GEA’s carefully selected partners.
FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS.
For information about GEA’s privacy and data usage policy, go to www.GEAppliances.com and click on “Privacy Policy” or call 800.626.2224.
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
Notes.37Accessories.
Looking For Something More?
You can find these accessories and many more at www.GEAppliances.com, or call 800.626.2002 (during normal business hours). Have your model number ready.
38
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Tired of discolored racks? Wishing you had extra-heavy-duty oven racks?
NOW AVAILABLE for your range:
GE’
s innovative, self-cleanable porcelain-coated oven racks!
• Heavy Duty
• Durable
• Able to be cleaned in a self-cleaning oven
Visit www.GEAppliances.com for more information.
Surface Elements and Drip Pans Oven Racks Broiler Pan
Oven Elements Light Bulbs Knobs
Cleaner Cleaning Pads Scraper
Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
GE Electric Range Warranty.
For The Period Of: GE Will Provide:
One Year Any part of the range which fails due to a defect in materials or workmanship. During this
From the date of the full one-year warranty, GE will also provide, free of charge, all labor and in-home service to original purchase replace the defective part.
Five Years A replacement glass cooktop if it should crack due to thermal shock, discolor, crack at the
From the date of the rubber seal between the glass cooktop and the porcelain edge, or if the pattern wears off. original purchase
A replacement radiant surface unit if it should burn out. During this limited additional four-year warranty, you will be responsible for any labor or
in-home service.
Service trips to your home to teach you how to use
the product.
Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused,
or used for other than the intended purpose or used commercially.
Damage to the glass cooktop caused by use of cleaners
other than the recommended cleaning creams and pads.
Damage to the glass cooktop caused by hardened
spills of sugary materials or melted plastic that are not cleaned according to the directions in the Owner’s Manual.
Replacement of house fuses or resetting of circuit
breakers.
Damage to the product caused by accident, fire, floods
or acts of God.
Incidental or consequential damage caused by possible
defects with this appliance.
Damage caused after delivery.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
All warranty service provided by our Factory Service Centers, or an authorized Customer Care®technician. To schedule service, on-line, 24 hours a day, visit us at www.GEAppliances.com, or call 800.GE.CARES (800.432.2737).
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
39
Printed in the United States
Consumer Support.
GE Appliances Website
www.GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™” your questions, and so much more...
Schedule Service www.GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.
Real Life Design Studio www.GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call
800.TDD.GEAC (800.833.4322).
Extended Warranties www.GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories www.GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
Contact Us www.GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park Louisville, KY 40225
Register Your Appliance www.GEAppliances.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.
Loading...
