GE JB850DFWW User Manual
30
24
3
3
7-1/2
Use a ush mount
outlet receptacle.
Orient the receptacle
so the length is
parallel to the oor.
Acceptable electrical
outlet area:
w/o handle
w/handle
45
28-1/4
25-3/4
47
29-7/8
35-3/4
to
36-1/2
11
Double Oven Range
JB850DF
GE® 30" Free-Standing Electric Double Oven Range

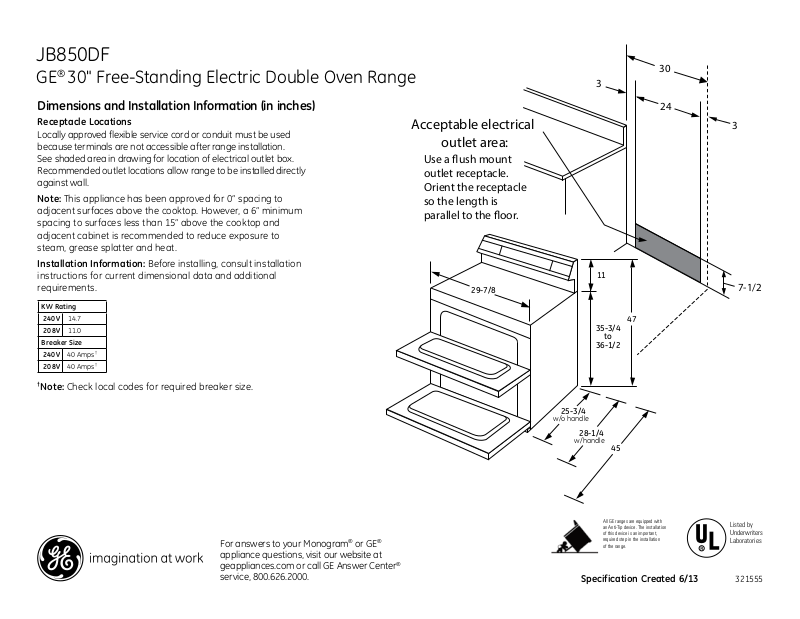

Dimensions and Installation Information (in inches)
Receptacle Locations
Locally approved flexible service cord or conduit must be used
because terminals are not accessible after range installation.
See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly
against wall.
Note: This appliance has been approved for 0” spacing to
adjacent surfaces above the cooktop. However, a 6” minimum
spacing to surfaces less than 15” above the cooktop and
adjacent cabinet is recommended to reduce exposure to
steam, grease splatter and heat.
Installation Information: Before installing, consult installation
instructions for current dimensional data and additional
requirements.
KW Rating
14.7
240V
11.0
208V
Breaker Size
240V
208V
†
Note: Check local codes for required breaker size.
40 Amps
40 Amps
†
†
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 6/13
Listed by
Underwriters
Laboratories
321555
JB850DF
GE® 30" Free-Standing Electric Double Oven Range
Features and Benefits
• 6.6 cu. ft. total oven capacity - Large capacity is ideal for big meals
• 9”/12” Dual Element - Choose a 9" or 12" heating element
• 6"/9" Power Boil Element - Produces rapid, powerful heat
• Fifth Element Warming Zone - Provides low heat capability for foods
• Self-Clean Oven - Cleans the oven cavity without the need for scrubbing
• Black Gloss Oven Interior - Enjoy a clean and sleek appearance
• Dual Element Bake - Upper and lower elements produce even heat and
great results
• Model JB850DFBB - Black
• Model JB850DFWW - White on white
on black
