GE JB750DJCC, JB750DJBB, JB750EJES, JB750DJWW Specification Sheet

30

25

2-1/2

2-1/2

7-1/2

Acceptable electrical

outlet area

29-7/8

47

11

35-3/4

to

36-1/2

w/o handle

w/handle

47-7/8

28

25-1/2

30

" Free-Standing Electric

Single Oven

JB750DJ/eJ

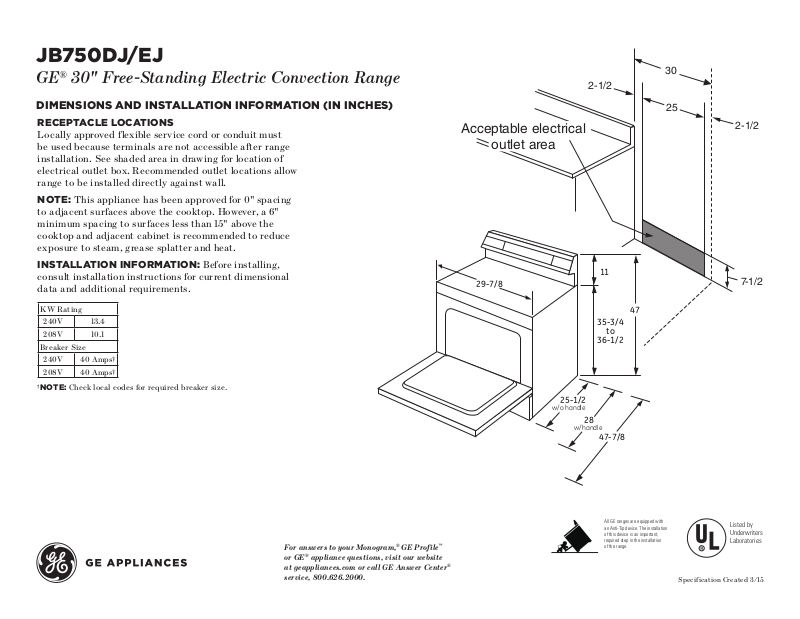

GE® 30" Free-Standing Electric Convection Range

Dimensions anD installation information (in inches)

rece p tac l e locatio n s

Locally approved flexible service cord or conduit must
be used because terminals are not accessible after range
installation. See shaded area in drawing for location of
electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.

note: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.

install ation info r m ation: Before installing,
consult installation instructions for current dimensional
data and additional requirements.

KW Rating

240V 13.4

208V 10.1

Breaker Size

240V 40 A mps†

208V 40 Amps†

†

note: Check local codes for required breaker size.

For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.

All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

Listed by
Underwriters
Laboratories

Specification Created 3/15

JB750DJ/eJ

GE® 30" Free-Standing Electric Convection Range

features anD Benefits

12"/9" dual element - Two heating elements in one offer flexibility

True European Convection with Precise Air - Enjoy perfectly even results
without turning the pan

9"/6" Power Boil element - Produces rapid, powerful heat

Fast preheat - Make hot meals in a hurry with less time preheating

Fifth element warming zone - Provides low-heat capability for foods

Self-clean with Steam Clean option - Clean your oven the way you want

Hidden bake oven interior - Make cleanup easy by eliminating
hard-to-reach areas

Black gloss oven interior - Enjoy a clean and sleek appearance

Model JB750DJWW - White on white

Model JB750DJBB - Black on black

Model JB750DJCC - Bisque on bisque

Model JB750EJES - Slate

Specification Created 3/15
