49-80464-1 04-08 JR

ge.com

Write the model and serial numbers here:

Model # ________________

Serial # ________________

You can find them on a label behind the storage drawer on the front of the range frame.

JBP81 JB690 JB700 JB710 JB720 JB730

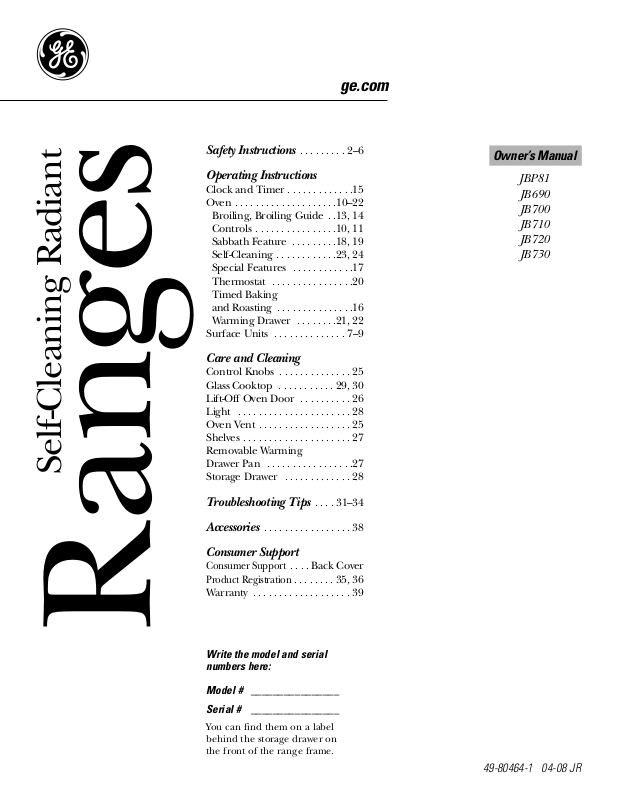

Owner’s Manual

Ranges

Self-Cleaning Radiant

Safety Instructions . . . . . . . . . 2–6

Operating Instructions

Clock and Timer . . . . . . . . . . . . .15

Oven . . . . . . . . . . . . . . . . . . . .10–22

Broiling, Broiling Guide . .13, 14

Controls . . . . . . . . . . . . . . . .10, 11

Sabbath Feature . . . . . . . . .18, 19

Self-Cleaning . . . . . . . . . . . .23, 24

Special Features . . . . . . . . . . . .17

Thermostat . . . . . . . . . . . . . . . .20

Timed Baking

and Roasting . . . . . . . . . . . . . . .16

Warming Drawer . . . . . . . .21, 22

Surface Units . . . . . . . . . . . . . . 7–9

Care and Cleaning

Control Knobs . . . . . . . . . . . . . . 25

Glass Cooktop . . . . . . . . . . . 29, 30

Lift-Off Oven Door . . . . . . . . . . 26

Light . . . . . . . . . . . . . . . . . . . . . . 28

Oven Vent . . . . . . . . . . . . . . . . . . 25

Shelves . . . . . . . . . . . . . . . . . . . . . 27

Removable Warming

Drawer Pan . . . . . . . . . . . . . . . . .27

Storage Drawer . . . . . . . . . . . . . 28

Troubleshooting Tips . . . . 31–34

Accessories . . . . . . . . . . . . . . . . . 38

Consumer Support

. . . . Back Cover

Product Registration

. . . . . . . . 35, 36

Warranty . . . . . . . . . . . . . . . . . . . 39

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock, or to prevent property damage, personal injury, or loss of life.

All ranges can tip and injury could result.

To prevent accidental tipping of the range, attach it to the wall and floor by installing the Anti-Tip device supplied.

If the Anti-Tip device supplied with the range does not fit this application, use the universal Anti-Tip device WB2X7909.

To check if the device is installed and engaged properly, remove the kick panel or storage drawer and inspect the rear leveling leg. Make sure it fits securely into the slot.

If you pull the range out from the wall for any reason, make sure the device is properly engaged when you push the range back against the wall. If it is not, there is a possible risk of the range tipping over and causing injury if you or a child stand, sit or lean on an open door.

Please refer to the Anti-Tip device information in this manual. Failure to take this precaution could result in tipping of the range and injury.

WARNING

ANTI-TIP DEVICE

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation fan or hood.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

ge.com

When using electrical appliances, basic safety precautions should be followed, including the following:

■Use this appliance only for its intended

purpose as described in this Owner’s Manual.

■Be sure your appliance is properly

installed and grounded by a qualified installer in accordance with the provided installation instructions.

■ Have the installer show you the location

of the circuit breaker or fuse. Mark it for easy reference.

■ Do not attempt to repair or replace any

part of your range unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

■ Before performing any service, disconnect

the range power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.

■ Do not leave children alone—children

should not be left alone or unattended in an area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

■ Do not allow anyone to climb, stand or

hang on the door, storage drawer or cooktop. They could damage the range and even tip it over, causing severe personal injury.

SAFETY PRECAUTIONS

WARNING!

SAFETY PRECAUTIONS

Do not operate the oven or cooktop controls if the glass is broken. Food splatter or cleaning solution may penetrate a broken control panel and create a risk of electrical shock. Contact a qualified technician immediately should your glass control panel become broken.

■ Do not store flammable materials in

an oven or near the cooktop.

■

CAUTION:

Items of interest to children should not be stored in cabinets above a range or on the backsplash of a range—children climbing on the range to reach items could be seriously injured.

■ Never wear loose-fitting or hanging

garments while using the appliance. Be careful when reaching for items stored over the range. Flammable material could be ignited if brought in contact with hot surface units or heating elements and may cause severe burns.

■ Use only dry pot holders—moist or damp

pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot surface units or heating elements. Do not use a towel or other bulky cloth in place of pot holders.

■ Do not use water on grease fires. Never

pick up a flaming pan. Turn the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.

■Flaming grease outside a pan can be put

out by covering it with baking soda or, if available, by using a multi-purpose dry chemical or foam-type fire extinguisher.

■Flame in the oven can be smothered

completely by closing the oven door and turning the oven off or by using a multipurpose dry chemical or foam-type fire extinguisher.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

■ For your safety, never use your appliance

for warming or heating the room.

■ Do not let cooking grease or other

flammable materials accumulate in or near the range.

■ Do not touch the surface units, the

heating elements or the interior surface of the oven. These surfaces may be hot enough to burn even though they are dark in color. During and after use, do not touch, or let clothing or other flammable materials contact the surface units, areas nearby the surface units or any interior area of the oven; allow sufficient time for cooling first.

■Potentially hot surfaces include the

cooktop, areas facing the cooktop, oven vent opening, surfaces near the opening, crevices around the oven door.

■

REMEMBER:

The inside surface of the oven

may be hot when the door is opened.

■ Do not store or use combustible materials,

gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■ Keep the hood and grease filters clean

to maintain good venting and to avoid grease fires.

■ Teach children not to play with the

controls or any other part of the range.

■ Always keep dish towels, dishcloths, pot

holders and other linens a safe distance from your range.

■ Always keep wooden and plastic utensils

and canned food a safe distance from your range.

■ Always keep combustible wall coverings,

curtains or drapes a safe distance from your range.

WARNING!

SAFETY PRECAUTIONS

Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.

COOK MEAT AND POULTRY THOROUGHLY…

Use proper pan size—select cookware having flat bottoms large enough to cover the surface unit heating element. The use of undersized cookware will expose a portion of the surface unit to direct contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will also improve efficiency.

RADIANT SURFACE UNITS

■Never leave the surface units unattended

at high heat settings. Boilovers cause smoking and greasy spillovers that may catch on fire.

■Only certain types of glass, glass ⁄ceramic,

earthenware or other glazed containers are suitable for cooktop service; others may break because of the sudden change in temperature.

■To minimize the possibility of burns,

ignition of flammable materials and spillage, the handle of a container should be turned toward the center of the range without extending over nearby surface units.

■Always turn the surface units off before

removing cookware.

■When preparing flaming foods under

the hood, turn the fan on.

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

ge.com

■Use care when touching the cooktop. The

glass surface of the cooktop will retain heat after the controls have been turned off.

■Keep an eye on foods being fried at high

or medium high heat settings.

■Foods for frying should be as dry as

possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.

■Use little fat for effective shallow or deep

fat frying. Filling the pan too full of fat can cause spillovers when food is added.

■If a combination of oils or fats will be

used in frying, stir together before heating, or as fats melt slowly.

■Always heat fat slowly, and watch as it heats.

■Use a deep fat thermometer whenever

possible to prevent overheating fat beyond the smoking point.

■Avoid scratching the glass cooktop.

The cooktop can be scratched with items such as sharp instruments, rings or other jewelry, and rivets on clothing.

■Do not operate the radiant surface units if

the glass is broken. Spillovers or cleaning solution may penetrate a broken cooktop and create a risk of electrical shock. Contact a qualified technician immediately should your glass cooktop become broken.

■Never use the glass cooktop surface as

a cutting board.

■Do not place or store items that can melt

or catch fire on the glass cooktop, even when it is not being used.

■Be careful when placing spoons or other

stirring utensils on glass cooktop surface when it is in use. They may become hot and could cause burns.

■Clean the cooktop with caution. If a wet

sponge or cloth is used to wipe spills on a hot surface unit, be careful to avoid steam burns. Some cleaners can produce noxious fumes if applied to a hot surface.

NOTE:

We recommend that you avoid wiping any surface unit areas until they have cooled and the indicator light has gone off.

Sugar spills are the exception

to this.

Please see the

Cleaning the glass

cooktop

section.

■When the cooktop is cool, use only

CERAMA BRYTE

Ceramic Cooktop

Cleaner and the CERAMA BRYTE

Cleaning Pad to clean the cooktop.

■To avoid possible damage to the cooking

surface, do not apply cleaning cream to the glass surface when it is hot.

■After cleaning, use a dry cloth or paper

towel to remove all cleaning cream residue.

■Read and follow all instructions and

warnings on the cleaning cream labels.

■Large scratches or impacts to glass doors

or cooktops can lead to broken or shattered glass.

■Do not leave any items on the cooktop.

The hot air from the vent may ignite flammable items and will increase pressure in closed containers, which may cause them to burst.

■Do not leave plastic items on the

cooktop—they may melt if left too close to the vent.

■Do not lift the cooktop. Lifting the

cooktop can lead to damage and improper operation of the range.

RADIANT SURFACE UNITS (cont.)

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

■ Do not heat unopened food containers. Pressure

could build up and the container could burst, causing an injury.

■ Keep the oven vent unobstructed.

■ Keep the oven free from grease buildup.

■ Place the oven shelf in the desired position while

the oven is cool. If shelves must be handled when hot, do not let pot holder contact the heating elements.

■ When using cooking or roasting bags in the oven,

follow the manufacturer’s directions.

■ Pulling out the shelf to the stop-lock is a

convenience in lifting heavy foods. It is also a

precaution against burns from touching hot surfaces of the door or oven walls.

■ Do not use the oven to dry newspapers.

If overheated, they can catch on fire.

■ Do not use the oven for a storage area. Items

stored in an oven can ignite.

■ Do not leave paper products, cooking utensils or

food in the oven when not in use.

■ Do not use aluminum foil to line oven bottoms.

Improper installation of aluminum foil may result in a risk of electric shock or fire.

Stand away from the range when opening the oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes.

WARNING!

OVEN

■The purpose of the warming drawer is to hold

hot cooked foods at serving temperature. Always start with hot food; cold food cannot be heated or cooked in the warming drawer.

■Do not use the drawer to dry newspapers.

If overheated, they can catch on fire.

■Do not leave paper products, plastics, canned

food, or combustible materials in the drawer.

■Never leave jars or cans of fat drippings in or

near your drawer.

■Do not warm food in the drawer for more than

two hours.

■

Do not touch the heating element or the interior surface of the drawer.

These surfaces may be hot

enough to burn.

REMEMBER:

The inside surface of the drawer

may be hot when the drawer is opened.

■Use care when opening the drawer. Open the

drawer a crack and let hot air or steam escape before removing or replacing food. Hot air or steam which escapes can cause burns to hands, face and/or eyes.

■Do not use aluminum foil to line the warming

drawer. Foil is an excellent heat insulator and will trap heat beneath it. This will upset the performance of the drawer and it could damage the interior finish.

WARMING DRAWER

(on some models)

Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used.

■Do not clean the door gasket. The door gasket is

essential for a good seal. Care should be taken not to rub, damage or move the gasket.

■Before self-cleaning the oven, remove shiny,

silver-colored oven racks (on some models) and all other cookware.

■Gray porcelain-coated oven shelves (on some

models) may be cleaned in the oven during the self-clean cycle.

■Be sure to wipe off excess spillage before starting

the self-cleaning operation.

■If the self-cleaning mode malfunctions, turn the

oven off and disconnect the power supply. Have it serviced by a qualified technician.

■Clean only parts listed in this Owner’s Manual.

SELF-CLEANING OVEN

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Using the surface units.

ge.com

Throughout this manual, features and appearance may vary from your model.

How to Set

Push the knob in and turn in either direction to the setting you want.

At both

OFF

and HIthe control

clicks

into

position. You may hear slight

clicking

sounds during cooking, indicating the control is keeping the power level you set.

HOT COOKTOP

indicator light will glow when any radiant element is turned on, and will remain on until the surface is cooled to approximately 150°F.

Indicator light will:

■

come on when the unit is turned on or hot to the touch.

■

stay on even after the unit is turned off.

■

glow until the unit is cooled to approximately 150°F

Be sure you turn the control knob to OFF when you finish cooking.

Tri-Ring Surface Element

(on some models)

The rear center surface element offers 3 cooking areas to match the size of the cookware you are using.

To use the largest cooking area, push in and turn the

SELECTOR

knob to 12″. Push and

turn the control knob to the desired setting.

To use the medium cooking area, press and turn the

SELECTOR

knob to 9″.

Push down and turn the control knob to the desired setting.

To use the smallest cooking area, turn the

SELECTOR

knob to 6″. Push and turn the

control knob to the desired setting. This will activate only the smallest inside heating area.

Dual Surface Unit

(on some models)

The dual surface unit has 2 cooking sizes to select from so you can match the size of the unit to the size of the cookware you are using.

To use the small surface unit, push in the

SMALL BURNER

portion of the switch

above the control knob.

To use the large surface unit, push in the

LARGE BURNER

portion of the switch

above the control knob.

Dual Surface Unit Control Knob

(on some models)

The dual surface unit has 2 cooking sizes to select from so you can match the size of the unit to the size of the cookware you are using.

To use the small surface unit, turn the control knob to the

SMALL BURNER

settings.

To use the large surface unit, turn the control knob to the

LARGE BURNER

settings.

BURNER

SIZE

12"

OFF

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Temperature Limiter

Every radiant surface unit has a temperature limiter.

The temperature limiter protects the glass cooktop from getting too hot.

The temperature limiter may cycle the units off for a time if:

■

The pan boils dry.

■

The pan bottom is not flat.

■

The pan is off-center.

■

There is no pan on the unit.

Home Canning Tips

Be sure the canner is centered over the surface unit.

Make sure the canner is flat on the bottom. To prevent burns from steam or heat,

use caution when canning.

Use recipes and procedures from reputable sources. These are available from manufacturers such as Ball®and Kerr®and the Department of Agriculture Extension Service.

Flat-bottomed canners are recommended. Use of water bath canners with rippled bottoms may extend the time required to bring the water to a boil.

Use only flat-bottomed woks.

Wok Cooking

We recommend that you use only a flat-bottomed wok. They are available at your local retail store.

Do not use woks that have support rings.

Do not use round bottom woks. You could be seriously burned if the wok tipped over.

Using the surface units.

Throughout this manual, features and appearance may vary from your model.

Using the Warming Zone

The

WARMING ZONE

, located in the back center of the glass surface, will keep hot, cooked food at serving temperature. Always start with hot food. Do not use to heat cold food. Placing uncooked or cold food on the

WARMING ZONE

could result in food-borne

illness.

Push and turn the control knob to any desired setting.

For best results, all foods on the

WARMING ZONE

should be covered with a lid or aluminum foil. When warming pastries or breads, the cover should be vented to allow moisture to escape.

Always use pot holders or oven mitts when removing food from the

WARMING ZONE

since cookware and plates will be hot.

CAUTION: Do not warm food on the WARMING ZONE

for more than two hours.

NOTE: The surface warmer will not glow red like the

cooking elements.

HOT

surface indicator light will glow when the glass surface is hot and will remain on until the surface is cool enough to touch. Lower settings may not heat the glass surface enough to cause the

HOT

surface indicator

light to come on.

WARMING ZONE

indicator light will glow

when the unit is on.

■

Do not use plastic wrap to cover food. Plastic may melt onto the surface and be very difficult to clean.

■

Use only cookware recommended for top-of-range cooking.

WARMER GUIDE SETTING FOOD

(Low) Bread/Pastries (Medium) Chocolate/Butter (Medium) Sauces, Stews,

Cream Soups (Medium) Vegetables (High) Soups (liquid) (High) Tea or Coffee

The Warmer Guide is for reference only and the SETTING that you need will depend on the amount and type of food, the starting temperature of the food and the length of the holding time.

ge.com

The following information will help you choose cookware which will give good performance on glass cooktops.

Never cook directly on the glass. Always use cookware.

About the radiant surface units…

The radiant cooktop features heating units beneath a smooth glass surface.

NOTE: A slight odor is normal when a new cooktop is used for the first time. It is caused by the heating of new parts and insulating materials and will disappear in a short time.

NOTE: On models with light-colored glass cooktops, it is normal for the cooking zones to change color when hot or cooling down. This is temporary and will disappear as the glass cools to room temperature.

The surface unit will cycle on and off to maintain your selected control setting.

It is safe to place hot cookware on the glass surface even when the cooktop is cool.

Even after the surface units are turned off, the glass cooktop retains enough heat to continue cooking. To avoid overcooking, remove pans from the surface units when the food is cooked. Avoid placing anything on the surface unit until it has cooled completely.

Do not slide cookware across the cooktop because it can scratch the glass—the glass is scratch-resistant, not scratchproof.

■

Water stains (mineral deposits) are removable using the cleaning cream or full-strength white vinegar.

■

Use of window cleaner may leave an iridescent film on the cooktop. The cleaning cream will remove this discoloration.

■

Don’t store heavy items above the cooktop. If they drop onto the cooktop, they can cause damage.

■

Do not use the surface as a cutting board.

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;;;;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

Always place the pan in the center of the surface unit you are cooking on.

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

Selecting types of cookware.

Stainless Steel:

recommended

Aluminum:

heavy weight recommended

Good conductivity. Aluminum residues sometimes appear as scratches on the cooktop, but can be removed if cleaned immediately. Because of its low melting point, thin weight aluminum should not be used.

Copper Bottom:

recommended

Copper may leave residues which can appear as scratches. The residues can be removed, as long as the cooktop is cleaned immediately. However, do not let these pots boil dry. Overheated metal can bond to glass cooktops. An overheated copper bottom pot will leave a residue that will permanently stain the cooktop if not removed immediately.

Porcelain Enamel-Covered Cast Iron:

recommended

As long as the cookware is covered completely with porcelain enamel, this cookware is recommended. Caution is recommended for cast iron cookware that is not completely covered with smooth porcelain enamel, since it may scratch the glass ceramic cooktop.

Glass-Ceramic:

usable, but not recommended

Poor performance. May scratch the surface.

Stoneware:

usable, but not recommended

Poor performance. May scratch the surface.

Check pans for flat bottoms by using a straight edge.

Pans with rounded, curved, ridged or warped bottoms are not recommended.

SURFACE COOKING

OFF CENTER

DRAGGING

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Oven Control, Clock and Timer Features and Settings

BAKE/TEMP RECALL Pad

Touch this pad to select the bake function.

BAKE Light

Flashes while in edit mode—you can change the oven temperature at this point. Glows when the oven is in bake mode.

START/ON Pad

Must be touched to start any cooking or cleaning function.

Display

Shows the time of day, oven temperature, whether the oven is in the bake, broil or self-cleaning mode and the times set for the timer or automatic oven operations. The display will show

PrE

while preheating. When the oven reaches the selected temperature, the oven control will beep and the display will show the oven temperature.

If “F– and a number or letter” flash in the display and the oven control signals, this indicates a function error code.

If your oven was set for a timed oven operation and a power outage occurred, the clock and all programmed functions must be reset.

The time of day will flash in the display when there has been a power outage. Reset the clock.

If the function error code appears during the self-cleaning cycle, check the oven door latch. The latch handle may have been moved, even if only slightly, from the latched position. Make sure the latch is moved to the right as far as it will go.

Touch the CLEAR/OFF pad. Allow the oven to cool for one hour. Put the oven back into operation. If the function error code repeats, disconnect the power to the range and call for service.

KITCHEN TIMER ON/OFF or TIMER ON/OFF Pad

Touch this pad to select the timer feature. Then press +and –pads to adjust time.

TIMER Light

Flashes while in edit mode—you can change the set time at this point. Glows when the timer has been activated. Flashes again when the time has run out until the control is reset.

CLOCK Pad

To set the clock, press this pad twice and then press the +and –pads. The time of day will flash in the display when the oven is first turned on.

START TIME Pad

Use along with the

COOKING TIME

SELF CLEAN

pads to set the oven to start

and stop automatically at a time you set.

START TIME Light

Flashes while in edit mode—you can change the start time at this point. Glows when the function has been activated.

COOKING TIME Pad

Touch this pad and then touch the +or

–

pads to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out.

COOKING TIME Light

Flashes while in edit mode—you can change the set time at this point. Glows when the function has been activated. Flashes again when the time has run out until the control is reset.

Throughout this manual, features and appearance may vary from your model.

Using the oven controls.

Oven Controls

Bake

Temp Recall

Broil

Hi/Lo

Start

Clear

Off

Self

Clean

Time Controls

Kitchen

Timer

On/Off

Oven Light

On/Off

Cooking

Time

Automatic Oven

Clock

Start Time

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

ge.com

Oven Control, Clock and Timer Features and Settings

AUTOMATIC OVEN Light

This lights anytime the oven has been programmed using the

COOKING TIME

START TIME

functions.

OVEN LIGHT ON/OFF Pad

Touch this pad to turn the oven light on or off.

– Pad

Short taps to this pad will decrease the time or temperature by small amounts. Touch and hold the pad to decrease the time or temperature by larger amounts.

+ Pad

Short taps to this pad will increase the time or temperature by small amounts. Touch and hold the pad to increase the time or temperature by larger amounts.

SELF CLEAN Pad

Touch this pad to select the self-cleaning function. See the

Using the self-cleaning

oven

section.

CLEAN Light

Flashes while in edit mode—you can change the length of time for the self-clean cycle at this point. Glows when the oven is in the selfclean cycle. After the self-clean cycle, the light will turn off. Unlatch the door.

CLEAR/OFF Pad

Touch this pad to cancel

ALL

oven

operations except the clock and timer.

BROIL HI/LO Pad

Touch this pad to select the broil function.

BROIL Light

Flashes while in edit mode—you can switch from

LO BROIL

at this point. Glows when

the oven is in broil mode.

Indicator Lights (on some pads)

EDIT

mode lasts several seconds after the last

pad press.

START TIME ON/OFF

and

COOKING

TIME ON/OFF

will be the only pads lit if either

of these options is selected. (Example:

START

TIME

is selected with

BAKE

—the

START TIME

pad will remain lit until the clock reaches the programmed time, at which point it will turn off and the

BAKE/TEMP RECALL

pad light will

light up).

Power Outage

If a flashing time is in the display, you have experienced a power failure. Reset the clock.

To reset the clock, touch the

CLOCK

pad. Enter

the correct time of day by touching the +or

–

pads. Touch the

START/ON

pad.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

To avoid possible burns, place the shelves in the desired position before you turn the oven on.

Before you begin…

The shelves have stop-locks, so that when placed correctly on the shelf supports (A through F), they will stop before coming completely out, and will not tilt.

When placing and removing cookware, pull the shelf out to the bump on the shelf support.

To remove a shelf,

pull it toward you, tilt the

front end up and pull it out.

To replace,

place the end of the shelf (stop-locks) on the support, tilt up the front and push the shelf in.

CAUTION: When you are using the shelf in the lowest position (A), you will need to use caution when pulling the shelf out. We recommend that you pull the shelf out several inches and then, using two pot holders, pull the shelf out by holding the sides of it. The shelf is low and you could be burned if you place your hand in the middle of the shelf and pull all the way out. Be very careful not to burn your hand on the door when using the shelf in the lowest position (A).

The oven has 6 shelf positions.

How to Set the Oven for Baking or Roasting

Your oven is not designed for open-door cooking.

Touch the

BAKE

pad.

Touch the +or –pads until the desired temperature is displayed.

Touch the

START/ON

pad.

The oven will start automatically. The display will show

PrE

while preheating. When the oven reaches the selected temperature, the oven control will beep several times and the display will show the oven temperature.

To change the oven temperature during BAKE cycle, touch the BAKE pad and then the + or – pads to get the new temperature.

Check food for doneness at minimum time on recipe. Cook longer if necessary.

Touch the

CLEAR/OFF

pad when baking is finished and then remove the food from the oven.

Type of Food Shelf Position

Frozen pies (on cookie sheet) D

Angel food cake A

Bundt or pound cakes C or D

Biscuits, muffins, brownies, C or D cookies, cupcakes, layer cakes, pies

Casseroles C or D

Turkey A

Preheating and Pan Placement

Preheat the oven if the recipe calls for it. Preheating is necessary for good results when baking cakes, cookies, pastry and breads.

To preheat, set the oven at the correct temperature. The control will beep when the oven is preheated and the display will show your set temperature. This will take approximately 15–20 minutes.

Baking results will be better if baking pans are centered in the oven as much as possible. If baking with more than one pan, place the pans so each has at least

1″ to 11⁄2″ of air space around it.

If baking four cake layers at the same time, place two layers on rack B and two layers on rack D. Stagger pans on the rack so one is not directly above the other.

Using the oven.

Do not place foods directly on the oven floor.

Aluminum Foil

Do not use aluminum foil on the bottom of the oven.

Never entirely cover a shelf with aluminum foil. This will disturb the heat circulation and result in poor baking.

A smaller sheet of foil may be used to catch a spillover by placing it on a lower shelf several inches below the food.

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

How to Set the Upper Oven for Broiling

Leave the door open to the broil stop position. The door stays open by itself, yet the proper temperature is maintained in the oven.

Place the meat or fish on a broiler grid in a broiler pan designed for broiling.

Follow suggested rack positions in the

Broiling Guide.

Touch the

BROIL HI/LO

pad once for

HI Broil.

To change to

LO Broil,

touch the

BROIL HI/LO

pad again.

Use

LO Broil

to cook foods such as poultry or thick cuts of meat thoroughly without over-browning them.

Touch the

START

pad.

When broiling is finished, touch the

CLEAR/OFF

pad.

NOTE: Broil and self-clean settings will not work if the temperature probe is plugged in.

The size, weight, thickness, starting temperature and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature.

† The U.S. Department of Agriculture

says “Rare beef is popular, but you should know that cooking it to only 140°F means some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)

If your range is connected to 208 volts, rare steaks may be broiled by preheating the broiler and positioning the oven rack one position higher.

ge.com

Broiling Guide – 4 Pass Broil Element

Quantity and/ Shelf* First Side Second Side

Food or Thickness Position Time (min.) Time (min.) Comments

Ground Beef 1 lb. (4 patties) D 13 8 Space evenly.

/2 to

/4″ thick

4 lbs. (12 patties) D 15 11

Beef Steaks

Rare†

/4 to 1″thick F 6 4 Steaks less than 3/4″

Medium 1 to 11/2 lbs. E 8 6 thick are difficult Well Done E 10 8 to cook rare.

Slash fat.

Rare† 1

/2″ thick D 10 8

Medium 2 to 21/2 lbs. D 15 10–12 Well Done E 20 20

Chicken 1 whole cut up C 25 25 Brush each side with

2 to 21⁄2 lbs., melted butter. split lengthwise Broil skin-side-down Breast C 25 15 first.

Bakery Product

Bread (toast) 2 to 4 slices E 3 1 Space evenly. Place English Muffin 2 (split) F 3-4 English muffins cut-

side-up and brush with butter if desired.

Lobster Tails 2–4 C 18–20 Do not Cut through back of

turn shell. Spread open.

over. Brush with melted

butter before broiling and after half of broiling time.

Fish Fillets 1 lb. (1/4 to

/2″ thick) E 5 5 Handle and turn very

carefully. Brush with lemon butter before and during cooking, if desired.

Salmon

Steaks 2 (1″ thick) E 10 5 Turn carefully. Do not Fillets 2 (1/2 to

/4″ thick) E 10 turn skin side down.

Ham Slices

/2″ thick D 6 6

(precooked) 1″ thick D 8 8 Pork Chops 2 (

/2″ thick) D 10 10 Slash fat.

Well Done 2 (1″ thick) about 1 lb. D 15 15

*See illustration for description of shelf positions.

The oven has 6 shelf positions.

Center baking pans in the oven.

Pass

4321

Using the oven.

The size, weight, thickness, starting temperature and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature.

† The U.S. Department of Agriculture

says “Rare beef is popular, but you should know that cooking it to only 140°F means some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)

Broiling Guide – 6 Pass Broil Element

Quantity and/ Shelf First Side Second Side

Food or Thickness Position Time (min.) Time (min.) Comments

Ground Beef 1 lb. (4 patties) E 9 6 Space evenly. Up to 8

Well Done 1/2 to 3/4″ thick E 11 10 patties take about the

same time.

Beef Steaks

Rare† 1″ thick F 7 5 Steaks less than 1″ Medium 1 to 11⁄2 lbs. E 9 6–7 thick cook through Well Done E 11 8–9 before browning. Pan

frying is recommended. Slash fat.

Rare† 1

⁄2″ thick D 14 11

Medium 2 to 21⁄2 lbs. D 18 14–16 Well Done D 22 20

Chicken 1 whole cut up C 25 10 Broil skin-side-down

2 to 21⁄2 lbs., first. split lengthwise 2 Breasts C 25 10–15

Fish Fillets 1/4 to 1/2″ thick E 6 5 Handle and turn very

carefully. Brush with lemon butter before and during cooking, if desired.

Pork Chops 2 (1/2″ thick) E 10 10 Slash fat. Well Done 2 (1″ thick) about 1 lb. D 15 15

Salmon Steaks 2 (1″ thick) D 10 7–8 Grease pan. Brush

4 (1″ thick) about 1 lb. D 12 10 steaks with melted

butter.

Preheat the broiler for 2 minutes for improved performance.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Center baking pans in the oven.

The oven has 6 shelf positions.

Pass

654321

Not all features are on all models.

To Set the Timer

The timer does not control oven operations. The maximum setting on the timer is 9 hours and 59 minutes.

Touch the

KITCHEN TIMER ON/OFF

pad.

Touch the +or –pads until the amount of time you want shows in the display. The maximum time that can be entered in minutes is 59. Times more than 59 minutes should be changed to hours and minutes.

If you make a mistake, touch the KITCHEN TIMER ON/OFF pad and begin again.

Touch the

START/ON

pad. The time will start counting down, although the display does not change until one minute has passed.

When the timer reaches

:00,

the control will beep 3 times followed by one beep every 6 seconds until the

KITCHEN TIMER ON/OFF

pad is

touched.

The timer is a minute timer only. The CLEAR/OFF pad does not affect

the timer.

Using the clock and timer.

ge.com

To Set the Clock

The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The time of day cannot be changed during a delayed cooking or a delayed self-cleaning cycle.

Touch the

CLOCK

pad twice.

Touch the +or –pads.

If the +or –pads are not touched within one minute after you touch the

CLOCK

pad, the display reverts to the original

setting. If this happens, touch the

CLOCK

pad twice and reenter the time of day.

Touch the

START/ON

pad until the time of day shows in the display. This enters the time and starts the clock.

To check the time of day when the display is showing other information, simply touch the CLOCK pad. The time of day shows until another pad is touched.

Make sure the clock is set to the correct time of day.

To Turn Off the Clock Display

If you have several clocks in your kitchen, you may wish to turn off the time of day clock display on your range.

Touch the

CLOCK

pad once to turn off the time of day display. Although you will not be able to see it, the

clock maintains the correct time of day.

Touch the

CLOCK

pad twice to recall

the clock display.

To Reset the Timer

If the display is still showing the time remaining, you may change it by touching the

KITCHEN TIMER ON/OFF

pad, then touching the +or –pads until the time you want appears in the display.

If the remaining time is not in the display (clock, start time or cooking time are in the display), recall the remaining time by touching the

KITCHEN TIMER ON/OFF

pad and then touching the +or –pads to enter the new time you want.

To Cancel the Timer

Touch the

KITCHEN TIMER ON/OFF

pad twice.

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips

Consumer Support

Clock

Start

Kitchen

Timer

On/Off

Start

Do not lock the oven door with the latch during timed cooking. The latch is used for self-cleaning only.

NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.

Using the timed baking and roasting features. (on some models)

How to Set an Immediate Start and Automatic Stop

The oven will turn on immediately and cook for a selected length of time. At the end of the cooking time, the oven will turn off automatically.

Touch the

BAKE

pad.

Touch the +or –pads to set the oven temperature.

Touch the

COOKING TIME

pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

Touch the +or –pads to set the baking time.

The cooking time that you entered will be displayed. (If you select Cooking Time first and then adjust the Bake Temperature, the oven temperature will be displayed instead).

Touch the

START/ON

pad.

The display shows either the oven temperature that you set or the cooking time countdown. (The display starts with

PrE

if showing the oven temperature.)

The oven will continue to cook for the programmed amount of time, then turn off automatically.

Touch the

CLEAR/OFF

pad to clear

the display if necessary.

Remove the food from the oven. Remember, even though the oven shuts off automatically, foods continue cooking after controls are off.

How to Set a Delayed Start and Automatic Stop

The oven will turn on at the time of day you set, cook for a specific length of time and then turn off automatically.

Make sure the clock shows the correct time of day.

Touch the

BAKE

pad.

Touch the +or –pads to set the oven temperature.

Touch the

COOKING TIME

pad.

Touch the +or –pads to set the desired length of cooking time.

Touch the

START TIME

pad.

Touch the +or –pads to set the time of day you want the oven to turn on and start cooking.

Touch the

START/ON

pad.

NOTE: An attention tone will sound if you are using timed baking and do not touch the

START/ON pad.

NOTE:

If you would like to check the times

you have set, touch the

START TIME

pad to check the start time you have set or touch the

COOKING TIME

pad to check the

length of cooking time you have set.

When the oven turns on at the time of day you have set, the display will show

PrE

until it reaches the selected temperature, then it will display the oven temperature.

At the end of cooking time, the oven will turn off and the end-of-cycle tone will sound.

Touch the

CLEAR/OFF

pad to clear

the display if necessary.

Remove the food from the oven. Remember, even though the oven shuts off automatically, foods continue cooking after controls are off.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Bake

Temp Recall

Cooking

Time

Start

Clear

Off

Bake

Temp Recall

Cooking

Time

Start Time

Start

Clear

Off

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Your new touch pad control has additional features that you may choose to use. The following are the features and how you may activate them.

The special feature modes can only be activated while the display is showing the time of day. They remain in the control’s memory until the steps are repeated.

When the display shows your choice, touch the START/ON pad. The special features will remain in memory after a power failure.

NOTE: The Sabbath feature and the Thermostat Adjustment feature are also Special Features, but they are addressed separately in the following sections.

Special features of your oven control.

ge.com

12 Hour Shut-Off

With this feature, should you forget and leave the oven on, the control will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function.

If you wish to turn

OFF

this feature, follow

the steps below.

Touch the

BAKE

and

BROIL HI/LO

pads at the same time until the display shows

SF.

Touch the

CLOCK

pad. The display will show ON(12 hour shut-off). Touch the

CLOCK

pad repeatedly

until the display shows

OFF

(no

shut-off).

Touch the

START/ON

pad to activate the no shut-off and leave the control set in this special features mode.

Bake

Temp Recall

Clock

Start

Broil

Hi/Lo

The Sabbath feature can be used for baking/roasting only. It cannot be used for broiling, self-cleaning or Delay Start cooking.

NOTE: On models with a light switch on the control panel, the oven light may be turned on and left on.

How to Set Sabbath Feature for Timed Baking/Roasting—Immediate Start and Automatic Stop

NOTE: To understand how the oven control works,

practice using regular (non-Sabbath) Immediate Start and Automatic Stop before entering the Sabbath mode.

Make sure the clock shows the correct time of day and the oven is off.

Touch and hold

both

the

BAKE

and

BROIL HI/LO

pads,

at the same time

until the display shows

SF.

Tap the

CLOCK

pad until

SAb

appears

in the display.

Touch the

START/ON

pad and ⊃ will

appear in the display.

Touch the

COOKING TIME

pad.

Touch the

or –pads to set the desired length of cooking time between 1 minute and 9 hours and 59 minutes. The cooking time that you entered will be displayed.

Touch the

START/ON

pad.

Touch the

BAKE

pad. No signal will

be given.

The preset starting temperature will automatically be set to 350.° Tap the

or –pads to increase or decrease the temperature in 25° increments. The temperature can be set between 175° and 550.° No signal or temperature will be given.

Touch the

START/ON

pad.

After a random delay period of approximately 30 seconds to 1 minute,

⊃ will appear in the display indicating

that the oven is

baking/roasting.

If ⊃

doesn’t appear in the display, start again at Step 7.

To adjust the oven temperature, touch the

BAKE

pad and tap the +or –pads to increase or decrease the temperature in 25° increments. Touch the

START/ON

pad.

When cooking is finished, the display will

change from ⊃ to ⊃ indicating that the

oven has turned

OFF

but is still set in Sabbath.

Remove the cooked food.

⊃

Using the Sabbath Feature.

(Designed for use on the Jewish Sabbath and Holidays)

(on some models)

How to Set Sabbath Feature for Regular Baking/Roasting

NOTE: To understand how the oven control works,

practice using regular baking (non-Sabbath) before entering Sabbath mode.

Make sure the clock shows the correct time of day and the oven is off.

Touch and hold

both

the

BAKE

and

BROIL HI/LO

pads,

at the same time

until the display shows

SF.

Tap the

CLOCK

pad until

SAb

appears

in the display.

Touch the

START/ON

pad and ⊃ will

appear in the display.

Touch the

BAKE

pad. No signal will

be given.

The preset starting temperature will automatically be set to 350.° Tap the

or –pads to increase or decrease the temperature in 25° increments. The temperature can be set between 175° and 550.° No signal or temperature will be given.

Touch the

START/ON

pad.

After a random delay period of approximately 30 seconds to 1 minute,

⊃ will appear in the display indicating

that the oven is

baking/roasting.

If ⊃

doesn’t appear in the display, start again at Step 4.

To adjust the oven temperature, touch the

BAKE

pad and tap the +or –pads to increase or decrease the temperature in 25° increments. Touch the

START/ON

pad.

NOTE:

The

CLEAR/OFF

and

COOKING TIME

pads

are active during the Sabbath feature.

⊃

When the display shows ⊃ the oven is set in Sabbath. When the display shows ⊃the oven is baking/roasting.

⊃

When the display shows ⊃ the oven is set in Sabbath. When the display shows ⊃the oven is baking/roasting.

⊃

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Bake

Temp Recall

Clock

Start

Bake

Temp Recall

Start

Bake

Temp Recall

Clock

Start

Cooking

Time

Start

Broil

Hi/Lo

Broil

Hi/Lo

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Using the Sabbath Feature.

(Designed for use on the Jewish Sabbath and Holidays)

(on some models)

ge.com

How to Exit the Sabbath Feature

Touch the

CLEAR/OFF

pad.

If the oven is cooking, wait for a random delay period of approximately 30

seconds to 1 minute, until only ⊃ is in

the display.

Touch and hold

both

the

BAKE

and

BROIL HI/LO

pads,

at the same time

until the display shows

SF.

Tap the

CLOCK

pad until

OFF

appears in the display. ONindicates that the oven will automatically turn off after 12 hours.

OFF

indicates that the oven will not automatically turn off. See the

Special Features

section for an

explanation of the

12 Hour Shut-Off

feature.

Touch the

START/ON

pad.

NOTE: If a power outage occurred while the oven was in Sabbath, the oven will automatically turn off and stay off even when the power returns. The oven control must be reset.

Bake

Temp Recall

Clear

Off

Clock

Broil

Hi/Lo

Start

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Adjust the oven thermostat—Do it yourself!

You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself.

Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven. These thermometers may vary 20–40 degrees.

NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be retained in memory after a power failure.

The type of margarine will affect baking performance!

Most recipes for baking have been developed using high-fat products such as butter or margarine (80% fat). If you decrease the fat, the recipe may not give the same results as with a higher-fat product.

Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low-fat spreads. The lower the fat content of a spread product, the more noticeable these differences become.

Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low-fat spreads, on the other hand, contain less fat and more water. The high moisture content of these spreads affects the texture and flavor of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least 70% vegetable oil.

To Adjust the Thermostat

Touch the

BAKE

and

BROIL HI/LO

pads at the same time until the display shows

SF.

Touch the

BAKE

pad. A two-digit

number shows in the display.

The oven temperature can be adjusted up to (+) 35°F hotter or (–) 35°F cooler. Touch the +pad to increase the temperature in 1-degree increments.

Touch the –pad to decrease the temperature in 1-degree increments.

When you have made the adjustment, touch the

START/ON

pad to go back to the time of day display. Use your oven as you would normally.

NOTE: This adjustment will not affect the broiling or self-cleaning temperatures. It will be retained in memory after a power failure.

Bake

Temp Recall

Bake

Temp Recall

Start

Broil

Hi/Lo

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

The warming drawer will keep hot, cooked foods at serving temperature. Always start with hot food. Do not use to heat cold food other than crisping crackers, chips or dry cereal.

To Use the Warming Drawer

Push and turn the control knob to any desired setting.

When Using the Warming Drawer

The warming drawer will keep hot, cooked foods warm. Always start with hot food. Do not use to heat cold food other than crisping crackers, chips or dry cereal.

Do not line the warming drawer or pan with aluminum foil. Foil is an excellent heat insulator and will trap heat beneath it. This will upset the performance of the drawer and could damage the interior finish.

Allow approximately 25 minutes for the warming drawer to preheat.

■ Do not put liquid or water in the

warming drawer.

■ All foods placed in the warming

drawer should be covered with a lid or aluminum foil. When warming pastries or breads, the cover should be vented to allow moisture to escape.

■ Food should be kept hot in its cooking

container or transferred to a heat-safe serving dish.

CAUTION: Plastic containers or plastic wrap will melt if in direct contact with the drawer, pan or a hot utensil. Melted plastic may not be removable and is not covered under your warranty.

■ Remove serving spoons, etc., before

placing containers in warming drawer.

Using the warming drawer.

(on some models)

ge.com

WARMING DRAWER

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Temperature Selection Chart

To keep several different foods hot, set the control to the food needing the highest setting.

■ The temperature, type and amount of

food, and the time held will affect the quality of the food.

■ Repeated opening of the drawer allows

the hot air to escape and the food to cool.

■ With large loads it may be necessary to

use a higher warming drawer setting and cover some of the cooked food items.

■ Do not use plastic containers or

plastic wrap.

CAUTION: Do not keep food in the warming drawer for more than two hours.

Food Type Control Setting

Bacon HI Breads LO Casserole MED Chicken, fried HI Ham HI Muffins LO Pies LO Pizza HI Potatoes, baked HI Tortilla Chips LO

To Crisp Stale Items

■ Place food in low-sided dishes or pans.

■ Preheat on

setting.

■ Check crispness after 45 minutes. Add

time as needed.

To Warm Serving Bowls and Plates

To warm serving bowls and plates, set the control on LO.

■ Use only heat-safe dishes.

■ If you want to heat fine china, please

check with the manufacturer of the dishes for their maximum heat tolerance.

■ You may warm empty serving dishes

while preheating the drawer.

CAUTION: Dishes will be hot. Use pot holders or mitts when removing hot dishes.

Using the warming drawer.

(on some models)

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Using the self-cleaning oven.

ge.com

Before a Clean Cycle

We recommend venting your kitchen with an open window or using a ventilation fan or hood during the first self-clean cycle.

Remove broiler pan, broiler grid, all cookware and any aluminum foil from the oven.

NOTE:

■ If your oven is equipped with shiny,

silver-colored oven shelves, remove them before you begin the self-clean cycle.

■ If your oven is equipped with gray

porcelain-coated oven shelves, they may be left in the oven during the self-clean cycle.

The shiny, silver-colored oven shelves (on some models) can be self-cleaned, but they will darken, lose their luster and become hard to slide.

Soil on the front frame of the range and outside the gasket on the door will need to be cleaned by hand. Clean these areas with hot water, soap-filled scouring pads or cleansers such as Soft Scrub®. Rinse well with clean water and dry.

Do not clean the gasket. The fiberglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, replace it.

Wipe up any heavy spillovers on the oven bottom.

Make sure the oven light bulb cover is in place and the oven light is off.

IMPORTANT:

The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another wellventilated room.

Wipe up heavy soil on the oven bottom.

How to Set the Oven for Cleaning

Follow the directions in the

Before a

Clean Cycle

section.

Latch the door.

NOTE:

Never force the latch. If the oven is too hot, you will not be able to slide the latch. Allow the oven to cool.

Touch the

SELF CLEAN

pad.

Touch the +or –pads until the desired Clean Time is displayed.

The Clean Time is normally 4 hours and 20 minutes. You can change the Clean Time to any time between 3 and 5 hours, depending on the amount of soil in your oven.

Touch the

START/ON

pad.

The self-clean cycle will automatically begin after

CLEAN

is displayed and the

time countdown appears in the display.

While the oven is self-cleaning, you can touch the

CLOCK

pad to display the time of day. To return to the clean countdown, touch the

SELF CLEAN

pad.

The oven shuts off automatically when the clean cycle is complete, and 0:00 will flash in the display.

Slide the latch handle to the left as far as it will go and open the door.

NOTE: Never force the latch handle. Forcing the handle will damage the door lock mechanism.

Self

Clean

Start

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

How to Delay the Start of Cleaning

Make sure the clock shows the correct time of day.

Latch the door.

Touch the

SELF CLEAN

pad.

Using the +or –pads, enter the desired clean time.

Touch the

START TIME

pad. The earliest start time you can set will appear in the display.

Using the +or –pads, enter the time of day you want the clean cycle to start.

Touch the

START/ON

pad.

The display will show the start time. It will not be possible to unlatch the oven door until the temperature drops below the lock temperature.

The oven shuts off automatically when the clean cycle is complete, and 0:00 will flash in the display.

After a Clean Cycle

You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools.

If white spots remain, remove them with a soapfilled scouring pad and rinse thoroughly with a vinegar and water mixture.

These deposits are usually a salt residue that cannot be removed by the clean cycle.

If the oven is not clean after one clean cycle, repeat the cycle.

■ You cannot set the oven for cooking

until the oven is cool enough for the door to be unlatched.

■ While the oven is self-cleaning, you

can press the

CLOCK

pad to display the time of day. To return to the clean countdown, press the

COOKING

TIME

pad.

■ Apply a small amount of vegetable oil

to a paper towel and wipe the edges of the oven shelves with the paper towel. Do not spray with Pam® or other lubricant sprays.

Using the self-cleaning oven.

To Stop a Clean Cycle

Touch the

CLEAR/OFF

pad.

Wait until the oven has cooled below the locking temperature to unlatch the door. You will not be able to open the door right away unless the oven has cooled below the locking temperature.

Self

Clean

Start Time

Start

Care and cleaning of the range.

ge.com

Be sure all controls are off and all surfaces are cool before cleaning any part of the range.

How to Remove Protective Shipping Film and Packaging Tape

Carefully grasp a corner of the protective shipping film with your fingers and slowly peel it from the appliance surface. Do not use any sharp items to remove the film. Remove all of the film before using the appliance for the first time.

To assure no damage is done to the finish of the product, the safest way to remove the adhesive from packaging tape on new appliances is an application of a household liquid dishwashing detergent. Apply with a soft cloth and allow to soak.

NOTE: The adhesive must be removed from all parts. It cannot be removed if it is baked on.

If your range is removed for cleaning, servicing or any reason, be sure the anti-tip device is reengaged properly when the range is replaced. Failure to take this precaution could result in tipping of the range and cause injury.

Oven Vent

The oven vent is located behind the right rear surface unit.

This area could become hot during oven use.

It is normal for steam to come out of the vent, and moisture may collect underneath it when the oven is in use.

The vent is important for proper air circulation. Never block this vent.

Control Knobs

The control knobs may be removed for easier cleaning.

Make sure the knobs are in the

OFF

positions and pull them straight off the stems for cleaning.

The knobs can be cleaned in a dishwasher or they may also be washed with soap and water. Make sure the inside of the knobs are dry before replacing.

Replace the knobs, in the

OFF

position to

ensure proper placement.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Care and cleaning of the range.

Lift-Off Oven Door

The door is very heavy. Be careful when removing and lifting the door.

Do not lift the door by the handle.

To remove the door:

Fully open the door.

Pull the hinge locks down toward the door frame, to the unlocked position. A tool, such as a small flatblade screwdriver, may be required.

Firmly grasp both sides of the door at the top.

Close door to the door removal position, which is halfway between the broil stop position and fully closed.

Lift door up and out until the hinge arm is clear of the slot.

To replace the door:

Firmly grasp both sides of the door at the top.

With the door at the same angle as the removal position, seat the indentation of the hinge arm into the bottom edge of the hinge slot. The notch in the hinge arm must be fully seated into the bottom of the slot.

Fully open the door. If the door will not fully open, the indentation is not seated correctly in the bottom edge of the slot.

Push the hinge locks up against the front frame of the oven cavity to the locked position.

Close the oven door.

To clean the inside of the door:

■ Do not allow excess water to run into

any holes or slots in the door.

■ Because the area inside the gasket is

cleaned during the self-clean cycle, you do not need to clean this by hand.

■ The area outside the gasket and

the door liner can be cleaned with a soap-filled plastic pad, hot water and detergent. Rinse well with a vinegar and water solution.

To clean the outside of the door:

■ Use soap and water to thoroughly

clean the top, sides and front of the oven door. Rinse well. You may also use a glass cleaner to clean the glass on the outside of the door. Do not let water drip into the vent openings.

■ If any stain on the door vent trim is

persistent, use a soft abrasive cleaner and a sponge-scrubber for best results.

■ Spillage of marinades, fruit juices,

tomato sauces and basting materials containing acids may cause discoloration and should be wiped up immediately. When surface is cool, clean and rinse.

■ Do not use oven cleaners, cleaning

powders or harsh abrasives on the outside of the door.

The gasket is designed with a gap at the bottom to allow for proper air circulation.

Do not rub or clean the door gasket—it has an extremely low resistance to abrasion.

If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced.

Control Panel

It’s a good idea to wipe the control panel after each use of the oven. Use a damp cloth to clean or rinse. For cleaning, use mild soap and water or a 50/50 solution of vinegar and water. For rinsing, use clean water. Polish dry with a soft cloth.

Do not use abrasive cleansers, strong liquid cleaners, plastic scouring pads or oven cleaners on the control panel— they will damage the finish.

Painted Surfaces

Painted surfaces include the sides of the range and the door, top of control panel and the drawer front. Clean these with soap and water or a vinegar and water solution.

Do not use commercial oven cleaners, cleaning powders, steel wool or harsh abrasives on any painted surface.

Removal position

Indentation

Bottom

edge

of slot

Hinge arm

Hinge lock

Slot

Push hinge locks up to lock.

Pull hinge locks down to unlock.

Hinge

arm

Do not use a steel wool pad; it will scratch the surface.

To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish. Always wipe the surface in the direction of the grain. Follow the cleaner instructions for cleaning the stainless steel surface.

To inquire about purchasing stainless steel appliance cleaner or polish, or to find the location of a dealer nearest you, please call our toll-free number:

National Parts Center 1.800.626.2002

ge.com

NOTE: Allow warming drawer to cool before

removing pan.

NOTE: Wipe spills promptly after each use.

■ Warming drawer has a removable pan

for easy cleaning. Clean with hot soapy water and a sponge or dish towel. Dry with a clean cloth. Replace the pan in the lower oven drawer.

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Removable Warming Drawer Pan

NOTE: For models with an electric warming

drawer, before performing any adjustments, cleaning or service, disconnect the range electrical power supply at the household distribution panel by removing the fuse or switching off the circuit breaker. Make sure the drawer heating element is cool.

ge.com

Oven Shelves

All oven shelves may be cleaned by hand with an abrasive cleaner or steel wool. After cleaning, rinse the shelves with clean water and dry with a clean cloth. Gray porcelain-coated oven shelves may remain in the oven during the selfcleaning cycle without being damaged. The shiny, silver-colored oven shelves may remain in the oven during the selfcleaning cycle, but they will lose their luster and become hard to slide.

It will be necessary to grease all oven shelf side edges with a light coating of vegetable oil after cleaning them by hand or in the oven. This will help maintain the ease of sliding the shelves in and out of the oven.

Stainless Steel Surfaces

(on some models)

Care and cleaning of the range.

Oven Floor

Do not clean the broil element. Any soil will burn off when the element is heated. Clean the oven floor with warm, soapy water.

On some models, the bake element is not exposed and is under the oven floor. If spillovers, residue or ash accumulate on the oven floor, wipe up before self-cleaning.

Storage Drawer Removal

(on some models)

To remove the drawer:

Pull the drawer out until it stops.

Lift the front of the drawer until the stops clear the guides.

Remove the drawer.

To replace the drawer:

Place the drawer rails on the guides.

Push the drawer back until it stops.

Lift the front of the drawer and push back until the stops clear the guides.

Lower the front of the drawer and push back until it closes.

Stop guide

Rail

Oven Light Replacement

CAUTION: Before replacing your oven

light bulb, disconnect the electrical power to the range at the main fuse or circuit breaker panel.

Be sure to let the light cover and bulb cool completely.

To remove the cover:

Hold a hand under the cover so it doesn’t fall when released. With fingers of the same hand, firmly push back the wire cover holder. Lift off the cover.

Do not remove any screws to remove the cover.

Replace bulb with a 40-watt appliance bulb.

To replace the cover:

Place it into groove of the light receptacle. Pull wire forward to the center of the cover until it snaps into place.

Connect electrical power to the range.

Wire cover holder.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Allow the cooktop to cool.

Use a single-edge razor blade scraper at approximately a 45° angle against the glass surface and scrape the soil. It will be necessary to apply pressure to the razor scraper in order to remove the residue.

After scraping with the razor scraper, spread a few drops of CERAMA BRYTE®Ceramic Cooktop Cleaner on the entire burned residue area. Use the CERAMA BRYTE®Cleaning Pad to remove any remaining residue.

For additional protection, after all residue has been removed, polish the entire surface with CERAMA BRYTE

Ceramic Cooktop Cleaner and a paper towel.

Cleaning the glass cooktop.

ge.com

Burned-On Residue

WARNING: DAMAGE to your glass surface

may occur if you use scrub pads other than those recommended.

Allow the cooktop to cool.

Spread a few drops of CERAMA BRYTE®Ceramic Cooktop Cleaner on the entire burned residue area.

Using the included CERAMA BRYTE®Cleaning Pad for Ceramic Cooktops, rub the residue area, applying pressure as needed.

If any residue remains, repeat the steps listed above as needed.

For additional protection, after all residue has been removed, polish the entire surface with CERAMA BRYTE

Ceramic

Cooktop Cleaner and a paper towel.

The CERAMA BRYTE®Ceramic Cooktop Scraper and all recommended supplies are available through our Parts Center. See instructions under “To Order Parts” section on next page.

NOTE: Do not use a dull or nicked blade.

Heavy, Burned-On Residue

Use a CERAMA BRYTE®Cleaning Pad for Ceramic Cooktops.

Normal Daily Use Cleaning

ONLY use CERAMA BRYTE®Ceramic Cooktop Cleaner on the glass cooktop. Other creams may not be as effective.

To maintain and protect the surface of your glass cooktop, follow these steps:

Before using the cooktop for the first time, clean it with CERAMA BRYTE®Ceramic Cooktop Cleaner. This helps protect the top and makes cleanup easier.

Daily use of CERAMA BRYTE

Ceramic Cooktop Cleaner will help keep the cooktop looking new.

Shake the cleaning cream well. Apply a few drops of CERAMA BRYTE

Ceramic Cooktop Cleaner

directly to the cooktop.

Use a paper towel or CERAMA BRYTE®Cleaning Pad for Ceramic Cooktops to clean the entire cooktop surface.

Use a dry cloth or paper towel to remove all cleaning residue. No need to rinse.

NOTE: It is very important that you DO NOT heat the cooktop until it has been cleaned thoroughly.

Clean your cooktop after each spill. Use CERAMA BRYTE®Ceramic Cooktop Cleaner.

Cleaning the glass cooktop.

Turn off all surface units. Remove hot pans.

Wearing an oven mitt: a. Use a single-edge razor blade

scraper (CERAMA BRYTE

Ceramic Cooktop Scraper) to move the spill to a cool area on the cooktop.

b. Remove the spill with

paper towels.

Any remaining spillover should be left until the surface of the cooktop has cooled.

Don’t use the surface units again until all of the residue has been completely removed.

NOTE: If pitting or indentation in the glass surface has already occurred, the cooktop glass will have to be replaced. In this case, service will be necessary.

Damage from Sugary Spills and Melted Plastic

Our testing shows that if you are cooking high sugar mixtures such as jelly or fudge and have a spillover, it can cause permanent damage to the glass surface unless the spillover is immediately removed.

Be careful not to slide pots and pans across your cooktop. It will leave metal markings on the cooktop surface.

These marks are removable using the CERAMA BRYTE®Ceramic Cooktop Cleaner with the CERAMA BRYTE®Cleaning Pad for Ceramic Cooktops.

If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave black discoloration on the cooktop.

This should be removed immediately before heating again or the discoloration may be permanent.

CAUTION: Carefully check the bottom of pans for roughness that would scratch the cooktop.

Metal Marks and Scratches

To order CERAMA BRYTE®Ceramic Cooktop Cleaner and the cooktop scraper, please call our toll-free number:

National Parts Center 800.626.2002 CERAMA BRYTE®Ceramic

Cooktop Cleaner . . . . . . . . . .# WX10X300

CERAMA BRYTE®Ceramic

Cooktop Scraper . . . . . . . . .# WX10X0302

Kit . . . . . . . . . . . . . . . . . . . . . . .# WB64X5027

(Kit includes cream and cooktop scraper)

CERAMA BRYTE®Cleaning Pads for

Ceramic Cooktops . . . . . . . .# WX10X350

To Order Parts

Glass surface—potential for permanent damage.

To clean the cooktop seal around the edges of the glass, lay a wet cloth on it

for a few minutes, then wipe clean with nonabrasive cleaners.

Cooktop Seal

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Before You Call For Service…

ge.com

Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes What To Do

Surface units will not

Improper cookware • Use pans which are flat and match the diameter

maintain a rolling boil

being used. of the surface unit selected.

or cooking is not fast enough

Surface units do

A fuse in your home may be • Replace the fuse or reset the circuit breaker.

not work properly

blown or the circuit breaker tripped.

Cooktop controls • Check to see the correct control is set for the surface improperly set. unit you are using.

Surface unit stops

• This is normal. The unit is still on and hot.

glowing when turned to a lower setting

Scratches (may appear

Incorrect cleaning • Scratches are not removable. Tiny scratches will become

as cracks) on cooktop

methods being used. less visible in time as a result of cleaning.

glass surface

Cookware with rough bottoms • To avoid scratches, use the recommended cleaning being used or coarse particles procedures. Make sure bottoms of cookware are clean (salt or sand) were between before use, and use cookware with smooth bottoms. the cookware and the surface of the cooktop.

Cookware has been slid across the cooktop surface.

Areas of discoloration

Food spillovers not cleaned • See the

Cleaning the glass cooktop

section.

on the cooktop

before next use.

Hot surface on a model • This is normal. The surface may appear discolored with a light-colored glass when it is hot. This is temporary and will disappear cooktop. as the glass cools.

Plastic melted to

Hot cooktop came into • See the

Glass surface—potential for permanent damage

the surface

contact with plastic placed section in the

Cleaning the glass cooktop

section.

on the hot cooktop.

Pitting (or indentation)

Hot sugar mixture spilled • Call a qualified technician for replacement.

of the cooktop

on the cooktop.

Frequent cycling

Improper cookware • Use only flat cookware to minimize cycling.

off and on of

being used.

surface units

Food does not bake

Oven controls improperly set. • See the

Using the oven

section.

or roast properly

Shelf position is incorrect • See the

Using the oven

section.

or the shelf is not level.

Incorrect cookware or • See the

Using the oven

section.

cookware of improper size being used.

Oven thermostat needs • See the

Adjust the oven thermostat—Do it yourself!

adjustment. section.

Before You Call For Service…

Problem Possible Causes What To Do

Clock and timer do

Plug on range is not completely • Make sure electrical plug is plugged into a live, properly

not work

inserted in the electrical outlet. grounded outlet.

A fuse in your home may • Replace the fuse or reset the circuit breaker. be blown or the circuit breaker tripped.

Oven controls improperly set. • See the

Using the clock and timer

section.

Oven light does

Light bulb is loose or defective. • Tighten or replace the bulb.

not work

Switch operating light • Call for service. is broken.

Food does not

Door not open to the broil stop • See the

Using the oven

section.

broil properly

position as recommended.

Oven controls improperly set. • Make sure you press the

BROIL HI/LO

pad.

Improper shelf position • See the

Broiling Guide.

being used.

Cookware not suited • For best results, use a pan designed for broiling. for broiling.

In some areas the power • Preheat the broil element for 10 minutes. (voltage) may be low.

• Broil for the longest period of time recommended in

the

Broiling Guide.

Oven temperature too

Oven thermostat • See the

Adjust the oven thermostat—Do it yourself!

hot or too cold

needs adjustment. section.

Oven will not work

Plug on range is not • Make sure electrical plug is plugged into a live, completely inserted in properly grounded outlet. the electrical outlet.

A fuse in your home may • Replace the fuse or reset the circuit breaker. be blown or the circuit breaker tripped.

Oven controls improperly set. • See the

Using the oven

section.

Door left in the locked • If necessary, allow the oven to cool; then unlock position. the door.

Storage drawer

Rear drawer support is • Reposition the drawer. See the

Storage Drawer

is crooked

on top of the guide rail.

Removal

instructions in the

Care and cleaning of

your range

section.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Troubleshooting Tips

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

ge.com

Problem Possible Causes What To Do

Storage drawer

Power cord may be • Reposition the drawer and power cord. See the

won’t close

obstructing drawer

Storage Drawer Removal

instructions in the

Care and

in the lower back

cleaning of your range

section.

of the range.

Rear drawer support is • Reposition the drawer. See the

Storage Drawer

on top of the guide rail.

Removal

instructions in the

Care and cleaning of your

range

section.

Oven will not self-clean

The oven temperature is • Allow the oven to cool to room temperature and too high to set a self-clean reset the controls. operation.

Oven controls improperly set. • See the

Using the self-cleaning oven

section.

Oven door is not in the • Make sure you move the door latch handle all the locked position. way to the right.

“Crackling” or

This is the sound of the • This is normal.

“popping” sound

metal heating and cooling during both the cooking and cleaning functions.

Excessive smoking

Excessive soil. • Press the

CLEAR/OFF

pad. Open the windows

during a clean cycle

to rid the room of smoke. Wait until the light on the

SELF CLEAN

pad goes off. Wipe up the excess

soil and reset the clean cycle.

Oven door will not

Oven too hot. • Allow the oven to cool below locking temperature.

unlock

Oven not clean after

Oven controls not properly set. • See the

Using the self-cleaning oven

section.

a clean cycle

Oven was heavily soiled. • Clean up heavy spillovers before starting the clean

cycle. Heavily soiled ovens may need to self-clean again or for a longer period of time.

Drawer does not slide

The drawer is out of • Fully extend the drawer and push it all the way in.

smoothly or drags

alignment. See the

Care and cleaning of the range

section.

Drawer is over-loaded or load • Reduce weight. Redistribute drawer contents. is unbalanced.

Warming drawer will

A fuse in your home may be • Replace the fuse or reset the circuit breaker.

not work

blown or the circuit breaker tripped.

Controls improperly set. • See the

Warming drawer

section.

Excessive condensation

Liquid in drawer. • Remove liquid.

in the drawer

Uncovered foods. • Cover food with lid or aluminum foil.

Temperature setting too high. • Reduce temperature setting.

Food dries out in the

Moisture escaping. • Cover food with lid or aluminum foil.

warming drawer

Drawer not fully closed. • Push drawer in until latch engages.

Problem Possible Causes What To Do

“F— and a number

You have a function • Press the

CLEAR/OFF

pad. Put the oven back into

or letter” flash

error code. operation.

in the display

If the function code repeats. • Disconnect all power to the range for at least 30

seconds and then reconnect power. If the function error code repeats, call for service.

• On self-cleaning models, if a function error code

appears during the self-cleaning cycle, check the oven door latch. The latch may have been moved, if only slightly, from the locked position. Make sure the latch is moved to the right as far as it will go. Press the

CLEAR/OFF

pad. Allow the oven to cool for one hour.

Put the oven back into operation.

Display goes blank

A fuse in your home may be • Replace the fuse or reset the circuit breaker. blown or the circuit breaker tripped.

The clock is turned off • See the

Using the clock and timer

section.

from showing in the display.

Display flashes

Power failure. • Reset the clock.

Unable to get the

Oven control pads were • The

BAKE

and

BROIL HI/LO

pads must be pressed

display to show “SF”

not pressed properly. at the same time and held for 3 seconds.

Power outage,

Power outage or surge. • Reset the clock. If the oven was in use, you must reset

clock flashes

it by pressing the

CLEAR/OFF

pad, setting the clock

and resetting any cooking function.

“Burning” or “oily”

This is normal in a new • To speed the process, set a self-clean cycle for a

odor emitting from

oven and will disappear minimum of 3 hours. See the

Using the self-

the vent

in time.

cleaning oven

section.

Strong odor

An odor from the insulation • This is temporary. around the inside of the oven is normal for the first few times the oven is used.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Before You Call For Service…

Troubleshooting Tips

General Electric Company

Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150

GE Service Protection Plus

™

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus

™

—comprehensive protection on all your appliances—

No Matter What Brand!

Benefits Include:

• Backed by GE

• All brands covered

• Unlimited service calls

• All parts and labor costs included

• No out-of-pocket expenses

• No hidden deductibles

• One 800 number to call

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It’s that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

We’ll Cover Any Appliance. Anywhere. Anytime.*

Please place in envelope and mail to:

✁

Cut here

Consumer Product Ownership Registration

Important

Mail Today!

GE Consumer & Industrial

Appliances General Electric Company Louisville, KY 40225 ge.com

First

Name

Mr. ■■ Ms. ■■ Mrs. ■■ Miss ■■

Street

Address

City

State

Date Placed

In Use

Month

Day

Year

Zip

Code

Apt. #

Last

Name

Phone

Number

Consumer Product Ownership Registration

Dear Customer: Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

Important: If you did not get a registration card with your

product, detach and return the form below to ensure that your product is registered, or register online at ge.com.

Model Number Serial Number

✁

Cut here

Complete and mail your Consumer Product Ownership Registration today.

Have the peace of mind of knowing we can contact you in the unlikely event of

safety modification.

After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is

800.GE.CARES (800.432.2737).

Read your Owner’s Manual carefully. It will help you operate your new appliance properly.

Model Number Serial Number

E-mail Address*

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important

communications from GE Appliances (GEA).

■■ Check here if you do not want to receive communications from GEA’s carefully selected partners.

FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS.

For more information about GEA’s privacy and data usage policy, go to ge.com and click on “Privacy Policy” or call 800.626.2224.

Notes.

ge.com

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Accessories.

Looking For Something More?

You can find these accessories and many more at ge.com, or call 800.626.2002 (during normal business hours). Have your model number ready.

Tired of discolored shelves? Wishing you had extra-heavy-duty oven shelves?

NOW AVAILABLE

for your range:

GE’

s innovative, self-cleanable porcelain-coated oven shelves!

• Heavy Duty

• Durable

• Able to be cleaned in a self-cleaning oven

Visit

ge.com

for more information.

Oven Shelves Broiler Pan

Light Bulbs Knobs

Cleaner Cleaning Pads Scraper

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

GE Electric Range Warranty.

For The Period Of: GE Will Provide:

One Year Any part

of the range which fails due to a defect in materials or workmanship.

From the date of the

During this

limited one-year warranty,

GE will also provide,

free of charge,

all labor

original purchase

and in-home service to replace the defective part.

■Service trips to your home to teach you how to use

the product.

■Improper installation, delivery or maintenance.

■Failure of the product if it is abused, misused, or used

for other than the intended purpose or used commercially.

■Replacement of house fuses or resetting of circuit

breakers.

■Damage to the product caused by accident, fire, floods

or acts of God.

■Incidental or consequential damage caused by possible

defects with this appliance.

■Damage caused after delivery.

■Product not accessible to provide required service.

What GE Will Not Cover:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, call us at 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

Printed in the United States

Consumer Support.

GE Appliances Website

ge.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals or order parts on-line.

Schedule Service ge.com

Expert GE repair service is only one step away from your door. Schedule your service at your convenience by calling 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio ge.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call

800.TDD.GEAC (800.833.4322).

Extended Warranties ge.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories ge.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park Louisville, KY 40225

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

GE JB720, JB730, JB690 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Operating Instructions

Care and Cleaning

Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

WARMING DRAWER

Oven Vent

Control Knobs

Lift-Off Oven Door

Removable Warming Drawer Pan

Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
