GE JB690EFES User Manual
JB690EF/DF
30
25
2-1/2
2-1/2
7-1/2
Acceptable electrical
outlet area
29-7/8
47
11
35-3/4
to
36-1/2
w/o handle
w/handle
47-7/8
28
25-1/2
30
" Free-Standing Electric
Single Oven

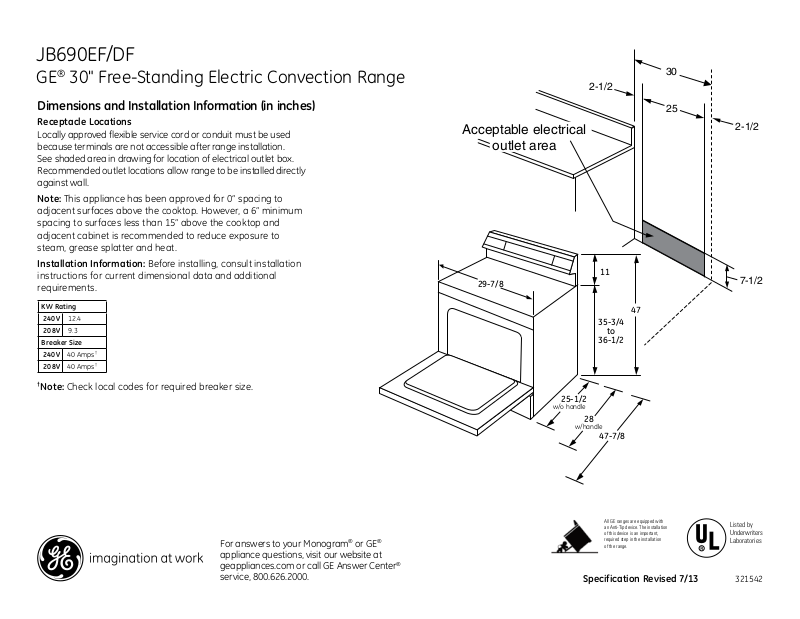

GE® 30" Free-Standing Electric Convection Range
Dimensions and Installation Information (in inches)
Receptacle Locations
Locally approved flexible service cord or conduit must be used
because terminals are not accessible after range installation.
See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly
against wall.
Note: This appliance has been approved for 0” spacing to
adjacent surfaces above the cooktop. However, a 6” minimum
spacing to surfaces less than 15” above the cooktop and
adjacent cabinet is recommended to reduce exposure to
steam, grease splatter and heat.
Installation Information: Before installing, consult installation
instructions for current dimensional data and additional
requirements.
KW Rating
12.4
240V
9.3
208V
Breaker Size
240V
208V
40 Amps
40 Amps
†
†
†
Note: Check local codes for required breaker size.
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 7/13
Listed by
Underwriters
Laboratories
321542
JB690EF/DF
GE® 30" Free-Standing Electric Convection Range
Features and Benefits
• Convection - Enjoy even baking without turning the pan
• 9"/12" Dual Element - Choose a 9" or 12" heating element
• 6"/9" Power Boil Element - Produces rapid, powerful heat
• Fifth Element Warming Zone - Provides low heat capability for foods
• Self-Clean with Steam Clean Option - Clean your oven the way you want
• Fast Preheat - Make hot meals in a hurry with less time preheating
• Hidden Bake - Make cleanup easy by eliminating hard-to-reach areas
• Black Gloss Oven Interior - Enjoy a clean and sleek appearance
• Model JB690EFES - Slate
• Model JB690DFWW - White on white
• Model JB690DFBB - Black on black
Automatic Oven
Specification Revised 7/13
321542
