GE JB655EKES, JB655SKSS Specifications

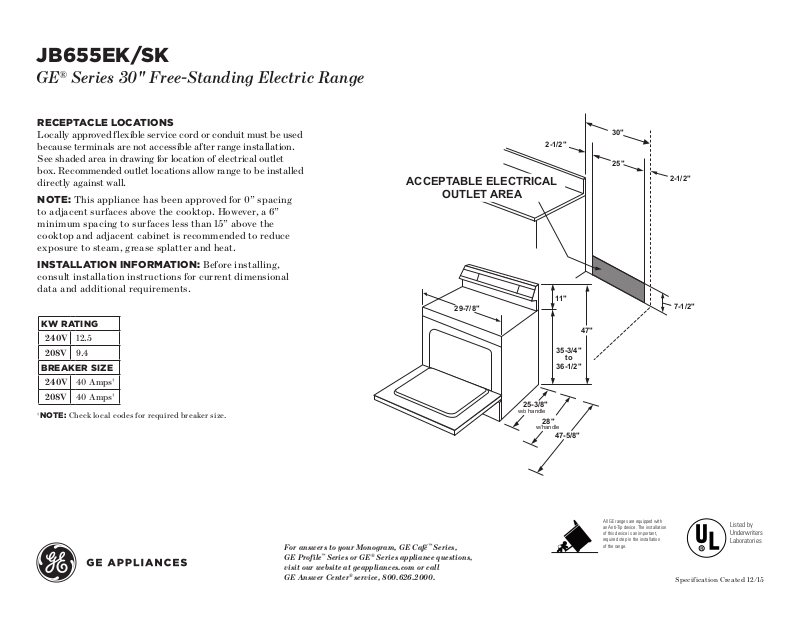

JB655EK/SK
30
" FREE-STANDING ELECTRIC
SINGLE OVEN
GE® Series 30" Free-Standing Electric Range
RECEP TACLE LOCATI O NS
Locally approved flexible service cord or conduit must be used
because terminals are not accessible after range installation.
See shaded area in drawing for location of electrical outlet
box. Recommended outlet locations allow range to be installed
directly against wall.
NOTE: This appliance has been approved for 0” spacing
to adjacent surfaces above the cooktop. However, a 6”
minimum spacing to surfaces less than 15” above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
INSTALL ATIO N I N F O R MATION: Before installing,
consult installation instructions for current dimensional
data and additional requirements.
KW RATING
24 0V 12.5
208V 9.4
BREAKER SIZE
24 0V 40 Amps
208V 40 Amps
†
NOTE: Check local codes for required breaker size.
†
†
2-1/2"
ACCEPTABLE ELECTRICAL
OUTLET AREA
29-7/8"
25-3/8"
w/o handle
28"
w/handle
11"
35-3/4"
to
36-1/2"
47-5/8"
30"
25"
2-1/2"
7-1/2"
47"
For answers to your Monogram, GE Café™ Series,
GE Profile™ Series or GE® Series appliance questions,
visit our website at geappliances.com or call
GE Answer Center® service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
Specif ication Created 12/15
JB655EK/SK
GE® Series 30" Free-Standing Electric Range
FEATURES AND BENEFITS
12"/9" dual element – Two heating elements in one offer flexibility
9"/6" Power Boil element – Produces rapid, powerful heat
Convection – Enjoy even baking without turning the pan
Fast preheat – Make hot meals in a hurry with less time preheating
Fifth element warming zone – Provides low-heat capability for foods
Self-clean oven – Cleans the oven cavity without the need for scrubbing
5.3 cu. ft. oven capacity – Enough room to cook an entire meal at once
Model JB655SKSS – Stainless steel
Model JB655EKES – Slate
Automatic Oven
Specif ication Created 12/15
