GE JB650DN User Manual
30
25
29-7/8
46-7/8
2-1/2
7-1/2
25-3/8
47-5/8
2-1/2
Acceptable electrical
outlet area
30_install_fse_ge.eps
Dimension from wall to front of
closed oven door handle is 27-3/4.
JB650DN
2-1/2
7-1/2
Dimension from wall to front of
closed oven door handle is 27-3/4.

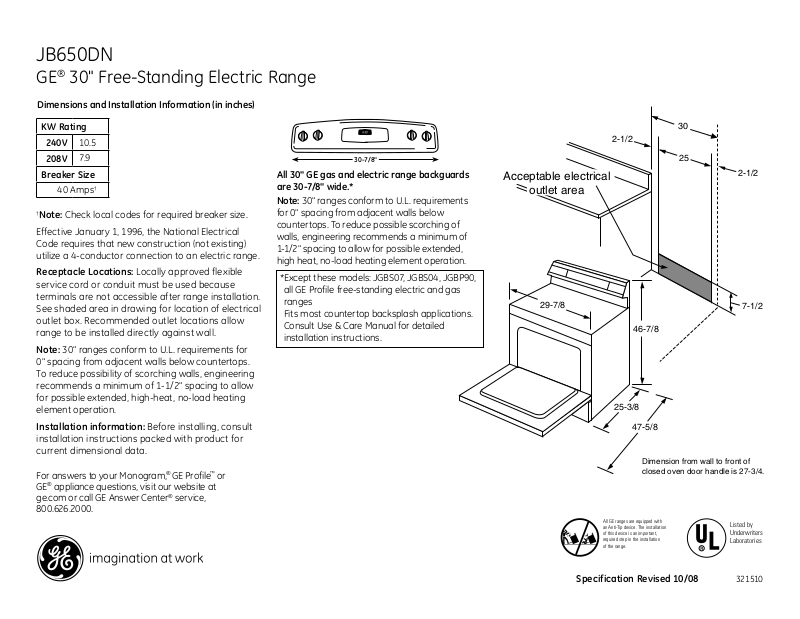

GE® 30" Free-Standing Electric Range
Dimensions and Installation Information (in inches)
KW Rating
240V
208V
Breaker Size
†
Note: Check local codes for required breaker size.
Effective January 1, 1996, the National Electrical
Code requires that new construction (not existing)
utilize a 4-conductor connection to an electric range.
Receptacle Locations: Locally approved flexible
service cord or conduit must be used because
terminals are not accessible after range installation.
See shaded area in drawing for location of electrical
outlet box. Recommended outlet locations allow
range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for
0" spacing from adjacent walls below countertops.
To reduce possibility of scorching walls, engineering
recommends a minimum of 1-1/2" spacing to allow
for possible extended, high-heat, no-load heating
element operation.
Installation information: Before installing, consult
installation instructions packed with product for
current dimensional data.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
10.5
7.9
40 Amps
†
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
* Except these models: JGBS07, JGBS04, JGBP90,
all GE Profile free-standing electric and gas
ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
30-7/8"
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
Specification Revised 10/08
321510
WA
RM
I
N
G Z
ON
E
CE
NT
E
R
ME
D
O
VE
N
L
IG
H
T
ON
OF
F
S
E
L
F
CL
EA
N
TIME
CONT
RO
L
S
K
I
TC
HE
N
CL
OC
K
L
I
GH
T
ON
OF
F
O
VE
N CONTRO
L
S
BA
K
E
S
TA
RT
ON
BR
OI
L
CL
EA
R
OF
F
JB650DN
GE® 30" Free-Standing Electric Range
Features and Benefits
• Self-Clean Oven - Conveniently cleans the oven cavity without need of scrubbing
• Super-Large 5.3 Cu. Ft. Oven Capacity - Provides an impressively large oven interior to
cook more dishes and large meals at once
• TrueTemp™ System - Delivers even heat distribution and maximum oven control
• Dual Size Ribbon Element - Offers a convenient choice of using a 5" or 8" heating element
depending on the size of the pan
• Warming Zone - Provides low heat capability for foods, making meal coordination simple
• Big Hearth Window - Features an enhanced shape to add an elegant appearance and
make viewing trouble-free
• QuickSet IV Oven Controls - Feature an easy to use design which allows you to set precise
cooking temperatures
• Model JB650DNBB – Black on black
• Model JB650DNWW – White on white
Specification Revised 10/08
321510
