GE JB640DP Specification
30
25
29-7/8
46-7/8
2-1/2
7-1/2
25-3/8
47-5/8
2-1/2
Acceptable electrical
outlet area
30_install_fse_ge.eps
Dimension from wall to front of
closed oven door handle is 27-3/4.
2-1/2
7-1/2
Dimension from wall to front of
closed oven door handle is 27-3/4.

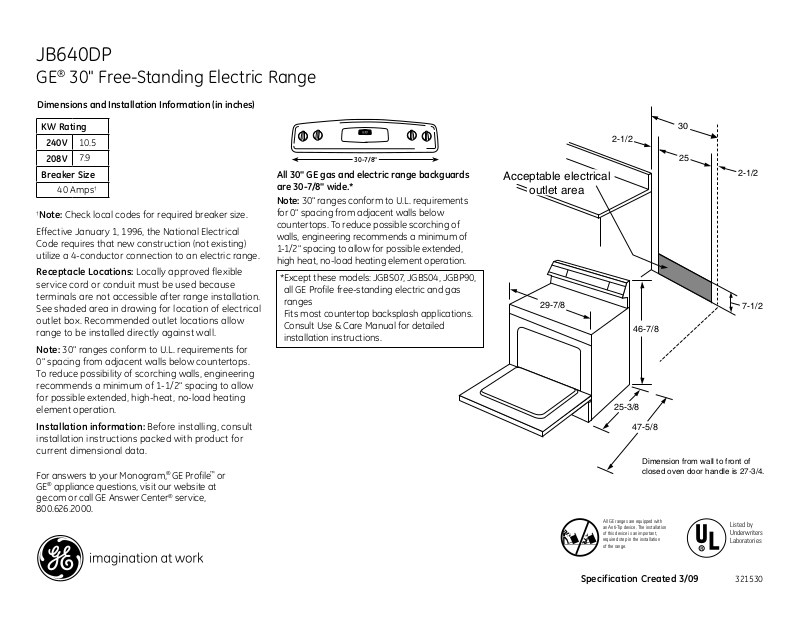

JB640DP
GE® 30" Free-Standing Electric Range
Dimensions and Installation Information (in inches)
KW Rating
240V
208V
Breaker Size
†
Note: Check local codes for required breaker size.
Effective January 1, 1996, the National Electrical
Code requires that new construction (not existing)
utilize a 4-conductor connection to an electric range.
Receptacle Locations: Locally approved flexible
service cord or conduit must be used because
terminals are not accessible after range installation.
See shaded area in drawing for location of electrical
outlet box. Recommended outlet locations allow
range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for
0" spacing from adjacent walls below countertops.
To reduce possibility of scorching walls, engineering
recommends a minimum of 1-1/2" spacing to allow
for possible extended, high-heat, no-load heating
element operation.
Installation information: Before installing, consult
installation instructions packed with product for
current dimensional data.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
10.5
7.9
40 Amps
†
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
* Except these models: JGBS07, JGBS04, JGBP90,
all GE Profile free-standing electric and gas
ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
30-7/8"
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
Specification Created 3/09
321530
BR
O
IL
S
E
L
F
CL
EA
N
O
VE
N
L
IG
H
T
CL
OC
K
TI
ME
CO
N
TROL
S
O
VE
N
CONT
R
OL
S
ON
OF
F
K
I
TC
HE
N
L
I
G
HT
ON
OF
F
CL
OC
K
K
I
TC
HE
N
LI
G
HT
ON
OF
F
BAK
E
S
TA
R
T
ON
CL
EA
R
OF
F
JB640DP
GE® 30" Free-Standing Electric Range
Features and Benefits
• Self-clean oven - Self-clean allows you to spare yourself from the trouble and effort it
takes to scrub the oven interior. The oven does all the work!
• Super-large oven capacity - Remarkably large oven interior is ideal for holidays, dinner
parties and everyday family cooking
• TrueTemp
you get, with less variance, to give you the baking and broiling performance you desire
• QuickSet oven controls - Electronic touch pads on the control panel make controlling your
oven effortless
• 12” element - A large, 2700-watt element provides exceptional cooking power
™
system - This feature helps ensure the temperature you set is the temperature
• Big hearth window - Elegant shaped window makes it easy to monitor the progress
of food
• Dual element bake - This top-and-bottom heating produces uniform browning and fast
oven preheating
• Ribbon heating elements - Powerful heat beneath the smooth surface provides highspeed warm-up and even heating
• Model JB640DPBB – Black on black
• Model JB640DPCC – Bisque on bisque
• Model JB640DPWW – White on white
Specification Created 3/09
321530
Loading...
