GE JB620DF Specification
JB620DF
GE® 30" Free-Standing Electric Range

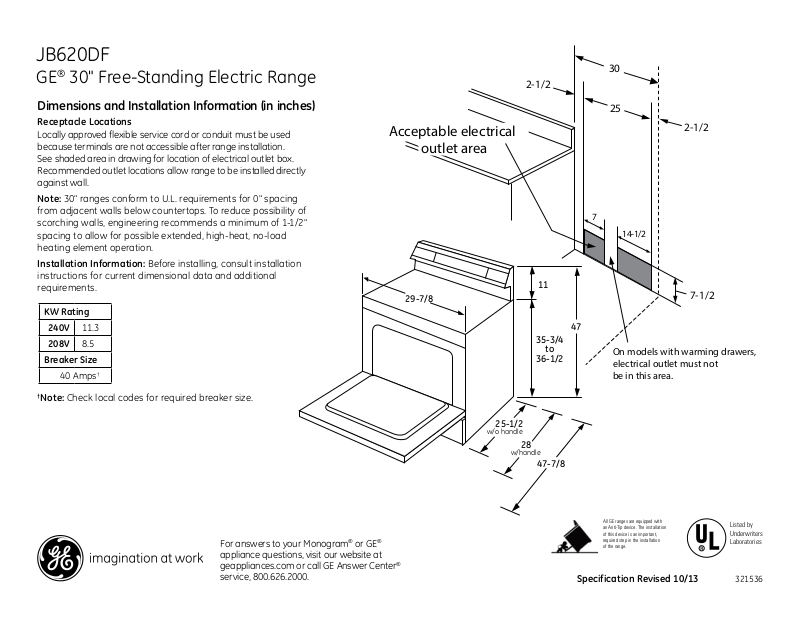

Dimensions and Installation Information (in inches)
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not accessible after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: 30" ranges conform to U.L. requirements for 0" spacing from adjacent walls below countertops. To reduce possibility of scorching walls, engineering recommends a minimum of 1-1/2" spacing to allow for possible extended, high-heat, no-load heating element operation.
Installation Information: Before installing, consult installation instructions for current dimensional data and additional requirements.
KW Rating
240V 11.3
208V 8.5
Breaker Size
40 Amps†
†Note: Check local codes for required breaker size.
|
30 |
|
2-1/2 |
|
25 |
Acceptable electrical |
2-1/2 |
outlet area |
|
7
14-1/2
11 |
7-1/2 |
29-7/8 |
|
|
47 |
35-3/4 |
|
to |
On models with warming drawers, |
36-1/2 |
electrical outlet must not |
|
|
|
be in this area. |
25-1/2
w/o handle
28
w/handle
47-7/8
For answers to your Monogram® or GE® appliance questions, visit our website at geappliances.com or call GE Answer Center® service, 800.626.2000.
All GE ranges are equipped with |
Listed by |
an Anti-Tip device. The installation |
|
of this device is an important, |
Underwriters |
required step in the installation |
Laboratories |
of the range. |
|
Specification Revised 10/13 |
321536 |
JB620DF
GE® 30" Free-Standing Electric Range
Features and Benefits
• 8” Power Boil Element - 2,500 watts produce quick, vigorous heat |
|
: |
|
• 5.3 cu. ft. Oven Capacity - Enough room to cook an entire meal at once |
6 |
30 |
|
• Ceramic Glass Cooktop - Smooth cooktop easily wipes clean |
|
• Self-Clean Oven - Cleans the oven cavity without the need for scrubbing
•Removable Full-Width Storage Drawer - Store cookware or kitchen accessories
•Dual Element Bake - Upper and lower elements produce even heat and great results
• Model JB620DFWW – White on white
• Model JB620DFBB – Black on black
Specification Revised 10/13 |
321536 |
