GE JB480SM Specification
29 7/8"
36"
to
36 1/2
"
11"
46 3/4"
29"
26 1/4"
47"
w/handle
w/o handle
CENTER LINE
REAR
WALL
2 1/4"
7 1/2"
7"
7 1/2"
3 1/2"
2 1/4"
5"
30
" FREE-STANDING ELECTRIC
SINGLE OVEN RANGE
11"
CENTER LINE
REAR
WALL
2 1/4"
7 1/2"
7"
7 1/2"
3 1/2"
2 1/4"
5"
SINGLE OVEN RANGE
JB480SM
GE® Free-standing Electric Radiant Smooth Cooktop Range

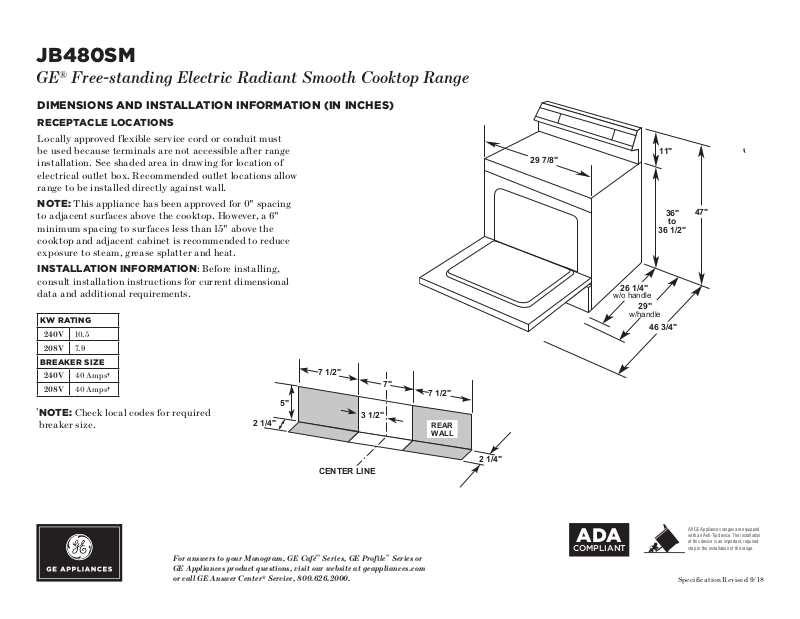

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
RECEPTAC L E LOCATIONS
Locally approved flexible service cord or conduit must
be used because terminals are not accessible after range
installation. See shaded area in drawing for location of
electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
NOTE: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
INSTALLATION I N FORMATI O N : Before installing,
consult installation instructions for current dimensional
data and additional requirements.
KW R ATING
24 0V 10.5
208V 7.9
BREAKER SIZE
24 0V 40 Amps†
208V 40 Amps†
†
NOTE: Check local codes for required
breaker size.
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
ADA
COMPLIANT
All GE Appliances ranges are equipped
with an Anti-Tip device. The installation
of this device is an important, required
step in the installation of the range.
Speci fication Revised 9/18
JB480SM
GE® Free-standing Electric Radiant Smooth Cooktop Range
FEATURES AND BENEFITS
Front controls – Minimize need to reach
5.0 cu. ft. oven capacity – Cook more dishes at once
Self-clean oven – Cleans the oven cavity without the
need for scrubbing
Dual-element Bake – Upper and lower elements produce
even heat and great results
Removable full-width storage drawer – Store cookware
or kitchen accessories
Model JB480SMSS – Stainless steel
Speci fication Revised 9/18
