GE JB450RF Specification
JB450rf
30
36
to
36-1/2
11
46-1/4
28-3/4
26-1/4
47
w/handle
w/o handle
CENTER LINE
REAR
WALL
2-1/4
7-1/2
7
7-1/2
3-1/2
2-1/4
5
30
" Free-Standing Electric
Single Oven Range
CENTER LINE
REAR
WALL
2-1/4
7-1/2
7
7-1/2
3-1/2
2-1/4
5
Single Oven Range
®
GE

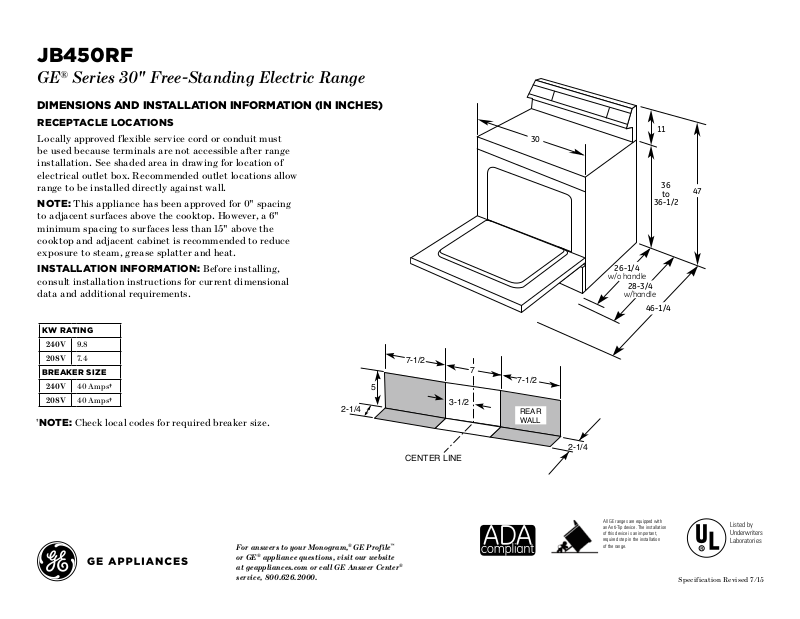

Dimensions anD installation information (in inches)
Receptac l e locations
Locally approved flexible service cord or conduit must
be used because terminals are not accessible after range
installation. See shaded area in drawing for location of
electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
note: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
installation i n foRmati o n : Before installing,
consult installation instructions for current dimensional
data and additional requirements.
Series 30" Free-Standing Electric Range
KW R ating
24 0V 9.8
208V 7.4
BReaKeR size
24 0V 40 Amps
208V 40 Amps†
†
†
note: Check local codes for required breaker size.
For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
Speci fication Revised 7/15
JB450RF
®
GE
featuRes and Benefits
Upfront controls – Minimize need to reach
5.0 cu. ft. oven capacity – Cook more dishes at once
Self-clean oven – Cleans the oven cavity without the need for scrubbing
Coil heating elements – Provide even heat and easy cleanup
Dual-element bake – Upper and lower elements produce even heat and
great results
Removable full-width storage drawer – Store cookware or kitchen accessories
Model JB450RFSS – Stainless steel
Series 30" Free-Standing Electric Range
Speci fication Revised 7/15
