GE JB450DFBB, JB450DFCC Specification Sheet

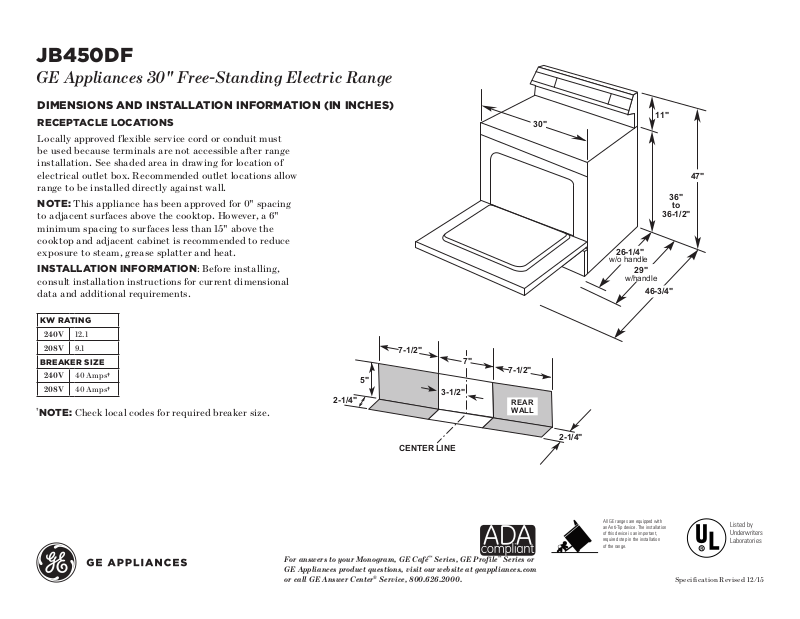

JB450DF
GE Appliances 30" Free-Standing Electric Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
RECEPTACLE LOCATIONS
Locally approved flexible service cord or conduit must be used because terminals are not accessible after range installation. See shaded area in drawing for location of
electrical outlet box. Recommended outlet locations allow range to be installed directly against wall.
NOTE: This appliance has been approved for 0" spacing to adjacent surfaces above the cooktop. However, a 6" minimum spacing to surfaces less than 15" above the cooktop and adjacent cabinet is recommended to reduce exposure to steam, grease splatter and heat.
INSTALLATION INFORMATION: Before installing, consult installation instructions for current dimensional data and additional requirements.
KW RATING |
|
|
|
|
|
|
240V |
12.1 |
|
|
|
|
|
208V |
9.1 |
|
|
7-1/2" |
|
|
|
|
|
|
|||
BREAKER SIZE |
|
|
|
7" |
||
|
|
|
||||
240V |
40 Amps† |
|
5" |
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
208V |
40 Amps† |
|
||||
|
3-1/2" |
|
||||
†NOTE: Check local codes for required breaker size. |
2-1/4" |
|
|
|
||
|
|
|
|
|||
|
1" |
|
CENTER LINE |
|||
5"
2-1/4"
11"
30"
47"
36" to 36-1/2"
26-1/4" w/o handle
29" w/handle
46-3/4"
7-1/2"
REAR
WALL
2-1/4"
All GE ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation
of the range.
Listed by Underwriters Laboratories
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or |
|
GE Appliances product questions, visit our website at geappliances.com |
|
or call GE Answer Center® Service, 800.626.2000. |
Specification Revised 12/15 |
JB450DF
GE Appliances 30" Free-Standing Electric Range
FEATURES AND BENEFITS
Upfront controls – Minimize need to reach
5.0 cu. ft. oven capacity – Cook more dishes at once
Self-clean oven – Cleans the oven cavity without the need for scrubbing Coil heating elements – Provide even heat and easy cleanup
Dual-element bake – Upper and lower elements produce even heat and great results Removable full-width storage drawer – Store cookware or kitchen accessories Model JB450DFWW – White on white
Model JB450DFCC – Bisque on bisque Model JB450DFBB – Black on black
Specification Revised 12/15
