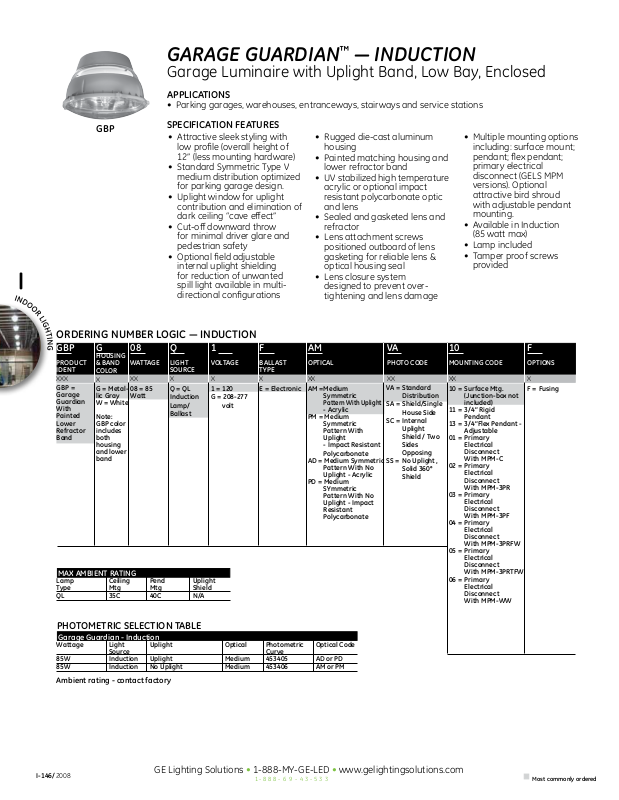

GE Induction Data Sheet
GARAGE GUARDIAN™ — INDUCTION
Garage Luminaire with Uplight Band, Low Bay, Enclosed
APPLICATIONS
• Parking garages, warehouses, entranceways, stairways and service stations
GBP
SPECIFICATION FEATURES
• Attractive sleek styling with
low prole (overall height of
12” (less mounting hardware)
• Standard Symmetric Type V
medium distribution optimized
for parking garage design.
• Uplight window for uplight
contribution and elimination of
dark ceiling “cave eect”
• Cut-o downward throw
for minimal driver glare and
pedestrian safety
• Optional eld adjustable
internal uplight shielding
for reduction of unwanted
spill light available in multidirectional congurations
ORDERING NUMBER LOGIC — INDUCTION
GBP
PRODUCT
IDENT
XXX
GBP =
Garage
Guardian
With
Painted
Lower
Refractor
Band
MAX AMBIENT RATING
Lamp Ceiling Pend Uplight
Type Mtg Mtg Shield
QL 35C 40C N/A
G
HOUSING
& BAND
COLOR
X
G = Metallic Gray
W = White
Note:
GBP color
includes
both
housing
and lower
band
08
WATTAGE
XX
08 = 85
Watt
Q
LIGHT
SOURCE
X
Q = QL
Induction
Lamp/
Ballast
1
VOLTAGE
X
1 = 120
G = 208-277
volt
F
BALLAST
TYPE
X
E = Electronic
• Rugged die-cast aluminum
housing
• Painted matching housing and
lower refractor band
• UV stabilized high temperature
acrylic or optional impact
resistant polycarbonate optic
and lens
• Sealed and gasketed lens and
refractor
• Lens attachment screws
positioned outboard of lens
gasketing for reliable lens &
optical housing seal
• Lens closure system
designed to prevent over-
tightening and lens damage
AM
OPTICAL
XX
AM = Medium
Symmetric
Pattern With Uplight
- Acrylic
PM = Medium
Symmetric
Pattern With
Uplight
- Impact Resistant
Polycarbonate
AD = Medium Symmetric
Pattern With No
Uplight - Acrylic
PD = Medium
SYmmetric
Pattern With No
Uplight - Impact
Resistant
Polycarbonate
VA
PHOTO CODE
XX
VA = Standard
Distribution
SA = Shield/Single
House Side
SC = Internal
Uplight
Shield / Two
Sides
Opposing
SS = No Uplight,
Solid 360°
Shield
• Multiple mounting options
including: surface mount;
pendant; ex pendant;
primary electrical
disconnect (GELS MPM
versions). Optional
attractive bird shroud
with adjustable pendant
mounting.
• Available in Induction
(85 watt max)
• Lamp included
• Tamper proof screws
provided
10
MOUNTING CODE
XX
10 = Surface Mtg.
(Junction-box not
included)
11 = 3/4” Rigid
Pendant
13 = 3/4”Flex Pendant -
Adjustable
01 = Primary
Electrical
Disconnect
With MPM-C
02 = Primary
Electrical
Disconnect
With MPM-3PR
03 = Primary
Electrical
Disconnect
With MPM-3PF
04 = Primary
Electrical
Disconnect
With MPM-3PRFW
05 = Primary
Electrical
Disconnect
With MPM-3PRTFW
06 = Primary
Electrical
Disconnect
With MPM-WW
F
OPTIONS
X
F = Fusing
PHOTOMETRIC SELECTION TABLE
Garage Guardian - Induction
Wattage Light Uplight Optical Photometric Optical Code
Source Curve
85W Induction Uplight Medium 453405 AD or PD
85W Induction No Uplight Medium 453406 AM or PM
Ambient rating - contact factory
I-146/2008
GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com
1 - 8 8 8 - 6 9 - 4 3 - 5 3 3
Most commonly ordered
GARAGE GUARDIAN™ — INDUCTION
Garage Luminaire with Uplight Band, Low Bay, Enclosed
FIXTURE DIMENSIONS
1.5 in.
(38mm)
12.1 in.
(308mm)
17.8 in.
(453mm)
12.1 in.
(308mm)
Flexible Pendant Mounting
DATA
Approximate Net Weight lbs kgs
Ballast and Optical 10-17 5-8
1.3 in.
(33mm)
Mamimum
with Mounting
Receptacle
16.2 in.
(411mm)
17.8 in.
(453mm)
12.1 in.
(308mm)
17.8 in.
(453mm)
Pendant Mounting Sliding Disconnect Mounting
Surface Mounting to J-box
Mounting
Plates
J-Box Supplied
by Others
Wireform
INDUCTION LAMP/BALLAST SYSTEM FEATURES:
• 80+CRI
• Lamp/ballast system life is rated 100,00 hours
(vs 24,000 for HPS)
• Instant On and Instant Restrike
• 4000K Color Temperature
• 5 year warranty
• Minimum Start -30° F
REFERENCES
See Page I-104 for start of Accessories.
See Page I-110 - I-111 for MPM (Multi-purpose Mounting) information.
See Pages I-129 for Explanation of Options and Other Terms Used.
0.6 in.
(14mm)
12.1 in.
(308mm)
17.8 in.
(453mm)
GE Lighting Solutions • 1-888-MY-GE-LED • www.gelightingsolutions.com
1 - 8 8 8 - 6 9 - 4 3 - 5 3 3
2008/I-147
