GE IM6D INSTALLATION INSTRUCTIONS AND OPERATION MANUAL

IM -6D
Safety Information ......... 1
Operating Instructions .....2
Before You Call For Service .....3-5
Normal Sounds You May Hear ....2
Preparing for Vacation ..........2
to OFF ..........................2
Installation Instructions
Cold Water Line ............43–46
Fill Tube Templates .............47
Icemaker Icemaker Icemaker Icemaker Icemaker Icemaker Icemaker Icemaker
Parts List ......................7, 8
Removing Existing
Ice Cube Tray Holder ............9
Repositioning or Removing
the Freezer Shelf ................9
...............10–13
L
...............14–17
M
...............18–21
N
...............22–25
Q
...............26–29
R
...............30–33
S
...............34–37
T
U
, V or
......38–42
W
Consumer Support
Consumer Support .... Back Cover
Warranty ..................... 48
Owner’s Manual and
Installation Instructions
Trousse
Machine à glaçons
Manuel d’utilisation
et d’installation
La section française commence à la page 49
Equipo de Accesorios
Máquina de Hielos
Manual del propietario
e instalación
La sección en español empieza en la página 99
Which instructions should you follow?
Look for a label on the back of the refrigerator that will tell you which instructions to use:
Icemaker Accessory Kit
L M N Q R S T U V
W
or
245D1617P001 49-60704-1 04-16 GE
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
REFRIGERATOR SAFETY INFORMATION
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All
safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words are defined as:
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
State of California Proposition 65 Warnings:
WARNING
and birth defects or other reproductive harm.
This product contains one or more chemicals known to the State of California to cause cancer
SAFETY PRECAUTIONS
CAUTION
Do not place fingers or hands in the automatic icemaking mechanism while the refrigerator is plugged in. This will help protect you from possible injury.
It will also prevent interference with moving parts of the ejector mechanism and the heating element that releases the cubes, located on the bottom of the icemaker.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
READ AND SAVE THESE INSTRUCTIONS
1
About the automatic icemaker.
A newly-installed refrigerator may take 12 to 24 hours to begin making ice.
Power Switch
(Appearance may vary)
Icemaker
Feeler Arm
Automatic Icemaker
The icemaker will produce seven cubes
SHUF\FOH³DSSUR[LPDWHO\²
cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.
If the refrigerator is operated before the water connection is made to the icemaker, set the power switch to OFF.
When the refrigerator has been connected to the water supply, set the power switch to ON.
The icemaker will fill with water when it cools to freezing. A newly-installed refrigerator may take 12 to 24 hours to begin making ice cubes.
Preparing for Vacation
Set the icemaker power switch to OFF and shut off the water supply to the refrigerator.
You will hear a buzzing sound each time the icemaker fills with water.
Throw away the first few batches of ice to allow the water line to clear.
Be sure nothing interferes with the sweep of the feeler arm.
When the bin fills to the level of the feeler arm, the icemaker will stop producing ice.
It is normal for several cubes to be joined together.
If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink.
If the temperature can drop below freezing, have a qualified servicer drain the water supply system (on some models) to prevent serious property damage due to flooding.
When you should set the icemaker power switch to OFF
When the ice storage bin is removed
for more than a minute or two.
When the water supply will be shut off
for several hours.
When the refrigerator will not be used for
several days.
Normal sounds you may hear
The icemaker water valve will buzz when
the icemaker fills with water. If the power switch is in the ON position, it will buzz even if it has not yet been hooked up to water. Keeping the power switch in the ON position before it is hooked up to water can damage the icemaker. To prevent this, move the power switch to the OFF position. This will stop the buzzing.
The sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
2
Before you call for service…
Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.
Problem Possible Causes What To Do
Automatic icemaker does not work
Freezer compartment too warm. After installing the kit, allow the refrigerator to completely
cool down for 24 hours. Once the compartment is cool, the icemaker will begin ice production.
Icemaker is not turned on. Move the icemaker
power switch to the
ON position.
Icemaker is not plugged in correctly.
Check that the icemakern cord plug is fully inserted into the socket. See Plug in the icemaker.
Power Switch
GEAppliances.com
(Appearance may vary)
Locking
Tabs
Clip Restraints
onto Locking
Hook
Tabs
Icemaker
Feeler
Arm
Water line kinked. Check that the plastic water
line running from the valve to the water tube inlet is not kinked. See Connect the water line. A kink in the water line will restrict flow to the water line.
Water supply turned off or not connected.
Piled up cubes in the storage bin
After installing the kit, make sure the house water supply to the refrigerator has been turned on.
Level cubes by hand.
cause the icemaker to shut off. Water valve is not plugged in
correctly.
Check that the valve wire adapter is completely plugged onto the terminals on the water valve. See Attach the water valve.
Adhesive-backed Fasteners for Water Tube
Valve Terminals
Adapter
Before you call for service…
Troubleshooting Tips
Problem Possible Causes What To Do
Leaking water around the fill cup
Foam in the fill cup from installing the fill tube.
If the fill tube was installed by sliding it through the back of the refrigerator, it may have picked up pieces of foam as it was pushed through. This foam can interfere with the water flow in the fill cup. Check the cup and make sure there are no foam pieces.
Fill Tube
Leaking water behind the refrigerator
Slow ice/freezer not cold enough
Ice cubes too small slow ice
Fill tube not correctly seated in the fill cup.
Check that the fill tube is correctly inserted in the fill cup opening. See Mount the icemaker.
House supply not properly connected to the water valve.
Water line not connected to the water tube inlet.
Check that the house supply is firmly attached to the water valve. See Water line installation instructions.
Check that the plastic water line running from the valve to the water tube inlet is firmly attached with the hose
Water Tube Inlet
Hose Clamp
clamp. See Connect the water line.
Water Line
Door left open. Check to see if package is holding door open. Temperature control not set cold
enough. Water shutoff valve connecting
refrigerator to house water line may be clogged.
See About the Temperature Control in the Owner’s Manual of the refrigerator.

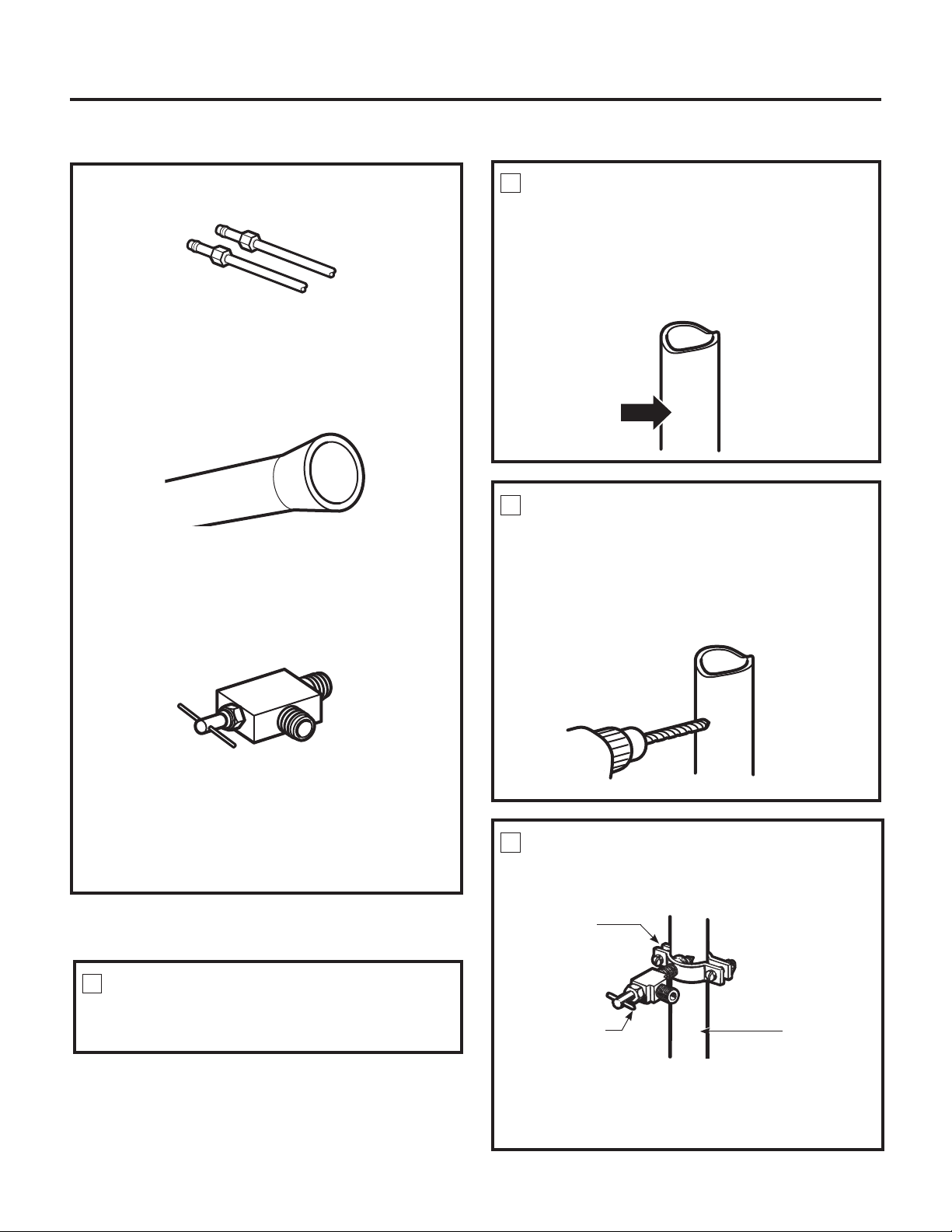

We recommend drilling a 1/4" hole in the water pipe to connect the water shut-off valve. Failure to drill a 1/4" hole may result in
Drill 1/4" hole in water pipe
reduced ice production or smaller cubes. See Installing the water line.
Fill Tube
Fill Cup
Water line kinked. Check that the plastic water
line running from the valve to the water tube inlet is not kinked. See Connect the water line. A kink in the water line will restrict flow to the icemaker.
Adhesive­backed Fasteners for Water Tube
4
Problem Possible Causes What To Do
Ice cubes not landing in bucket
Ice cubes have odor/ taste
Frequent “buzzing” sound
Icemaker cord causing icemaker/ bucket misalignment
Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes. Food transmitting odor/taste to
ice cubes. Interior of refrigerator needs
cleaning. Normal operation. During normal operation, the water valve will “buzz” when
Be sure icemaker power cord is in the hook as stated in Step 8 in Installation Instructions.
Wrap foods well.
See Care and cleaning in the Owner’s Manual of the refrigerator.
the icemaker fills with water.
GEAppliances.com
5
In st al latio n IM-6D Icemaker Kit Instructions
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com
In Canada, call 1.800.561.3344 or Visit our Website at: geappliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT – Save these instructions
for local inspector’s use.
IMPORTANT – Observe all governing
codes and ordinances.
Note to Installer – Be sure to leave these
instructions with the Consumer.
Note to Consumer – Keep these instructions
for future reference.
Skill level – Installation of this appliance requires basic mechanical and electrical skills.
Completion time –²PLQXWHV
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
WHICH INSTRUCTIONS SHOULD YOU FOLLOW?
ARE YOU REPLACING AN ICEMAKER WITH THIS KIT?
It’s important that you use the water valve and fill tube
H[WHQVLRQWKDWFRPHZLWKWKLVNLWHYHQWKRXJK\RXU
refrigerator may already have them installed. The old valve will not allow enough water through to fill
the icemaker properly and cause damage.
7KHILOOWXEHH[WHQVLRQQHHGVWREHDGLIIHUHQWOHQJWKWKDQ
the original tube for proper water flow.
DAMAGE – SHIPMENT/INSTALLATION
• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between customer and installer.
There is a label on the back of the refrigerator that will tell you whether to use Instructions:
L M N Q R S T U V
Pages 10–42 contain fourteen different Installation Instructions.
The actual installation of the icemaker will depend on which model refrigerator you have.
or
W
6
CONTENTS OF KIT
1
Icemaker (Appearance may vary)
Installation
Instructions
Installation Instructions
8
Ice Bucket
15
+H[+HDG6FUHZIRU DWWDFKLQJZDWHUYDOYHµ
16
Phillips Head Screws,
IRUPRXQWLQJLFHPDNHUµ
2
Installation Instructions
Hose Clamp (black)
4
Water Valve and Tube Assembly
5
Adhesive-Backed Water Line Fasteners
9
Ice Bucket
)LOO7XEH([WHQVLRQ

2'>PP@
Short Fill Tube
11
Assembly (~8”)
Long Fill Tube
12
Assembly (~9”)

Icemaker Fill Cup (side-mounted)
17
Water Line Clamp (strain relief)
WARRANTY VERIFICATION
Date Installed Dealer
Warranty Label
18
19
Fill Tube Assy
Water Tube Inlet

Plug Button
21
ICEMAKER
6
Hose Clamp (not black)
Icemaker Fill Cup
14
HQGPRXQWHG² ORQJ
7
+H[+HDG6FUHZIRU :DWHU/LQH&ODPSµ
*NOTE: Screw lengths are the lengths of the threaded portion of the screw, not including the head.
7
%UDFNHW([WHQVLRQ
22
+H[+HDG6FUHZVIRU

EUDFNHWH[WHQVLRQ µ
Installation Instructions
Parts List Use with Installation Instructions:
LMNQRSTUVW
1 Icemaker XXXX XXXXXX 2 Installation Instructions XXXXXXXXXX  Hose Clamp (black) XXXXX XXX 4 :DWHU9DOYHDQG7XEH$VVHPEO\ XXXX XXXXXX
Adhesive-Backed Water Line Fasteners
5 6 Hose Clamp (not black) XX
+H[+HDG6FUHZIRU:DWHU/LQH&ODPS
7 8 Ice Bucket XXXX 9 Ice Bucket XXXX
 )LOO7XEH([WHQVLRQ2' X
11 Short Fill Tube Assy (~8”) XXX
XXXX XXXXXX
XXXX XXXXXX
12 Long Fill Tube Assy (~9”) XXX
 Icemaker Fill Cup (side mounted) XXXXXX XX 14 Icemaker Fill Cup (end mounted) X 15 +H[+HDG6FUHZ XXXXXXXXXX 16 Phillips Head Screw (2) XXXX XXXXXX 17 Water Line Clamp (strain relief) XXXX XXXXXX 18 Warranty Label XXXX XXXXXX 19 Fill Tube Assy XXXX  Water Tube Inlet XXXXX 21 Plug Button XXXX 22 Bracket Valve Adapter XX
 +H[+HDG6FUHZ XX
$OZD\VFKDQJHWKHZDWHUYDOYHZKHQUHSODFLQJDQLFHPDNHU
that makes round cubes. This new icemaker uses a different voltage which may cause the old valve to fail. For dispenser models, order GE Appliances Part Number WR57X96.
8
Installation Instructions
REMOVE EXISTING ICE TRAY HOLDER
Follow the instructions below for the ice tray holder that looks like yours.
Type 1
• Unhook the ice tray holder side and bottom from the retaining hooks. Lower the holder until the side is clear of the freezer shelf and remove it from the freezer. You will not need this part.
Retaining hooks
Type 2
• As you lift the tab on the left side in the holder with the blade of a screwdriver, pull the holder forward and out. You will not need this part.
Type 3
• Remove the 2 screws and save them for installation of the icemaker.
• Lift the ice tray holder off the plastic hook. You will not need this part.
Screws
Plastic hook
Type 4
• Remove the screw with a 1/4" nutdriver.
• Pull the ice tray shelf away from the wall. Remove the shelf. You will not need this part.
• Replace the screw.
Do not lift here
Lift this tab out
Screw
REPOSITION OR REMOVE FREEZER SHELVES
On some models, you may need to remove or reposition the freezer shelf so the icemaker and bucket sit properly. Follow the instructions below for the ice tray holder that looks like yours.
Type 1
• To reposition the two-piece shelf supports, slide the shelf up off the base mount.
Shelf support
Base mount
• On some bottom-mount no-frost refrigerators, you need to remove a full width flat freezer shelf before installing the icemaker.
Type 2
9
Installation Instructions
ICEMAKER INSTALLATION INSTRUCTIONS L
Are these the right instructions for your model? Follow the Installation Instructions indicated by
WKHODEHORQWKHEDFNRIWKHUHIULJHUDWRU³
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
WARNING
electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
To eliminate the risk of
Pliers
Sharp knife
L M N Q R S T U V or
PREPARE FOR INSTALLATION
2
• Remove and discard the large white plug from the rear freezer wall.
• Remove the outlet cover with a flat-blade screwdriver.
3
INSTALL FILL TUBE EXTENSION
 6OLGHWKHILOOWXEHH[WHQVLRQ
onto the fill tube against the stop.
W
Remove plug
1/4"Nutdriver or adjustable wrench
REMOVE ICE CUBE TRAY SHELF
1
• Remove the two screws securing the ice cube tray to the side wall of the freezer. Remove the tray.
• Replace the screws but do not screw them all the
ZD\LQ7KHVFUHZKHDGVVKRXOGH[WHQGDERXW
PPIURPWKHVLGHZDOORIWKHIUHH]HU
4
SET POWER SWITCH TO OFF
Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.
Power Switch
(Appearance may vary)


Installation Instructions
5
INSTALL THE ICEMAKER FILL CUP
Install the icemaker fill cupVLGHPRXQWHGLQWRWKH
icemaker as shown.

MOUNT THE ICEMAKER
7
• Lift the icemaker so the fill tube extension fits in the fill cup opening (C). Hang the icemaker on the two mounting screws (A).
Make sure:
The power cord is still firmly in the socket.
 7KHILOOWXEHH[WHQVLRQLVVWLOOLQWKHILOOFXS
opening. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator.)
• The icemaker mounting screws are located in the uppermost position of the mounting slots.
THEN TIGHTEN THE ICEMAKER MOUNTING
SCREWS SECURELY.
6
PLUG IN THE ICEMAKER
Holding the icemaker in place, insert the power cord plug into the socket, making sure that the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place.

A
8
INSTALL THE ICE BUCKET
Put the ice bucket (9) in place under the icemaker.
Make sure the icemaker
power switch is set to OFF.
9
ATTACH WARRANTY LABEL
A label (18) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.
C
9
10
KEEP THIS MANUAL
The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner’s Manual.
The icemaker installation inside the freezer is now
complete. Continue to the Water Valve Assembly section.
11
Installation Instructions

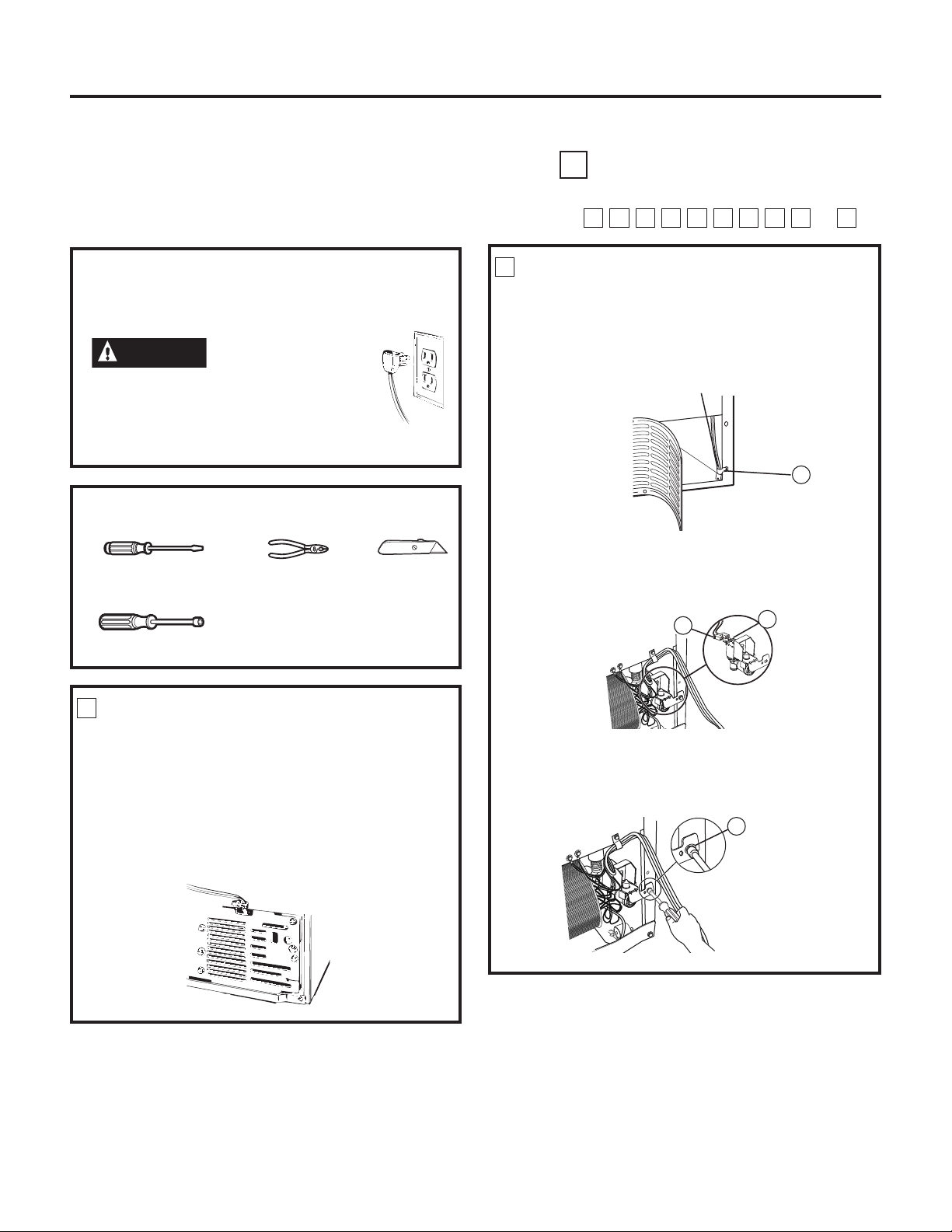

WATER VALVE ASSEMBLY INSTALLATION INSTRUCTIONS L
Are these the right instructions for your model? Follow the Installation Instructions indicated by
WKHODEHORQWKHEDFNRIWKHUHIULJHUDWRU³
L M N Q R S T U V
2
ATTACH THE WATER VALVE
or
W
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
WARNING
electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.
To eliminate the risk of
TOOLS YOU WILL NEED
Locate the female connector plug (C) which is attached to the cabinet by a metal or plastic clip. Remove the clip by removing the screw.
Metal or plastic clip
C
Flat blade and Phillips
screwdrivers
1/4"and 5/16" Nutdrivers
REMOVE THE COVER
1
At the bottom rear of the refrigerator, remove the
screw(s) holding the access cover. Bend the cover back for access to the compartment. Be sure to save the screws as the access cover must
be reinstalled later to ensure your refrigerator will
function properly.
Pliers
Sharp knife
Plug the female connector (C) onto the male terminals on the water valve (4). Either wire can go on either terminal.
C
• Fasten the water valve to the hex-head screw (15) from the kit into the hole in the cabinet leg.
4
cabinet by driving the
15
12
Installation Instructions

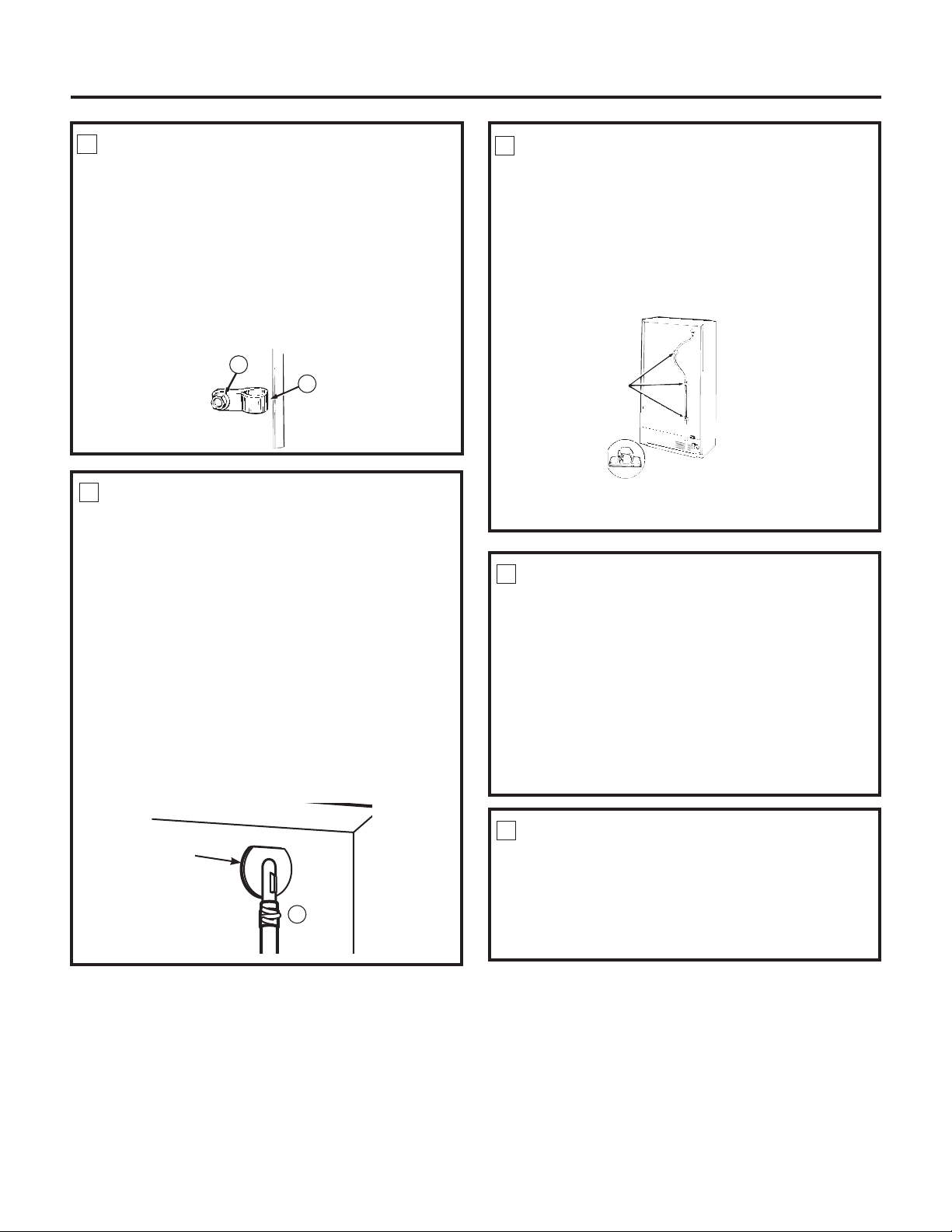

INSTALL WATER LINE CLAMP
3
Attach the metal water line clamp (strain relief) (17) to the refrigerator. Drive one of the screws, removed in Step 1, into the cabinet edge through the clamp and hole in compressor cover.
The metal clamp is for the house water line (see
Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.
Screw
ROUTE AND ATTACH THE PLASTIC
5
WATER LINE
Route the plastic water line along the back of the refrigerator to the water tube inlet.
Use the three adhesive backed fasteners (5) to
secure the plastic water line to the case back.
17
4
CONNECT THE WATER LINE
Remove the small plastic cap (B) from the bottom of the water tube inlet located in the upper-right rear corner of the refrigerator.
• Squeeze the ends of the hose clamp (6) from the kit with pliers and slide the clamp over the water tube inlet.
• While still squeezing the clamp, insert the plastic water line into the inlet as far as it will
JRDSSUR[LPDWHO\>PP@
• Then slide the clamp downward to capture the plastic water line in place.
Water tube inlet
6
Adhesive-backed fasteners for plastic water line
WATER VALVE INSTALLED
6
Refer to the Water Line Installation Instructions for
connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.
The icemaking cycle will not begin until the
icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.
REINSTALL THE COVER
7
Reinstall the compressor compartment access
cover. This requires using the screws you removed previously to reattach the cover to the back of the refrigerator case. This must be reinstalled for your refrigerator to function properly.
B

Installation Instructions
ICEMAKER INSTALLATION INSTRUCTIONS M
Are these the right instructions for your model? Follow the Installation Instructions indicated by
WKHODEHORQWKHEDFNRIWKHUHIULJHUDWRU³
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
WARNING
electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
To eliminate the risk of
Pliers
Sharp knife
L M N Q R S T U V
3
INSTALL FILL TUBE
• If the refrigerator already has a water tube inlet on the back of the refrigerator, use a flat-blade screwdriver to gently remove it. The removed plastic elbow and gasket can be discarded.
• Remove and discard the white plug from the upper left corner of the freezer wall.
• Open the fresh food door and locate the label in the upper left corner of the compartment.
• Find the model number in bold listed under MODEL NO.
• Match the two digit number in the model number to the table below. NOTE: The desired number starts at the fourth character.
or
W
Remove plug
REMOVE THE OUTLET COVER
1
Remove the outlet cover
with a flat-blade screwdriver.
PREPARE FOR INSTALLATION
2
Inside the freezer, loosen the two mounting screws
(B) but do not screw them all the way out. If your model does not have the screws already in the freezer wall, look for two plug buttons. Remove the plug buttons and insert the two Phillips head screws
7KHVFUHZVVKRXOGH[WHQGDSSUR[LPDWHO\
PPRXWIURPWKHIUHH]HUZDOO
B
Model Number
GENERAL ELECTRIC COMPANY
APPLIANCE PARK LOUISVILLE, KY 40225
MODEL NO.
www.GEAppliances.com
182A
LISTED HOSEHOLD REFRIGERATOR/FREEZER
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
SERIAL NO.
FZ743041GTH18GBDCRWW
Model
Number
16 #
IIIIIIIIIII
IIIIIIII IIIIII
17 # 18 #
Tube
• Go to the back of the refrigerator. Find the small label in the upper right hand corner and peel it off. There is an adhesive backing on the fill tube (11 or
12). Remove the adhesive backing and slide the tube into the hole near the top at the back of the refrigerator. Firmly press on the inlet to secure it to the refrigerator.
12
11 or
Fill
11 11 12
14
Installation Instructions
4
SET POWER SWITCH TO OFF
Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.
Power Switch
(Appearance may vary)
5
INSTALL THE ICEMAKER FILL CUP
Install the icemaker fill cupVLGHPRXQWHGLQWR
the icemaker as shown.

7
MOUNT THE ICEMAKER
• Lift the icemaker so the fill tube (11 or 12) fits in the fill cup opening (D). Hang the icemaker on the two screws.
Make sure:
• The power cord is still firmly in the socket.
 7KHILOOWXEHRUH[WHQGVLQWRWKHILOOFXS
opening at the back of the icemaker. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator).
• The icemaker mounting screws are located in the uppermost position of the mounting slots.
THEN SECURELY TIGHTEN THE ICEMAKER
MOUNTING SCREWS.
or
11 12
D
6
PLUG IN THE ICEMAKER
Holding the icemaker in place, insert the icemaker power cord plug into the socket on the side wall, making sure the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place.
8
INSTALL THE ICE BUCKET
Place the ice bucket (9) under the icemaker. Make sure the icemaker power switch is in the OFF position.
9
9
ATTACH WARRANTY LABEL
A label (18) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.
10
KEEP THIS MANUAL
The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner’s Manual.
The icemaker installation inside the freezer is now
complete. Continue to the Water Valve Assembly section.
15
Installation Instructions
WATER VALVE ASSEMBLY INSTALLATION INSTRUCTIONS M
Are these the right instructions for your model? Follow the Installation Instructions indicated by
WKHODEHORQWKHEDFNRIWKHUHIULJHUDWRU³
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
WARNING
electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.
To eliminate the risk of
L M N Q R S T U V
ATTACH THE WATER VALVE
2
• Locate the female connector plug. Plug the female connector (C) onto the male terminals on the water valve (4). Either wire can go on either terminal.
or
W
C
4
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
1/4"and 5/16" Nutdrivers
REMOVE THE COVER
1
Use a 5/16" nutdriver or an adjustable wrench to
remove the compressor compartment access cover.
7KLVUHTXLUHVUHPRYLQJVL[VFUHZVZKLFKDWWDFKWKH
cover to the back of the refrigerator case.
Be sure to save the screws as the access cover
must be reinstalled later to ensure your refrigerator will function properly.
Pliers
Sharp knife
• Fasten the water valve to the cabinet by driving WKHKH[KHDGVFUHZIURPWKHNLWLQWRWKHKROH in the cabinet leg.
13
16
Installation Instructions
3
INSTALL WATER LINE CLAMP
Attach the metal water line clamp (strain relief) (17) to the refrigerator. Drive the screw (7) from the kit through the clamp (17) at the indent into the back of the cabinet.
• The metal clamp is for the house water line (see the Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.
7
17
4
CONNECT THE WATER LINE
• Make sure there is enough plastic water line to H[WHQGIURPWKHZDWHUYDOYHWRZHOOLQWRWKH
water tube inletRU&XWRIIDQ\H[FHVV
tubing.
• Squeeze the ends of the hose clampIURPWKH kit with pliers and slide the clamp over the water tube inlet.
• While still squeezing the clamp, insert the plastic water line into the inlet as far as it will go
DSSUR[LPDWHO\>PP@
• Then slide the clamp downward to capture the plastic water line in place.
Water tube inlet
ROUTE AND ATTACH THE PLASTIC
5
WATER LINE
Fasten the plastic water line to the back of the
cabinet with adhesive-backed fasteners (5), spacing the fasteners as shown to take up slack in the line.
Adhesive-backed fasteners for plastic water line
WATER VALVE INSTALLED
6
Refer to the Water Line Installation Instructions for
connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.
The icemaking cycle will not begin until the
icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.
REINSTALL THE COVER
7
Reinstall the compressor compartment access
cover. This requires using the screws you removed previously to reattach the cover to the back of the refrigerator case. This must be reinstalled for your refrigerator to function properly.
17
Installation Instructions
ICEMAKER INSTALLATION INSTRUCTIONS N
Are these the right instructions for your model? Follow the Installation Instructions indicated by
WKHODEHORQWKHEDFNRIWKHUHIULJHUDWRU³
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
WARNING
electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
REMOVE ICE CUBE TRAY SHELF
1
• Remove the two screws securing the ice cube tray to the side wall of the freezer. Remove the tray.
• There are two white plug buttons above the screw holes. Remove these plug buttons and install them in the two screw holes that were used to hold the ice cube tray shelf.
Install two Phillips head screws (16) in the holes that the plug buttons were in, but do not screw them all the way in. The screw heads should H[WHQGDERXWPPIURPWKHVLGHZDOO of the freezer.
To eliminate the risk of
Pliers
Sharp knife
L M N Q R S T U V
PREPARE FOR INSTALLATION
2
• Remove and discard the large white plug from the rear freezer wall. Pull out the gray insulation plug and remove any debris.
• Remove the outlet cover with a flat-blade screwdriver.
3
INSTALL FILL TUBE
• Cut the fill tube with foil (19) to the (refer to the knife or a single-edge razor blade.
• Slide the fill tube with foil (19) onto the water tube inlet
• Go to the back of the refrigerator. On the tube side of the water
tube inletWKHUHLVDQ
adhesive backing. Remove the adhesive backing and slide the tube into the hole near the top at the back of the refrigerator. Firmly press on the inlet to secure it to the refrigerator.
4
SET POWER SWITCH TO OFF
Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.
N
W
or
N
length
template on page 47) with a sharp

19
Plug Buttons
16
Power Switch
(Appearance may vary)
18
Installation Instructions
5
INSTALL THE ICEMAKER FILL CUP
Install the icemaker fill cupVLGHPRXQWHGLQWRWKH
icemaker as shown.

MOUNT THE ICEMAKER
7
• Lift the icemaker so the fill tube (19) goes into the fill cup opening +DQJWKHLFHPDNHURQWKH two screws (16).
Make sure:
• The power cord is still firmly in the socket.
The fill tube H[WHQGVLQWRWKHILOOFXSRSHQLQJ at the back of the icemaker. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator).
THEN SECURELY TIGHTEN THE ICEMAKER
MOUNTING SCREW.
19
6
PLUG IN THE ICEMAKER
Holding the icemaker in place, insert the icemaker power cord plug (D) into the socket on the rear wall,
making sure the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place.
D

8
INSTALL THE ICE BUCKET
Place the ice bucket (9) under the icemaker.
Make sure the icemaker power switch is set to OFF.
9
9
ATTACH WARRANTY LABEL
A label (18) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.
10
KEEP THIS MANUAL
The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner’s Manual.
The icemaker installation inside the freezer is now
complete. Continue to the Water Valve Assembly section.
19
Installation Instructions
WATER VALVE ASSEMBLY INSTALLATION INSTRUCTIONS N
Are these the right instructions for your model? Follow the Installation Instructions indicated by
WKHODEHORQWKHEDFNRIWKHUHIULJHUDWRU³
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
WARNING
electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.
To eliminate the risk of
L M N Q R S T U V
ATTACH THE BRACKET EXTENSION
2
TO THE WATER VALVE
 8VHDµQXWGULYHUWRDWWDFKWKHEUDFNHWH[WHQVLRQ
WRWKHZDWHUYDOYHEUDFNHWZLWKWKHVFUHZ
%UDFNHWH[WHQVLRQ
22
or
W
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
1/4"and 5/16" Nutdrivers
REMOVE THE COVER
1
Use a 5/16" nutdriver or an adjustable wrench to
remove the compressor compartment access cover.
7KLVUHTXLUHVUHPRYLQJVL[VFUHZVZKLFKDWWDFKWKH
cover to the back of the refrigerator case.
Be sure to save the screws as the access cover
must be reinstalled later to ensure your refrigerator will function properly.
Pliers
Sharp knife
About 2”
23
• While leaving a loop of about 2” below the valve, snap the water line into the clip on the side of the water valve.
ATTACH THE WATER VALVE TO THE
3
MACHINE COMPARTMENT
• Locate the female connector plug. Plug the female connector onto the male terminals on the water valve. Either wire can go on either terminal.
• Fasten the water valve (4) to the cabinet by driving
WKHKH[KHDGVFUHZIURPWKHNLWWKURXJKWKH KROHLQWKHEUDFNHWH[WHQVLRQDQGLQWRWKHKROH
in the cabinet.

15
4
22
Installation Instructions
INSTALL WATER LINE CLAMP
4
Attach the water line clamp (17) (strain relief) from the kit to the refrigerator. With the clamp directly in line with the water valve, drive the screw (7) from the kit through the clamp at the indent into the back of the cabinet.
The metal clamp is for the house water line (see Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.
5
CONNECT THE WATER LINE
• Make sure there is enough plastic water line to H[WHQGIURPWKHZDWHUYDOYHWRZHOOLQWRWKH
water tube inlet &XWRIIDQ\H[FHVVWXELQJ
• Squeeze the ends of the hose clampIURPWKH kit with pliers and slide the clamp over the water tube inlet.
• While still squeezing the clamp, insert the plastic water line into the inlet as far as it will go
DSSUR[LPDWHO\>PP@
• Then slide the clamp downward to capture the plastic water line in place.
Water tube inlet
7
17
ROUTE AND ATTACH THE PLASTIC
6
WATER LINE
Fasten the plastic water line to the back of the
cabinet with adhesive-backed fasteners (5), spacing the fasteners as shown to take up slack in the line.
Adhesive-backed fasteners for plastic water line
WATER VALVE INSTALLED
7
Refer to the Water Line Installation Instructions for
connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.
The icemaking cycle will not begin until the
icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.
REINSTALL THE COVER
8
Reinstall the compressor compartment access
cover. This requires using the screws you removed previously to reattach the cover to the back of the refrigerator case. This must be reinstalled for your refrigerator to function properly.
21
Installation Instructions
ICEMAKER INSTALLATION INSTRUCTIONS Q
Are these the right instructions for your model? Follow the Installation Instructions indicated by
WKHODEHORQWKHEDFNRIWKHUHIULJHUDWRU³
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
WARNING
electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
To eliminate the risk of
Pliers
Sharp knife
L M N Q R S T U V
2
INSTALL FILL TUBE
• Cut the fill tube (19) to the Q length (refer to the on page 47) with a sharp knife or a single-edge razor blade.
Slide the fill tube (19) onto the
water tube inlet
• Go to the back of the refrigerator. In the upper
right hand corner, remove the label covering the hole. Pull out the insulation plug and any debris.
• On the tube side of the
water tube inlet WKHUH is an adhesive backing. Remove the adhesive backing and slide the tube into the hole near the top at the back of the refrigerator. Firmly press on the inlet to secure it to the refrigerator.
or
Q
W
template

19
PREPARE FOR INSTALLATION
1
• Remove and discard the large white plug or foil sticker from the rear freezer wall. Pull out the gray insulation plug and remove any debris.
• Loosen the two mounting screws but do not screw them all the way out. The screws should H[WHQGDSSUR[LPDWHO\PPRXWIURP the freezer wall.
• Remove the outlet cover with a flat-blade screwdriver.
3
SET POWER SWITCH TO OFF
Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.
Power Switch
(Appearance may vary)
22
Installation Instructions
4
INSTALL THE ICEMAKER FILL CUP
Install the icemaker fill cupVLGHPRXQWHGLQWRWKH
icemaker as shown.

5
PLUG IN THE ICEMAKER
Holding the icemaker in place, insert the icemaker power cord plug into the socket on the rear wall,
making sure the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place.
MOUNT THE ICEMAKER
6
• Lift the icemaker so the fill tube (19) fits in the fill cup opening (E). Hang the icemaker on the two mounting screws (C).
Make sure:
• The power cord is still firmly in the socket.
The fill tubeH[WHQGVLQWRWKHILOOFXSRSHQLQJ on the back of the icemaker. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator).
THEN SECURELY TIGHTEN THE ICEMAKER
MOUNTING SCREWS.
19
C
E
7
INSTALL THE ICE BUCKET
Put the ice bucket (9) under the icemaker.
Make sure the icemaker power switch is set to OFF.
9
8
ATTACH WARRANTY LABEL
A label (18) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.
9
KEEP THIS MANUAL
The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner’s Manual.
The icemaker installation inside the freezer is now
complete. Continue to the Water Valve Assembly section.

Installation Instructions
WATER VALVE ASSEMBLY INSTALLATION INSTRUCTIONS Q
Are these the right instructions for your model? Follow the Installation Instructions indicated by
WKHODEHORQWKHEDFNRIWKHUHIULJHUDWRU³
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
WARNING
electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.
To eliminate the risk of
L M N Q R S T U V
ATTACH THE WATER VALVE
2
Locate the female connector plug (C). Plug the
female connector (C) onto the male terminals on the water valve (4). Either wire can go on either terminal.
or
W
C
4
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
1/4"and 5/16" Nutdrivers
REMOVE THE COVER
1
Use a 5/16" nutdriver or an adjustable wrench to
remove the compressor compartment access cover.
7KLVUHTXLUHVUHPRYLQJVL[VFUHZVZKLFKDWWDFKWKH
cover to the back of the refrigerator case.
Be sure to save the screws as the access cover
must be reinstalled later to ensure your refrigerator will function properly.
Pliers
Sharp knife
• Fasten the water valve to the cabinet edge hole with the hex-head screw (15) from the kit. DO NOT DRILL ANY ADDITIONAL HOLES.
15
• Check the plastic water line nut on the bottom of the water valve to be sure it is hand tight. DO NOT USE TOOLS.
INSTALL WATER LINE CLAMP
3
Attach the water line clamp (strain relief) (17) from
the kit to the refrigerator. With the clamp directly in line with the water valve, drive the screw (7) from the kit through the clamp (17) at the indent into the back of the cabinet.
7
17
The metal clamp is for the house water line (see
Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.
24
Installation Instructions
4
CONNECT THE WATER LINE
It may be necessary to remove the screw from the top right condenser mounting clip for better access to the water tube inlet.
• Make sure there is enough plastic water line to H[WHQGIURPWKHZDWHUYDOYHWRZHOOLQWRWKH
water tube inlet &XWRIIDQ\H[FHVVWXELQJ
• Squeeze the ends of the hose clampIURPWKH kit with pliers and slide the clamp over the water tube inlet.
• While still squeezing the clamp, insert the plastic water line into the inlet as far as it will go
DSSUR[LPDWHO\>PP@
• Then slide the clamp downward to capture the plastic water line in place.
• Make sure the fill tube is aimed down.
• If the condenser mounting screw was removed, secure the condenser to the refrigerator by replacing the mounting clip and screw.
• Do not overtighten the screw.
WATER VALVE INSTALLED
6
Refer to the Water Line Installation Instructions for
connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.
The icemaking cycle will not begin until the
icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.
REINSTALL THE COVER
7
Reinstall the compressor compartment access
cover. This requires using the screws you removed previously to reattach the cover to the back of the refrigerator case. This must be reinstalled for your refrigerator to function properly.
Water tube inlet
ROUTE AND ATTACH THE PLASTIC
5
WATER LINE
Fasten the plastic water line to the back of the
cabinet with adhesive-backed fasteners (5), spacing the fasteners as shown to take up slack in the line. (It may be necessary to remove the screw from the top right condenser mounting clip for better access to the water tube inlet.)
Adhesive-backed fasteners for plastic water line
25
Installation Instructions
ICEMAKER INSTALLATION INSTRUCTIONS R
Are these the right instructions for your model? Follow the Installation Instructions indicated by
WKHODEHORQWKHEDFNRIWKHUHIULJHUDWRU³
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
WARNING
electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
To eliminate the risk of
Pliers
Sharp knife
L M N Q R S T U V
2
INSTALL FILL TUBE
• Cut the fill tube (19) to the R length (refer to the on page 47) with a sharp knife or a single-edge razor blade.
Slide the fill tube (19) onto the water tube inlet 
• Go to the back of the refrigerator. Remove the label covering the hole. Pull out the insulation plug and any debris.
• On the tube side of the water tube inlet WKHUHLVDQ adhesive backing. Remove the adhesive backing and slide the tube into the hole near the top at the back of the refrigerator. Firmly press on the inlet to secure it to the refrigerator.
or
W
R
template
19

PARTS REQUIRED THAT CAME WITH THE REFRIGERATOR
Ice bucket
3DUW1R:56
PREPARE FOR INSTALLATION
1
• Remove all freezer baskets for greater accessibility to the rear of the freezer.
• Remove and discard the large white plug from the rear freezer wall. Pull out the gray insulation plug and remove any debris.
• Remove the outlet cover with a flat-blade screwdriver.
Icemaker mounting block
3DUW1R:50
Phillips head
screws (2)
Part No. WR1M478
3
SET POWER SWITCH TO OFF
Set the icemaker power switch to OFF. Leave the power switch in the OFF position until the refrigerator is connected to the water supply to prevent premature operation.
Power Switch
(Appearance may vary)
4
INSTALL THE MOUNTING BLOCK
• Inside the freezer, remove the two small white plug buttons from the side wall.
• Using the Phillips head screws that are with the mounting block, attach the mounting block to the refrigerator by driving the screws through the outer holes on the block and into the holes that the plug buttons were in.
• Install two self-tapping Phillips head screws (16) from the kit in the inner holes on the mounting block. On some models, the screws may already be in place on
WKHPRXQWLQJEORFN7KHVFUHZKHDGVVKRXOGH[WHQG DERXWPPIURPWKHPRXQWLQJEORFN
26
Installation Instructions
5
INSTALL THE ICEMAKER FILL CUP
Install the icemaker fill cupVLGHPRXQWHGLQWRWKH
icemaker as shown.

6
PLUG IN THE ICEMAKER
Holding the icemaker in place, insert the icemaker power cord plug into the socket on the rear wall,
making sure the prongs and holes are matched. Press the plug firmly into the socket. Lock the plug in place by clipping the restraints onto each side of the plug. Make sure the restraints click into place.
MOUNT THE ICEMAKER
7
• Lift the icemaker so the fill tube (19) fits in the fill
cup opening (E). Hang the icemaker on the two mounting screws (C) on the mounting block.
Make sure:
• The power cord is still firmly in the socket.
The fill tube H[WHQGVLQWRWKHILOOFXSRSHQLQJ on the back of the icemaker. (Check the rear of the refrigerator to make sure the fill tube has not been pushed out of the back of the refrigerator).
Make sure the icemaker power switch is set to OFF. THEN SECURELY TIGHTEN THE ICEMAKER
MOUNTING SCREWS.
19
C
E
8
INSTALL THE ICE BUCKET
Place the lower freezer basket back into the freezer drawer.
The upper freezer basket
is actually 2 baskets hooked together. Remove basket on the left by unhooking it.
Place the remaining
upper basket in the freezer drawer on the right side. Place the ice bucket in the left side of the lower basket.
9
ATTACH WARRANTY LABEL
A label (18) is provided with this kit to record the date of installation for warranty purposes. Apply it to the back of the refrigerator.
10
KEEP THIS MANUAL
The warranty for the icemaker is printed in this manual. Keep this manual with your Refrigerator Owner’s Manual.
The icemaker installation inside the freezer is now
complete. Continue to the Water Valve Assembly section.
27
Installation Instructions
WATER VALVE ASSEMBLY INSTALLATION INSTRUCTIONS R
Are these the right instructions for your model? Follow the Installation Instructions indicated by
WKHODEHORQWKHEDFNRIWKHUHIULJHUDWRU³
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
L M N Q R S T U V
2
ATTACH THE WATER VALVE
• Locate the female connector plug (C).
or
W
WARNING
electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.
To eliminate the risk of
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers
1/4"and 5/16" Nutdrivers
REMOVE THE COVER
1
At the bottom rear of the refrigerator, remove the
screws holding the access cover. Bend the cover back to access the compartment. Be sure to save the screws as the access cover
must be reinstalled later to ensure that your
refrigerator will function properly.
Pliers
Sharp knife
C
Plug the female connector (C) onto the male terminals on the w at er v al v e (4). Either wire can go on either terminal.
C
• Fasten the water valve to the hex-head screw (15)
from the kit
4
cabinet
.
15
using the
28
Installation Instructions
INSTALL WATER LINE CLAMP
3
Attach the water line clamp (strain relief) (17) from the kit to the refrigerator. With the clamp directly in line with the water valve, drive the screw (7) from the kit through the clamp (17) at the indent into the back of the cabinet.
7
17
The metal clamp is for the house water line (see
Water Line Installation Instructions). It is not to be used for the tubing from the water valve up to the icemaker.
4
CONNECT THE WATER LINE
• Make sure there is enough plastic water line to H[WHQGIURPWKHZDWHUYDOYHWRZHOOLQWRWKH
water tube inlet&XWRIIDQ\H[FHVVWXELQJ
• Squeeze the ends of the hose clampIURPWKH kit with pliers and slide the clamp over the water tube inlet.
• While still squeezing the clamp, insert the plastic water line into the inlet as far as it will
JRDSSUR[LPDWHO\>PP@
• Then slide the clamp downward to capture the plastic water line in place.
ROUTE AND ATTACH THE PLASTIC
5
WATER LINE
Route the plastic water line along the back of
the refrigerator to the water tube inlet.
Fasten the plastic water line to the back of
the cabinet with three of the adhesive-backed fasteners (5).
Adhesive-backed fasteners for plastic water line
WATER VALVE INSTALLED
6
Refer to the Water Line Installation Instructions for
connection to the home water supply. After water line installation is completed, set the icemaker power switch to ON.
The icemaking cycle will not begin until the
icemaker and freezer compartment reach operating temperature, then icemaking will begin automatically.
Water tube inlet
REINSTALL THE COVER
7
Reinstall the compressor compartment access
cover. This requires using the screws you removed previously to reattach the cover to the back of the
refrigerator case. This must be reinstalled for your refrigerator to function properly.
29
Loading...
+ 124 hidden pages
