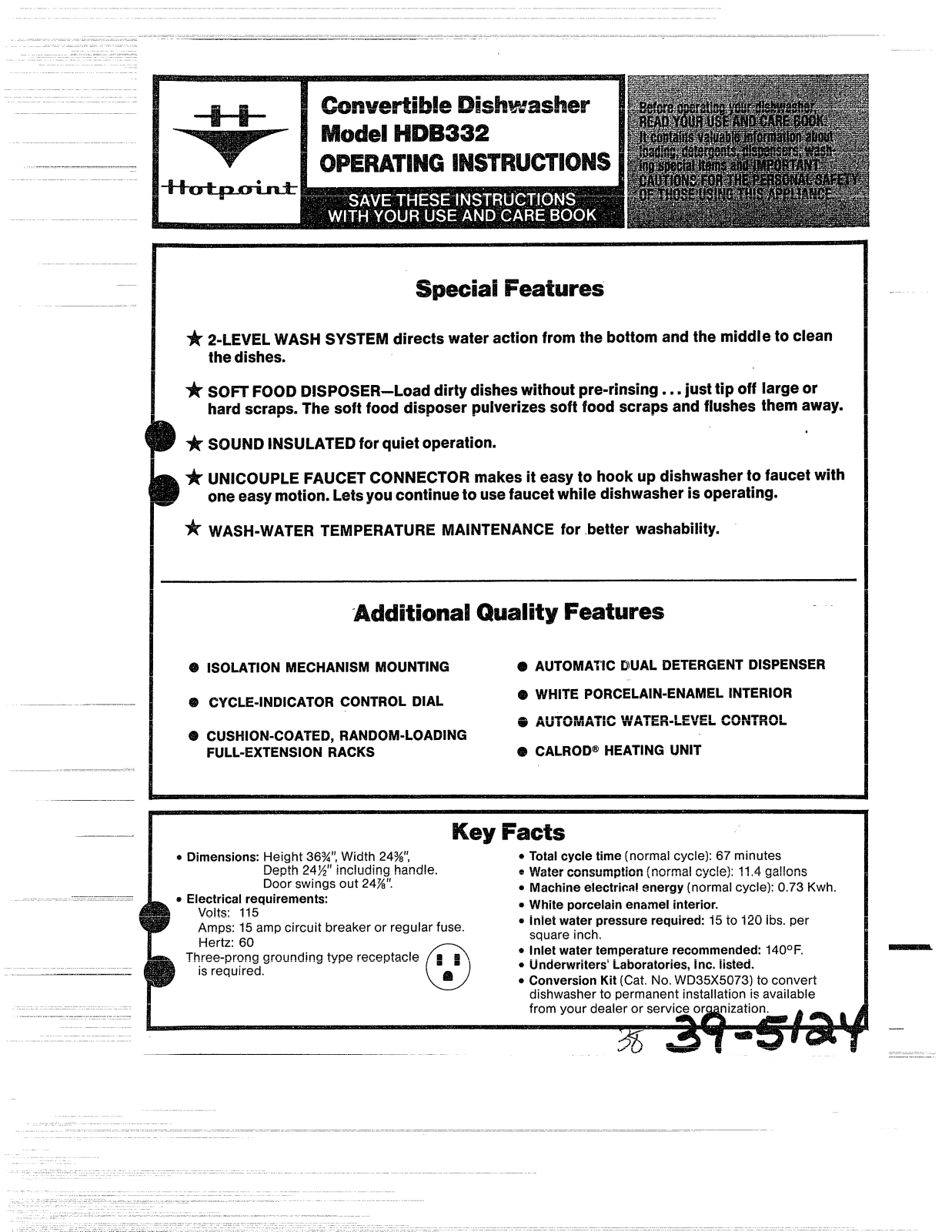

Page 1
2-LEVEL WASH SYSTEM directs water action from the bottomandthe middle to clean
*
thedishes.
SOFT FOOD DISPOSER—Loaddirtydisheswithout pre-rinsing . . . just tip off large or
*
hard scraps. The soft food disposer pulverizes
softfoodscraps and flushes them away.
B*
B
SOUND INSULATEDfor quiet operation.
UN!COUPLE FAUCET CONNECTOR makes it easy to hookup dishwasherto faucet with
*
one easymotion.Letsyoucontinueto usefaucet while dishwasher is operating.
*
WASH-WATER TEMPERATURE MAINTENANCE for better washability.
AdditionalQualityFeatures
@ ISOLATION MECHANISM MOUNTING
@ CYCLE-INDICATORCONTROL DIAL
@ CUSHION-COATED,RANDOM-LOADING
FULL-EXTENSIONRACKS
e
Dimensions: Height 36%’[ Width 24%’:
Electrical requirements:
volts: 115
Amps: 15 amp circuit breaker or regular fuse.
Hertz: 60
Three-prong grounding type receptacle fl ~
is required.
Depth 24%” including handle.
Door swings out 24%”.
KeyFacts
a
0
AUTOMATICU)UALDETERGENTDISPENSER
@
WHITE PORCELAIN-ENAMELINTERIOR
@
AUTOMATICWATER-LEVELCONTROL
@
CALROD@HEATING UNIT
@
●
Total cycle time (normal cycle): 67 minutes
a
Water consumption (normal cycle): 11.4 gallons
●
Machine electrica! energy (normal cycle): 0.73 Kwh.
o
White porcelain enamel interior.
e
Inlet water pressure required: 15 to 120 Ibs. per
square inch.
e
Inlet water temperature recommended: 140°F.
e
Underwriters’ Laboratories, Inc. listed.
o
Conversion Kit (Cat. No. WD35X5073) to convert
dishwasher to permanent installation is available
—
.
Page 2

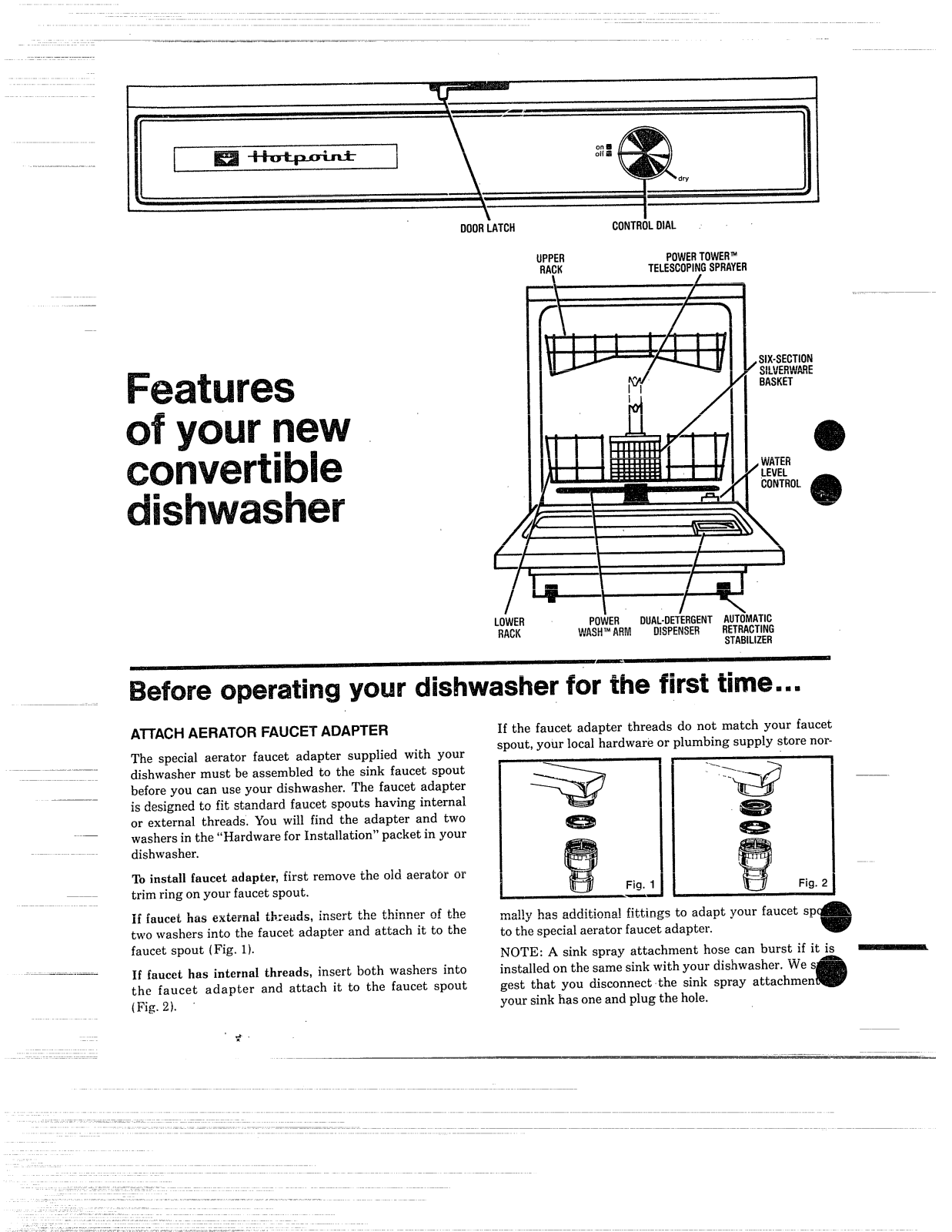

DOOR’UTCH
CONTRiL DIAL
I
UPPER
RA~K
.
.
POWERTOWERm
TELESCOPl\GSPRAYER
, SIX-SECTION
SILVERWARE
BASKET
Features
ofyournew
,:E;;IR
convertible
dishwasher
L\—,~y
/
LOWER
RACK
POWER
WASHTMARM
DUAL-DETERGENTAUTOMATIC
DISPENSER
Beforeoperatingyour dishwasher forthe first time ...
CONTROL
\
RETRACTING
STABILIZER
————
A~ACH AERATOR FAUCETADAPTER
The special aerator faucet adapter supplied with your
dishwasher must be assembled to the sink faucet spout
before you can use your dishwasher. The faucet adapter
is designed to fit standard faucet spouts having internal
or external threads, You will find the adapter and two
washersin the “Hardware for Installation” packet in your
dishwasher.
To install faucet adapter, first remove the old aerator or
trim ring on your faucet spout.
If faucet has external threads, insert the thinner of the
two washers into the faucet adapter and attach it to the
faucet spout (Fig. 1).
If faucet has internal threads, insert both washers into
the faucet adapter and attach it to the faucet spout
(Fig. 2).
a
.
If the faucet adapter threads do not match your faucet
spout, your local hardware or plumbing supply store nor-
Q
n
really has additional fittings to adapt your faucet sp
to the special aerator faucet adapter.
NOTE: A sink spray attachment hose can burst if it is
installed on the same sink with your dishwasher. We s
gest that you disconnect the sink spray attachmen
your sink hasone and plug the hole.
FIa 1
*
Page 3

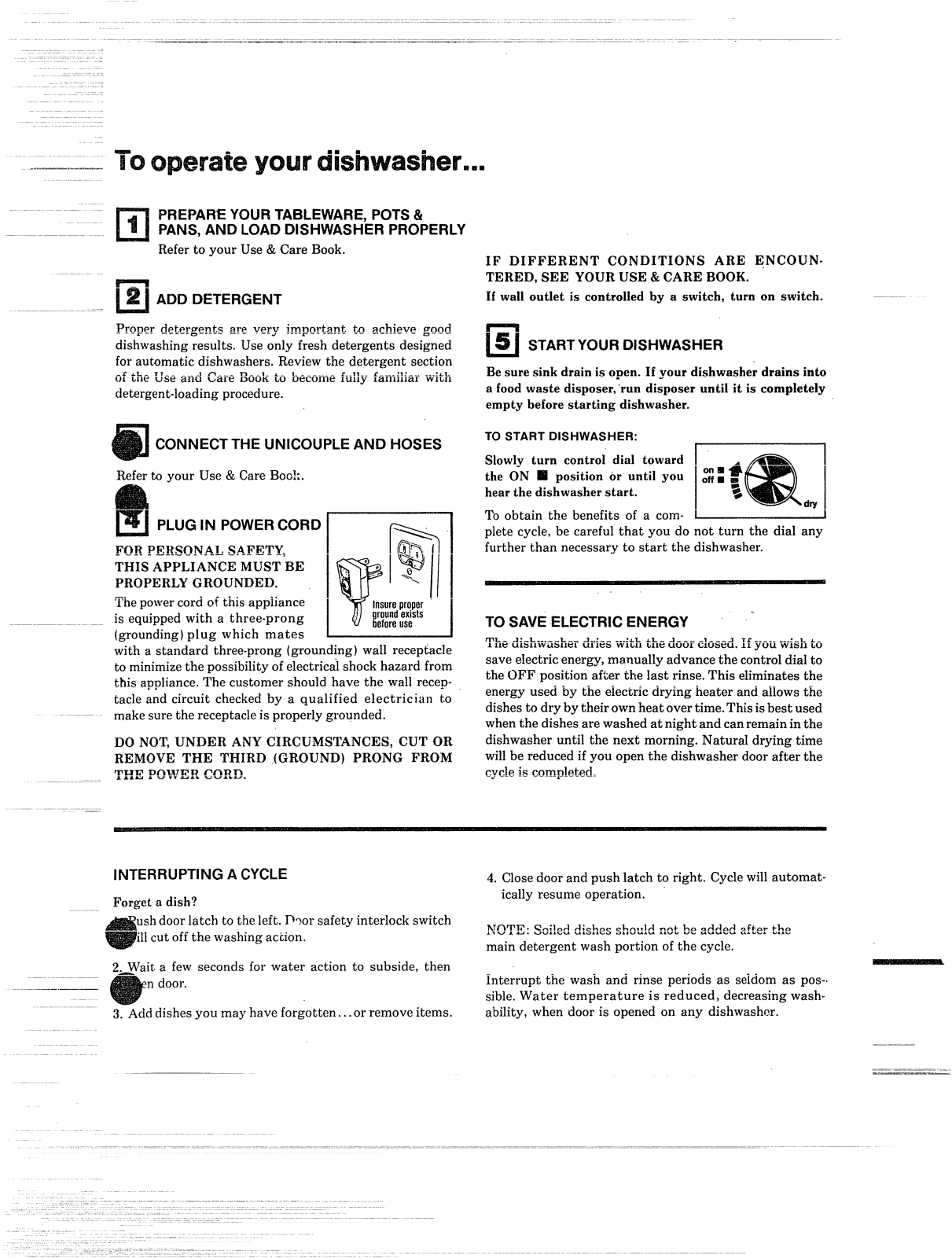

operateyourdishwasher...
PREPARE YOUR TABLEWARE, POTS &
PANS, AND LOAD DISHWASHER PROPERLY
Refer to your Use & Care Book.
ADD DETERGENT
Proper detergents are very important to achieve good
dishwashing results. Use only fresh detergents designed
for automatic dishwashers. Review the detergent section
of the Use and Care Book to become fully familiar with
detergent-loading procedure.
IF DIFFERENT CONDITIONS ARE ENCOUNTERED, SEE YOUR USE & CARE BOOK.
If wall outlet is controlled by a switch, turn on switch.
STARTYOUR DISHWASHER
w
Be sure sink drain is open. If your dishwasher drains into
a food waste disposer, ‘run disposer until it is completely
empty before starting dishwasher.
-—.
CONNECT THE UNICOUPLE AND HOSES
Refer b your Use & Care BoG!:.
PLUG IN POWER CORD
FOR PERSONAL SAFETY,
THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
The powercord of this appliance
is equipped with a three-prong
(grounding) plug which mates
with a standard three-prong (grounding) wall receptacle
to minimizethe possibility of electrical shock hazard from
this appliance. The customer should have the wall receptacle and circuit checked by a qualified electric iall t.o
make surethe receptacle is properly grounded.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR
REMOVE THE THIRD (GROUND) PRONG FROM
THE POWER CORD.
INTERRUPTING A CYCLE
Forget a dish?
ushdoor latch to the left. P~or safety interlock switch
ill cut off the washing ackion.
2. Wait a few seconds for water action to subside, then
n door.
3. Aciddishes you may have forgotten ...or remove items.
TO START DISHWASHER:
Slowly turn control dial toward
the ON
hear the dishwasher start.
TOobtain the benefits of a complete cycle, be careful that you do not turn the dial any
further than necessary to start the dishwasher.
❑ position or until you
1
mm~
Off mu
~
a
dw
—.
.
TO SAVE ELECTRIC ENERGY k
The dishwasher dries with the door closed. If you wish to
save electric energy, manually advance the control dial to
the OFF position a~certh~elast rinse. This eliminates the
energy used by the electric drying heater and allows the
dishes to dry by theirownheat over time.This is best used
whenthe dishes arewashed at night and can remaininthe
dishwasher until the next morning. Natural drying time
will be reduced if you open the dishwasher door after the
cycle is completed.
4, Close door and push latch to right. Cycle will automat-
ically resume operation.
NOTE: Soiled dishes should not be added after the
main detergent wash portion of the cycle.
Interrupt the wash and rinse periods as seldom as pos-.
sible. Water temperature is reduced, decreasing wash-
ability, when door is opened on any dishwasher.
—-—
Page 4

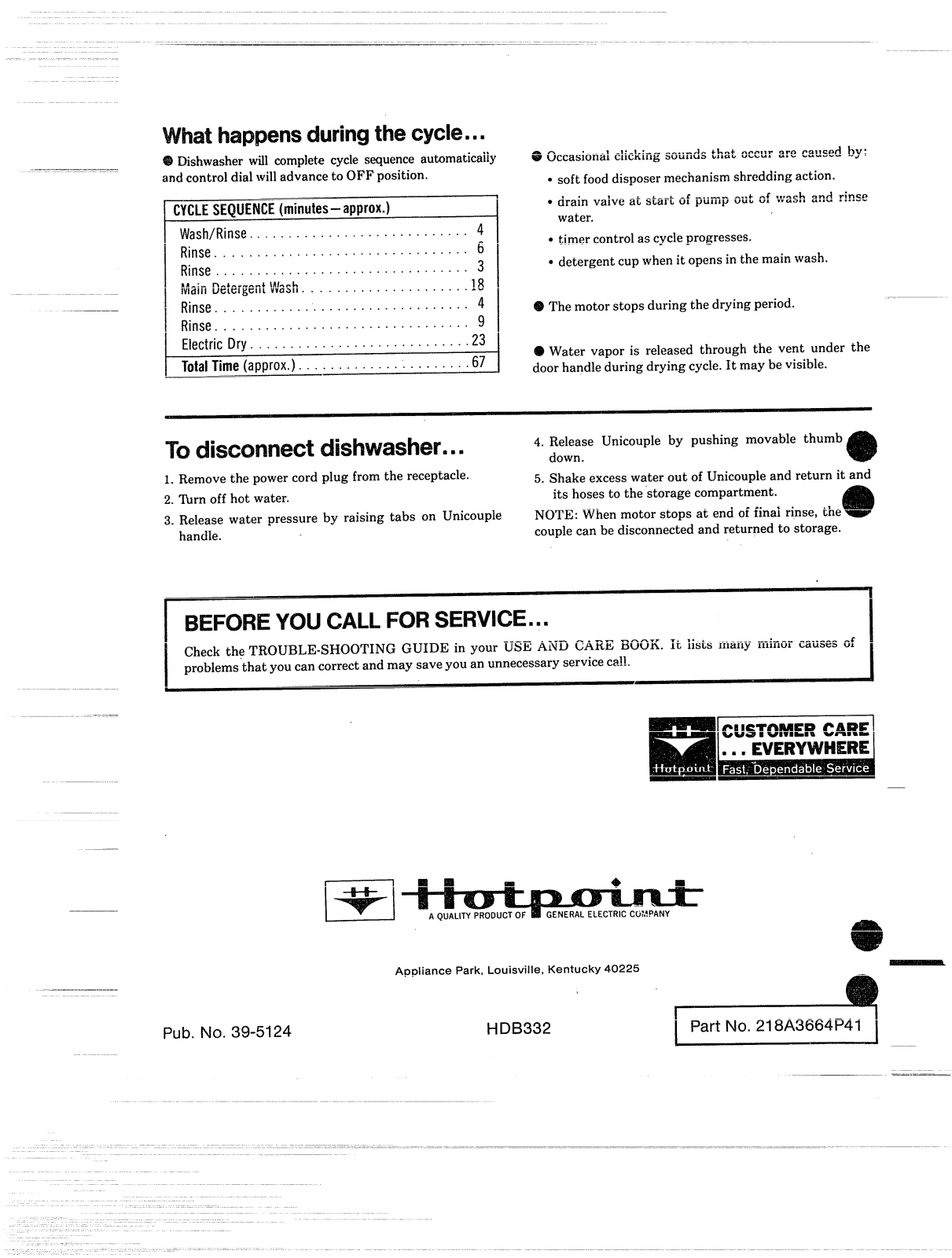

Whathappensduringthecycle...
@ Dishwasher will complete cycle sequence automatically
andcontrol dial will advance to OFF position.
CYCLESEQUENCE(minutes– approx.)
Wash/Rinse . . . . . . . . . . . . . . . . ...”.. ““o
Rinse. . . . . . . . . . . . . . . . . . . ...”” 6
Rinse . . . . . . . . . . . . . . . . . . . . . . .“3
Main DetergentWash. . . . . . . . . . . . . . . . . . ...18
Rinse. . . . . . . . . . . . . . . . . . ...” ““””””4
Rinse. . . . . . . . . . . . . . . . . . . ...” ““-g
Electfic Drv . . . . . . . . - .-......” ““..”23
TotalTime (approx.) . . . . . . . . . . . . . . . . . . . ...67
@Occasional clicking sounds that occur are caused by:
●
soft food disposer mechanism shredding action.
●
drain valve at start of pump out of wash and rinse
water.
●
timercontrolas cycle progresses.
e
detergentcupwhen itopensinthemain wash.
@Themotorstops duringthedrying period.
@Water vaporis released through the vent under the
doorhandleduring dryingcycle. Itmay bevisible.
Todisconnectdishwasher...
1. Remove the power cord plug from the receptacle.
2. ~rn off hot water.
3. Release water pressure by raising tabs on Unicouple
handle. -
“
4. Release Unicouple by pushing movable thumb
down.
5. Shake excess water out of Unicouple and return it and
its hoses to the storage compartment.
NOTE: When motor stops at end of final rinse, the
couple can be disconnected and returned to storage.
BEFOREYOUCALLFORSERVICE.m.
Check the TROUBLE-SHOOTING GUIDE in your USE AND CARE BOOK. It lists many minor causes of
problems that you can correct and may save you an unnecessary service cal!.
CUSTOMERCARE
mmm EVERYWHERE
+
+
m+”~
A QUALITY PROOUCT OF
GENERAL ELECTRIC C;;t;ANY
e
a
.—--———-
Pub. No. 39-5124
Appliance Park, Louisville, Kentucky 40225
HD13332
m
Part No. 218A3664P41
