GE HDA2000V Dimensions
25-3/4
Dishwashers Installation
(Pub. 1-G003 pg. 131B) May 12, 1993
Wood Insert Cut-Out Dimensions (in inches)
GE/Hotpoint/RCA
door and access panel kit.

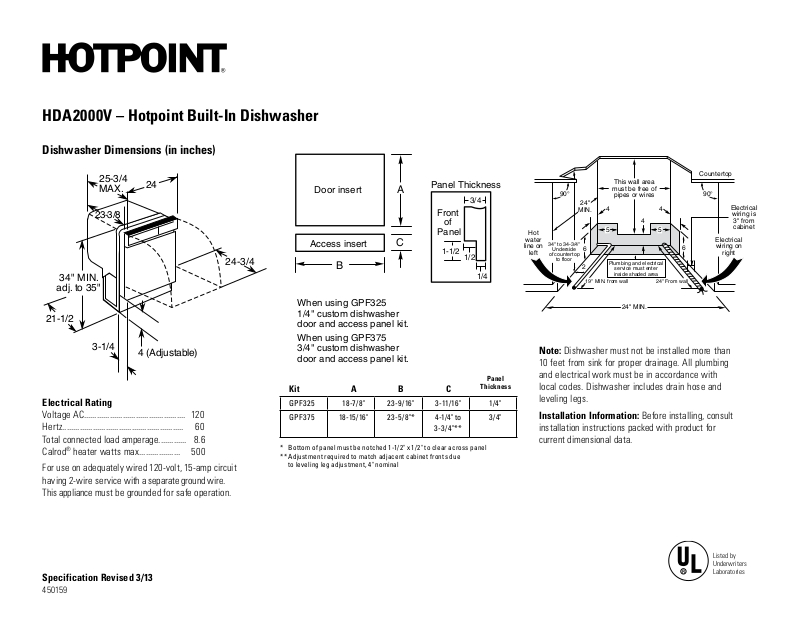

HDA2000V – Hotpoint Built-In Dishwasher
Dishwasher Dimensions (in inches)
MAX.
24
23-3/8
24-3/4
34" MIN.
adj. to 35"
When using GPF325
21-1/2
3-1/4
4 (Adjustable)
1/4" custom dishwasher
door and access panel kit.
When using GPF375
3/4" custom dishwasher
Kit A B C
Electrical Rating
Voltage AC............................................... 120
Hertz........................................................ 60
Total connected load amperage............. 8.6
Calrod® heater watts max................... 500
For use on adequately wired 120-volt, 15-amp circuit
having 2-wire service with a separate ground wire.
This appliance must be grounded for safe operation.
GPF325 18-7/ 8" 23-9/16" 3-11 /16" 1/4"
GPF3 75 18-15/16" 23-5/8"* 4-1 /4 " t o
* Bot tom of panel must b e notched 1-1/ 2" x 1/2 " to clear acros s panel
** Adjustment requir ed to ma tch adjacent cabinet fronts due
to leveling leg adjustment, 4" nominal
Door insert
Access insert
B
6
Countertop
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
A
Panel Thickness
3/4
Front
90°
24"
MIN.
of
Panel
C
1-1/2
1/2
1/4
Hot
water
line on
left
34" to 34-3/4"
Underside
of countertop
to floor
6
2
This wall area
must be free of
pipes or wires
44
55
Plumbing and electrical
19" MIN. from wall
4
service must enter
inside shaded area
24" MIN.
24" From wall
Note: Dishwasher must not be installed more than
10 feet from sink for proper drainage. All plumbing
Panel
Thickness
and electrical work must be in accordance with
local codes. Dishwasher includes drain hose and
leveling legs.
3/4"
3-3/4"**
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
Specification Revised 3/13
45 0159
Listed by
Underwriters
Laboratories
HDA2000V – Hotpoint Built-In Dishwasher
Features and Benefits
• Two-stage filtration with Extra Fine filter - Extra filtration keeps water clean
• Piranha™ hard food disposer - Grinds food into small particles that are washed away
• Hot Start option - Provides optimal water temperature for dependable performance
• 64 dBA - motor runs quietly to keep kitchen peaceful
• Pots and Pans cycle - Removes difficult soils from cookware
• 5 cycles/2 options - Allows you to select the combination that best cleans your dishes
• Up to 12-place setting capacity racking - Provides flexibility to wash a variety of dishes at once
• Model HDA2000VWW – White on white
• Model HDA2000VBB – Black on black
Specification Revised 3/13
45 0159
