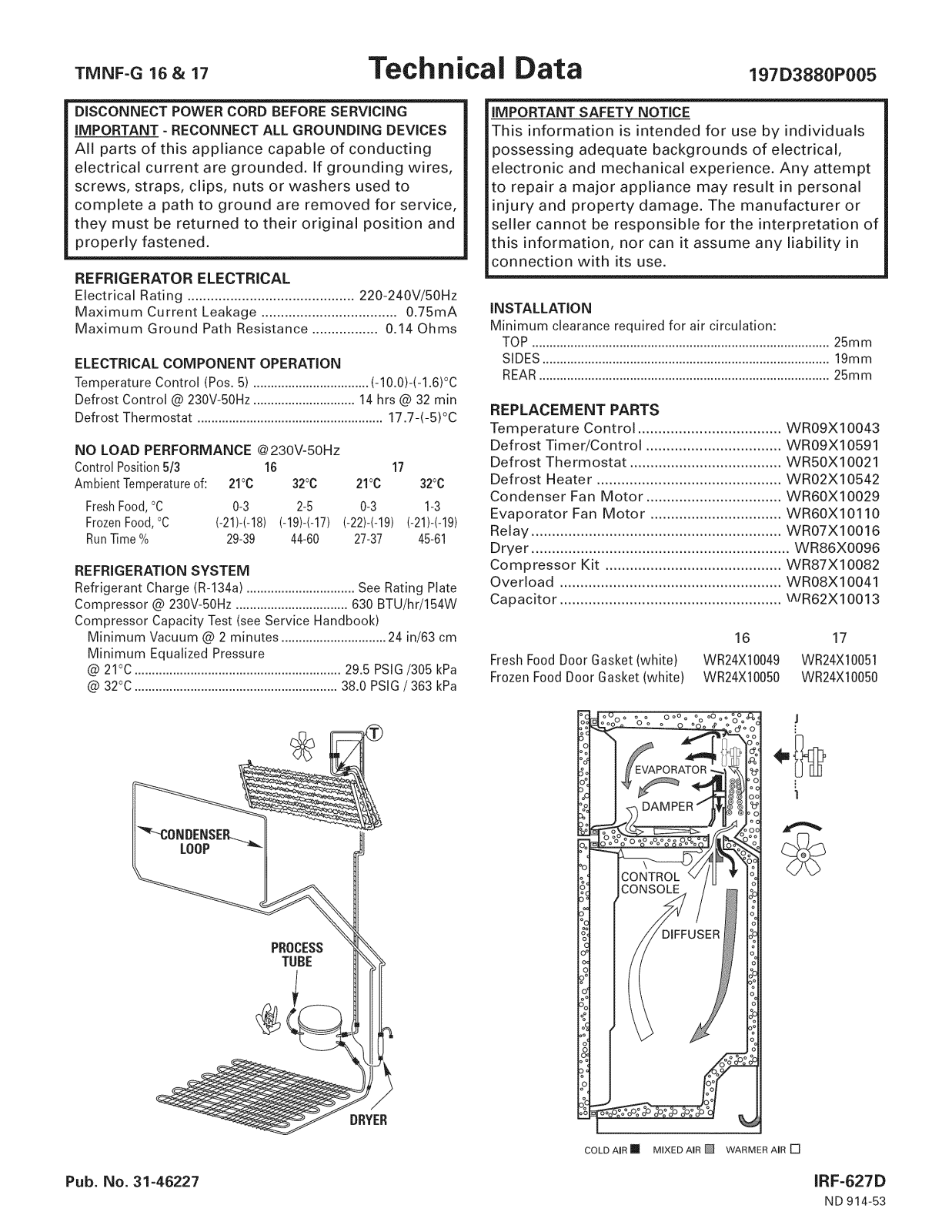

TIVINF-G 16 & 17 Technica_ Data 197D3880P005
DISCONNECT POWERCORD BEFORESERViCiNG
iMPORTANT - RECONNECTALL GROUNDING DEVICES
All parts of this appliance capable of conducting
electrical current are grounded, if grounding wires,
screws, straps, clips, nuts or washers used to
complete a path to ground are removed for service,
they must be returned to their original position and
properly fastened.
REFRIGERATOR ELECTRICAL
Electrical Rating ........................................... 220-240V/50Hz
Maximum Current Leakage ................................... 0.75mA
Maximum Ground Path Resistance ................. 0.14 Ohms
ELECTRICAL COMPONENT OPERATION
Temperature Control (Pes. 5) ................................. (-10.0)-(-1.6)°C
Defrost Control @ 230V-50Hz ............................. 14 hrs @ 32 rain
Defrost Thermostat ..................................................... 17.7-(-5)°C
NO LOAD PERFORMANCE @230V-50Hz
ControlPosition5/3 16
AmbientTemperatureof: 21°C 32°C
FreshFood,°C 0-3 2-5
FrozenFood,°C (-21)-(-18) (-19)-(-17)
(-22)-(-19) (-21)-(-19)
RunTime% 29-39 44-60
REFRiGERATiON SYSTEM
Refrigerant Charge (R-134a) ...............................See Rating Plate
Compressor @ 230V-50Hz ................................ 630 BTU/hr/154W
Compressor Capacity Test (see Service Handbook)
Minimum Vacuum @ 2 minutes .............................. 24 in/63 cm
Minimum Equalized Pressure
@ 21°C ........................................................... 29.5 PSIG/305 kPa
@ 32°C .......................................................... 38.0 PSIG / 363 kPa
17
21°C 32°C
0-3 1-3
27-37 45-61
IMPORTANT SAFETY NOTICE
This information is intended for use by individuals
possessing adequate backgrounds of electrical,
electronic and mechanical experience. Any attempt
to repair a major appliance may result in personal
injury and property damage. The manufacturer or
seller cannot be responsible for the interpretation of
this information, nor can it assume any liability in
connection with its use.
iNSTALLATiON
Minimum clearance required for air circulation:
TOP ..................................................................................... 25mm
SIDES .................................................................................. 19mm
REAR ................................................................................... 25mm
REPLACEMENT PARTS
Temperature Control ................................... WR09X10043
Defrost Timer/Control ................................. WR09X10591
Defrost Thermostat ..................................... WR50X10021
Defrost Heater ............................................. WR02X10542
Condenser Fan Motor ................................. WR60X10029
Evaporator Fan Motor ................................ WR60X10110
Relay ............................................................. WR07X10016
Dryer ............................................................... WR86X0096
Compressor Kit ........................................... WR87X10082
Overload ...................................................... WR08X10041
Capacitor ...................................................... WR62X10013
16 17
Fresh Food Door Gasket (white) WR24XI0049 WR24XI0051
Frozen Food Door Gasket (white) WR24X10050 WR24XI0050
"_'_ON[}ENSER-__.
LOOP "_
PROCESS
TUBE
ooo
%,
3o
_c
oo
3o
COLD AIR m MIXED AIR [] WARMER AIR []
J
I
Pub. No. 31-46227 IRF-627D
ND 914-53

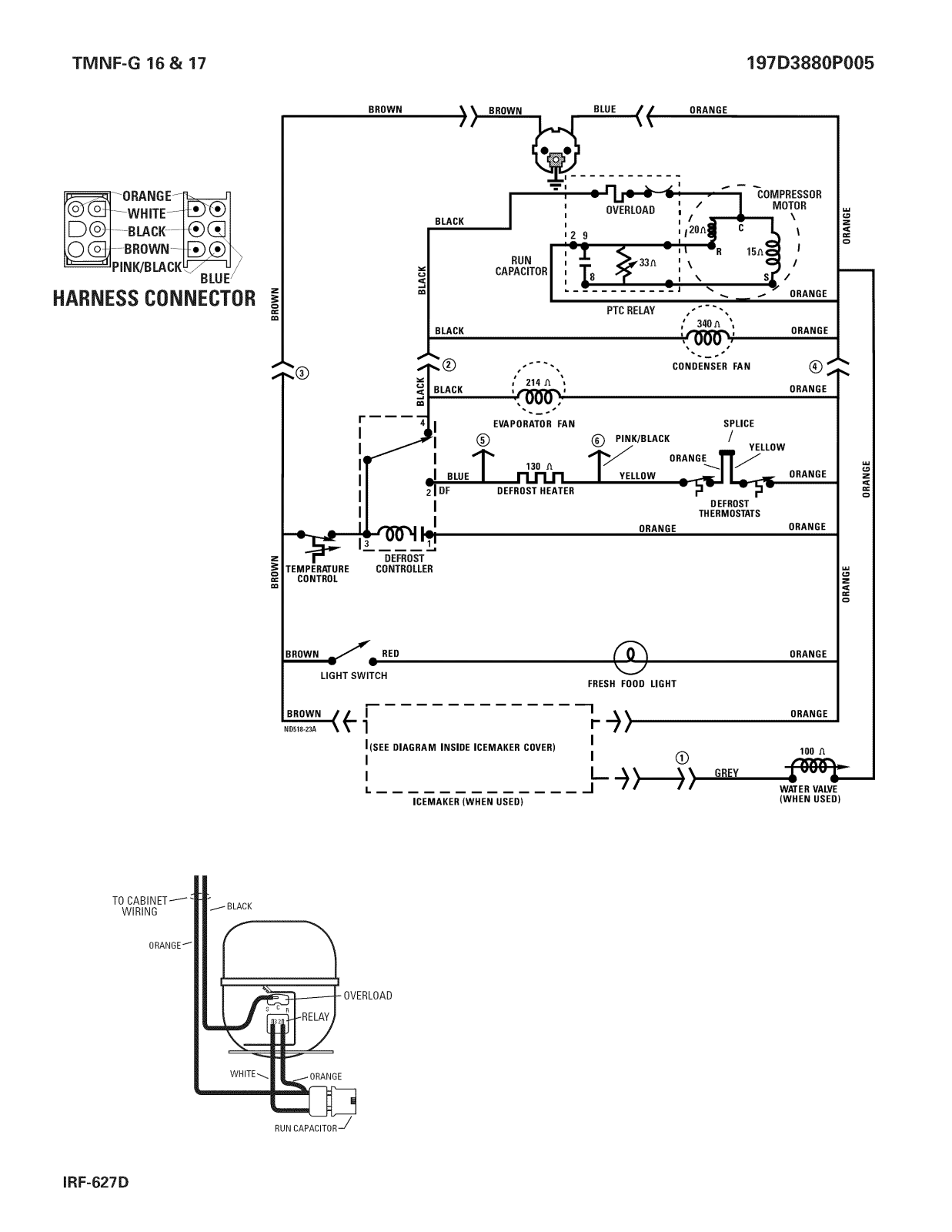

TMNF-G 16 & 17 197D3880PO05
TEMPERATURE
CONTROL
BROWN
I
I
I
DEFROST
CONTROLLER
)) .Bow.
BLACK
CAPACITOR
BLACK
RUN
BLUE (( ORANGE
OVERLOAD =
,_.._y ELPINK/BLACK /
| /
120._
\
\
LOW ORA__ ORANGE
DEFROST
ORANGE ORANGE
THERMOSTATS
IANGE
ORANGE
ORANGE
SPLICE
__ YELLOW
TO CABINET"I_"
WIRING
ORANGEt
11 RED
LIGHT SWITCH
I(SEE DIAGRAM INSIDE ICEMAKER COVER)
I
I
L
ICEMAKER (WHEN USED)
-OVERLOAD
®
FRESH FOOD LIGHT
ORANGE
I
r" "_) ORANGE
I
I ® loo
I WATER VAWE
(WHEN USED)
IRF-627D
RUNCAPACITOR-j
