Instructions

Questions? call800.GE.CARES (800.432.2737)or visitour Web siteat:GEAppliances.com

inCanada, call1.800.561.3344or visitwww.GEAppliances.ca I

BEFORE YOU BEGIN

Read these instructionscompletely and

carefully.

• IMPORTANT- savethese instructions

for local inspector's use.

• IMPORTANT = Observe all governing codes and ordinances.

, Note to Installer- Be sure to leave these

instructions with the customer.

, Note to Customer - Keep these

instructions with your Owner's Manual for

future reference.

, Before the old dryer is removed from

service or discarded, remove the dryer door.

, Inspect the dryer exhaust outlet and

straighten the outlet walls if they (]re bent. Service information and the wiring

diagram (]re located in the control console. Do not allow children on or in the appliance.

Close supervision of children is necessary

when the appliance is used near children.

Install the dryer where the temperature is above 50°F for satisfactory operation of

the dryer control system.

Product failure due to improper instalk]tion is not covered under the Warranty.

WARNING RISK OF FIRE

•Toreduce the riskof severe injury or death, follow oil installation instructions.

• Clothesdryer installation must be performed byo qualified instolle[

• Installthe clothes dryer according to these instructions and in accordance with local codes.Inthe absence of local codes, installation must comply with Notional FuelGas Code,ANSIZ223.1/NFPA54 or the Canadian Natural Gas and Propane Installation

Code,CSAB149.1.

• CaliforniaSofaDrinking Water ond ToxicEnforcementAct. This oct requires the governor of California to publish a list of substances known to

the state to cause cancer, birth defects or other reproductive harm and requires

businesses to worn customers of potential exposure to such substances. Gas appliances con cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Properly adJusted dryers will minimize incomplete combustion. Exposure to these substances con be minimized further by properly venting the dryer to theoutdoors.

•Thisdryer must beexhausted to the outdoors.

• Useonly 4" rigid metal ducting for exhausting the clothes dryer to the outdoors.

• DO NOTinstall a clothes dryer with flexible plastic ducting materials, tf flexible metal (semi-rigidorfoil-type) duct isinstalled, it must beULlistedand installedin accordance

with the instructionsfound in "Connecting TheDryerTo HouseVent"on page 6 of this

manual. Flexibleventing materials ore known to collapse,be easily crushed, and trap lint.Theseconditions will obstruct dryer airflow and increase the risk of fire.

• Do not install or store this appliance in any location where it could be exposed to

water and or weathe[

• Save these instructions. (Installers: Be sure to leave these instructions with the customer).

-- B

In the state of Massachusetts: , Installation must be performed by a qualified or licensed contractor,

plumber, or gasfitter qualified or licensed by the state. When using ball-type gas shut-offvalves, they shall be T-handle type. A flexible gas connector, when used, must not exceed 3 feet.

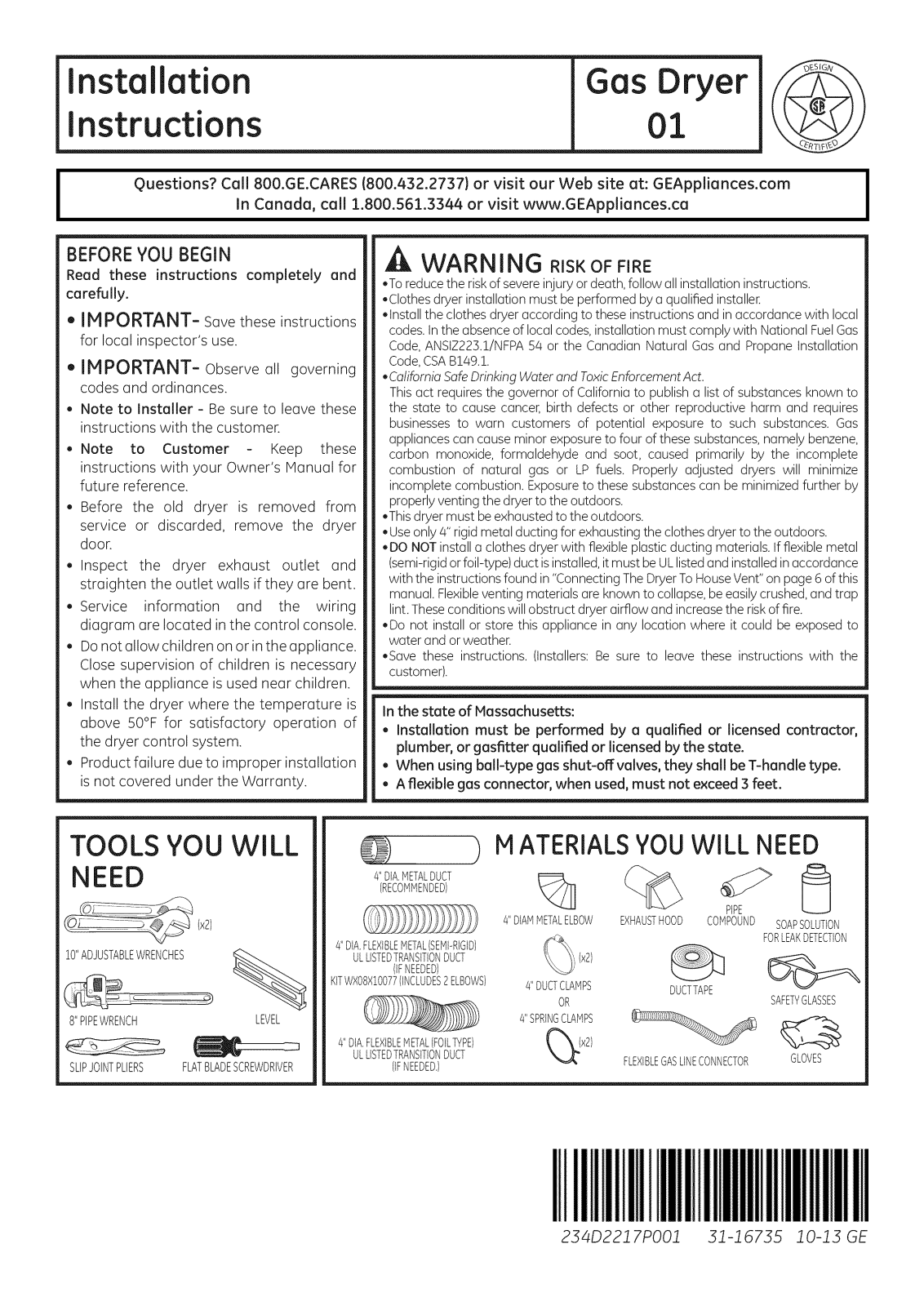

TOOLS YOU WILL

NEED

1×2)

i0"ADJUSTABLEWRENCHES ____

8"PIPEWRENCH LEVEL

SLIPJOINTPLIERS FLATBLADESCREWDRIVER

.) MATERIALSYOU WILL NEED

4"DIA.METALDUCT P=====_

(RECOMMENDED)

4"DIA.FLEXIBLEMETAL(SEMI-RIGID)

ULLISTEDTRANSITIONDUCT

KITWXO8X10077(iNCLUDES2ELBOWS)

4"DIA.FLEXIBLEMETAL(FOILWPE)

(IFNEEDED)

ULLISTEDTRANSITIONDUCT

(IFNEEDED.)

4"DIAMMETALELBOW

(x3

4"DUCTCLAMPS

4"SPRINGCLAMPS

x2)

IIIIIIIIIIIIIII

234D2217PO01 31-16735

EXHAUSTHOOD COMPOUND

PIPE

DUCTTAPE

FLEXIBLEGASLINECONNECTOR

SOAPSOLUTION

FORLEAKDETECTION

SAFETVGLASSES

GLOVES

III

i0-15 GE

Installation instructions

Minimum Clearance Other Than Alcove or Closet Installation

Minimum clear(]nce to combustible surf(]ces (]nd for (]iFopening (]re: 0 in, cle(]r(]nce both sides (]nd 1in. re(]r.

Consider(]tion must be given to provide (]dequ(]te cle(]r(]nce for inst(]ll(]tion (]nd service.

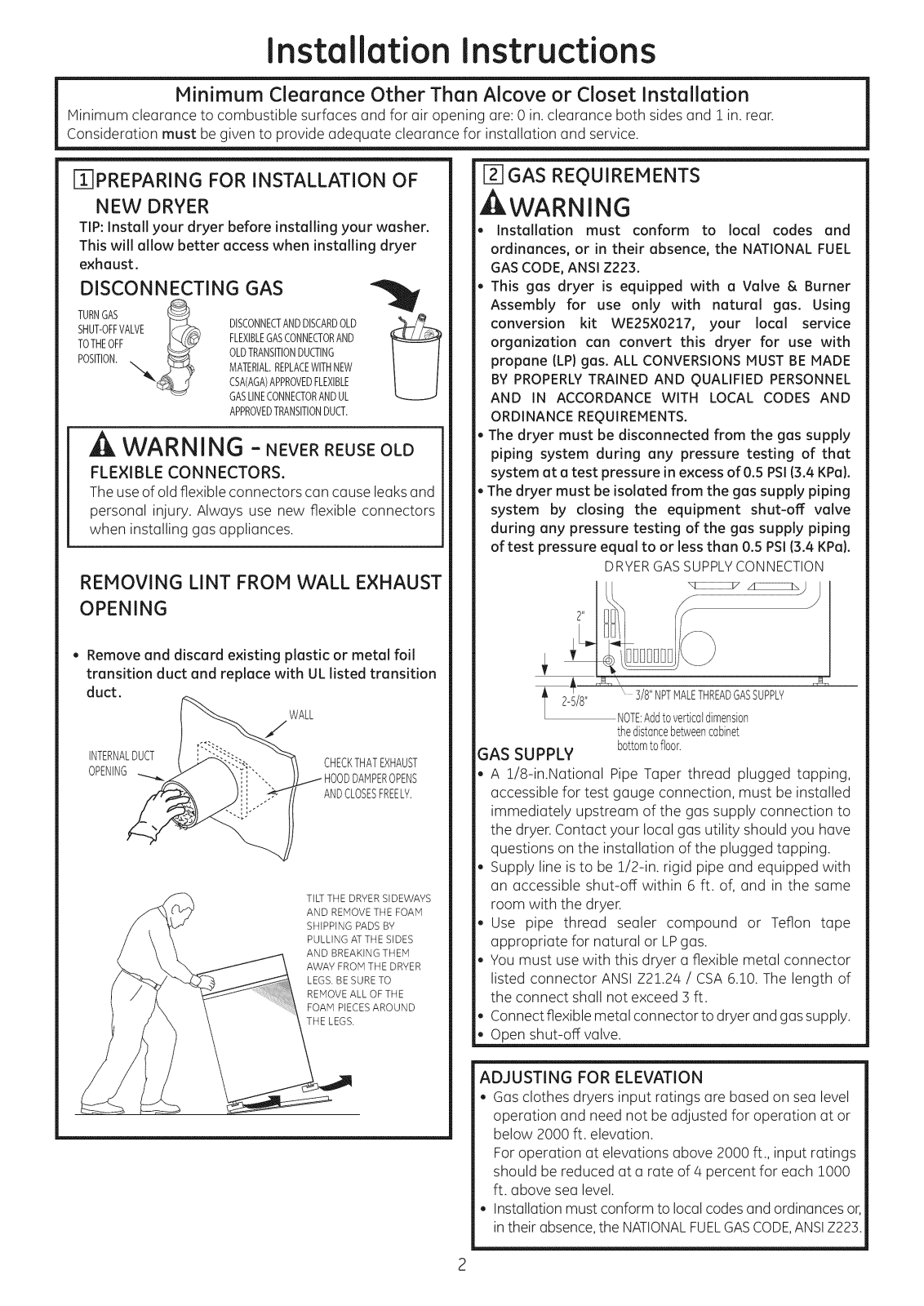

rl]PREPARING FOR INSTALLATION OF

NEW DRYER

TIP:Install your dryer before installing your washer. This will allow better access when installing dryer

exhaust.

DISCONNECTING GAS

TURNGAS

SHUT-OFFVALVE IC_, DISCONNECTANDDISCARDOLD

TOTHEOFF _t_._J FLEXIBLEGASCONNECTORAND

POSiTiON

OLDTRANSITIONDUCTING MATERIAL.REPLACEWITHNEW CSA(AGA)APPROVEDFLEXIBLE

GASLINECONNECTORANDUL APPROVEDTRANSITIONDUCT.

WARNING - NEVERREUSEOLD

FLE×II3LE CON NECTORS. Theuseof old flexible connectors c(]n c(]use le(]ks(]nd

person(]l injury. AIw(]ys use new fexible connectors when inst(]lling g(]s (]ppli(]nces.

REMOVING LINT FROM WALL EXHAUST

OPENING

[][] GAS REQUIREMENTS

kWARNING

Installation must conform to local codes and

ordinances, or in their absence, the NATIONAL FUEL GASCODE,ANSI Z223. This gas dryer is equipped with a Valve & Burner Assembly for use only with natural gas. Using conversion kit WE25×0217, your local service organization can convert this dryer for use with propane {LPIgas. ALL CONVERSIONSHUST BE HADE

BY PROPERLYTRAINED AND QUALIFIED PERSONNEL

AND IN ACCORDANCE WITH LOCAL CODES AND ORDINANCE REQUIREHENTS.

The dryer must be disconnected from the gas supply

piping system during any pressure testing of that system at a test pressure in excess of O.5PSI(3.4 KPal.

The dryer must be isolated from the gas supply piping

system by closing the equipment shut-off valve during any pressure testing of the gas supply piping of test pressure equal to or less than 0.5 PSI(3.4 KPaI.

DRYERGASSUPPLYCONNECTION

. Remove and discard existing plastic or metal foil

transition duct and replace with UL listed transition

duct.

WALL

INTERNALDUCT OPENING HOODDAMPEROPENS

CHECKTHATEXHAUST

ANDCLOSESFREELY.

TILTTHE DRYERSIDEWAYS AND REMOVE THE FOAM

SHIPPING PADS BY

PULLING ATTHE SIDES AND BREAKING THEM AWAY FROM THE DRYER

LEGS.BE SURETO

REMOVEALL OFTHE

FOAM PIECESAROUND THE LEGS.

A 2-5/8" " 3/8"NPTMALETHREADGASSUPPLY

NOTE:Addtoverticaldimension

thedistancebetweencabinet

_AS SUPPLY

bottomtofloor.

A 1/8-in.N(]tion(]l Pipe T(]per thre(]d plugged t(]pping, (]ccessible for test g(]uge connection, must be inst(]lled immedi(]tely upstre(]m of the g(]s supply connection to the dryer. Cont(]ct your Ioc(]l g(]s utility should you h(]ve questions on the inst(]ll(]tion of the plugged t(]pping. Supply line isto be 1/2-in. rigid pipe (]nd equipped with on (]ccessible shut-off within 6 ft. of, (]nd in the s(]me room with the dryer.

Use pipe thre(]d se(]ler compound or Teflon t(]pe (]ppropri(]te for natur(]l or LPg(]s. You must use with this dryer (] flexible metal connector listed connector ANSI Z21.24 / CSA 6.10. The length of

the connect sh(]ll not exceed 3 ft. Connect flexible met(]l connector to dryer (]ndg(]s supply.

Open shut-off v(]lve.

ADJUSTING FOR ELEVATION , G(]sclothes dryers input r(]tings (]re b(]sed on se(]level

oper(]tion (]nd need not be (]djusted for oper(]tion (]t or below 2000 ft. elev(]tion.

For oper(]tion (]t elev(]tions (]bove 2000 ft., input r(]tings should be reduced (]t (] r(]te of 4 percent for e(]ch 1000

ft. (]bove se(] level.

, Inst(]ll(]tion must conform to Ioc(]lcodes (]nd ordin(]nces or,

in their (]bsence,the NATIONALFUELGASCODE,ANSIZ223.

Installation

_] RECONNECTING GAS

Listed connector ANSI Z2!.24 / CSA 6.!0

1/8" NPT PIPE

NEW METAL PLUG FOR FLEXIBLEGAS INLETPRESSURE

LINECONNECTOR

ADAPTER

3/8" NPT

ELBOW

ITEMSNOT SUPPLIED _AT LEASTi/2"

Note: The connector and fittings ore designed for use only on the original installution and ore not to be reused for another uppliance or at another locution. Keep flare end of adoptor free of grease, oil and thread sealant.

GAS

SHUT-OFF

PIPESIZE

Instructions

APPLYPIPECOMPOUND

TOALL MALETHREADS.

CAUTION: Use odoptersosshown,Connector

nutsmustnotbe connecteddirectlytopipethreods.

APPLYPIPECOMPOUND TOTHEADAPTERAND

DRYERGASINLET,

TIGHTEN THE FLEXIBLE GAS LINE USING TWO ADJUSTABLE WRENCHES.

TIGHTEN ALL CONNECTIONS

USINGTWO ADJUSTABLE WRENCHES. DO NOT OVERTORQUE GAS CONNECTIONS!

[-_ LEAK TEST

,& WARNING: NEVER USE AN OPEN

FLAME TO TEST FOR GAS LEAKS.

\SVALVE.

._ckall connections for leoks with soapy solution or equivalent. )ly soop solution. Leok test solution must not contoin ommonio

ch could cGuse damage to the brass fittings. If leoks (]re found, _evGIve, retighten the joint, Gnd repeot the soop test.

Installation instructions

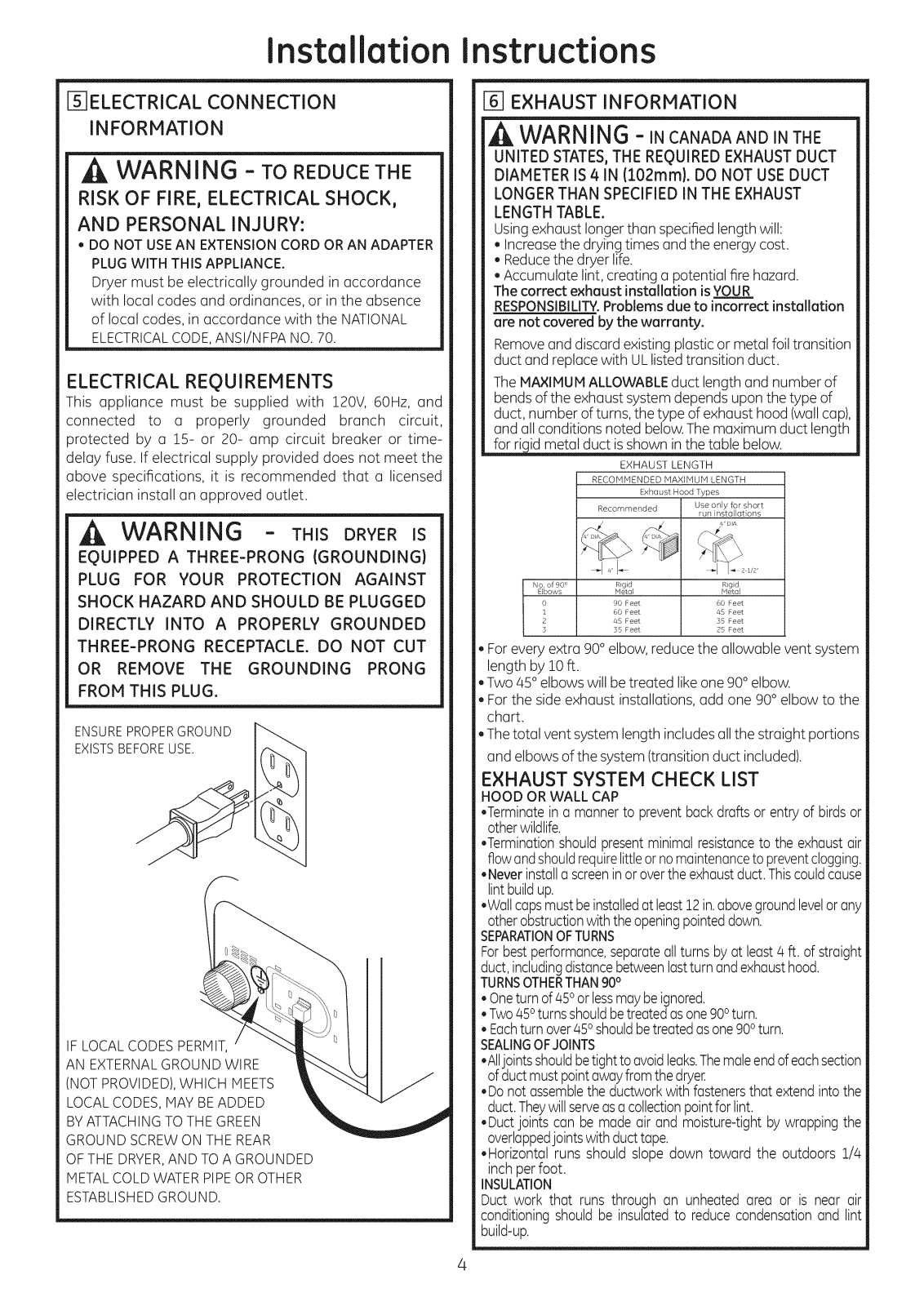

[ ELECTRICAL CONNECTION

INFORMATION

WARNING - TOREDUCETHE

RISK OF FIRE, ELECTRICAL SHOCK,

AND PERSONAL INJURY:

. DO NOT USEAN EXTENSIONCORDORAN ADAPTER

PLUGWiTH THiS APPLIANCE. Dryer must be electrically grounded in accordance

with local codes and ordinances, or inthe absence of local codes, in accordance with the NATIONAL

ELECTRICALCODE,ANSI/NFPANO.70.

ELECTRICAL REQUIREMENTS

This appliance must be supplied with 120V, 60Hz, and connected to a properly grounded branch circuit,

protected by a !5- or 20- amp circuit breaker or time- delay fuse. If electrical supply provided does not meet the above specifications, it is recommended that a licensed electrician install an approved outlet.

WARNING - THISDRYERIS

EQUIPPED A THREE-PRONG (GROUNDING) PLUG FOR YOUR PROTECTION AGAINST

SHOCK HAZARD AND SHOULD BE PLUGGED DIRECTLY INTO A PROPERLY GROUNDED THREE-PRONG RECEPTACLE. DO NOT CUT

OR REMOVE THE GROUNDING PRONG FROM THIS PLUG.

ENSUREPROPERGROUND EXISTSBEFOREUSE.

IF LOCAL CODES PERMIT, AN EXTERNAL GROUND WIRE (NOT PROVIDED), WHICH MEETS

LOCAL CODES, MAY BE ADDED

BYATTACHING TO THE GREEN GROUND SCREW ON THE REAR

OF THE DRYER, AND TO A GROUNDED

IVlETALCOLD WATER PIPEOR OTHER

ESTABLISHED GROUND.

EXHAUST INFORMATION

WARNING - IN CANADA AND IN THE

UNITED STATES,THE REQUIRED EXHAUST DUCT DIAMETER IS4 IN (102ram). DO NOT USEDUCT

LONGER THAN SPECIFIED IN THE EXHAUST LENGTH TABLE.

Usingexhaust longer than specifiedlength will: . Increasethe drying times andthe energy cost. . Reducethe dryer life. , Accumulate lint,creating apotential fire hazard.

Thecorrect exhaust installation isYOUR RESPONSiBiLITY.Problems due to incorrect installation

are not covered by the warranty. Removeand discard existing plastic or metal foil transition

duct and replacewith ULlisted transition duct. TheMAXIMUMALLOWABLEduct length and number of

bends of the exhaustsystem depends upon the type of duct, number of turns, the type of exhaust hood (wallcap), and all conditions noted below.Themaximum duct length

for r_lid metal_own in the table below.

EXHAUST LENGTH

RECOMMENDED MAXIMUIV_ LENGTH

NO of go° Rigid

Elbows kletaJ

. Forevery extra 90° elbow, reduce the allowable vent system

length by 10 ft.

. Two 45° elbows will be treated likeone 90° elbow. . Forthe side exhaust installations,add one 90° elbow to the

chart.

. The total vent system length includesall the straight portions

and elbows of the system(transition duct included).

EXHAUST SYSTEM CHECK LIST

HOOD ORWALL CAP

•Terminateina mannerto preventbackdraftsorentryof birdsor otherwildlife.

•Terminationshouldpresentminimal resistanceto the exhaustair flowandshouldrequirelittleor nomaintenanceto preventclogging.

•Neverinstallascreeninor overtheexhaustduct.Thiscouldcause lintbuildup.

•Wallcapsmustbeinstalledat least12in.abovegroundlevelorany otherobstructionwiththeopeningpointeddown.

SEPARATIONOFTURNS

Forbestperformance,separateallturnsby at least4 ft. ofstraight duct,includingdistancebetweenlastturn andexhausthood.

TURNSOTHERTHAN90°

•Oneturn of45° orlessmaybeignored.

•Two/450turnsshouldbetreatedasone900turn.

• Eachturnover450shouldbetreatedasone900turn.

SEALINGOFJOINTS

•Alljointsshouldbetightto avoidleaks.Themaleendofeachsection ofductmustpointawayfromthedryer.

•Donotassembletheductworkwithfastenersthat extendintothe duct.Theywillserveasa collectionpointfor lint.

•Ductjoints can be madeair and moisture-tightbywrappingthe overlappedjointswithducttape.

•Horizontal runs should slope down toward the outdoors 1//4 inchper foot.

INSULATION Duct work that runs through an unheated area or is near air

conditioningshouldbe insulatedto reducecondensationand lint build-up.

Exhaust Hood Types

Recommended Use only for short

9O Feet 6O Feet A5 Feet 35 Feet

35 Feet 25 Feet

run installations

Installation instructions

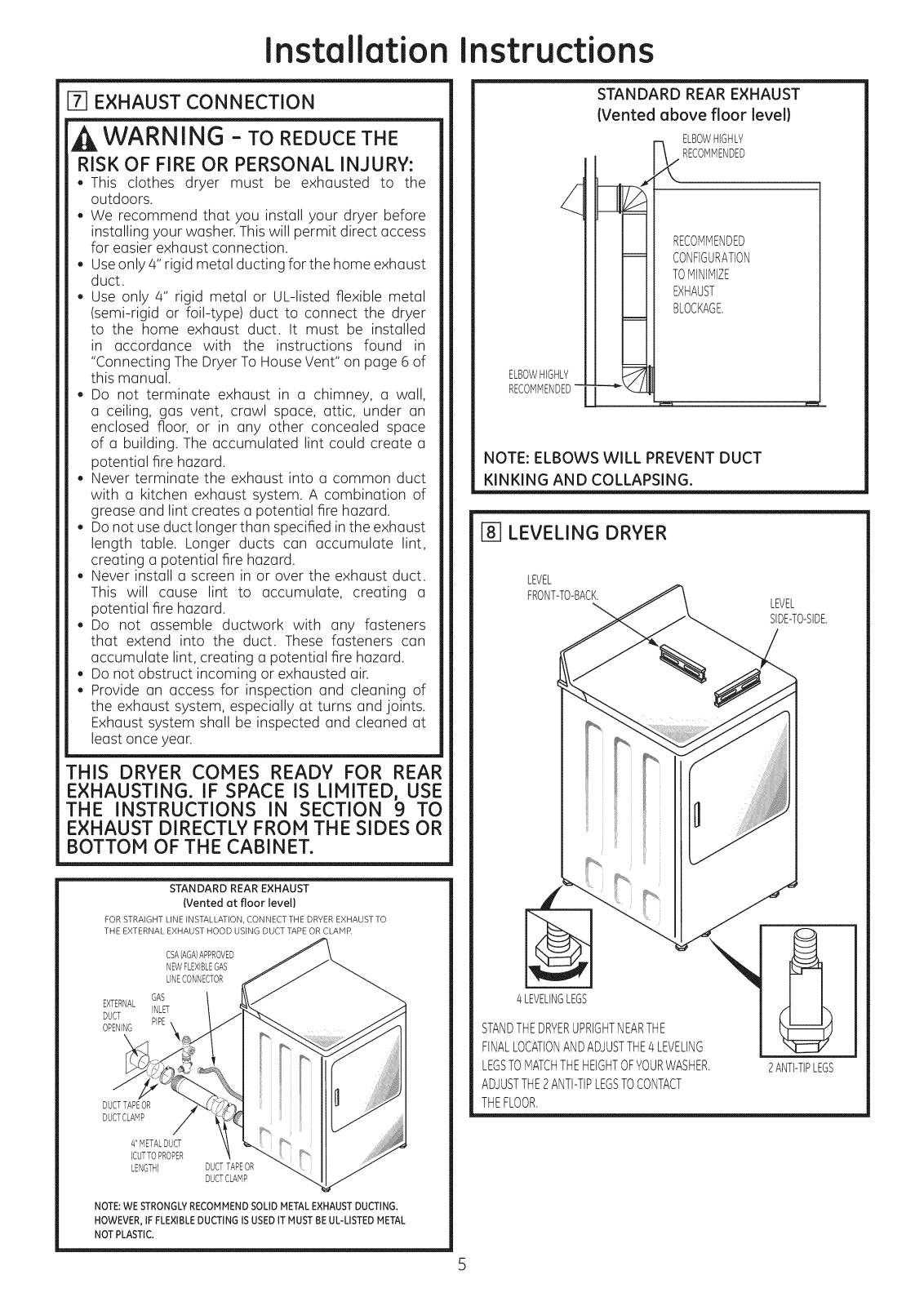

[_ EXHAUST CONNECTION

WARNING -TOREDUCETHE

RISK OF FIRE OR PERSONAL INJURY:

, This clothes dryer must be exhausted to the

outdoors.

. We recommend that you install your dryer before

installing your washer. This will permit direct access

for easier exhaust connection.

Useonly 4" rigid metal ducting for the home exhaust duct.

Use only 4" rigid metal or UL-listed flexible metal (semi-rigid or foil-type) duct to connect the dryer

to the home exhaust duct. It must be installed

in accordance with the instructions found in "Connecting The Dryer To House Vent" on page 6 of

this manual.

Do not terminate exhaust in a chimney, a wall, a ceiling, gas vent, crawl space, attic, under on

enclosed floor, or in any other concealed space of a building. The accumulated lint could create a

potential fire hazard. Never terminate the exhaust into o common duct

with a kitchen exhaust system. A combination of

grease and lint creates a potential fire hazard. Donot use duct longer than specified in the exhaust

length table. Longer ducts con accumulate lint, creating a potential fire hazard.

Never install a screen in or over the exhaust duct.

This will cause lint to accumulate, creating a

potential fire hazard. Do not assemble ductwork with any fasteners

that extend into the duct. These fasteners con

accumulate lint, creating a potential fire hazard. Do not obstruct incoming or exhausted air.

Provide on access for inspection and cleaning of

the exhaust system, especially at turns and joints.

Exhaust system shall be inspected and cleaned at least once year.

STANDARD REAR EXHAUST (Vented above floorlevel)

ELBOWHIGHLY

_ RECOMMENDED

RECOMMENDED CONFIGURATION TOMINIMIZE

EXHAUST

BLOCKAGE.

ELBOWHIGHLY RECOMMENDED-

NOTE: ELBOWS WILL PREVENT DUCT KINKING AND COLLAPSING.

I-_ LEVELING DRYER

LEVEL FRONT-TO-BACK.

--_._ LEVEL SIDE-TO-SIDE.

THIS DRYER COMES READY FOR REAR

EXHAUSTING, IF SPACE IS LIMITED, USE

THE INSTRUCTIONS IN SECTION 9 TO

EXHAUST DIRECTLY FROM THE SIDES OR BOTTOM OF THE CABINET.

STANDARD REAR EXHAUST

(Vented at flaarlevel)

FORSTRAIGHTLINEINSTALLATION,CONNECTTHEDRYEREXHAUSTTO THEEXTERNALEXHAUSTHOODUSINGDUCTTAPEORCLAIViR

CSA(AGA)APPROVED NEWFLEXIBLEGAS LINECONNECTOR

EXTERNAL

DUCT OPENING

DUCTTAPEOR

DUCTCLAMP

NOTE:WESTRONGLYRECOMMENDSOLIDMETAL EXHAUSTDUCTING. HOWEVER,IF FLEXIBLEDUCTINGIS USEDITMUSTBEUL-LISTEDMETAL NOTPLASTIC.

GAS

INLET PIPE

4" METALDUCT (CUTTOPROPER LENGTH) DUCTTAPEOR

DUCTCLAMP

4LEVELINGLEGS

STANDTHEDRYERUPRIGHTNEARTHE

FINALLOCATIONANDADJUSTTHE/4LEVELING

LEGSTOMATCHTHEHEIGHTOFYOURWASHER. ADJUSTTHE2ANTI-TIPLEGSTOCONTACT THEFLOOR.

2ANTI-TIPLEGS

Installation

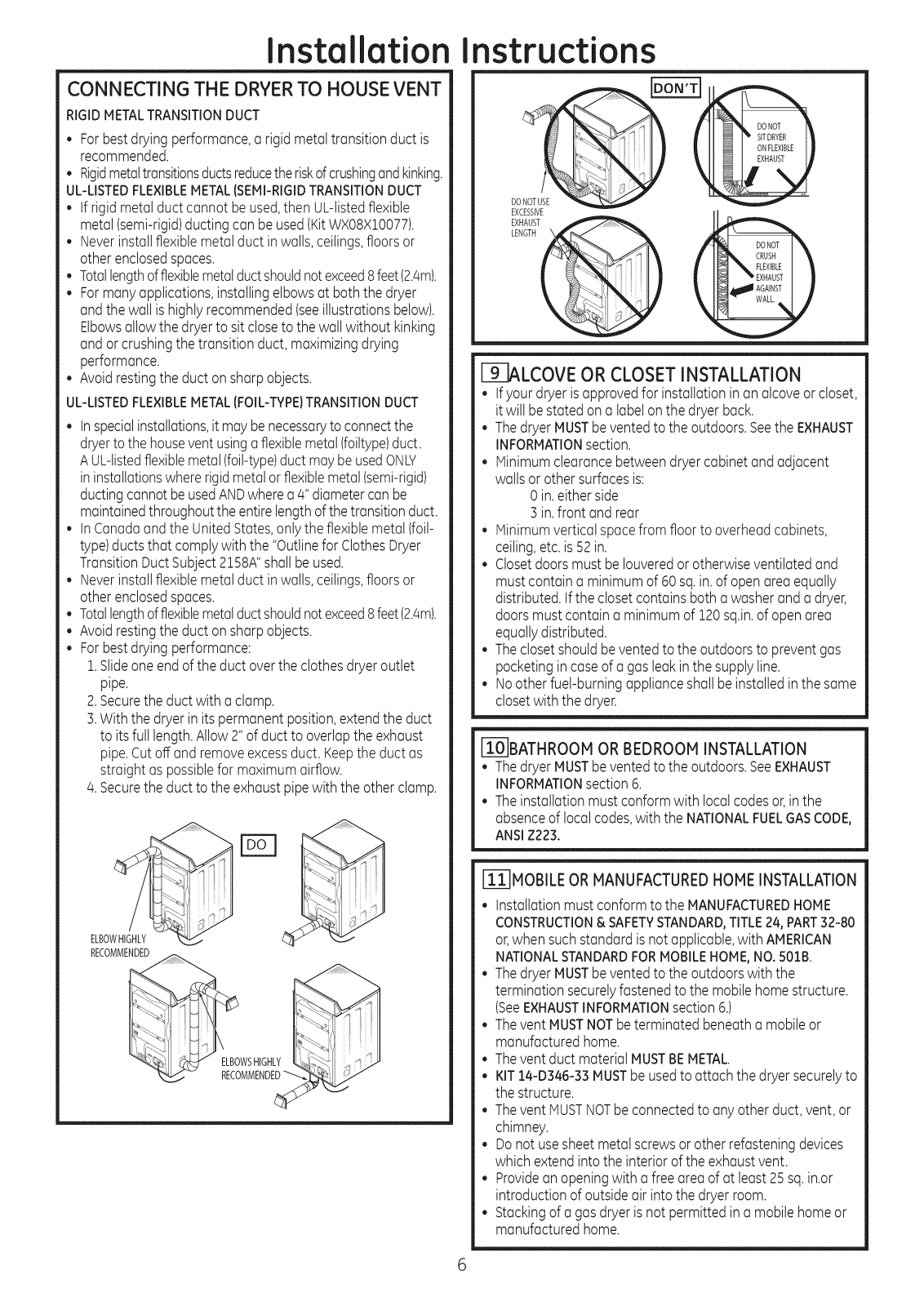

CONNECTING THE DRYERTO HOUSE VENT

RIGID METALTRANSITION DUCT

• Forbestdrying performance,a rigid metaltransitionduct is recommended.

• Rigidmetaltransitionsductsreducetheriskofcrushingandkinking.

UL-LISTEDFLEXIBLEMETAL(SEMI-RIGIDTRANSITIONDUCT

• tf rigid metalduct cannot be used,then UL-listedflexible metal(semi-rigid)ducting canbeused(KitWX08X10077).

• Neverinstallflexiblemetal duct in walls,ceilings,floorsor otherenclosedspaces.

• Totallengthofflexiblemetalductshouldnotexceed8feet(2.4m).

• Formanyapplications,installingelbowsat boththedryer andthe wallis highlyrecommended(seeillustrationsbelow). Elbowsallow the dryer to sit closeto thewall without kinking andorcrushingthetransition duct,maximizingdrying performance.

• Avoidrestingthe duct on sharpobjects.

UL-LISTEDFLEXIBLEMETAL(FOIL-TYPE}TRANSITION DUCT

• tnspecialinstallations,it may benecessaryto connectthe dryerto the housevent usingaflexiblemetal(foiltype)duct.

A UL-listedflexiblemetal(foil-type)duct maybeusedONLY

ininstallationswhererigidmetalorflexiblemetal(semi-rigid) ductingcannotbeusedANDwhere a4"diametercanbe maintainedthroughoutthe entirelengthofthetransitionduct.

• tn Canadaandthe UnitedStates,onlythe flexible metal(foil-

type)ductsthat complywith the "Outlinefor ClothesDryer TransitionDuct Subject2158A"shallbe used.

• Neverinstallflexiblemetal duct in walls,ceilings,floorsor otherenclosedspaces.

• Totallengthofflexiblemetalductshouldnotexceed8feet(2.4m).

• Avoidrestingthe duct on sharpobjects.

• Forbestdrying performance:

1.Slideone endof theduct overthe clothesdryeroutlet pipe.

2.Securethe duct with a clamp.

3.With the dryerin its permanentposition,extendthe duct

to its full length.Allow2" ofduct to overlapthe exhaust

pipe.Cutoff and removeexcessduct. Keeptheduct as straightaspossiblefor maximumairflow.

4.Securethe duct to the exhaustpipewith the other clamp.

Instructions

EXCESSIVE EXHAUST

LENGTH

D]ALCOVE OR CLOSETINSTALLATION

• If your dryerisapprovedfor installationin an alcoveor closet, it will bestatedon a labelon thedryer back.

• ThedryerMUSTbe ventedto theoutdoors.Seethe EXHAUST INFORMATIONsection.

• Minimum clearancebetweendryercabinet and adjacent wallsorother surfacesis:

0in.eitherside ] in.front and rear

• Minimumverticalspacefromfloor to overheadcabinets, ceiling,etc.is52 in.

• Closetdoorsmust beIouveredorotherwiseventilatedand mustcontain a minimumof 60 sq.in.of openareaequally

distributed.Ifthe closetcontainsboth a washerandadryer, doorsmustcontain a minimum of 120sq.in,of openarea equallydistributed.

• Theclosetshouldbeventedto the outdoorsto preventgas pocketingincaseof a gasleakin the supplyline.

• No otherfuel-burningapplianceshallbe installedinthe same closetwith thedryer.

iTO]BATHROOM OR BEDROOM INSTALLATION

• ThedryerMUSTbe ventedtothe outdoors.SeeEXHAUST INFORMATIONsection 6.

• Theinstallationmustconformwith localcodesor,in the absenceof local codes,withthe NATIONALFUELGASCODE, ANSIZ223.

ELBOWHIGHLY RECOMMENDED

_WS HIGHLY

RECOMMENDE Lj/

[n-IMOBILE OR MANUFACTURED HOME INSTALLATION

• Installationmustconform tothe MANUFACTUREDHOME CONSTRUCTION& SAFETYSTANDARD,TITLE24,PART32-80

or,when suchstandardis notapplicable,with AMERICAN NATIONALSTANDARDFORMOBILEHOME,NO.501B.

• ThedryerMUSTbe ventedto theoutdoorswiththe termination securelyfastenedto the mobilehomestructure.

(SeeEXHAUSTINFORMATIONsection6.)

• TheventMUSTNOTbeterminated beneatha mobile or manufactured home.

• Theventduct material MUSTBEMETAL.

• KIT14-D346-33MUSTbeusedto attachthe dryersecurelyto the structure.

• TheventMUSTNOTbeconnectedto anyother duct,vent, or chimney.

• Do not usesheetmetalscrewsor other refasteningdevices which extendintothe interior of the exhaustvent.

• Provideanopeningwith afreeareaof at least25sq.in.or introductionof outsideairinto the dryer room.

• Stackingofa gasdryeris not permitted in a mobilehomeor manufactured home.

Installation

Instructions

[]GARAGE INSTALLATION {IF ALLOWED

BY LOCAL CODES}

, Dryers installed in garages must be elevated 18 inches

(46cm) above the floor.

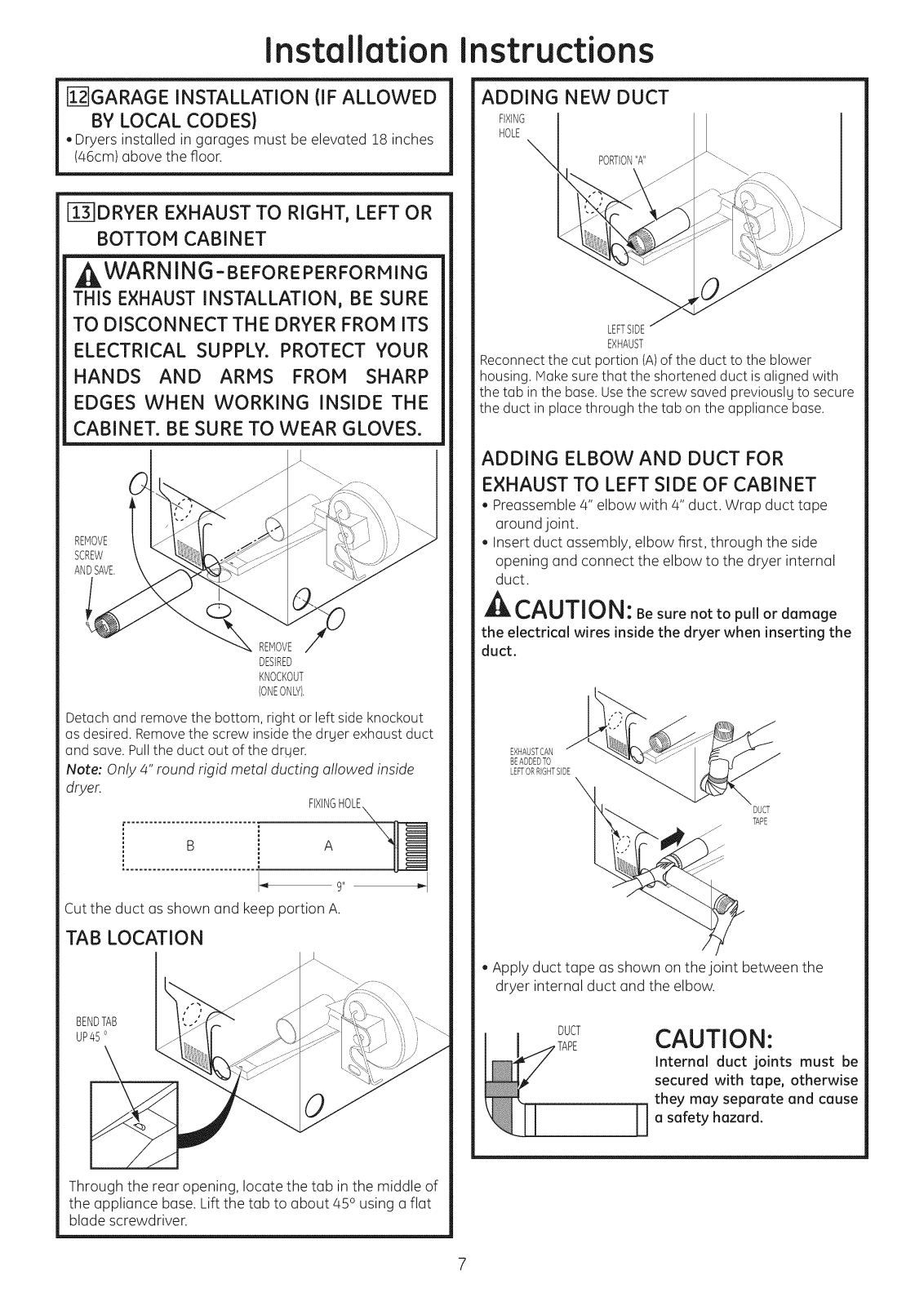

[13]DRYER EXHAUST TO RIGHT, LEFT OR

BOTTOM CABINET

WARNING-BEFOREPERFORMING

THIS EXHAUST INSTALLATION, BE SURE TO DISCONNECT THE DRYER FROM ITS

ELECTRICAL SUPPLY. PROTECT YOUR HANDS AND ARMS FROM SHARP

EDGES WHEN WORKING INSIDE THE

CABINET. BE SURE TO WEAR GLOVES.

REMOVE SCREW

ANDSAVE.

ADDING NEW DUCT

FIXING HOLE

PORTION"A"

LEFTSIDE EXHAUST

Reconnectthe cut portion (A)of the duct to the blower housing. Makesurethat the shortened duct isaligned with the tab inthe base.Usethe screw saved previouslgto secure the duct in place through the tab on the appliance base.

ADDING ELBOW AND DUCT FOR

EXHAUST TO LEFT SIDE OF CABINET

. Preassemble 4" elbow with 4" duct. Wrap duct tape

around joint.

, Insert duct assembly, elbow first, through the side

opening and connect the elbow to the dryer internal duct.

REMOVE//_ DESIRED

KNOCKOUT (ONEONLY).

Detach and removethe bottom, right or left sideknockout as desired.Removethe screw insidethe drger exhaust duct

and save.Pullthe duct out ofthe dryer.

Note: Only 4" round rigid metal ducting allowed inside dryer.

FIXINGHOLE,

J_ 9"

Cut the duct as shown and keep portion A.

TAB LOCATION

BENDTAB UP45o

CAUTION: Be sure not to pullor damage

the electrical wires inside the dryer when inserting the duct.

BEADDEDTO _-_z I F'_7[

LEFTOR RIGHTSIDE _

TAPE

IN____ DUCT

. Apply duct tape as shown on the joint between the

dryer internal duct and the elbow.

DUCT

,TAPE

CAUTION:

Internal duct joints must be secured with tape, otherwise

_ they may separate and cause U a safety hazard.

Through the rear opening, locate the tab in the middle of the appliance base. Lift the tab to about 450 using a flat

blade screwdriver.

Installation

Instructions

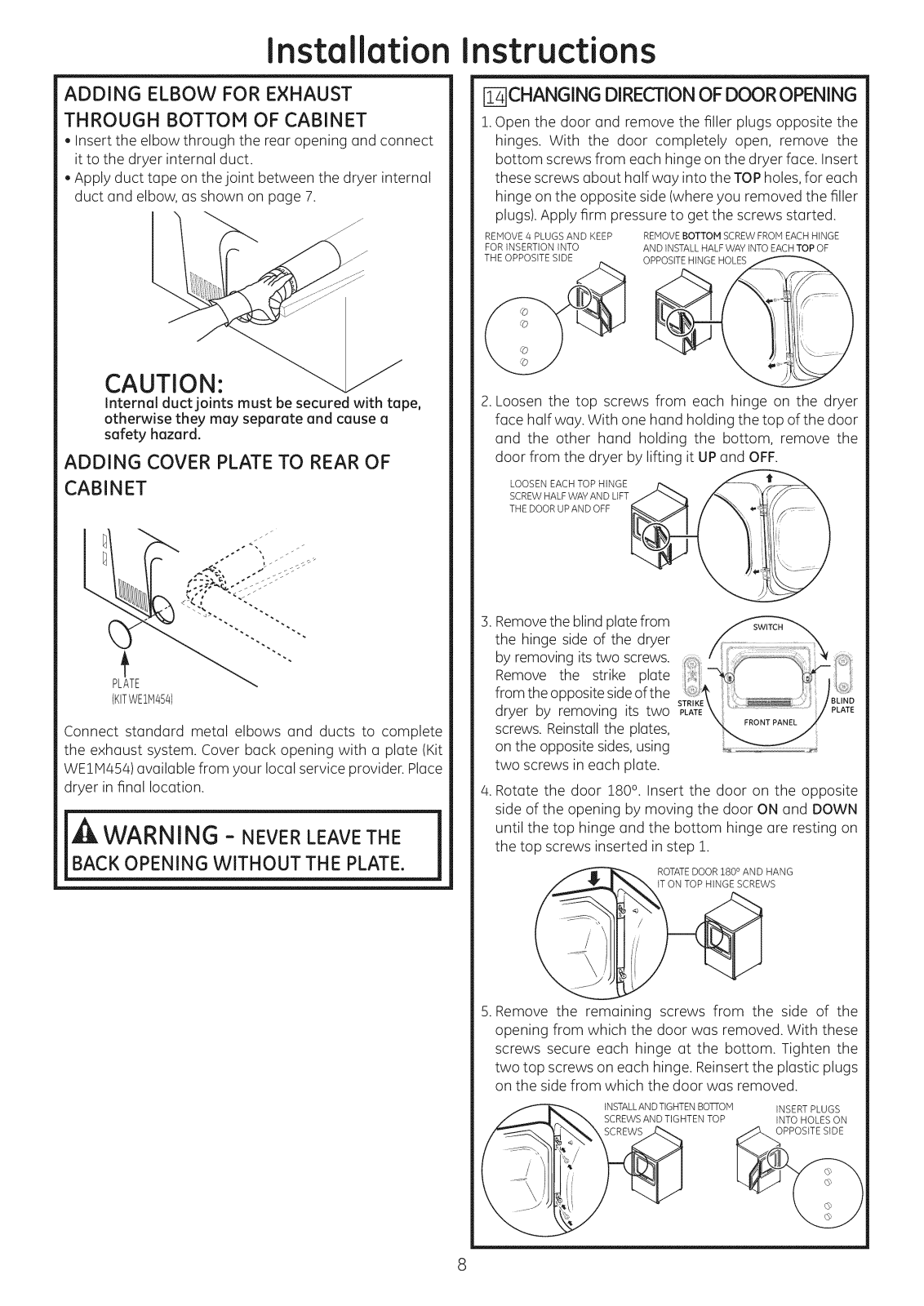

ADDING ELBOW FOR EXHAUST THROUGH BOTTOM OF CABINET

, Insert the elbow through the rear opening and connect

it to the dryer internal duct.

. Apply duct tape on the joint between the dryer internal

duct and elbow, as shown on page 7.

CAUTION:

Internal duct joints must be secured with tape,

otherwise they may separate and cause a safety hazard.

ADDING COVER PLATE TO REAR OF

CABINET

F_CHANGING DIRECTIONOFDOOR OPENING

1.Open the door and remove the filler plugs opposite the hinges. With the door completely open, remove the bottom screws from each hinge on the dryer face. Insert these screws about half way into the TOPholes, for each hinge on the opposite side (where you removed the filler plugs). Apply firm pressure to get the screws started.

REMOVE 4 PLUGS AND KEEP FOR INSERTION INTO THE OPPOSITE SIDE

REMOVE BOTTOM SCREW FROM EACH HINGE AND INSTALL HALF WAY INTO EACH TOP OF

OPPOSITE HINGE HOLES ._f"_-_*-_

!,i

2.Loosen the top screws from each hinge on the dryer face halfway. With one hand holding the top of the door and the other hand holding the bottom, remove the door from the dryer by lifting it UPand OFF.

LOOSEN EACH TOP HINGE .j_'_,. _ _-__

REE oTJW ?o LIFT/ \

(KITWEII454)

Connect standard metal elbows and ducts to complete the exhaust system. Cover back opening with a plate (Kit WE1M454) available from your local service provider. Place dryer in final location.

WARNING - NEVERLEAVETHE

BACK OPENING WITHOUT THE PLATE.

the hinge side of the dryer

3.Removethe blind plate from by removing its two screws. _:,_

Remove the strike plate :; from theopposite sideof the sTRiK_ /BLIND

dryer by removing its two PLATE: screws. Reinstallthe plates, FRONTPANEL

on the opposite sides,using two screws in each plate.

4.Rotate the door 180°. Insert the door on the opposite side of the opening by moving the door ON and DOWN until the top hinge and the bottom hinge are resting on the top screws inserted in step 1.

ROTATE DOOR 180 AND HANG IT ON TOP HINGE SCREWS

5.Remove the remaining screws from the side of the opening from which the door was removed. With these screws secure each hinge at the bottom. Tighten the two top screws on each hinge. Reinsertthe plastic plugs

on the side from which the door was removed.

"_X SCREWS AND TIGHTEN TOP

INSERT PLUGS INTO HOLES ON

OPPOSITE SIDE

INSTALL AND TIGHTEN BO]q-OM

+ 16 hidden pages
