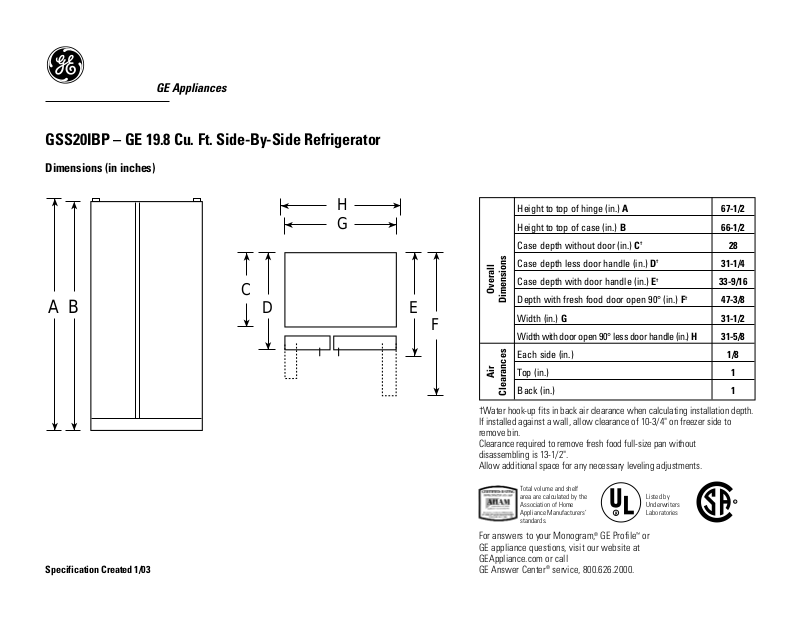

GE GSS20IBP Specification

GSS20IBP – GE 19.8 Cu. Ft. Side-By-Side Refrigerator

Specification Created 1/03

Dimensions (in inches)

A

Top View

G

D

C

F

B

E

H

†Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 10-3/4" on freezer side to
remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 13-1/2".
Allow additional space for any necessary leveling adjustments.

Height to top of hinge (in.) A 67-1/2

Height to top of case (in.) B 66-1/2

Case depth without door (in.) C

†

28

Case depth less door handle (in.) D

†

31-1/4

Case depth with door handle (in.) E

†

33-9/16

Depth with fresh food door open 90° (in.) F

†

47-3/8

Width (in.) G 31-1/2

Width with door open 90° less door handle (in.) H 31-5/8

Each side (in.) 1/8

Top (in.) 1

Back (in.) 1

Air Overall

Clearances Dimensions

R

Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.

Listed by
Underwriters
Laboratories

R

For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliance.com or call
GE Answer Center®service, 800.626.2000.

GE Appliances

Specification Created 1/03

GSS20IBP – GE 19.8 Cu. Ft. Side-By-Side Refrigerator

Features and Benefits

• Upfront Temperature Controls – Are positioned up front, close at hand, for maximum
convenience and ease of use.

• Adjustable Glass Shelves – Provides easy, convenient access to food, water and ice.

• Sealed Crisper – Helps preserve fruits and vegetables.

• Sealed Deli Pan – Provides convenient storage for cheeses and luncheon meats.

• Adjustable Gallon Door Bins – Make room for milk and other gallon-size containers.

• FrostGuard™Technology – Reduces freezer burn, so foods retain their texture and flavor.

• Deluxe Quiet Design – Significantly reduces operating noise

• Model GSS20IBPWW – White on white

• Model GSS20IBPCC – Bisque on bisque
