GSS20ETHBB

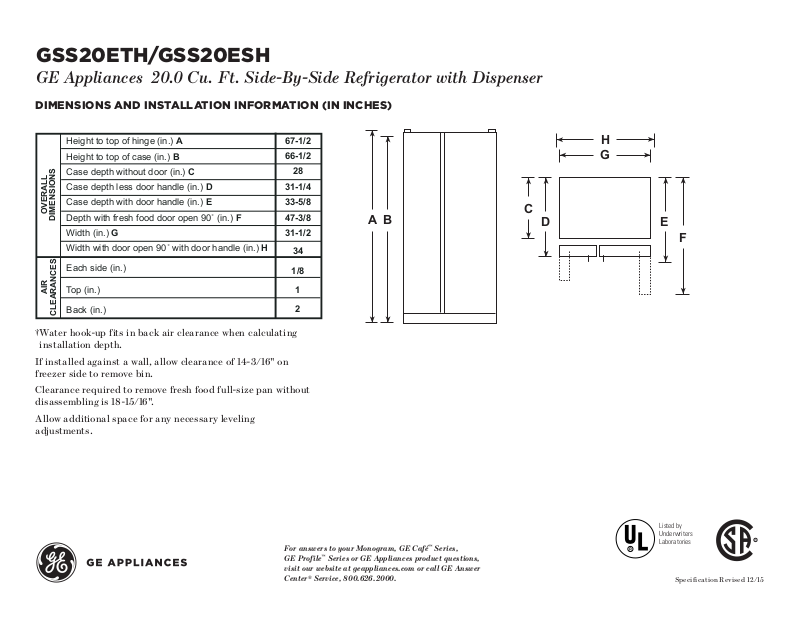

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
Specif ication Revised 12/15
For answers to your Monogram, GE Café
™
Series,
GE Profile
™
Series or GE Appliances product questions,
visit our website at geappliances.com or call GE Answer
Center
®
Service, 800.626.2000.
GSS20ETH/GSS20ESH
GE Appliances 20.0 Cu. Ft. Side-By-Side Refrigerator with Dispenser
A B
D
C
G
F
E
H
Listed by
Underwriters
Laboratories
D
C
G
F
E
H
Height to top of hinge (in.) A
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Depth with fresh food door open 90˚ (in.) F
Width (in.) G
Width with door open 90˚ with door handle (in.) H
Each side (in.)
Top (in.)
Back (in.)
AIR
CLEARANCES
OVERALL
DIMENSIONS
67-1/2
66-1/2
28
31-1/4
33-5/8
47-3/8
31-1/2
34
1/8
1
2
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 14-3/16" on
freezer side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling
adjustments.
