GE GSS20DBT Specification

"94 SxS Refer

Top View

GSS20DBT

GE® 19.9 Cu. Ft. Side-By-Side Refrigerator

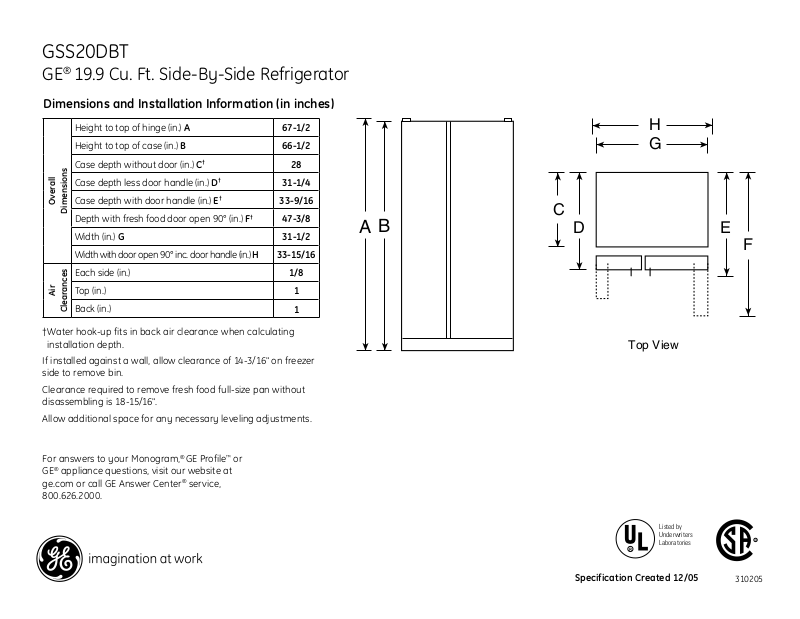

Dimensions and Installation Information (in inches)

Height to top of hinge (in.) A 67-1/2

Height to top of case (in.) B 66-1/2

Case depth without door (in.) C

Case depth less door handle (in.) D

Case depth with door handle (in.) E

Overall

Dimensions

Depth with fresh food door open 90° (in.) F

Width (in.) G 31-1/2

Width with door open 90° inc. door handle (in.) H 33-15/16

†

31-1/4

33-9/16

47-3/8

Each side (in.)

Top (in.)

Air

Clearances

Back (in.)

† Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 14-3/16" on freezer side to remove bin.

Clearance required to remove fresh food full-size pan without disassembling is 18-15/16".

Allow additional space for any necessary leveling adjustments.

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,

800.626.2000.

1/8

Listed by Underwriters Laboratories

Specification Created 12/05

310205

GSS20DBT

GE® 19.9 Cu. Ft. Side-By-Side Refrigerator

Features and Benefits

• Upfront Electronic Dial Temperature Controls - A simple turn of the knob regulates interior temperatures

• Sealed Vegetable / Fruit Crisper - Provides easy storage for your fruits and vegetables

• Sealed Deli Pan - Provides convenient storage for cheeses and luncheon meats

• Gallon Door Storage - Makes room for milk and any other gallon size containers

• Adjustable Wire Shelves - Provide strong support and slide out with ease

• FrostGuard™ Technology - Protects frozen items from freezer burn by monitoring freezer door openings and defrosting only when needed

• AutoEnergy Saver - Senses freezer and fresh door openings and adjusts refrigeration operation cycles accordingly

• Deluxe Quiet Design - Significantly reduces operating noise

• NeverClean™ Condenser - Condenser coils are encased, so they don’t require cleaning in normal operating environments

• Model GSS20DBTWW - White on white

• Model GSS20DBTCC - Bisque on bisque

Specification Created 12/05

310205
