Spacemaker Dishwasher Dimensions
(Pub. 1-G003 pg. 132B) May 12, 1993
DW PLUMBING/ELECTRICAL
ROUGH-IN (IN INCHES)

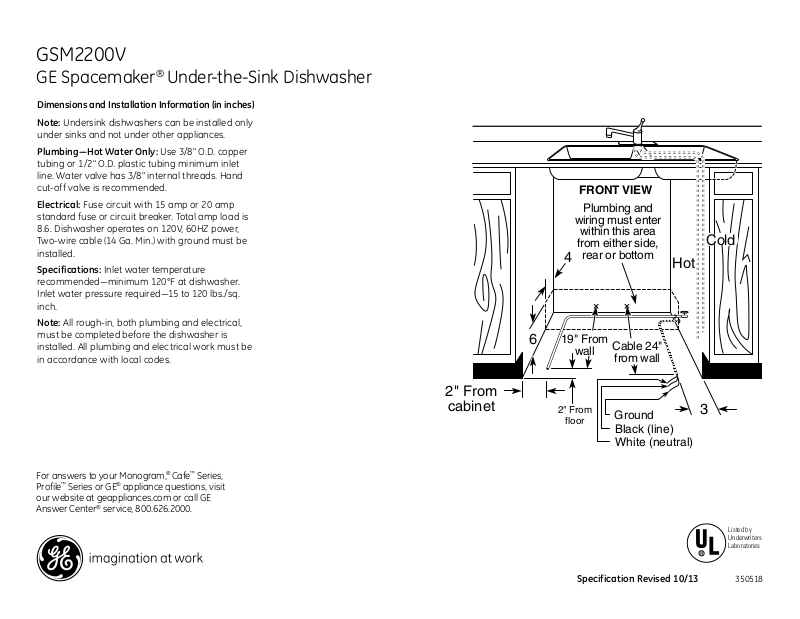

GSM2200V
GE Spacemaker® Under-the-Sink Dishwasher
Dimensions and Installation Information (in inches)
Note: Undersink dishwashers can be installed only
under sinks and not under other appliances.
Plumbing—Hot Water Only: Use 3/8" O.D. copper
tubing or 1/2" O.D. plastic tubing minimum inlet
line. Water valve has 3/8" internal threads. Hand
cut-off valve is recommended.
Electrical: Fuse circuit with 15 amp or 20 amp
standard fuse or circuit breaker. Total amp load is
8.6. Dishwasher operates on 120V, 60HZ power,
Two-wire cable (14 Ga. Min.) with ground must be
installed.
Specifications: Inlet water temperature
recommended—minimum 120°F at dishwasher.
Inlet water pressure required—15 to 120 lbs./sq.
inch.
Note: All rough-in, both plumbing and electrical,
must be completed before the dishwasher is
installed. All plumbing and electrical work must be
in accordance with local codes.
6
FRONT VIEW
Plumbing and
wiring must enter
within this area
from either side,
rear or bottom
4
19" From
wall
Cable 24"
from wall
Cold
Hot
For answers to your Monogram,® Cafe™ Series,
Profile™ Series or GE® appliance questions, visit
our website at geappliances.com or call GE
Answer Center® service, 800.626.2000.
2" From
cabinet
2" From
floor
Ground
Black (line)
White (neutral)
Specification Revised 10/13
3
Listed by
Underwriters
Laboratories
350518
GSM2200V
6
4
10"
from
cabinet
Allow a 5"
radius to
prevent kinking
1-1/2" MAX.
dia. hole
Directional flow tee
Waste air gap
12" From wall
Waste tee
or disposer
Remove hopper plug
before connecting
dishwasher drain
FRONT VIEW
Drain
connection
To
air
gap
drain hose
Dishwasher
6" Double-bowl
Sink
GFC290/300/700
GE Spacemaker® Under-the-Sink Dishwasher
Note: A close-fitting elbow or special
shallow sink strainer is necessary to
provide clearance between sink drain
and dishwasher. Dishwasher furnished
with 1/2" I.D. drain hose, 78" long. If using
copper tubing, 2" length of 1/2" I.D. rubber
hose must be provided to connect copper
tubing to pump outlet. Disposer should
have 7/8" I.D. dishwasher drain connector.
Rough-In for Installation with Disposer Dimensions
(in inches)
Waste air gap
Directional flow tee
FRONT VIEW
Drain
connection
4
1-1/2" MAX.
dia. hole
12" From wall
Waste tee
or disposer
Remove hopper plug
before connecting
dishwasher drain
6
10"
from
cabinet
Allow a 5"
radius to
prevent kinking
To
air
gap
Rear View Plumbing Arrangement Dimensions
(in inches)
stainless steel sink
Disposall
Directional
water to dishwasher
®
unit
1-1/2"
flow tee
Cold water
Hot water
Valve to shut off
Hot water supply
to dishwasher
Dishwasher
strainer
assembly
Spacemaker
dishwasher
Electrical
junction box
(on dishwasher)
Countertop
25" deep
1-1/2" thick
1-1/2" Close
elbow
®
water inlet
valve
Specification Revised 10/13
Listed by
Underwriters
Laboratories
350518
GSM2200V
GE Spacemaker® Under-the-Sink Dishwasher
Cabinet Rough-In Dimensions (in inches)
Cabinet Rough-In Note: Either single- or
double-bowl sink may be used, centered
or offset, as shown in the front view
illustration.
The 20-1/2" maximum dimension from wall
to front of sink bowl must be accurate if
dishwasher is to fit properly under sink.
Water lines to sink faucet and drain from
sink can be run through area “A.”
HOT WATER line to dishwasher is installed
in area “B.”
Garbage disposer, water lines to faucet,
trap, waste air gap and water cutoff valve
are installed in 12" wide cabinet shown
in area “C.” Sink opening for garbage
disposer must be dimensioned as shown in
front view, area “C” (7-1/2"). This will provide
clearance for the disposer and plumbing in
cabinet “C” when using double bowl sink.
If the sink bowl is more than 20-1/2"
maximum specified distance form the
wall, or if the base cabinet is less than the
24" minimum depth from the wall, a gap
between the tub front flange and the front
of the base cabinet may result.
Cabinet Cut-Out for Sink Dimensions (in inches) Undersink Dishwasher Wood Insert Dimensions
(in inches)
Specification Revised 10/13
Listed by
Underwriters
Laboratories
350518
GSM2200V
GE Spacemaker® Under-the-Sink Dishwasher
Features and Benefits
• Spacemaker® upper rack - Maximizes space without losing cabinets
• Two-stage filtration with Extra Fine filter - Extra filtration keeps water clean
• Piranha
• Hot Start option - Provides optimal water temperature for dependable performance
• 64 dBA - motor runs quietly to keep kitchen peaceful
• Model GSM2200VWW - White on white
• Model GSM2200VCC - Bisque on bisque
• Model GSM2200VBB - Black on black
™
hard-food disposer - Grinds food into small particles that are washed away
Specification Revised 10/13
