GE GSM2200N00BB, GSM2200N00CC, GSM2200N00WW, GSM2200N10BB, GSM2200N10CC Installation Guide

...

Appliances

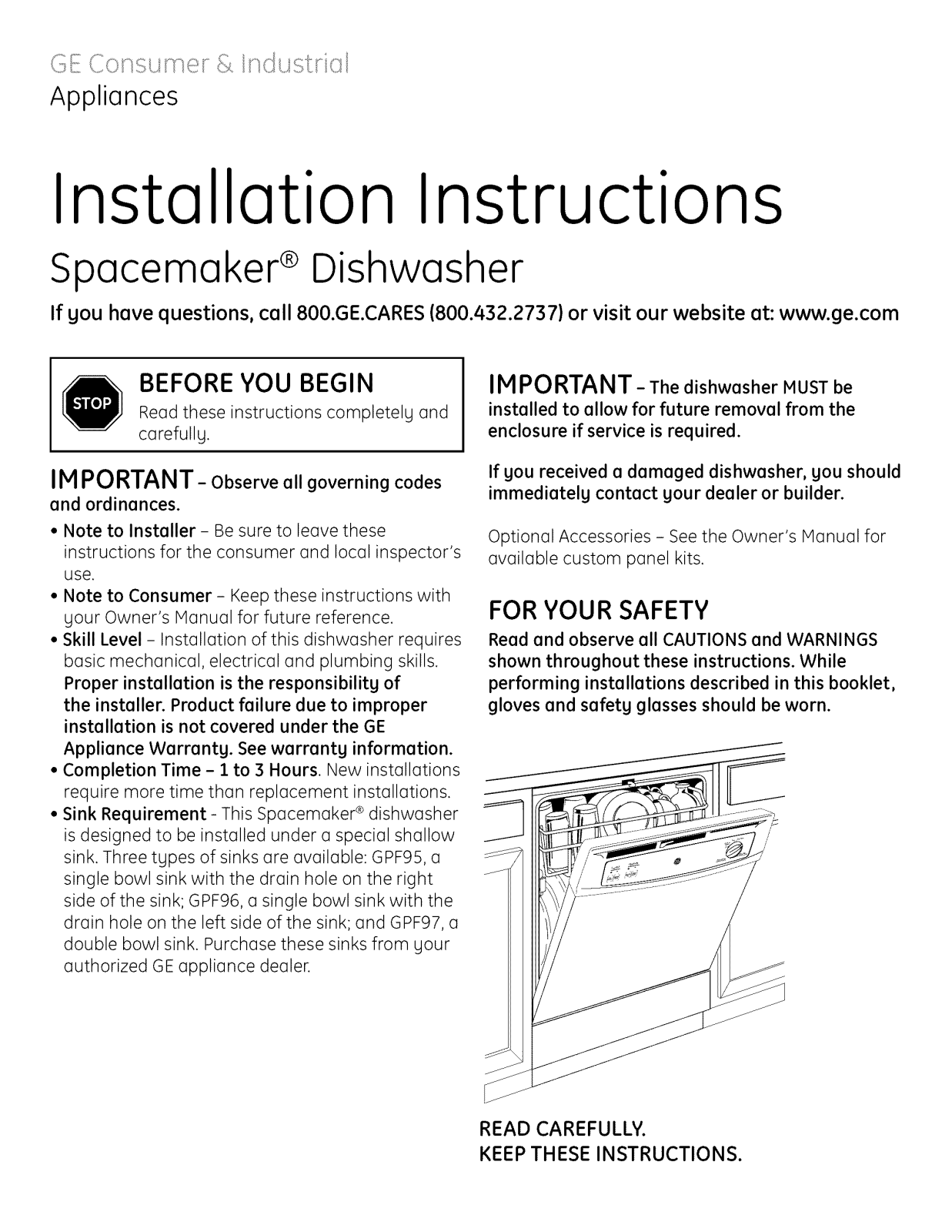

Installation Instructions

Spacemaker ®Dishwasher

If you have questions, call 800.GE.CARES (800.432.2737} or visit our website at: www.ge.com

BEFORE YOU BEGIN

Read these instructions completely and

carefullu.

IMPORTANT- Observe all governing codes

and ordinances.

• Note to Installer - Be sure to leave these instructions for the consumer and local inspector's

use.

• Note to Consumer - Keep these instructions with your Owner's Manual for future reference.

• Skill Level- Installation of this dishwasher requires basic mechanical, electrical and plumbing skills. Proper installation is the responsibility of the installer. Product failure due to improper

installation is not covered under the GE Appliance Warranty. See warranty information.

• Completion Time - I to 3 Hours. New installations require more time than replacement installations.

• Sink Requirement - This Spacemaker _ dishwasher is designed to be installed under a special shallow sink. Three types of sinks are available: GPF95, a single bowl sink with the drain hole on the right side of the sink; GPF96, a single bowl sink with the

drain hole on the left side of the sink; and GPF97, a double bowl sink. Purchase these sinks from your

authorized GE appliance dealer.

IMPORTANT- The dishwasher MUST be

installed to allow for future removal from the enclosure if service is required.

If you received a damaged dishwasher, you should immediately contact your dealer or builder.

Optional Accessories - See the Owner's Manual for available custom panel kits.

FOR YOUR SAFETY

Read and observe allCAUTIONS and WARNINGS shown throughout these instructions.While

performing installationsdescribedinthisbooklet, glovesand safetgglassesshould be worn.

READ CAREFULLY. KEEP THESE INSTRUCTIONS.

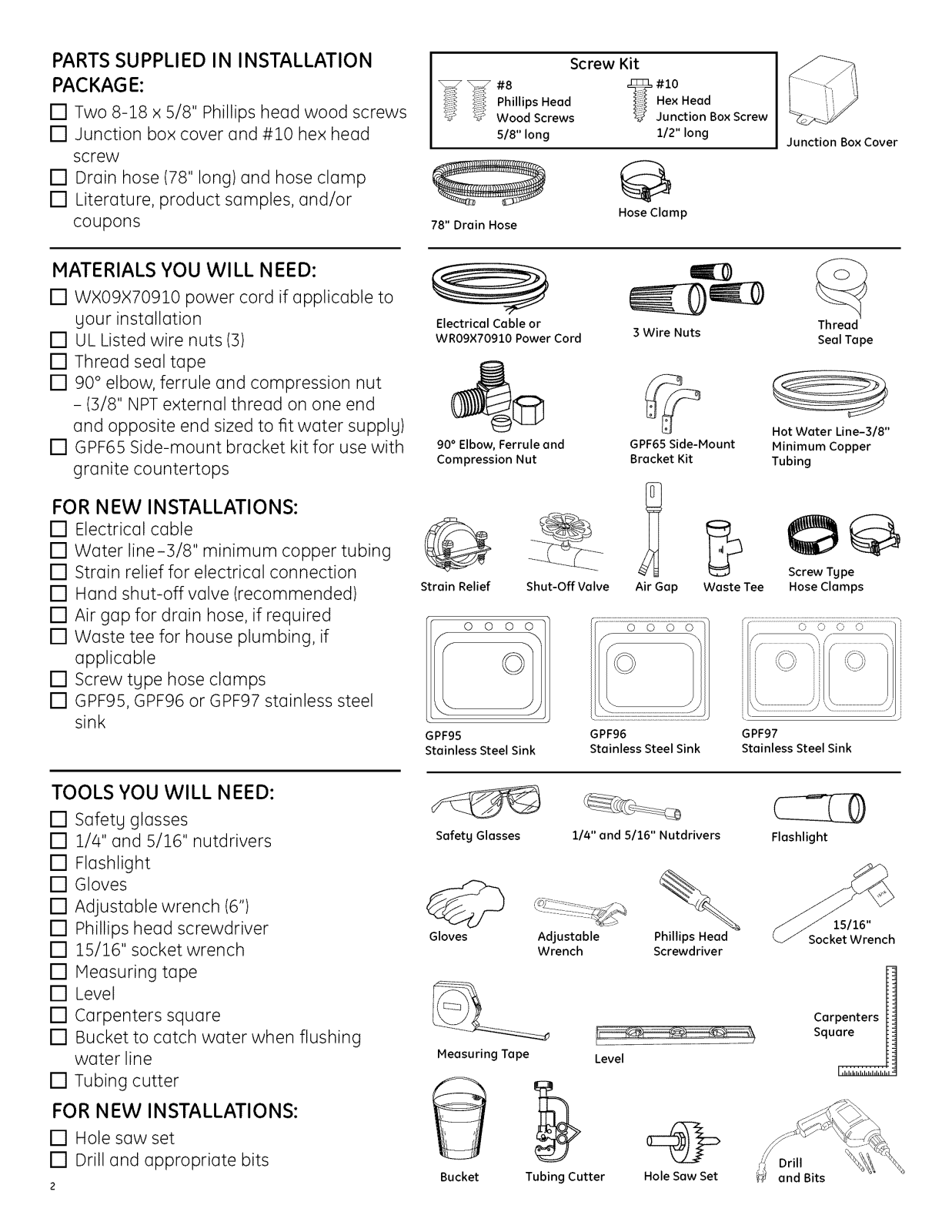

PARTS SUPPLIED IN INSTALLATION PACKAGE:

[] Two 8-18 x 5/8" Phillips head wood screws [] Junction box cover and #10 hex head

screw

[] Drain hose (78" long) and hose clamp [] Literature, product samples, and/or

coupons

MATERIALS YOU WILL NEED:

[] WX09X70910 power cord if applicable to

gour installation

[] UL Listed wire nuts (3) [] Thread seal tape

[] 90 ° elbow, ferrule and compression nut

- (3/8" NPT external thread on one end and opposite end sized to fit water supplg)

[] GPF65 Side-mount bracket kit for use with

granite countertops

FOR NEW INSTALLATIONS:

[] Electrical cable [] Water line-3/8" minimum copper tubing

[] Strain relief for electrical connection [] Hand shut-off valve (recommended)

[] Air gap for drain hose, if required [] Waste tee for house plumbing, if

applicable

[] Screw tgpe hose clamps [] GPF95, GPF96 or GPF97 stainless steel

sink

Screw Kit

Phillips Head }_ Hex Head

_'_ Wood Screws _ Junction Box Screw

5/8" long 112" long

78" Drain Hose

Electrical Cable or

WRO9X70910 Power Cord

90° Elbow, Ferrule and Compression Nut

Strain Relief Shut-OffValve

GPF95 Stainless SteelSink

Hose Clamp

3 Wire Nuts

GPF65 Side-Mount Bracket Kit

Air Gap Waste Tee

GPF96 Stainless Steel Sink

Junction Box Cover

Thread Seal Tape

Hot Water Line-3/8" Minimum Copper

Tubing

Screw Tgpe

Hose Clamps

J r \ '/ _,

GPF97 Stainless Steel Sink

TOOLS YOU WILL NEED:

[] Safetg glasses [] 1/4" and 5/16" nutdrivers

[] Flashlight [] Gloves

[] Adjustable wrench (6") [] Phillips head screwdriver

[] 15/16" socket wrench [] Measuring tape

[] Level [] Carpenters square

[] Bucket to catch water when flushing

water line

[] Tubing cutter

FOR NEW INSTALLATIONS:

[] Hole saw set [] Drill and appropriate bits

Safetg Glasses

Gloves

Measuring Tape

Bucket

114" and 5116" Nutdrivers

Adjustable Wrench

Tubing Cutter

Level

Phillips Head

Screwdriver

Hole Saw Set

Flashlight

_16"

Socket Wrench

Carpenters

Square H

Drill

and Bits

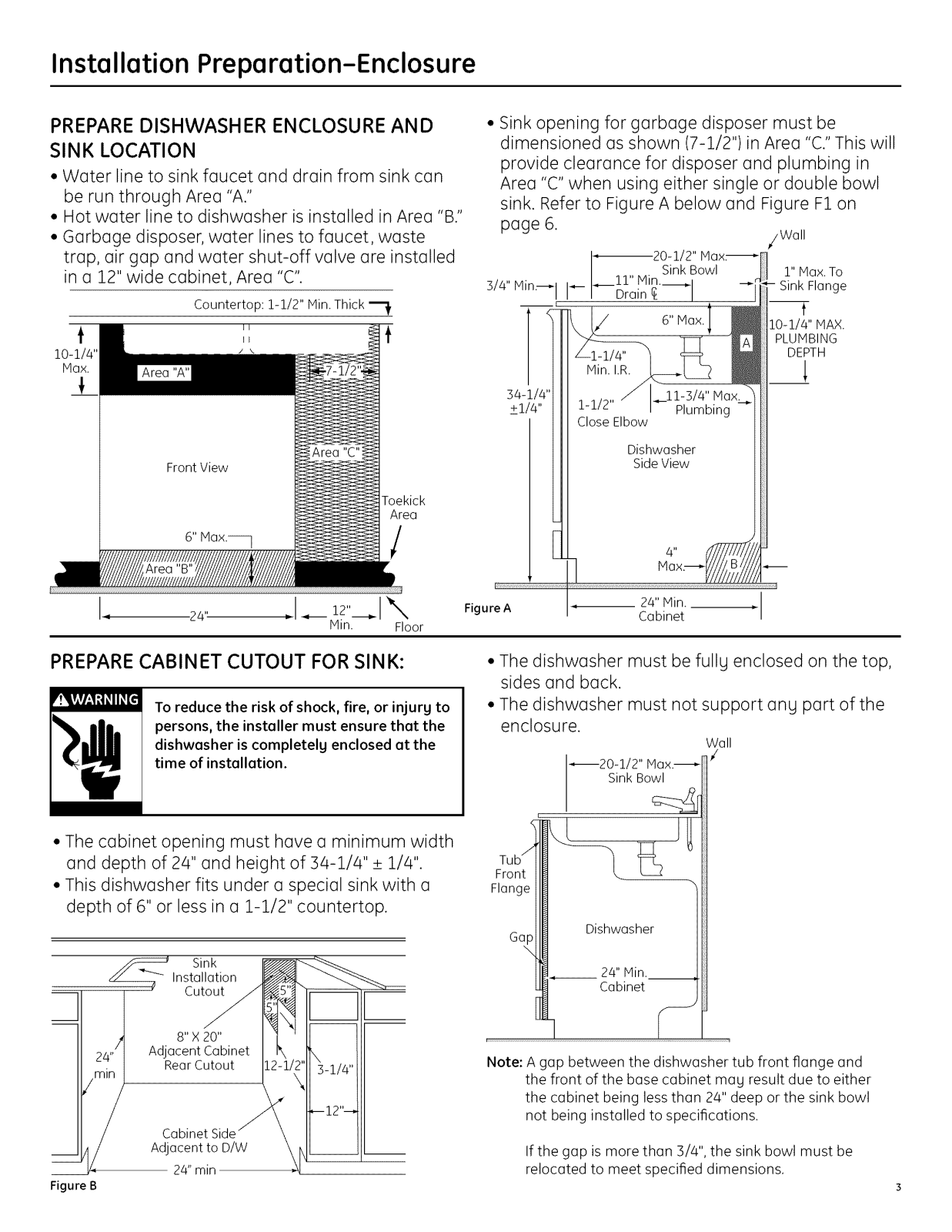

Installation Preparation-Enclosure

PREPARE DISHWASHER ENCLOSURE AND

SINK LOCATION

• Water line to sink faucet and drain from sink can be run through Area "A."

• Hot water line to dishwasher is installed in Area "B."

• Garbage disposer, water lines to faucet, waste trap, air gap and water shut-off valve are installed

in a 12" wide cabinet, Area "C".

Countertop: 1-1/2" PUn. Thick

10-1/4"

lax.

Toekick

Area

• Sink opening for garbage disposer must be dimensioned as shown (7-1/2")in Area "C."This will

provide clearance for disposer and plumbing in

Area "C" when using either single or double bowl

sink. Refer to Figure A below and Figure F1 on page 6.

,/Wall

_20-]

s!4" Min---I I-- Drain _ I - Sink Flange

54-1/4" _ l_11-S!a" ivlax:_

_+1/4" 1-1/2 Plumbing

_ii" Min.__,d

d / 6" Max. 10-1/4 MAX.

\ i '

_ _ ' An PLUiV LI-I/4" 1 _ m DEI

Min. I.R. I,I,I,I,I,I,I,I,I,l<_ _ M

Close Elbow

Sink Bowl i" Max. To

Dishwasher

Side View

[

W///J#////S

I,, 2/4"

.I._ 12,,_J\

Min. Floor

PREPARE CABINET CUTOUT FOR SINK:

To reduce the risk of shock, fire, or injury to

persons, the installer must ensure that the

dishwasher is completely enclosed at the time of installation.

• The cabinet opening must have a minimum width and depth of 24" and height of 34-1/4" _+1/4".

• This dishwasher fits under a special sink with a depth of 6" or less in a 1-1/2" countertop.

Sink

Installation

Cutout

8" X 20"

Adjacent Cabinet

Rear Cutout

Cabinet

Adjacent to D/W

24" rain

Figure B

Figure A

24" Min.

Cabinet

• The dishwasher must be fullg enclosed on the top, sides and back.

• The dishwasher must not support any part of the enclosure.

Wall

_20-i,

Sink Bowl

Front

Flange

Dishwasher

2a"Nin.

Cabinet

Note: A gap between the dishwasher tub front flange and

the front of the base cabinet may result due to either the cabinet being less than 24" deep or the sink bowl

not being installed to specifications.

If the gap is more than B/4", the sink bowl must be relocated to meet specified dimensions.

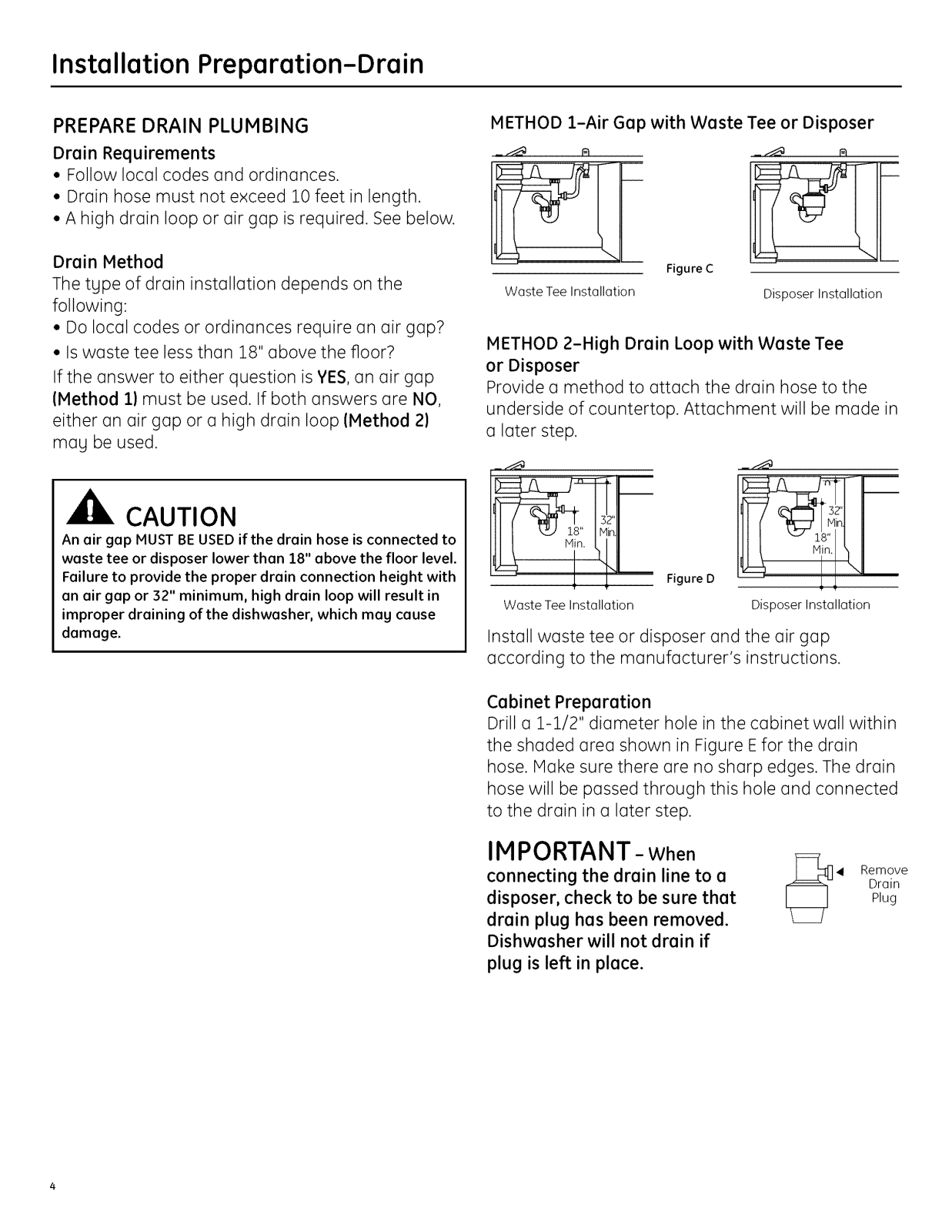

Installation Preparation-Drain

PREPARE DRAIN PLUMBING Drain Requirements

• Followlocalcodes and ordinances.

• Drainhose must notexceed 10 feetinlength,

• A highdrainlooporairgap isrequired.See below.

Drain Method

The type of drain installation depends on the following:

• Do local codes or ordinances require an air gap?

• Is waste tee less than 18" above the floor? If the answer to either question is YES,on air gap

(Method 1) must be used. If both answers are NO, either on air gap or a high drain loop (Method 2)

maLj be used.

CAUTION

An air gap MUST BE USED if the drain hose is connected to waste tee or disposer lower than 28" above the floor level.

Failure to provide the proper drain connection height with an air gap or 32" minimum, high drain loop will result in

improper draining of the dishwasher, which mag cause

damage.

METHOD 1-Air Gap with Waste Tee or Disposer

Figure C

Waste Tee Installation

Disposer Installation

METHOD 2-High Drain Loop with Waste Tee

or Disposer

Provide a method to attach the drain hose to the underside of countertop. Attachment will be made in

a later step.

32"

Waste Tee Installation

Disposer Installation

Install waste tee or disposer and the air gap

according to the manufacturer's instructions.

Cabinet Preparation

Drill a 1-1/2" diameter hole in the cabinet wall within

the shaded area shown in Figure Efor the drain hose. Make sure there are no sharp edges. The drain hose will be passed through this hole and connected to the drain in a later step.

IMPORTANT- When

connecting the drain line to a disposer, check to be sure that drain plug has been removed.

Dishwasher will not drain if plug is left in place.

Drain

Plug

4 Remove

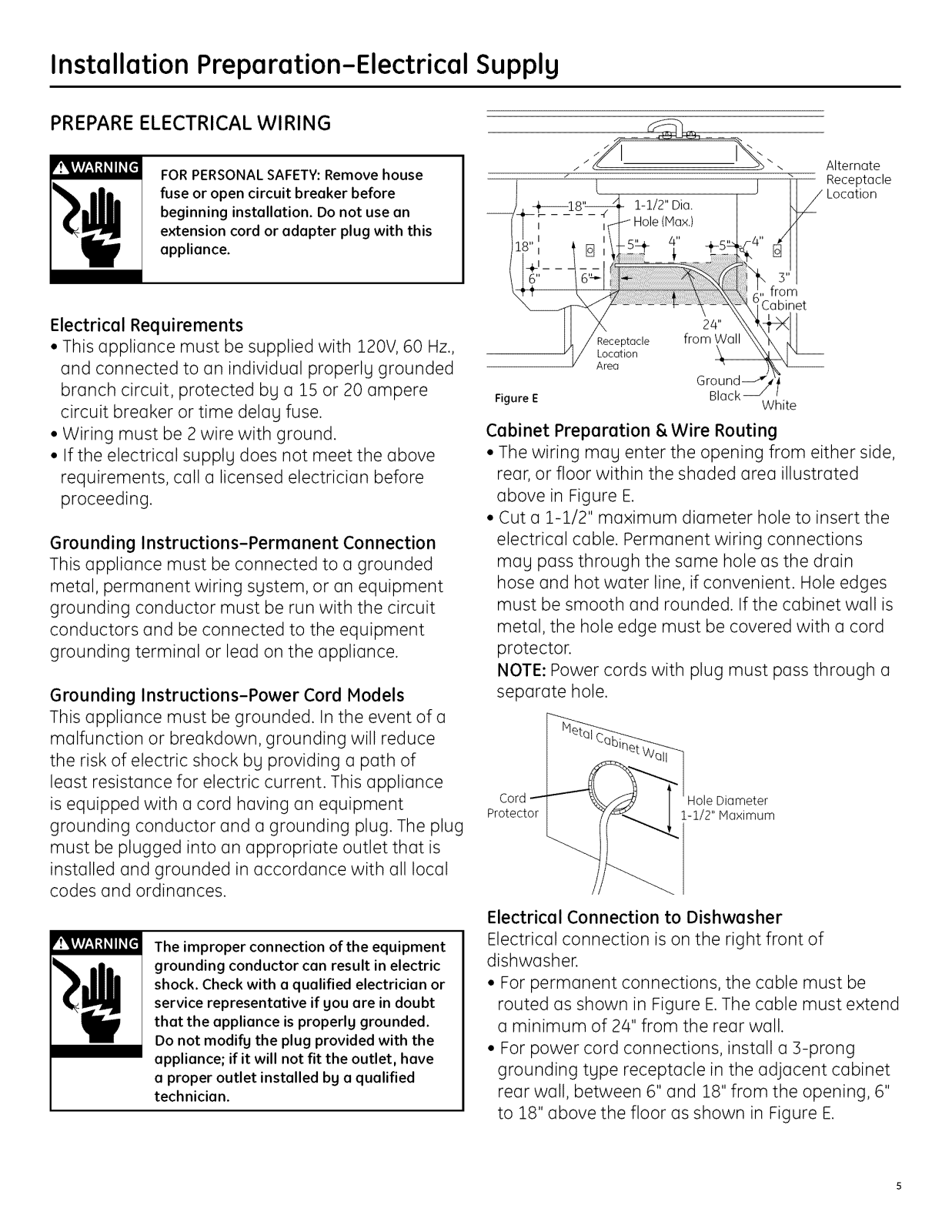

Installation Preparation-Electrical Supply

PREPARE ELECTRICAL WIRING

FOR PERSONAL SAFETY: Remove house fuse or open circuit breaker before

beginning installation. Do not use an extension cord or adapter plug with this appliance.

Electrical Requirements

• This appliance must be supplied with 120V, 60 Hz., and connected to an individual properlu grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse.

• Wiring must be 2 wire with ground.

• If the electrical supply does not meet the above requirements, call a licensed electrician before proceeding.

Grounding Instructions-Permanent Connection

This appliance must be connected to a grounded

metal, permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and be connected to the equipment grounding terminal or lead on the appliance.

Grounding Instructions-Power Cord Models

This appliance must be grounded. In the event of a

malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local

codes and ordinances.

The improper connection of the equipment grounding conductor can result in electric shock. Check with a qualified electrician or service representative if you are in doubt that the appliance is properly grounded.

Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper outlet installed by a qualified

technician.

Alternate

Receptacle Location

fro m

Cabinet

Receptacle LocQtion

Area

Figure E Black

White

Cabinet Preparation & Wire Routing

• The wiring may enter the opening from either side, rear, or floor within the shaded area illustrated

above in Figure E.

• Cut a 1-1/2" maximum diameter hole to insert the

electrical cable. Permanent wiring connections

may pass through the same hole as the drain hose and hot water line, if convenient. Hole edges

must be smooth and rounded. If the cabinet wall is metal, the hole edge must be covered with a cord

protector. NOTE: Power cords with plug must pass through a

separate hole.

Cord Hole Diameter

Protector 1-1/2" Maximum

Electrical Connection to Dishwasher

Electrical connection is on the right front of

dishwasher.

• For permanent connections, the cable must be routed as shown in Figure E.The cable must extend

a minimum of 24" from the rear wall.

• For power cord connections, install a 3-prong grounding type receptacle in the adjacent cabinet rear wall, between 6" and 18" from the opening, 6" to 18" above the floor as shown in Figure E.
