GSL25LGT
GE® ENERGY STAR® 25.0 Cu. Ft. CleanSteel™ Side-By-Side Refrigerator with Dispenser

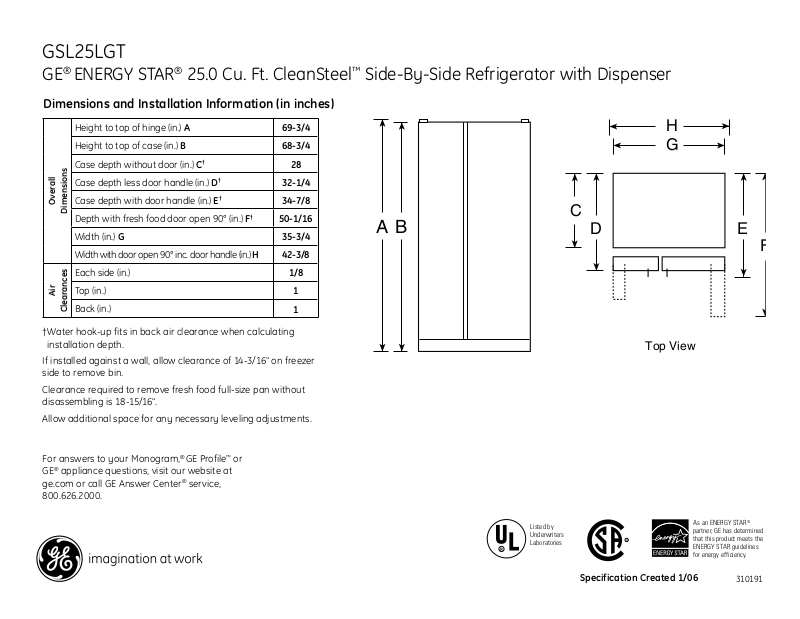

Dimensions and Installation Information (in inches)
|
Height to top of hinge (in.) A |
69-3/4 |
|
|
|
|
|
|
Height to top of case (in.) B |
68-3/4 |
|
|
|
|
|
<![if ! IE]> <![endif]>Overall Dimensions |
Case depth without door (in.) C† |
28 |
|
Case depth less door handle (in.) D† |
32-1/4 |
||
Case depth with door handle (in.) E† |
34-7/8 |
||
Depth with fresh food door open 90° (in.) F† |
50-1/16 |
||
|
|||
|
Width (in.) G |
35-3/4 |
|
|
|
|
|
|
Widthwithdooropen90°inc.doorhandle(in.)H |
42-3/8 |
|
|
|
|
|
<![if ! IE]> <![endif]>Air Clearances |
Each side (in.) |
1/8 |
|
|
|
||
Top (in.) |
1 |
||
|
|
||
Back (in.) |
1 |
||
|
|
|
†Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer side to remove bin.
Clearance required to remove fresh food full-size pan without disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
A B
H
G
C
D E F
Top View
Listed by Underwriters Laboratories
R
As an ENERGY STAR® partner, GE has determined
R that this product meets the ENERGY STAR guidelines for energy efficiency.
Specification Created 1/06 |
310191 |
GSL25LGT
GE® ENERGY STAR® 25.0 Cu. Ft. CleanSteel™ Side-By-Side Refrigerator with Dispenser
Features and Benefits
• CleanSteel™ Exterior - Offers a premium stainless look that resists fingerprints, smudges, and smears
•ExpressChill™ - Chills beverages quickly with easy one-button selection of 45 minutes
•External Temperature Controls with Actual Temperature Display, Child Lock and Door Alarm - Eliminates the guesswork in setting refrigerator temperatures; conveniently displayed on the dispenser
• Slide-Out Freezer Baskets - Provides ample, easy-access storage for frozen foods
• Freshness Center™ - Maximizes shelf space and enhances interior appearance
•Quick Ice™ Option - Makes ice up to 50% faster than normal settings—ideal for entertaining
•TurboCool™ Setting - "Revs up" the refrigerator, cooling it quickly after frequent door openings
•Integrated Ice™ System - Frees up valuable freezer space. It tilts down, providing easy access to bulk ice
•AutoEnergy Saver - Senses freezer and fresh door openings and adjusts refrigeration operation cycles accordingly
•Model GSL25LGTBS - CleanSteel™
As an ENERGY STAR® partner, GE has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Specification Created 1/06 |
310191 |
