GE GSL25JFP Specification
GSL25JFP – GE 24.9 Cu. Ft. Side-By-Side Refrigerator with Dispenser
Specification Revised 3/03

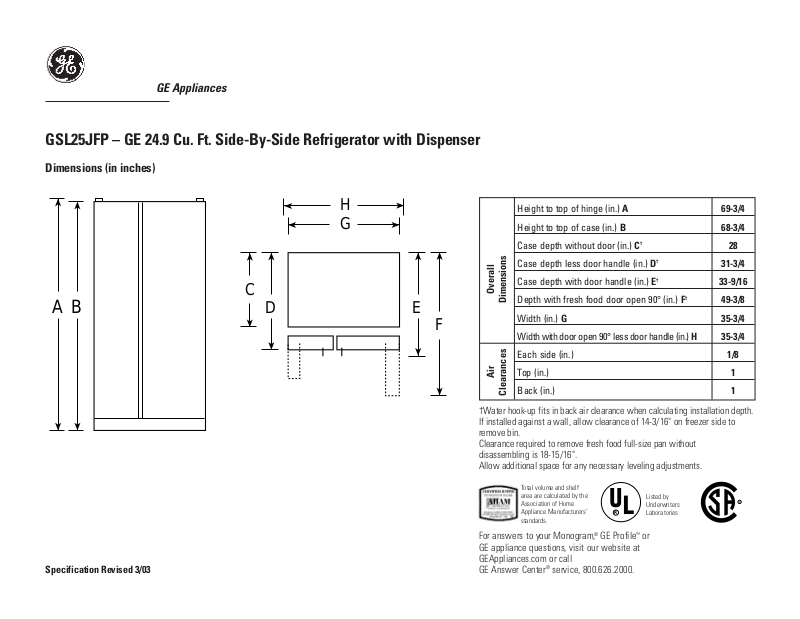

Dimensions (in inches)
A
Top View
G
D
C
F
B
E
H
†Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer side to
remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
Height to top of hinge (in.) A 69-3/4
Height to top of case (in.) B 68-3/4
Case depth without door (in.) C
†
28
Case depth less door handle (in.) D
†
31-3/4
Case depth with door handle (in.) E
†
33-9/16
Depth with fresh food door open 90° (in.) F
†
49-3/8
Width (in.) G 35-3/4
Width with door open 90° less door handle (in.) H 35-3/4
Each side (in.) 1/8
Top (in.) 1
Back (in.) 1
Air Overall
Clearances Dimensions
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
GE Appliances
Specification Revised 3/03
GSL25JFP – GE 24.9 Cu. Ft. Side-By-Side Refrigerator with Dispenser
W
A
T
E
R
C
R
U
S
H
E
D
C
U
B
E
D
L
I
G
H
T
Features and Benefits
• CleanSteel Exterior – Offers a premium stainless look that resists fingerprints, smudges
and smears.
• Upfront Temperature Controls – Are positioned up front, close at hand, for maximum
convenience and ease of use.
• Adjustable Spill Proof Glass Shelves – Helps contain spills for ease of cleaning.
• Tall LightTouch! Dispenser – Provides chilled water, cubed ice or crushed ice at the
slightest touch.
• GE SmartWater™Filtration System – Delivers clean, great-tasting water and ice
through the LightTouch™Dispenser.
• Sealed Crisper – Helps preserve fruits and vegetables
• Adjustable Temperature Deli Pan – Keep meats and cheeses fresher, longer.
• Model GSL25JFPBS – CleanSteel
™
GE Appliances
