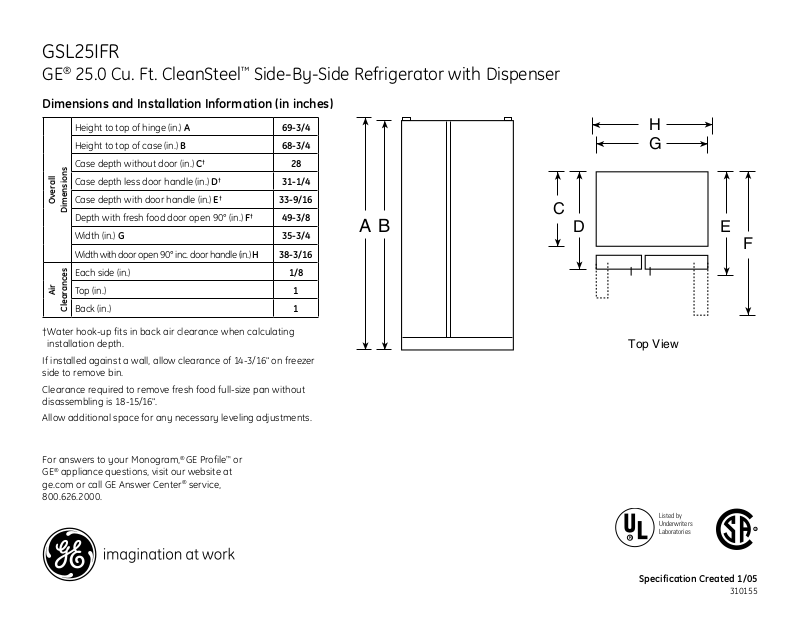

GSL25IFR
GE® 25.0 Cu. Ft. CleanSteel™ Side-By-Side Refrigerator with Dispenser
Dimensions and Installation Information (in inches)
|
Height to top of hinge (in.) A |
69-3/4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Height to top of case (in.) B |
68-3/4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>Overall Dimensions |
Case depth without door (in.) C† |
28 |
|
|
|
|
|
|
Case depth less door handle (in.) D† |
31-1/4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Case depth with door handle (in.) E† |
33-9/16 |
|
|
|
|
|
|
|
Depth with fresh food door open 90° (in.) F† |
49-3/8 |
|
A |
|
B |
||
|
Width (in.) G |
35-3/4 |
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Widthwithdooropen90°inc.doorhandle(in.)H |
38-3/16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>Air Clearances |
Each side (in.) |
1/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Back (in.) |
1 |
|
|
|
|
|
|
|
|
Top (in.) |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
†Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer side to remove bin.
Clearance required to remove fresh food full-size pan without disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
H
G
C
D E F
Top View
Listed by Underwriters Laboratories
R
R
Specification Created 1/05
310155
GSL25IFR
GE® 25.0 Cu. Ft. CleanSteel™ Side-By-Side Refrigerator with Dispenser
Features and Benefits
• CleanSteel™ Exterior - Offers a premium stainless look that resists fingerprints, smudges, and smears
•Upfront Electronic Dial Temperature Controls - A simple turn of the knob regulates interior temperatures
•Adjustable Spill Proof Glass Shelves - Helps to contain spills for ease of cleaning
• Tall LightTouch! Dispenser - Delivers chilled water cubed ice or crushed ice at the slightest touch
• GE SmartWater™ Filtration System - Provides clean, fresh-tasting filtered ice and has a slim spacesaving design
•FrostGuardTM Technology - Protects frozen items from freezer burn by monitoring door openings and defrosting only when needed
•Sealed Vegetable / Fruit Crisper - Provides easy storage for your fruits and vegetables
•Sealed Deli Pan - Provides convenient storage for cheeses and luncheon meats
•Adjustable Gallon Door Bins - Make room for milk and other gallon-size containers
•Deluxe Quiet Design - Significantly reduces operating noise
•Model GSL25IFRBS - CleanSteel™
