GE GSL22WGP Specification
GSL22WGP – GE 21.8 Cu. Ft. Side-By-Side Refrigerator with Dispenser
Specification Revised 3/03

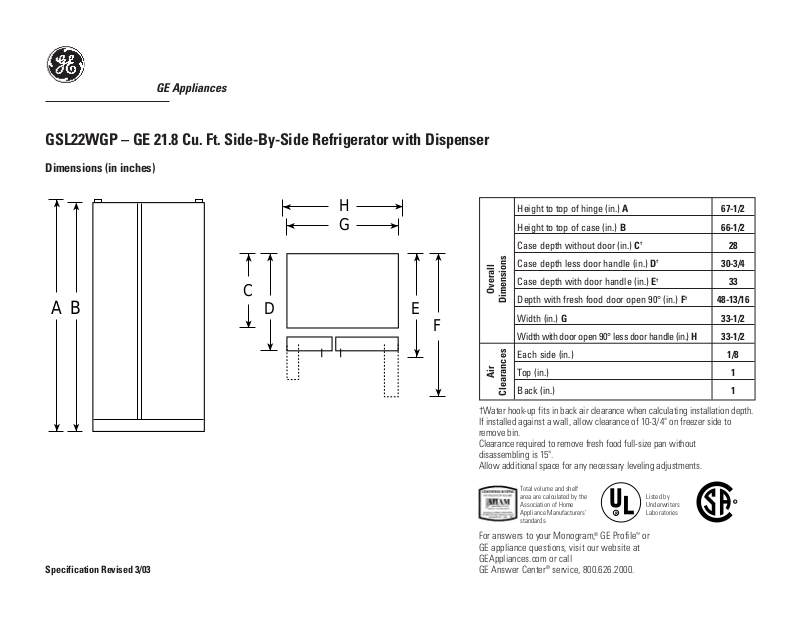

Dimensions (in inches)
A
Top View
G
D
C
F
B
E
H
†Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 10-3/4" on freezer side to
remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 15".
Allow additional space for any necessary leveling adjustments.
Height to top of hinge (in.) A 67-1/2
Height to top of case (in.) B 66-1/2
Case depth without door (in.) C
†
28
Case depth less door handle (in.) D
†
30-3/4
Case depth with door handle (in.) E
†
33
Depth with fresh food door open 90° (in.) F
†
48-13/16
Width (in.) G 33-1/2
Width with door open 90° less door handle (in.) H 33-1/2
Each side (in.) 1/8
Top (in.) 1
Back (in.) 1
Air Overall
Clearances Dimensions
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
GE Appliances
Specification Revised 3/03
GSL22WGP – GE 21.8 Cu. Ft. Side-By-Side Refrigerator with Dispenser
W
A
T
E
R
C
R
U
S
H
E
D
C
U
B
E
D
L
IG
H
T
R
E
S
E
T
W
A
T
E
R
F
I
L
T
E
R
H
O
L
D
3
S
E
C
S
Features and Benefits
• CleanSteel Exterior – Offers a premium stainless look that resists fingerprints smudges
and smears.
• Upfront Electronic Temperature Controls – A simple knob turn regulates
interior temperatures.
• Adjustable Slide-Out, Spill Proof Glass Shelves – Shelves slide out, and spills stay put.
• In-the-Door Can Rack – Conveniently located inside the refrigerator door to increase flexibility
and free up valuable shelf space.
• Tall LightTouch! Dispenser – Provides chilled water, cubed ice or crushed ice at the
slightest touch.
• GE SmartWater™Plus Filtration System – Delivers clean, great-tasting water and ice
through the LightTouch! Dispenser.
• Adjustable Humidity Vegetable/Fruit Crisper – Provides the ideal storage environment
for fruits and vegetables.
• Model GSL22WGPBS – CleanSteel
™
GE Appliances
