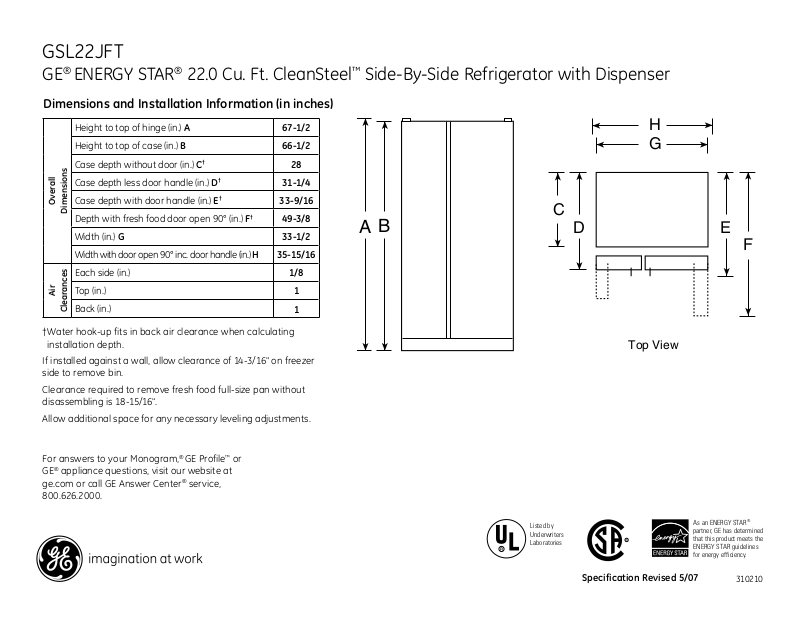

GSL22JFT
GE® ENERGY STAR® 22.0 Cu. Ft. CleanSteel™ Side-By-Side Refrigerator with Dispenser
Dimensions and Installation Information (in inches)
|
Height to top of hinge (in.) A |
67-1/2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Height to top of case (in.) B |
66-1/2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>Overall Dimensions |
Case depth without door (in.) C† |
28 |
|
|
|
|
|
|
|
|
|
|
Case depth less door handle (in.) D† |
31-1/4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Case depth with door handle (in.) E† |
33-9/16 |
|
|
|
|
|
|
|
|
|
|
|
Depth with fresh food door open 90° (in.) F† |
49-3/8 |
|
A |
|
B |
|
|
|
|
||
|
Width (in.) G |
33-1/2 |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Width with door open 90° inc. door handle (in.) H |
35-15/16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>Air Clearances |
Each side (in.) |
1/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Back (in.) |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
Top (in.) |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
†Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer side to remove bin.
Clearance required to remove fresh food full-size pan without disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
H
G
C
D |
E |
F
Top View
Listed by Underwriters Laboratories
As an Energy Star® partner, GE has determined that this product meets the Energy Star guidelines for energy efficiency.
Specification Revised 5/07 |
310210 |
GSL22JFT
GE® ENERGY STAR® 22.0 Cu. Ft. CleanSteel™ Side-By-Side Refrigerator with Dispenser
Features and Benefits
• CleanSteel™ Exterior - Offers a premium stainless look that resists fingerprints, smudges, and smears
•External Temperature Controls with Child Lock - Combines the ease of 0-9 temperature settings, with the sophistication of electronic controls
•Adjustable Humidity Vegetable/Fruit Crisper - Provides easy storage environment for fruits and vegetables
• Adjustable Temperature Deli Drawer - Keep meats and cheeses fresher, longer
• Snack Pan - Helps keep everyday foods like muffins and carrot sticks fresh
•Adjustable Gallon Door Bins - Make room for milk and other gallon-size containers
•AutoEnergy Saver - Senses freezer and fresh door openings and adjusts refrigeration operation cycles accordingly
•GE SmartWater™ Filtration System - Delivers clean great-tasting water and ice through the LightTouch! Dispenser
•FrostGuard™ Technology - Protects frozen items from freezer burn by monitoring freezer door openings and defrosting only when needed
•Deluxe Quiet Design - Significantly reduces operating noise
•NeverClean™ Condenser - Condenser coils are encased, so they don’t require cleaning in normal operating environments
•Model GSL22JFTBS - CleanSteel™
As an Energy Star® partner, GE has determined that this product meets the Energy Star guidelines for energy efficiency.
