GE GSHS6NGB Specification
GSHS6NGB
GE® ENERGY STAR® 25.9 Cu. Ft. Side-By-Side Refrigerator

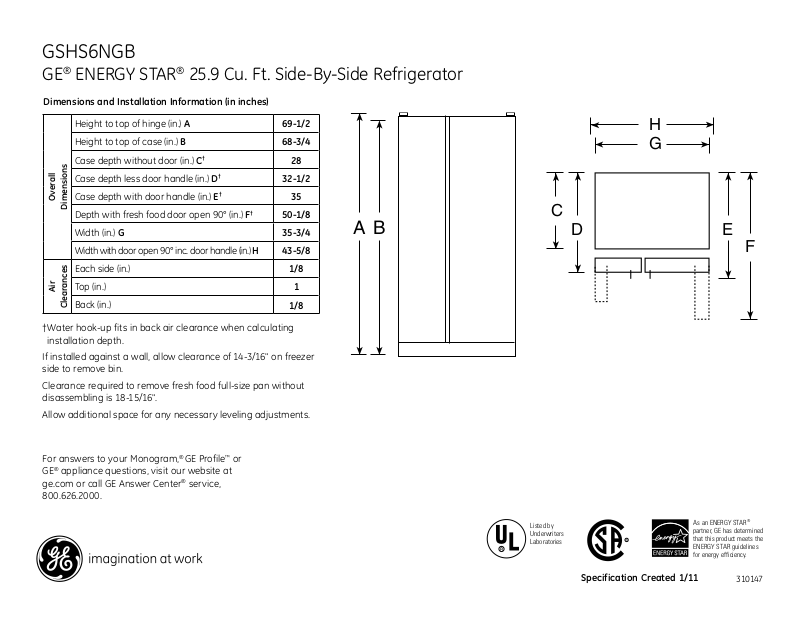

Dimensions and Installation Information (in inches)
|
Height to top of hinge (in.) A |
69-1/2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Height to top of case (in.) B |
68-3/4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| <![if ! IE]> <![endif]>Overall Dimensions |
Case depth without door (in.) C† |
28 |
|
|
|
|
|
|
Case depth less door handle (in.) D† |
32-1/2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Case depth with door handle (in.) E† |
35 |
|
|
|
|
|
|
|
Depth with fresh food door open 90° (in.) F† |
50-1/8 |
|
|
|
|
|
|
|
|
A B |
||||||
|
Width (in.) G |
35-3/4 |
|
|||||
|
|
|
|
|
|
|
|
|
|
Width with door open 90° inc. door handle (in.) H |
43-5/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| <![if ! IE]> <![endif]>Air Clearances |
Each side (in.) |
1/8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Back (in.) |
1/8 |
|
|
|
|
|
|
|
|
Top (in.) |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
†Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer side to remove bin.
Clearance required to remove fresh food full-size pan without disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
H
G
C
D E
F
Listed by |
|
|
|
As an Energy Star® |
|
|
|
partner, GE has determined |
|
Underwriters |
|
|
|
|
|
|
|
that this product meets the |
|
Laboratories |
|
|
|
|
|
|
|
Energy Star guidelines |
|
|
|
|
|
|
|
|
|
|
for energy efficiency. |
Specification Created 1/11 |
310147 |
GSHS6NGB
GE® ENERGY STAR® 25.9 Cu. Ft. Side-By-Side Refrigerator
Features and Benefits
•Stainless steel exterior with hidden hinges - Stainless steel adds elegance to any kitchen
•ClimateKeeper™ system - Electronic controls, multiple electronic sensors and a multi-flow air
system help provide even cooling
• Integrated dispenser with UltraFlow64 - See the exact temperature and dispense 64 ounces of filtered water per minute
• Angled ALL LED lighting in fresh food and freezer - Brightly illuminates every inch of the fresh food and freezer compartments
• Freshness Center™ (2-stack drawer system) - Maintain fresh tastes with two humidity-controlled crisper drawers
•Adjustable ClearLook™ door bins - Store gallon containers with ease in the door and free up valuable shelf space
•QuickSpace™ shelf - Tall containers area snap with a quick slide of the retractable shelf
• Arctica® icemaker - A special access door puts ice within reach
•Adjustable, slide-out spillproof glass shelves - Adjustable shelves are designed to make clean up quick and easy
•GE water filtration - six month filter - Removing impurities means fresh-tasting water for your family
•FrostGuard™ technology - Controlled defrosting keeps frozen foods from feeling the burn
•AutoEnergy saver - Senses door openings and adjusts refrigeration operation cycles
accordingly
•Deluxe quiet design - Significantly reduces unnecessary operating noise in the kitchen
•Model GSHS6NGB - Stainless Steel
*
As an Energy Star® partner, GE has determined that this product meets the Energy Star guidelines for energy efficiency.
Specification Created 1/11 |
310147 |
