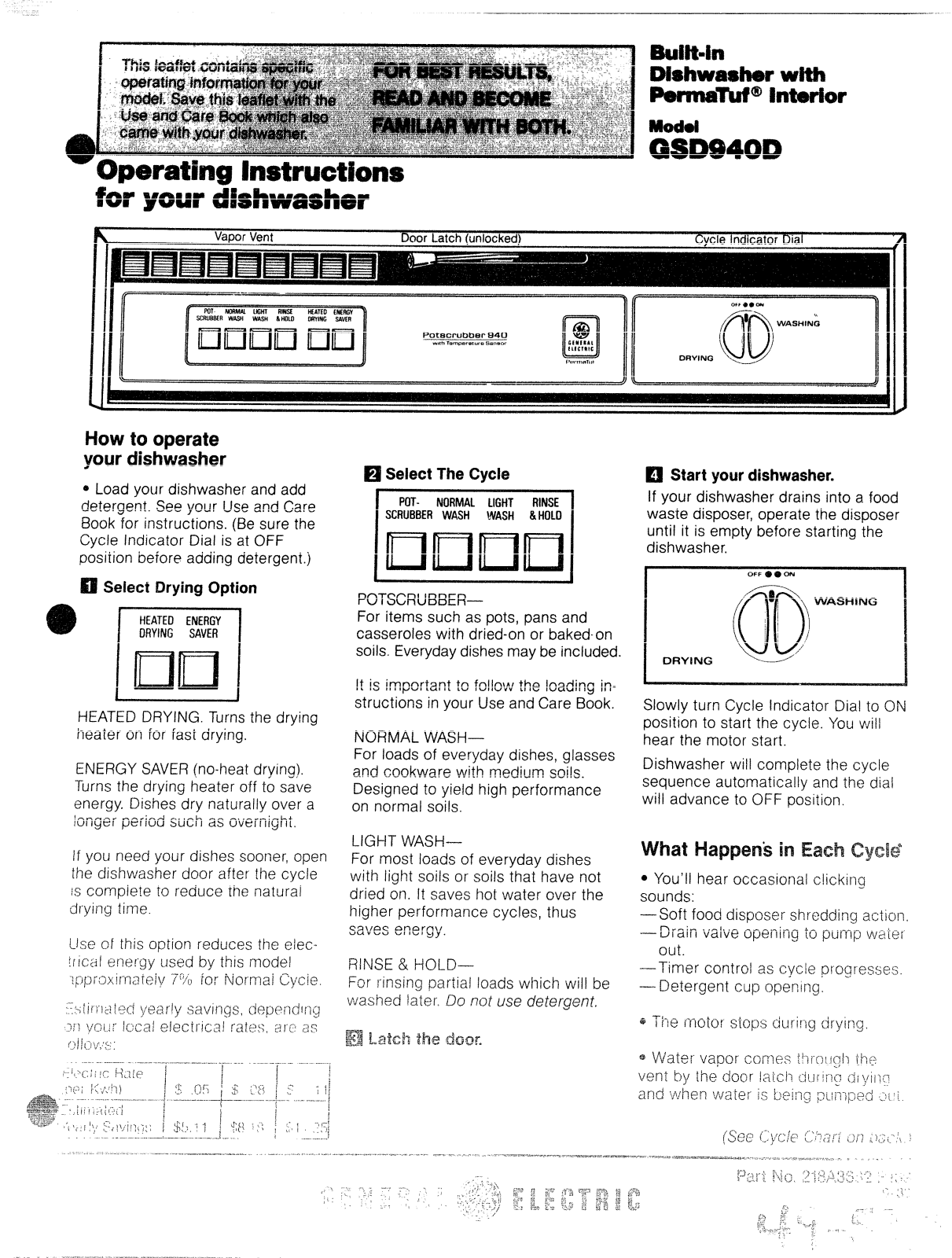

GE GSD940D Operating Instructions
How tooperate
your dishwasher
@Load your dishwasher and add
detergent. See your Useand Care
E?ookfor instructions. (Besure the
Cycle Indicator Dial is at OFF
position before adding detergent.)
Select Drying Option
HEATED ENERGY
DRYING SAVER
——.——.-
❑Select The Cycle
POT- NORMAL LIGHT RINSE
SCRUBBER WASH WASH &HOLD
I
L
POTSCf?UBBER—
For items such as pots, pans and
casseroles with dried-on or baked-on
soils. Everydaydishesmay be included.
I
[
❑ Start your dishwasher.
If your dishwasherdrains into a food
waste disposer,operate the disposer
until it is empty before starting the
dishwasher.
n
HEATEDDRYING.Turn: the drying
heater on for fast drying.
ENERGYSAVER(no-heatdrying).
Turnsthe drying heater off to save
energy. Dishesdry naturally over a
ionger period such as overnight.
If you need your dishes sooner,open
the dishwasher door after the cycle
!s complete to reduce the natural
dryii7glime.
L/~eof this option reduces the elec
![Ica! energy us~d by th!s model
‘:pprOX!IT)(2t(?l\/?f!~~jfor pJor~m~/ ~y~1~,
~~1Ijf,“1:]~I:f:jj’(+~r~~~~j’y’j11~~,(jF?/.jF’ildlf)~
I)I wx r IczaI eiectrIc?{~rates, :2K 2s
“.’1!{.1’)’,’::--r----
~I.,.. &;<~[f,
r.‘>”’(, I, ,
I
~... ... - -..—..
f
1:
It is important to follow the loading in-
structions in your Useand Care Book.
NORMALWASH—
For loads of everyday dishes, glasses
and cookware with medium soils.
Designed to yield high performance
on normal soils.
LIGHT WASH—
For most loads of everyday dishes
with light soils or soils that have not
dried on. It saves hot water over the
higher performance cycles, thus
saves energy.
RINSE& HOLD—
For rinsing partial loads which will be
washed Ia[er. Do not use detergent,
Slowly turn Cycle Indicator Dial to ON
position to start the cycle. Youwill
hear the motor start.
Dishwasher will complete the cycle
sequence automatically and the dial
will advance to OFF position.
in
e You’II hear occasional clicking
sounds:
—Soft food disposer shredding actio/7.
-——Drain valve opening to pump vvster
out.
—~:
IImer centro1as c:ycle pIoqresses.
–- tl~tergent cup opening, L
* The motor stops during drying,
.

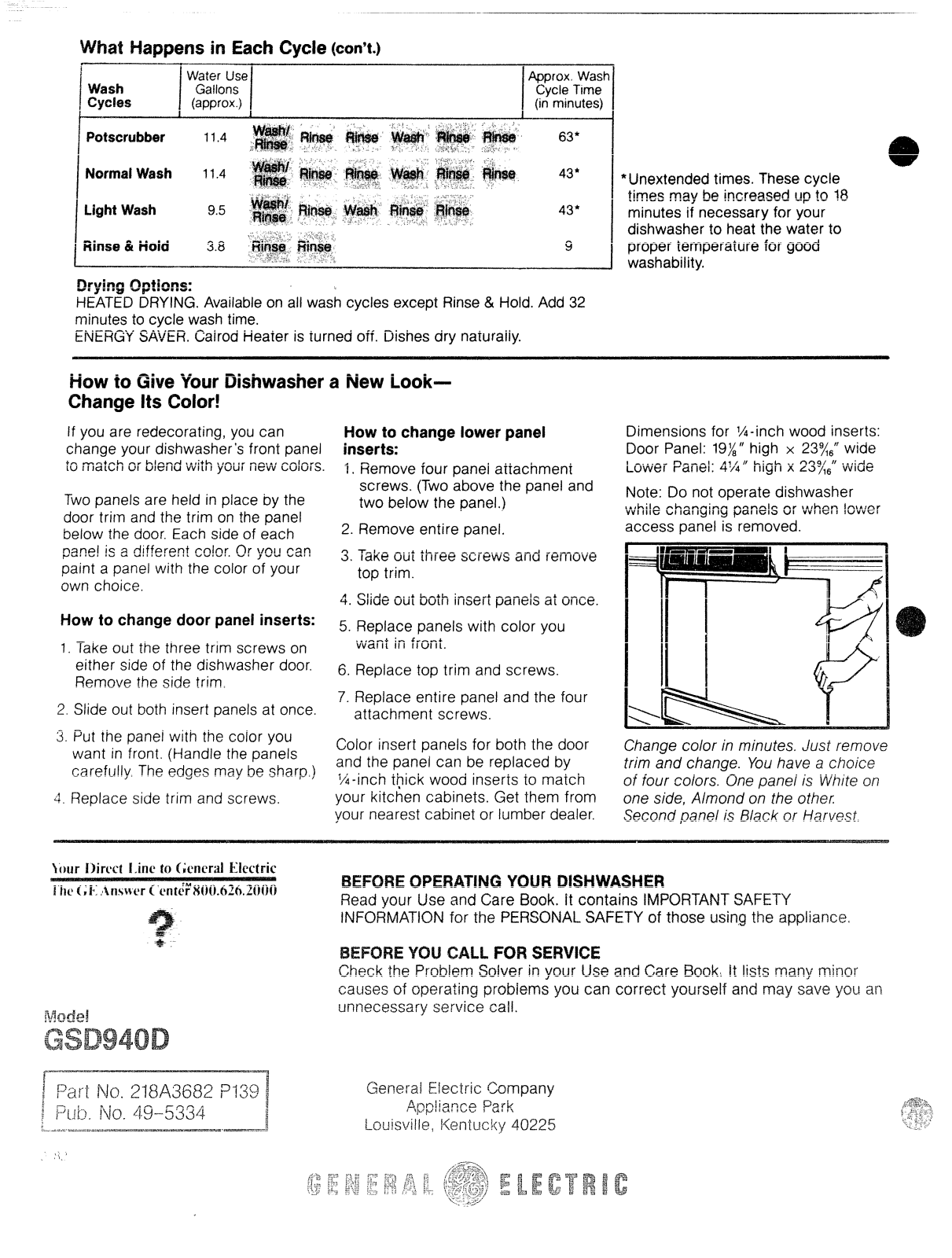

Happensin EachCycle(con’t.)
DryingOptions:
HEATEDDRYING.Availableonall wash cyclesexcept Rinse& Hold.Add 32
minutesto cycle washtime.
ENERGYSAVER.CalrodHeater is turned off. Dishesdry naturally
l-lowto (We YourDishwashera New Look—
Change Its Color!
times may be increasedup-to 18
minutes if necessaryfor your
dishwasherto heat the water to
propertemperature for good
washabilityy.
If you are redecorating,you can
change your dishwasher’sfront panel
to match or blendwith yournewcolors.
Twopanels are held in place by the
door trim and the trim on the panel
below the door. Eachside of each
panel is a different color. Or you can
paint a panel with the color of your
own choice.
How to change door panel inserts:
1.Takeout the three trim screws on
either side of the dishwasher door.
Removethe side trim.
2. Slide out both insertpanelsat once.
3. Put the panel with the color you
want in front. (Handle the panels
carefully. The edges may be sharp.)
4. Replace side trim and screws.
l-lowto change lower panel
inserts:
1. Removefour panel attachment
screws. (Twoabove the panel and
two below the panel.)
2. Removeentire panel.
3. Takeout three screws and remove
top trim.
4. Slideout both insertpanels at once.
5. Replacepanels with color you
want in front.
6. Replace top trim and screws.
7. Replace entire panel and the four
attachment screws.
Color insert panels for both the door
and the panel can be replaced by
1~.inch thick wood
your kitchen cabinets. Get them from
your nearest cabinet or lumber dealer.
illSf?rtSto match
Dimensionsfor M-inch wood inserts:
Door Panel: 19X” high
Lower Panel;
Note: Do not operate dishwasher
while changing panelsor when lower
access panel is removed.
41A”high x 23~G”wide
“-~i b——-----
Changecolor in mhutes, Just remove
trim and change. Youhave a choice
of four colors. One panel is White cm
one side, Almond on the other
Second panel is Black or Harvest.
x 23fiG”wide
.—.—
,.,
for the PERSONALSAFETYof those using the appliance.
*-
FORSERVICE
Check the
causes of operaling probkwns you can correct yourself and may save you an
ProbJemSolver in your Use and Care Book, Hlists many minor
urmxxixary service call.
\,
