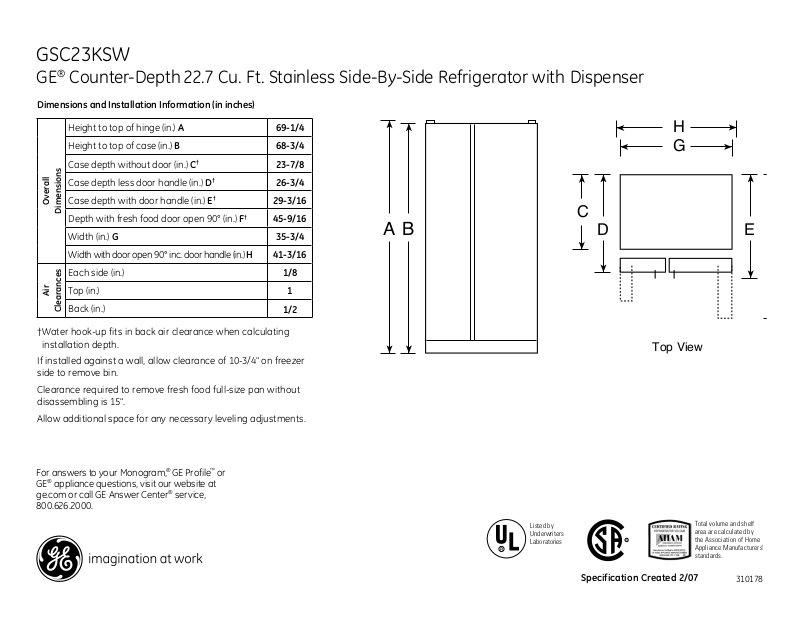

Page 1
"94 SxS Refer
A
Top View
G
D
C
F
B
E
H
GSC23KSW
GE® Counter-Depth 22.7 Cu. Ft. Stainless Side-By-Side Refrigerator with Dispenser
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-1/4
Height to top of case (in.)
Case depth without door (in.)
Case depth less door handle (in.)
Case depth with door handle (in.)
Overall
Dimensions
Depth with fresh food door open 90° (in.)
Width (in.)
Width with door open 90° inc. door handle (in.)
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 10-3/4" on freezer
side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 15".
Allow additional space for any necessary leveling adjustments.
G 35-3/4
B 68-3/4
†
C
†
D
†
E
†
F
23-7/8
26-3/4
29-3/16
45-9/16
H 41-3/16
1/8
1
1/2
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 2/07
Total volume and shelf
area are calculated by
the As sociation of Home
Appliance Manufacturers'
standards.
310178
Page 2
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36"
24"
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36-1/8"
24-1/2"
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36"
24"
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36-1/8"
24-1/2"
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
GSC23KSW
GE® Counter-Depth 22.7 Cu. Ft. Stainless Side-By-Side Refrigerator with Dispenser
Rough-In Dimensions
Standard, New Construction
and Replacement Installation
Installation Tips to Maximize
the Built-In Look
• All wall/floor molding should be removed
prior to installation.
• Water recess on rear wall recommended to
prevent water line damage. 48" minimum
length, 1/4" diameter water line tubing
recommended.
• When possible, recess both copper water
line and electrical outlet. (See local codes)
• Front and rear leveling legs are adjustable
for the built-in look. (See owner’s manual)
• If optional collar trim kit is to be used or
anticipated, see collar trim installation on
next page for different rough-in dimensions.
Specification Created 2/07
310178
Page 3
Door
Alarm
Warmer
Colder
Warmer
Colder
Water
0°F is Recommended
Lock/ - C Set Temp
37°F is Recommended
Reset
Filter
Turbo
Cool
Lock
Crushed Cubed Light
Adjust Temperature
Freezer
Refrigerator
GSC23KSW
GE® Counter-Depth 22.7 Cu. Ft. Stainless Side-By-Side Refrigerator with Dispenser
Features and Benefits
• Counter-Depth Configuration - Offers a built-in look by fitting almost completely flush with
surrounding cabinetry and blending in with décor
• Stainless Steel Exterior - Convey a look of utmost polish and sophistication
• External Controls with Actual Temperature Display, Child Lock and Door Alarm - Eliminates the
guesswork in setting refrigerator temperatures; conveniently displayed on the dispenser
• Freshness Center
controlled drawers
• Quick Ice
™
Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• Integrated Ice
• Integrated Shelf Support System - Provides strong, yet flexible support
• AutoEnergy Saver - Senses freezer and fresh door openings and adjusts refrigeration operation
cycles accordingly
• ClearLook
™
Adjustable Gallon Door Bins - Store gallon containers with ease
• Adjustable Slide-Out, Spillproof Glass Shelves - Shelves slide out, spills stay put
™
(3-pan stack) - Maximizes shelf space by utilizing three humidity-
™
System - Frees up valuable freezer space; It tilts down, providing easy access to bulk ice
• GE Water Filtration System - Delivers clean great-tasting water and ice through the
LightTouch! Dispenser
• FrostGuard
™
Technology - Protects frozen items from freezer burn by monitoring freezer door
openings and defrosting only when needed
• Deluxe Quiet Design - Significantly reduces operating noise
• NeverClean
™
Condenser - Condenser coils are encased, so they don't require cleaning in normal
operating environments
• Model GSC23KSWSS - Stainless steel
Specification Created 2/07
310178
