GE GSC23KGT Specification

"94 SxS Refer

A

Top View

G

D

C

F

B

E

H

R

R

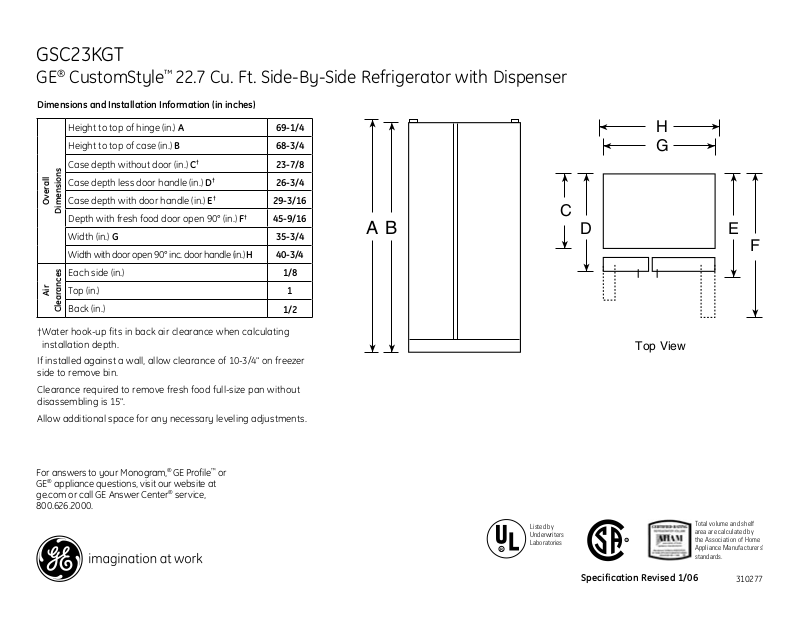

GSC23KGT

GE® CustomStyle™ 22.7 Cu. Ft. Side-By-Side Refrigerator with Dispenser

Dimensions and Installation Information (in inches)

Height to top of hinge (in.) A 69-1/4

Height to top of case (in.) B 68-3/4

Case depth without door (in.) C

Case depth less door handle (in.) D

Case depth with door handle (in.) E

Overall

Dimensions

Depth with fresh food door open 90° (in.) F

Width (in.) G 35-3/4

†

†

†

†

23-7/8

26-3/4

29-3/16

45-9/16

Width with door open 90° inc. door handle (in.) H 40-3/4

Each side (in.)

Top (in.)

Air

Clearances

Back (in.)

† Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 10-3/4" on freezer
side to remove bin.

Clearance required to remove fresh food full-size pan without
disassembling is 15".

Allow additional space for any necessary leveling adjustments.

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

1/8

1

1/2

Listed by
Underwriters
Laboratories

Total volume and shelf
area are calculated by
the As sociation of Home
Appliance Manu fact urers'
standards.

Specification Revised 1/06

310277

8' Ceiling

13" to 14"
Cabinet

12"
Soffit

70-1/4"*

36"

24"

8' Ceiling

13" to 14"
Cabinet

12"
Soffit

70-1/4"*

36-1/8"

24-1/2"

8' Ceiling

13" to 14"
Cabinet

12"
Soffit

70-1/4"*

36"

24"

finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.

8' Ceiling

13" to 14"
Cabinet

12"
Soffit

70-1/4"*

36-1/8"

24-1/2"

*The rough-in dimension of 70-1/4" is minimum and is measured from the

finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.

25"
Counter
Top

ElectricalWater

3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)

24"
Cabinet

25"
Counter
Top

Electrical Water

3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)

24"
Cabinet

25"
Counter
Top

ElectricalWater

3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)

24"
Cabinet

25"
Counter
Top

Electrical Water

Trim

3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)

24"
Cabinet

FOR 21 CUBIC FOOT MODELS

FOR 24 CUBIC FOOT MODELS

GSC23KGT

GE® CustomStyle™ 22.7 Cu. Ft. Side-By-Side Refrigerator with Dispenser

Rough-In Dimensions

Standard, New Construction
and Replacement Installation

Installation Tips to Maximize

the Built-In Look

• All wall/floor molding should be removed
prior to installation.

• Water recess on rear wall recommended to
prevent water line damage. 48" minimum
length, 1/4" diameter water line tubing
recommended.

• When possible, recess both copper water
line and electrical outlet. (See local codes)

• Front and rear leveling legs are adjustable
for the built-in look. (See owner’s manual)

• If optional collar trim kit is to be used or
anticipated, see collar trim installation on
next page for different rough-in dimensions.

Specification Revised 1/06

310277
