GE GPT145SSL0SS, GPT225SGL0BB, GPT225SGL0WW, GPT225SSL0SS Installation Guide
GPT225 Series
GPT145 Series
Installation
Portable Dishwashers
Instructions
If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737) or visit our website at:
GEAppliances.com. In Canada, please call 1.800.561.3344 or visit www.geappliances.ca
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
WARNING
• To reduce the risk of electric shock, fire, or injury
to persons, the installer must ensure that the
dishwasher is completely enclosed at the time of
installation.
• FOR PERSONAL SAFETY: Do not use an
extension cord or adapter plug with this appliance.
• The improper connection of the equipment grounding
conductor can result in a risk of electric shock. Check
with a qualified electrician or service representative
if you are in doubt that the appliance is properly
grounded.
• Excessive Weight Hazard – Use two or more
people to move and install dishwasher. Failure to do
so can result in back or other injury.
• Tip-Over Hazard – Do not push down on an open
door. Failure to follow these instructions can result
in death, serious injury or cuts.
FOR YOUR SAFETY
Read and observe all WARNINGS and CAUTIONS
shown throughout these instructions.
While performing installations described in this booklet,
gloves, safety glasses or goggles should be worn.
IMPORTANT – Observe all governing codes and
ordinances.
• Note to Installer – Be sure to leave these instructions
for the consumer’s and local inspector’s use.
• Note to Consumer – Keep these instructions with
your Owner’s Manual for future reference.
•
Skill Level – Installation of this dishwasher requires
mechanical, electrical and plumbing skills. Proper
installation is the responsibility of the installer. Product
failure due to improper installation is not covered under
the GE Appliances Warranty. See Warranty information.
• Completion Time – 1 to 3 Hours. New installations
require more time than replacement installations.
IMPORTANT – If you received a damaged dishwasher,
you should immediately contact your dealer or builder.
Your dishwasher is a water heating appliance.
basic
READ CAREFULLY
KEEP THESE INSTRUCTIONS
0120501699C
31-4000205 03-19 GEA
PARTS SUPPLIED:
Faucet adapter kit included in Installation Package.
Faucet Adapter
Casters
Unicouple – Attached to dishwasher
and stored in pocket on back of
dishwasher
Thin and thick
washers
TOOLS YOU WILL NEED:
Small
Pliers
Hammer
Installation Preparation
PREPARE ELECTRICAL WIRING
WARNING
this appliance.
ELECTRICAL REQUIREMENTS
Be sure that the electrical connection and wire size are
adequate and in conformance with the National Electric
Code, ANSI/NFPA 70 – latest edition, and all local codes
and ordinances.
This appliance must have:
• 120V, 60Hz, AC-only, 15-ampere or 20-ampere, fused
electrical supply.
• Wiring must be 2 wire with ground and rated for 75°C (167°F).
• If the electrical supply does not meet the above
requirements, call a licensed electrician before proceeding.
It is recommended to have:
• A circuit breaker or time-delay fuse.
• A properly grounded individual branch circuit.
Your dishwasher circuit should not
be used for any other appliance
while the dishwasher is in operation
since the dishwasher requires a full
capacity of the circuit.
If the wall receptacle you plug the
dishwasher’s power cord into is
controlled by a switch, turn on the switch.
FOR PERSONAL SAFETY: Do not use
an extension cord or adapter plug with

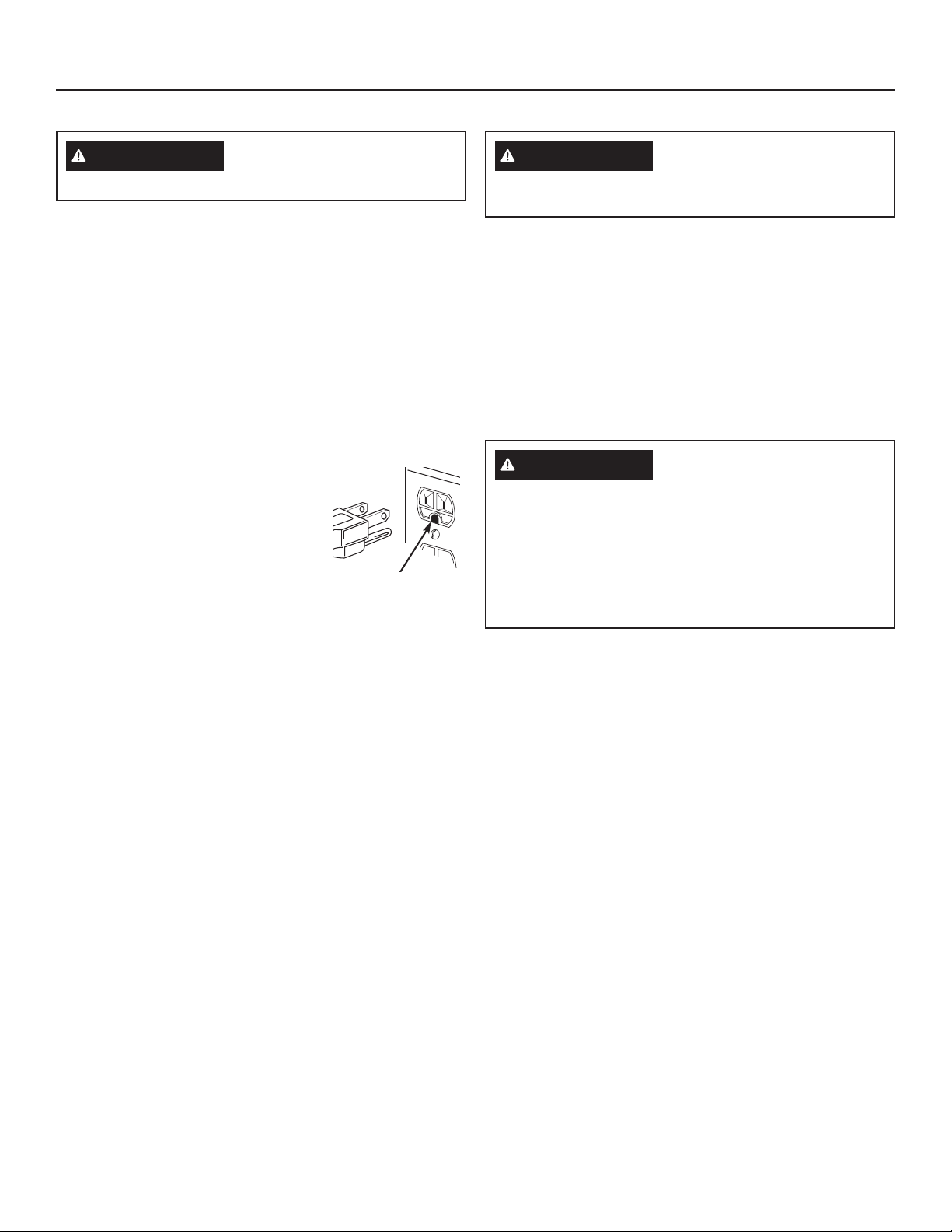

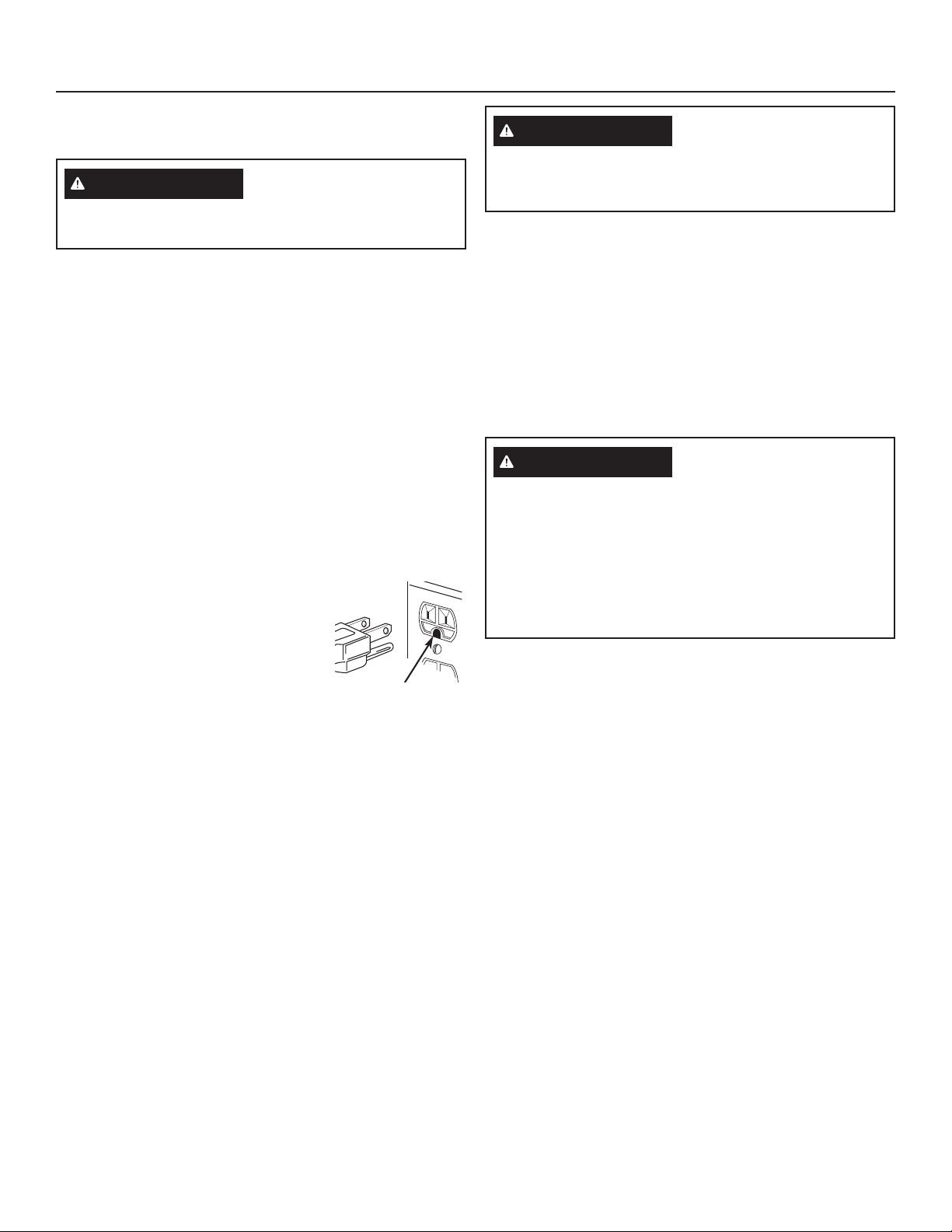

Ensure proper ground
exists before use
WARNING
Do not, under any circumstances, cut or remove the third
grounding prong from the power cord.
Grounding Instructions–Power Cord Models
This appliance must be grounded. In the event of a malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This appliance is equipped with a cord having an equipment
grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and ordinances.
WARNING
The improper connection of the equipment grounding
conductor can result in a risk of electric shock. Check with
DTXDOL¿HGHOHFWULFLDQRUVHUYLFHUHSUHVHQWDWLYHLI\RXDUH
in doubt that the appliance is properly grounded. Do not
modify the plug provided with the appliance, if it will not
¿WWKHRXWOHWKDYHDSURSHURXWOHWLQVWDOOHGE\DTXDOL¿HG
technician.
2
Installation Instructions

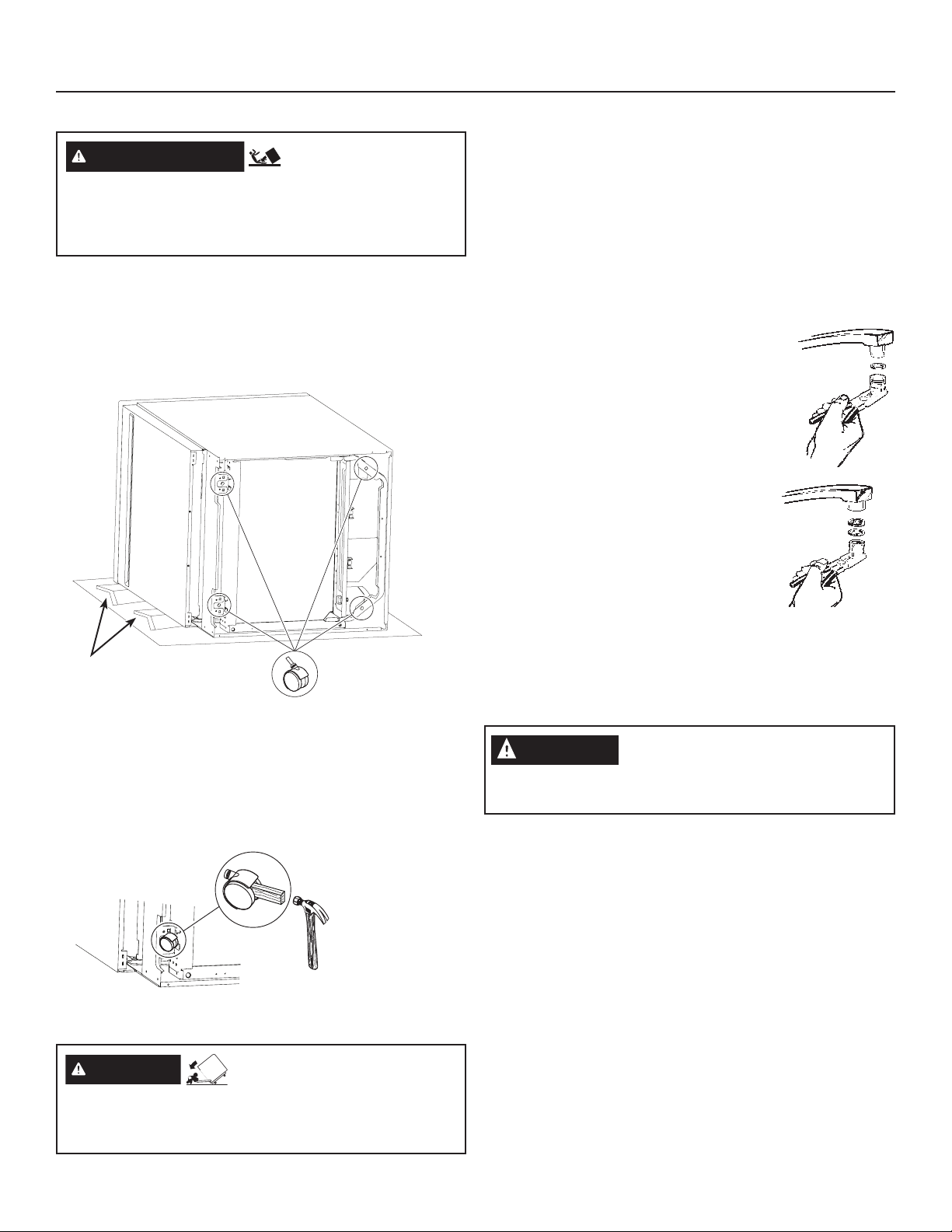

STEP 1 INSTALL CASTERS STEP 2 INSTALL FAUCET ADAPTER
The special faucet adapter supplied with your dishwasher
WARNING
Use two or more people to move and install the
dishwasher.
Failure to do so may result in back or other injury.
• Move the dishwasher close to its intended use and
storage location.
• Place two shipping corner posts or other protective
material behind it.
• Carefully lay the dishwasher over onto its side and rest it
on the protective surface.
- Excessive Weight Hazard
must be attached to the sink faucet before you can use
your dishwasher.
The faucet adapter is designed to fit standard spouts
having internal or external threads. You will find the
adapter and two washers in the faucet adapter packet
in your dishwasher.
Attach the Faucet Adapter
7RLQVWDOOIDXFHWDGDSWHU¿UVWUHPRYHWKHROGDHUDWRURU
trim ring on your faucet spout.
External Threads
• If faucet has external threads: Insert the
thinner of the two washers into the faucet
adapter and attach it to the faucet spout.
• Tighten with pliers.
Internal Threads
• If faucet has internal threads: Insert both
of the washers into the faucet adapter
and attach it to the faucet spout.
• Tighten with pliers.
Non-Standard Threads
• If the faucet adapter threads do not match your faucet
spout, your local hardware or plumbing supply store
QRUPDOO\KDVDGGLWLRQDO¿WWLQJVWRDGDSW\RXUIDXFHWVSRXW
to the special faucet adapter.
Shipping corner posts or
other protective material
• Firmly push casters into holes as shown. Casters must
be inserted completely. Pull on each caster to make sure
they are secured in position.
NOTE: It may be helpful to place a piece of wood
between the caster wheels and then lightly tap the wood
with a hammer.
• Carefully upright the dishwasher onto its casters.
WARNING
Do not push down on an open door.
Failure to follow these instructions can result in death,
serious injury or cuts.
- Tip-Over Hazard
Make sure each caster
is completely seated
and secured in place
If needed, place block of
wood between wheels
and tap it to seat
CAUTION
dishwasher. We suggest that you disconnect the sink spray
attachment, if your sink has one, and place a cap over the opening.
A sink spray attachment hose can burst if
it is installed on the same faucet as your
3
Installation Instructions

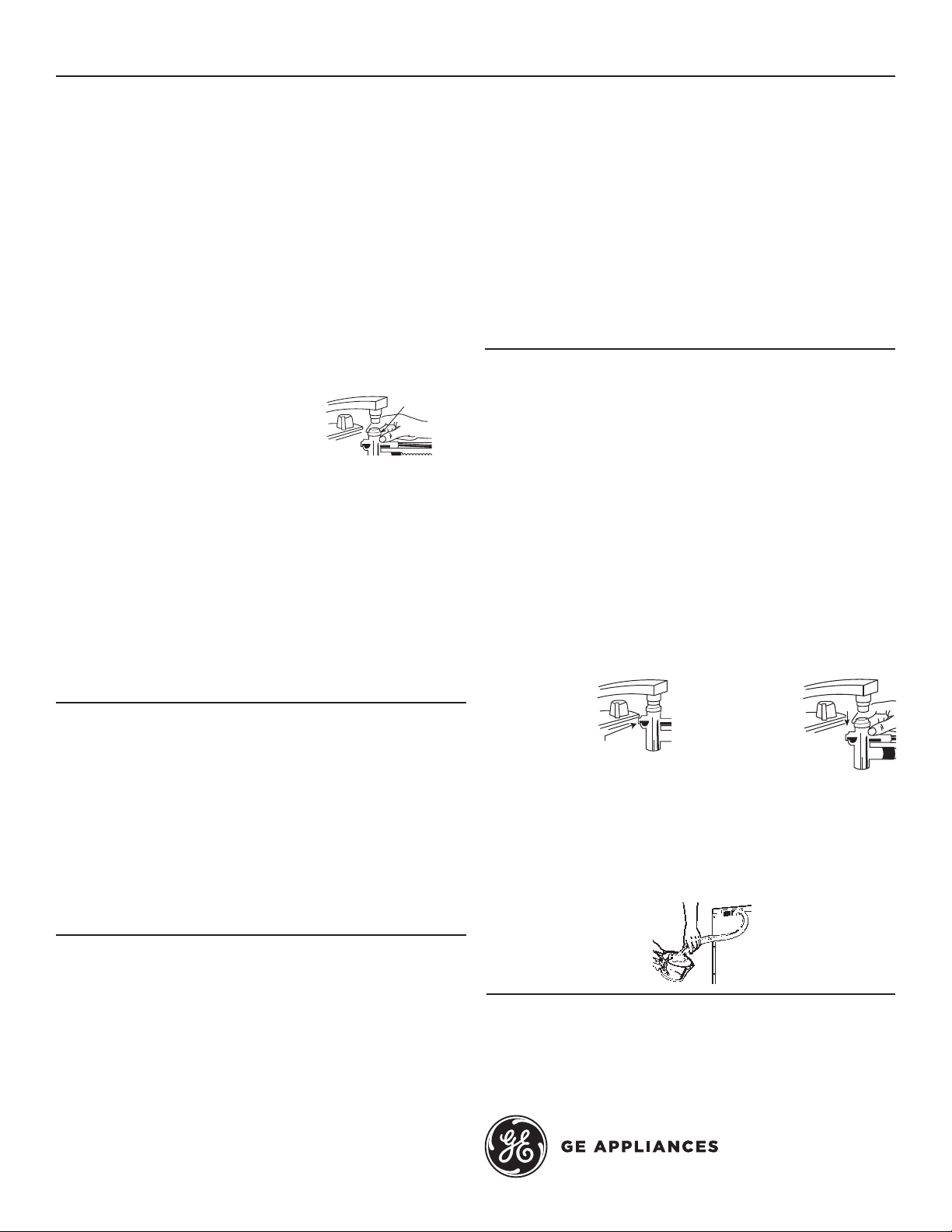

STEP 3 CONNECT THE UNICOUPLE
TO THE FAUCET
• Run garbage disposer, if you have one, to clean out the
disposer and thus allow water to drain from the sink
through the disposer and down the drain.
• Run hot water faucet to purge cold water from the hot
water line. The hot water must be between 120°F and
150°F for best wash performance.
• Roll the dishwasher to a position just in front of the sink.
• Pull the unicouple and its hoses completely out from
storage compartment at rear of the dishwasher.
• Attach the unicouple to the
faucet adapter following
the three steps below:
– Depress the locking
collar at the top of the
unicouple.
– Place the unicouple
completely over the faucet
adapter.
– Release the locking collar. The unicouple should now be
locked onto the faucet adapter.
• Turn on the hot water faucet and check for leaks. If a leak
is detected, disconnect the unicouple, and refer to Step 4.
NOTE: The unicouple’s small hose carries water from the
faucet to the dishwasher. The large hose carries water from
the dishwasher to the sink. Orient the faucet with the
unicouple attached so water from the unicouple will run into
the sink drain.
Collar
HOW TO DISCONNECT DISHWASHER
STEP 1 REMOVE POWER FROM
DISHWASHER
• Unplug the dishwasher.
• Feed power cord back into its storage location.
STEP 2 REMOVE UNICOUPLE FROM
FAUCET
7XUQRႇKRWZDWHU
• Relieve water pressure from the unicouple assembly
before disconnecting it from the faucet by depressing the
red pressure relief button on the unicouple.
• Depress the locking collar and remove the unicouple from
the faucet.
• Drain excess water from the unicouple by holding it below
sink level and allowing excess water to run from the
hoses into a pan or similar container to catch the water.
• Feed the unicouple and hoses back into their storage
pocket.
Depress red button to
release water pressure
Depress collar to
release unicouple
from faucet
STEP 4 FAUCET ADAPTER LEAK
Skip this step if no unicouple leak was observed.
If a unicouple leak was observed in Step 3, take whatever
actions are necessary to repair the leak. This may be as
simple as tightening the faucet adapter. Or, it may require
the services of a plumber if water is leaking from the
interface between the moveable faucet arm and the fixed
part of the faucet fastened to the sink.
STEP 5 PRETEST CHECK LIST
Review this list after connecting your dishwasher to avoid
charges for a service call that is not covered by your
warranty.
Open the door and remove all foam and paper
packaging.
Locate the Owner’s Manual.
Read the Owner’s Manual to familiarize yourself with the
operation of the dishwasher.
Remove the protective film, if present, from the control
panel, door and cabinet.
Add 2 quarts of water to the bottom of the dishwasher to
lubricate the pump seal.
Plug power cord into outlet.
Close and latch dishwasher door.
Start dishwasher.
• If the sink is 34" or higher from the floor, the excess
water in unicouple hoses cannot be drained directly into
the sink. It will be necessary to drain excess water from
hoses into a bowl or suitable container that is held outside
and lower than the sink.
STEP 3 STORE DISHWASHER
• Close the dishwasher door.
• Roll the dishwasher into its storage location.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT
NOTICE
Appliance Park
Louisville, KY 40225
