Safety information ............. 2
installation Instructions ...s-12
Step-bg-step instructions ....... 6-12
Operating Instructions
Breaking a salt bridge ............. !a
Cleaning the nozzle and
venturi assemblg ................. 14
Features ...................... 15, !6
Service .................... 13, 16-20
Water softener sgstem ........ 13-21
Care and Cleaning ............ 22
Troubleshooting Tips ...... 23-25
Consumer Support
Consumer Support ....... Back Cover

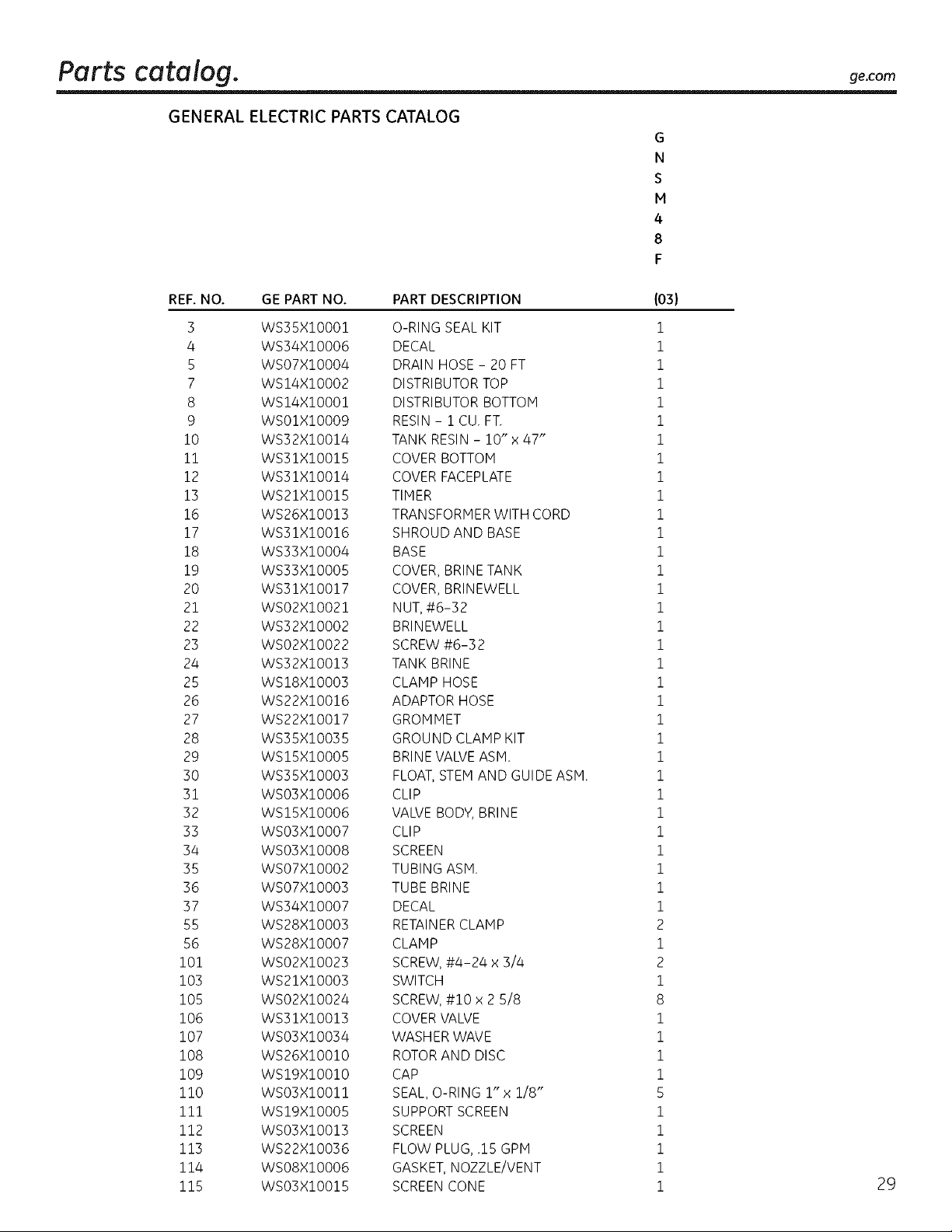

Parts list/catalog .............. 27-30
Warrantg ........................ 31
ge.com
Water Softening
Sgstem
Model GNSM48F
chemical reduction claims specified on the performance data sheet.
System tested and certified by NSFInternational against NSF/ANSIStandard 44 for the
Write the model and serial
numbers here:
Model #
Serial #
You can find them on the
back of the control head.
7289362 215Cl173P024 49-50179 07-06 JR
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
;i WARNING!
For your safety, the information in this manual must be followed to minimize the risk of electric
shock, property damage or personal injurg.
SAFETYPRECAUTIONS
::Ji::Check and complg with gour state and local codes.
You must follow these guidelines.
::Ji::Use care when handling the water softening
sgstem. Do not turn upside down, drop, drag
or set on sharp protrusions.
?_:Water softening sgstems using sodium chloride
(salt) for recharge add sodium to the water.
Persons on sodium restricted diets should consider
the added sodium as part of their overall intake.
Potassium chloride can be used as on alternative
to sodium chloride in your softener.
?_:The water softening sgstem works on 24 volt-60 Hz
electrical power onlg. Be sure to use only the
included transformer.
iJi::Transformer must be plugged into an indoor
120 volt, grounded outlet onlg.
::Ji::Use clean water softening salts onlg, at least 99.5%
pure. NUGGET,PELLETor coarse SOLARsalts are
recommended. Do not use rock, block, granulated
or ice cream making salts. Theg contain dirt and
sediments, or mush and cake, and will create
maintenance problems.
::J_::Keep the salt hole cover in place on the softener
unless servicing the unit or refilling with salt.
WARN ING: DOnot usewith water that
is microbiologicallg unsafe or of unknown qualitg
without adequate disinfection before or after the
sgstem.
PROPERINSTALLATION
This water softening system must be properlg installed and located in accordance with the
Installation Instructions before it is used.
?_:Install or store where it will not be exposed to
temperatures below freezing or exposed to ang
tgpe of weather. Water freezing in the sgstem will
break it. Do not attempt to treat water over 100°R
::J_::Do not install in direct sunlight. Excessivesun or
heat mag cause distortion or other damage to
non-metallic parts.
?_:Properlg ground to conform with all governing
codes and ordinances.
!;_:Use onlg lead-free solder and flux for all
sweat-solder connections, as required bg
state and federal codes.
?_:Softener resins mag degrade in the presence of
chlorine above 2 ppm. If gou have chlorine in excess
of this amount, gou mag experience reduced life
of the resin. In these conditions, gou mag wish to
consider purchasing a GEpoint-of-entrg household
filtration sgstem with a chlorine reducing filter.
A WARNING: Discard all unused parts
and packaging material after installation. Small
parts remaining after the installation could be
a choke hazard.
Thewater softening sgstem requires a minimum
water flow of three gallons per minute at the inlet.
Maximum allowable inlet water pressureis 125psi.
If dagtime pressureis over 80 psi, nighttime pressure
mag exceed the maximum. Usea pressure reducing
valve to reduce the flow if necessarg.
READAND FOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS
nstructlons Model GNSM48F
iJns'a"a,ionIwaterso'teninosystemI
I r_ Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge,com I
WARN ING: Read entire manual. Failure to follow all guides and rules could cause personal
injurg or propertg damage.
• Check with gour state and/or local public works department for plumbing codes. You must follow their
guides as gou install the Water Softening sgstem.
NOTE: Failure to complg with these installation instructions will void the product warrantg, and the
installer will be responsible for ang service, repair or damages caused therebg.
BEFORE BEGINNING INSTALLATION
Read these instructions completelg and carefullg.
• IMPORTANT - savetheseinstructions
for local inspector's use.
• IMPORTANT - Observeallgoverning
codes and ordinances.
• Note to Installer- Besure to leave these
instructions with the Consumer.
• Note to Consumer- Keep these instructions
for future reference.
• Proper installation is the responsibilitg of the
installer.
• Product failure due to improper installation
is not covered under the Warrantg,
• A shutoff valve must be available or added near
the installation point.
IMPORTANT INSTALLATION
RECOMMENDATIONS
• In the Commonwealth of Massachusetts,
Plumbing Code 248 CMR shell be adhered to.
Consult with gour licensed plumber.
• Use onlg lead-free solder and flux for all sweat-
solder connections, as required bg state and
federal codes.
IMPORTANT INSTALLATION
RECOMMENDATIONS (CONT.)
• Use care when handling the softener. Do not
turn upside down, drop, drag or set on sharp
protrusions.
Maximum allowable inlet water pressure is 125
psi, If dagtime pressure is over 80 psi, nighttime
pressure mag exceed the maximum. Use a
pressure reducing valve if necessarg, (Adding a
pressure reducing valve mag reduce the flow.)
The softener works on 24 volt-60 Hz electrical
power onlg. Be sure to use the included
transformer. Be sure the electric outlet and
transformer are in an inside location to protect
from moisture.
• See Where to Install the Softener section
for more details.
AWARNI NG:Do not use with water
that is microbiologicallg unsafe or of unknown
qualitg without adequate disinfection before or
after the system, The water should be tested
periodicallg to verify that the system is
performing satisfactorily,
• Small parts remaining after the installation could
be a choke hazard. Discard safelg.
• Connect the softener to the main water supplg
pipe before or ahead of the water heater.
DO NOT RUN HOT WATER THROUGH THE
SOFTENER. Temperature of water passing
through the softener must be less than 120°F.
Installation Instructions
UNPACKING AND INSPECTION
Be sure to check the entire softener for ang
shipping damage or parts loss. Also note damage
to the shipping cartons. Contact the transportation
compang for all damage and loss claims. The
manufacturer is not responsible for damages
in transiL
Small parts needed to install the softener are
packaged either in a bag or on a cardboard
sheet. To avoid loss of the small parts, keep them
packaged until gou are readg to use them. Be sure
not to discard components hidden in packaging.
TOOLS AND MATERIALS REQUIRED
FOR INSTALLATION
• Pliers
Screwdriver
• Teflon tape
• Razor knife
Two adjustable wrenches
• Additional tools may be required if modification
to home plumbing is necessarg.
In and out fittings included with the softener are
!" NPT male adapters. You should maintain the
same, or larger, pipe size as the water supplg
pipe, up to the softener inlet and outlet. Then,
use the necessarg adapters to connect the water
supplg to the !" NPT male adapters.
Use the included bgpass valve to install the
softener. The bgpass valve allows gou to turn off
water to the softener for servicing, but still have
water in the house pipes. The in and out fittings
referred to above connect to the bgpass valve
with the included bgpass clips.
WHERE TO INSTALL THE SOFTENER
Place the softener as close as possible to a
sewer drain, or other acceptable drain point
or standpipe.
It is recommended to keep outside faucets
on hard water to save soft water and salt.
Do not install the softener in a place where it
could freeze. Freeze damage is not covered bg
the warrantg.
Do not install the softener where it would block
access to the water heater or access to the main
water shutoff.
Putthe softener in a place where water damage
is least likelg to occur if a leak develops. The
manufacturer will not repair or pag for water
damage.
A &20-volt electric outlet isneeded to plug in the
included transformer. The softener has a !0-foot
power cable. If the outlet is remote (up to !00
feet), use 18 gauge wire to connect. Be sure the
electric outlet and transformer are in an inside
location, to protect from wet weather. Be sure
the outlet is unswitched to prevent accidental
shutoff.
If installing in an outside location, gou must
take the steps necessarg to assure the softener,
installation plumbing, wiring, etc., are as well
protected from the elements (sunlight, rain, wind,
heat, cold), contamination, vandalism, etc., as
when installed indoors. Outdoor installation is
not recommended, and voids the warrants.
Keep the softener out of direct sunlight.
The sun's heat mag distort non-metallic
parts and mag damage the electronics.
• Use appropriate fitting/pipe material (i.e., copper,
brass, galvanized or CPVC) to connect the !" NTP
plastic adapters to the house plumbing.
• If additional drain hose is needed for valve and
salt tank drains, it can be ordered from GE Parts
at 800.626.2002, part number WS07X!0004.
If a rigid valve drain is needed to complg with
plumbing codes, gou can bug the parts needed
to connect a 1/2" copper tubing or plastic pipe
drain. See Step S.
Clean nugget or pellet water softener salt is
needed to fill the brine tank. See Step 11.
Installation Instructions
PLAN HOW YOU WILL INSTALL THE
SOFTENER
You must first decide how to run in and out pipes
to the softener. Look at the house main water pipe
at the point where gou will connect the softener.
Is the pipe soldered copper, glued plastic or
threaded galvanized2 What is the pipe size2
TYPICAL INSTALLATION ILLUSTRATION
kWARNING: Use onlg lead-free solder and
flux to prevent lead poisoning,
See Tgpicaf Installation Illustration. Use this as a guide
when planning gour particular installation. Be sure
to direct the incoming hard water supply to the
softener valve inlet fitting. The valve is marked
IN and OUT.
OPTIONAL 3-VALVE BYPASS
INSTALLATION ILLUSTRATION
Hard water
Soft water MAIN
24V
transformer
120-volt
outlet
to outside
Pip E faucets
Inlet
valve
Hard
water
J
Brine
tank
Fig. 1
from the left. Include single
water
From
softener t
outlet
CROSSOVER
Use if water supply flows
or 3-valve bypass.
NOTE: See Drain
Hose Connections
section.
Soft
water
To softener
inlet
O-rings (2)
Fig. 2
from the left. Include single
Hard
water (_ !:--::L-{2:::
CROSSOVER
Use if water supply flows
or 3-valve bypass.
From
D
softener t
1" NPT male
_, O-rings (2)
INLET Clips (2)
Brine tank
Soft
water
To softener
inlet
pter (2)
outlet Z_
Installation Instructions
BEFORE YOU BEGIN
• Turn off the gas or electric supplg to the water
heater, in the possibilitg that the water heater
mag be drained while draining pipes.
• Turn off the water supplg to pipes to be cut and
drain the house water pipes.
• Open both hot and cold faucets at the lowest
location possible.
NOTE: For easier installation, remove the top cover.
Release 2 clips at rear of cover. Rotate cover
forward and lift up.
_1 INSTALL BYPASS VALVE
• Remove plastic shipping plug and wire from valve
outlet.
_ Valve outlet
• support
NOTE: Be sure the turbine and support are firmlg
in place in the valve outlet. Blow into the valve port
and observe the turbine for free rotation.
• Push the bgpass valve (lubricate o-ring seals with
silicone grease) into both ports of the valve as
shown.
Turbine
Turbine shaft and
Clips
[_ INSTALL DRAIN FITTING
• Push the drain fitting (lubricate o-ring seals
with silicone grease) into the part of the valve
as shown.
Snap the large plastic clip in place, from the
top down as shown. Be sure the clip snaps into
place. Pull on the drain fitting to make sure it is
held securely in place.
Drain fitting
[3] MOVE THE SOFTENER ASSEMBLY
INTO INSTALLATION POSITION
CAUTION:
• Secure the resin tank to a stable structure to
prevent it from fulling over.
• Locate the brine tank directlg next to the resin
tank.
Be sure the installation surface is level and
smooth. Sharp objects under the brine tank mag
puncture it. If needed, place the brine tank on a
section of 3/4" thick (minimum) plgwood. Then,
place shims under the plgwood as needed to
level the softener.
/ NPT adapter
O-ring seal goes into the outer
groove only. The clip snaps into
the inner groove (see below).
• Snap the 2 large plastic clips in place, from the
top down, as shown.
SIDE Clip
VIEW END
VIEW
Valve bad, Bypass valve
inlet or push all the way in)
• Push the NPT adapters (lubricate o-ring seals with
silicone grease) into both ports of the valve as
shown.
• Snap the 2 large plastic clips in place, from the
side, asshown. 6
• Connect the black brine valve tube from the
brinewell to the venturi assemblg on the valve,
using the plastic nut provided.
Installation Instructions
141 PLUMB "IN" AND "OUT" PIPES
TO AND FROM SOFTENER
CAUTION: Observe all of the following
cautions as gou connect inlet and outlet
plumbing. See Typical Installation Illustration.
• BE SURE INCOMING HARD WATER SUPPLY IS
DIRECTEDTO THE SOFTENER VALVE INLET PORT.
If house water flow is from the left, use a
plumbing crossover as shown in Typical
Installation Illustration. If house water flows up
from the floor level, turn the bgpass valve upside
down as shown.
Turn bypass
valve upside
down to
connect to
floor level
IN plumbing
• With the softener in place, determine the correct
length of piping required to connect the household
plumbing to the NPT male adapten
• Remove softener from installation space.
• If making a soldered copper installation, do all
sweat soldering before connecting pipes to the
NPT adapters and bypass valve. Torch heat will
damage plastic parts.
• When turning threaded pipe fittings onto plastic
fittings, use care not to cross-thread.
• Use Teflon Tape on all external pipe threads.
• Support inlet and outlet plumbing in some manner
(use pipe hangers) to keep the weight off of the
valve fittings.
151 CONNECT AND RUN THE VALVE
DRAIN HOSE
IMPORTANT: If gou want to attach the drain fitting
to a rigid tube, see Connecting a Rigid Valve Drain
Tube section on next page.
• Use the provided drain hose (20' length included)
to attach to the valve drain fitting. To keep water
pressure from blowing the hose off, use supplied
spring clamp to secure in place. Cut the necessarg
length and use the remainder in Step 8.
1/4" NPT thread
Barbs for 3/8" I.D. tubing
ose clamp
Drain hose
• Locate the other end of the hose at a suitable
drain point (floor drain, sump, laundrg tub, etc.)
that terminates at the sewer. Check and complg
with local codes.
IMPORTANT: If more drain hose is needed, it
should be ordered from GE Parts at 800.6262002,
part number WS07X10004. The water softener will
not work if water cannot exit this hose during
recharge.
Tie or wire the hose in place at the drain point.
High water pressure will cause it to whip during
the back-wash and fast rinse cgcles of recharge.
Also provide an air gap of at least 1-1/2"
between the end of the hose and the drain
point. An air gap prevents possible siphoning of
sewer water into the softener, if the sewer should
"back-up."
• Slide softener back into position.
• Hake final connections to the bgpass valve and
snap clips into place.
Be sure the clips for the bypass valve and NPT
adapters snap into place. Pull on the bypass valve
and NPT adapters to make sure the parts are held
securely in place.
Installation Instructions
[_ CONNECT AND RUN THE VALVE
DRAIN HOSE ICONT.i
• Elevating the drain hose mag cause back
pressure that could reduce the brine draw during
recharge. If raising the drain line overhead is
required to get to the drain point, measure the
inlet water pressure to the softener first. For inlet
pressures between 20 and 50 psi, do not raise
higher than 8' above the floor. For inlet pressure
above 50 psi, the drain line mag be raised to a
maximum height of 14'.
Fig. 4A Valve
drain
hose
! P /' ". g_I_
STANDPIPE
_f] BRINE TUBING CONNECTION
• Route the brine tubing out of the largest hole in
the brine tank sidewall. Use the compression nut
(in parts bag) to connect tubing to the nozzle
assemblg at the main valve.
Compression nut Nozzle assembly
Brine tubing
assembly
Brine tank
J
I8] INSTALL THE BRINE TANK
OVERFLOW FITTINGS AND HOSE
11½"air gap
FLOOR DRAIN
CONNECTING A RIGID VALVE DRAIN TUBE
To adapt a copper drain tube to the softener, bug a
compression fitting (1/4 NPT x 1/2" O.D. tube) and
needed tubing from gour local hardware store.
1/4" NPT
thread
Compression fitting
1/4 NPT x 1/2" O.D.
tube (not provided)
/
I
Cut barbs from valve
drain elbow (pull clip
and remove drain valve
elbow from valve)
1/2" outside
diameter copper
tube (not provided)
• Insert the rubber grommet into the 3/4" diameter
hole in the brine tank sidewall as shown.
Push the end of the hose adapter elbow into the
grommet as shown.
Attach a length of hose (use remaining hose from
Step 5) to the hose adapter elbow. Use a hose
clamp to hold it in place.
Locate the other end of the hose at the drain
point. DO NOT ELEVATEthis hose higher than the
elbow on the brine tank.
IMPORTANT: DO NOT TEE OVERFLOW HOSE
TO VALVE DRAIN HOSE.
NOTE: This drain is for safetg onlg. If the cabinet
(brine tank) should
over-fill with water, Grommet
the excess is carried
to the drain.
Hose
adapter'_ Venturi
nozzle
Brine
tank
[6] INSTALL TIMER AND COVERS AND
MAKE HARNESS CONNECTION
See separate instructions included in box with parts.
Overflow
drain hose
To sewer drain
8
I -. ..... -÷
Installation Instructions
19] INSTALL GROUNDING CLAMP
-ADANGER: Failure to properly attach
ground clamp could result in electrical shock.
If plumbing is metal, to maintain electrical ground
continuity in the house cold water piping, install the
included ground clamp as shown.
• Clean pipe with emery paper in the area where
the clamp is to be installed.
Install grounding clumps us shown, making sure
clamps fit freely around pipe.
Make sure lock washer is in place.
Hundtighten screw, then one more full turn with
screwdriver.
NOTE: When replacing an existing softener, also
replace grounding clamps. If removing softener
completely, hard-plumb the water line with same
type of pipes as the original to assure plumbing
integrity and ground continuity over the life of
the home. To valve inlet
I_ FLUSH PIPES, EXPEL AIR FROM
SOFTENER AND TEST YOUR
INSTALLATION FOR WATER
LEAKS ICONT.)
• Place bypass valve in the "service" position
EXACTLY as follows. KEEP SOFT WATER FAUCETS
OPEN.
SLOWLY pull or slide the valve stem (out) toward
the service position, pausing several times to
allow the softener to pressurize slowly.
After about 3 minutes, open a HOT water faucet
for 1 minute, or until all air is expelled, then
close. NOTE: If water appears cloudy or has salty
taste, allow to run for several more minutes, or
until clear.
• Close all water faucets.
Check your plumbing work for leaks and fix
right away if any are found. Be sure to observe
previous caution notes.
Turn on the gas or electric supply to the water
heater. Light the pilot, if applicable.
Ground
Clamp
Q
_ Fo_ee_tvalve
I_ FLUSH PIPES, EXPEL AIR FROM
SOFTENER AND TEST YOUR
INSTALLATION FOR WATER LEAKS
-ACAUTION: Toavoidwateror air
pressure damage to softener inner parts, be
sure to do the following steps in exact order.
• Fully open 2 cold soft water faucets nearby
the softener.
• Place bypass valve in "bypass" position bg
pushing the stem inward.
I_] ADD WATER AND SALT TO THE
BRINE TANK
• Lift the salt hole cover. Add about 3 gallons of
water into the tank. Do not add into the brinewell.
Fill tank with NUGGET, PELLETor coarse SOLAR
water softener salt with a purity of 99.5% or
higher. Do not use rock, block, granulated and ice
cream-making salts, or salt with iron-removing
additives (except for Diamond Crystal ®Red•Out ®
brand salt). Maximum salt storage capacity is
approximately 200 Ibs. Keep the salt hole cover
closed unless servicing the unit or refilling
with salt.
NOTE: If the softener is installed in a humid
basement or other damp area, it is better to fill the
tank with less salt, more frequently. Eighty to 100
Ibs. of salt will last for several months, depending on
water hardness, family size and water softening
system model.
• Fully open the house main water pipe shutoff
valve. Observe a steady flow from both faucets
opened above.
Installation Instructions
[] CONNECT TO ELECTRICAL POWER
To gain access to the transformer/power cord
assemblg, remove the salt hole cover from the
softener. Unclip the tabs on the rear of the top cover
and rotate the cover upward to remove. DO NOT
PULL OR DISCONNECT WIRING.
• The softener works on 2/4volt-60Hz electric
power. The included transformer changes
standard !20-volt AC house power to 2/4 volts.
Plug the transformer into a 120-volt outlet onlg.
Be sure the outlet is alwags live so it can not be
switched off bg mistake.
• Replace the top coven
Replace the salt hole cover.
PROGRAMMING THE CONTROL
PROGRAMMING THE CONTROL
or
Hold button
Up (+)
button
Set
button
Down (-)
_!i_::i' / button
TIMER SETTINGS REQUIRED upon installation and
after an extended power outage.
NOTES:
• When the transformer is plugged into the
electrical outlet, 12:00 AM is flashing and the
words PRESENT TIME show in the upper displag
area. Program the timer as instructed below.
If,A--- is flashing, see the Setting Model Code
section.
• A beep sounds while pressing buttons for timer
programming. One beep signals a change in the
timer displag. Repeated beeps means the timer
will not accept a change from the button or arrow
gou have pressed and gou should use another.
Data
._ button
SET PRESENT TIME OF DAY
NOTE: If the words PRESENT TIME do not show in
the displag, press the SET button until they do.
1. Press the UP (+) or DOWN (4 button to set. The
UP button moves the displau ahead; the DOWN
button moves the time backward.
NOTE: Each pressofan uP or
DOWN buttonchanges the
time bU 1 minute.Holdingthe
buttonsinchanges the time
32 minutes each second.
If the present time is between noon and midnight,
be sure PM shows.
If the present time is between midnight and noon,
be sure AM shows.
2. When the present time shows, press SET to applg.
I _,/'-I j--¢_
Ir"'UU
• To program the timer, you will use the SET, UP (+)
and DOWN (-) buttons.
10
Installation Instructions
SET WATER HARDNESS NUMBER
NOTE: If 15 (factorg default) I
and HARDNESS do not show 1"-1
in the displag, press the SET I .....
button until theg do.
1. Press the UP 1+1or DOWN 1-1button to set
gour water hardness number in the displag.
The DOWN button moves the displag down to !.
The UP button moves the displag up to !!0.
NOTE: Each press of an UP 1+}or DOWN 1-} button
changes the displag bg ! between ! and 25. Above
25, the displag changes 5 at a time (25, 30, 35, etc.).
Holding a button in changes the numbers twice
each second.
2. When gour water hardness number shows, press
SET to applg.
NOTE: If there is clear water iron in your water
supply, you will need to increase the hardness
setting by 5 for each 1 ppm of clear water iron
in your water supply.
You can get the grains per gallon {gpg} hardness
of your water supply from a water analysis
laboratory. If you are on a municipal supply,
call your local water department. Or call Legend
Technical Services, an independent laboratory,
to request a water hardness test kit at
1.800.949o8220, Option 4. If your report shows
hardness in parts per million {ppm}, simply divide
by 17.1 to get the equivalent number of grains
per gallon.
11
Installation Instructions
SANITIZING PROCEDURES
To complete the installation, do the following
sanitizing procedures.
Care is taken at the factorg to keep gour water
softener clean and sanitarg. Materials used to make
the softener will not infect or contaminate gour water
supplg and will not cause bacteria to form or grow.
However, during shipping, storage, installation and
operation, bacteria could get into the softener. For
this reason, sanitizing as follows is suggested when
installing.
NOTE: Sanitizing is recommended by the
Water Quality Association for disinfecting.
1. Be sure to complete all installation steps, including
programming the control.
2. Pour about 3/4 oz. (1V2tablespoons) of common
5.25% unscented household bleach (Clorox, Linco,
Bo Peep, White Sail, Eagle, etc.) into the brinewell.
Refer to illustration on page 5.
3. IMPORTANT: Press and hold for 3 seconds
the faceplate TOUCH/HOLD button to start an
immediate recharge. RECHARGE NOW begins to
flush in the displag. The bleach will be drawn
through the water softener, and out the drain.
This process takes approximatelg 2 hours.
4. If, after sanitization, water from the house
faucet tastes saltg or has a slight color, this is a
preservative from the resin tank. Turn on the cold
soft water faucets and drain for a few minutes or
until clear.
NOTE: When the sanitizing recharge is over, all
remaining bleach is flushed from the conditioner
and gour house COLD water supplg is fullg soft
immediatelg. However, gour water heater is filled
with hard water and as hot water is used, it will refill
with soft water. When all the hard water is replaced
in the water heater, hot onlg and mixed hot and cold
water will be fullg soft. If gou want totallg soft water
immediatelg, after the above recharge, drain the
water heater until the water runs cold.
AWARN ING: ,fgoudodrainthewater
heater, use extreme care as the hot water could
cause burns. Turn the water heater off prior to
draining.
SPECIFICATIONS/DIMENSIONS
RatedCapacitg*
Rated Efficiencg** 5,110 grains/lb.
Amount of High Capacitg Resin (Ibs/cu. ft) 69.2/1.55
Resin Tank Nominal Size (in.,dia. x height) 10 x 47
Service Flow Rate (gpm) 11.8
Water Suppl 9 Maximum Hardness (gpg) 120
Water Suppl 9 Maximum Clear Water h-on (ppm)*** 15
Water Pressure Limits (min.-max. psi)**** 20-125
Pressure Drop at Rated Service Flow (psig) 15
Water Temperature Limits (min.-max. °F) 40-120
Maximum Flow Rate to Drain (gpm) 2.3
This sgstem conforms to NSF/ANS144 for the specific capacitg claims as verified and substantiated bg test data
* Testing was performed using pellet grade sodium chloride as the regenerant salt
** Effidencg rating is valid onlg at the lowest stated salt dosage and service flow rate This softener was efficiencg
rated according to NSF/ANS144
*** Extent of iron removal mag varg with conditions The capadtg to reduce clear water iron is substantiated bg
independent laboratorg test data State of Wisconsin requires additional treatment if water supplg contains greater
than 5 ppm clear water iron Use of Diamond Crgstal ®Red,Out ®or Super Iron Out ®will improve iron removal Refer
to Cleaning Iron Out of the Water Softening System section
**** Canada working pressure limits: 14-70 kg/cm _
14,300 grains with 2.8 Ibs of salt
37,700 grains with 10.4 Ibs of salt
48,000 grains with 18.1 Ibs of salt
GNSM48F
@ 2.8 Ibs. of salt
i
38"
-,,-- 18"--,,-
9" IN-OUT
T
50 1A"
1
12
About the water softener system, ge.com
Service
When the water softening system is providing
soft water, it is called "Service." During service,
hard water flows from the house main water pipe
into the water softening system. Inside the water
softening system resin tank is a bed made up of
thousands of tiny, plastic resin beads. As hard
water passes through the bed, each bead
attracts and holds the hard minerals. This is
called ion-exchanging. It is much like a magnet
attracting and holding metals. Water without
hard minerals (soft water) flows from the water
softening system and to the house pipes.
After a period of time, the resin beads become
coated with hard minerals and theg have to be
cleaned. This cleaning is called recharge.
Recharge is started at 2:00 AH (factory setting)
by the water softening system control, and
consists of five stages or cgcles. These are FILL,
BRINING, BRINE RINSE, BACKWASH and FAST
RINSE,
Automatic Hard Water Bgpass During Recharge
For emergencg needs, hard water is available
to the home during the recharge cgcles.
Fill
Salt dissolved in water is called brine. Brine is
needed to clean the hard minerals from resin
beads. To make the brine, water flows into the
salt storage area during the fill stage.
However, gou should avoid using HOT water
because the water heater will fill with the hard
water.
Backwash
During backwash, water travels up through
the resin tank at afast flow rate, flushing
accumulated iron, dirt and sediments
from the resin bed and to the drain.
Brining
During brining, brine travels from the salt storage
area into the resin tank. Brine isthe cleaning
agent needed to remove hard minerals from the
resin beads. The hard minerals and brine are
discharged to the drain.
The nozzle and venturi create a suction to move
the brine, maintaining a very slow rate to get the
best resin cleaning with the least salt.
Brine Rinse
After a pre-measured amount of brine is used,
the brine valve closes. Water continues to flow in
the same path as during brining, except for the
discontinued brine flow. Hard minerals and brine
flush from the resin tank to the drain.
Fast Rinse
Backwash isfollowed by a fast flow of water
dawn through the resin tank. The fast flow
flushes brine from the bottom of the tank,
and packs the resin bed.
After fast rinse, the water softening system
returns to soft water service.
15
About the water softener system.
Breaking a Salt Bridge
Sometimes, a hard crust or salt bridge forms in
the salt storage area. It is usuallu caused bu high
humiditu or the wrong kind of salt. When the salt
bridges, an empt Uspace forms between the
water and salt. Then salt will not dissolve in the
water to make brine.
If the brine tank is full of salt, it is hard to tell
if Uou have a salt bridge. Salt is loose on top, but
the bridge is under it. The following is the best
wau to check for a salt bridge.
Salt should be loose all the wag to the bottom of
the tank. Take a broom handle or liketool, and
carefullu push it down into the salt, working it up
and down. If the tool strikes a hard object (be
sure it's not the bottom or sides of the tank), it's
most likelu a salt bridge. Carefullu break the
bridge with the tool. Do not pound on the walls
of the tank.
If the wrong kind of salt made the bridge, take it
out. Then fill the tank with nugget or pellet salt
only. In humid areas, it is best to fill with less salt,
more often to prevent a salt bridge from forming.
Push tool into salt
bridge to break
/
Pencil
mark
Broom -_
handle
bridge
Water level
14
Cleaning the Nozzle and Venturi Assemblg
A clean nozzle and venturi is needed for the
water softening sgstern to work properlg. This
small unit makes the suction to move brine from
the salt storage area to the resin tank during
recharge. If it becomes plugged with sand, dirt,
etc., the water softening sustem will not work
and you will get hard water.
Toget to the nozzle and venturi, remove the
water softening system top cover Be sure the
water softening system is in service cycle (no
water pressure at nozzle and venturi). Then, while
holding the nozzle and venturi housing with one
hand, remove the cap. Lift out the screen support
and screen, then the nozzle and venturi. Wash
and rinse the parts in warm water until clean. If
needed, use a small brush to remove iron or dirt.
Also check and clean the gasket.
NOTE:Some models have a small flow plug
located in the nozzle and venturi, and/or a small
cone shaped screen in the housing. Be sure to
check and clean these parts, if your model is
so equipped.
Carefully replace all parts inthe correct
order. Lightly lubricate the o-ring seal with clean
silicone grease or petroleum jelly and place in
position. Install and tighten the cap, bg hand
onlg. Do not overtighten the cap.
Cap
O-ring seal "_*0
Screen -_-_ @
support
Screen
*Flow plug _
Nozzle &
Venturi
Gasket -_{ _j_/i_-
*Flow -_ _,
plug
Venturi
housing
Nozzle °
IMPORTANT: Be sure small holes in the gasket ore
centered directly over the small holes in the nozzle and
venturi housing.
*Install with numbered side up, concave side down.
i
_.._ Screen
RECHARGENOW
RECHARGETONIGHT
ge.com
Normal Operation, Timer Displag
During normal operation, the present time of day and AM or PH show in the control display
area. When the demand computer determines a regeneration isneeded, RECHARGE TONIGHT
begins to flash in the display, along with the present time. RECHARGE TONIGHT flashes until
the next regeneration start time, then changes to RECHARGE NOW, which flashes until the
regeneration is oven The displag also shows the current cgcle in the regeneration process.
When the valve is in transition between cgcles, both indicators flash.
Feature: Optional Recharge Controls
Sometimes, a manually started regeneration (recharge) may be desired or needed,
Two examples:
::Ji::You have used more water than usual (house guests, extra washing, etc,) and gou may run out
of soft water before the next regeneration.
_ You did not refill the storage tank with salt before it was all gone.
Use one of the following features to start a regeneration immediately, or at the next preset
regeneration start time.
RECHARGE NOW
Pressand hold theTOUCHor HOLDbutton until RECHARGENOW starts to flash in the control
displag area.Thewater softening sgstem begins an immediate regeneration and,when over in
about two hours,you will havea new supply of soft waten Oncestarted, you cannot cancel this
regeneration.
RECHARGETONIGHT
Touch (donot hold)the TOUCHor HOLD button. RECHARGETONIGHTflashes in the control displag
area.Aregeneration will occur at the next preset regeneration start time. If you decide to cancel
this regeneration,touch the same button once more.
Feature: Program Memorg
If electrical power to the water softening system is interrupted, the control display is blank, but the
control keeps correct time for about 72 hours. When power is restored, you have to reset the present
time only if the display is flashing. All other settings are maintained and never require resetting
unless a change is desired.
If the time is flashing after a long power outage, the water softening system continues to work as it
should to provide you with soft waten However, regenerations mag occur at the wrong time of dag
until you reset the control to the correct time of day.
15
About the water softener system.
Feature/Service: Automatic Electronic Diagnostics
The timer computer has a self-diagnostic function for the electrical sgstem (except input power and
water meter). The computer monitors the electronic components and circuits for correct operation.
Ifa malfunction occurs, an error code appears in the timer displag.
The chart on Error Codes shows the error codes that could appear and possible defects for each code.
While an error code is displaged, the TOUCH or HOLD and DATA buttons remain operable so gou can
perform the Manually Initiated Electronic Diagnostics.
ERROR CODE DISPLAYED ERR 01 ERR02 ERR03 ERR04 ERR 05
POSSIBLE DEFECT _ motor inoperative _ wiring harness, or connection to switch _ timer (PWA)
To remove an error code: (1)Unplug transformer
(2)Correct defect.
(3)Plug transformer in.
{4)Wait for at least 6 minutes. Theerror codewill return if the reason
for the errorcodewas not corrected.
Feature: Other Data Displays
Ogcontinuing to press the DATAbutton, gou can scan through four displags of operational
information. This data appears in the bottom portion of the displag area.
REMAININGCAPACITY
FLOWRATEGPM
GALLONSTODAY
AVG.DAILY GALLONS
REPIAINING CAPACITY -- _ This is the percentage of water softening capacitg remaining.
Immediatelg after a regeneration, 100% shows. As water is used, the percentage decreases until the
next regeneration. During regenerations, the percentage increases.
position switch _ valve defect causing high torque
NOTE: Zero (%)shows until after the first regeneration begins, offer connecting to
electrical power
FLOW RATE, GPPI-- _ When using soft water, this displag shows the flow rate passing through
the softener (in gallons per minute). Zero shows if water is not passing through the softenen
GALLONS TODAY-- _ Each dag, beginning at midnight, the timer keeps a running count of the
total gallons of water that have passed through the softene,
AVG. DAILY GALLONS- _ The figure displaged is the average gallons of water used bg the
household each dag over the past seven dag period.
NOTE: If preferred, gou can set the timer to show the reading in liters instead of gallons. If GALLONS
TODAY or AVG. DAILY GALLONS exceeds 1999, a (xlO) indicator appears; this means gou must
multiplg the number shown bg ten.
16
ge.com
Timer/Softener, Service Checkout Procedure
Ifgou are not getting soft water, and an error code is not displaged, use the procedures below to
find the problem. First make the following visual checks:
VISUALCHECKS: IT] Is there electrical power to the outlet the water softening sgstem transformer
_-J is plugged into?
FZ]Is there sufficient salt in the storage tank?
E]ls the plumbing bgpass valve directing water for soft water service?
F_-]ls the valve drain hose open to the drain, not more than 8' above the
softener, and unobstructed? Ifhose is above 8, see page 8, section 5.
Ifgou do not find a problem with the visual checks, continue below.
/
TIMERSHOWS
WRONG TIME AND
DAY,AND/OR IS
FLASHING.
Checkelectrlcal I [NOPOWER 1 I ......
TIMER
DISPLAY
BLANK.
power to control
(outlet,transformer, I-_L_JPOWER OKI . i
power cable, all |_1 .......... I'-_" TIMER
connections). | I DEFECTIVE
TIMER DISPLAYSHOWS
CORRECTTIMEAND DAY
AND ISSTEADY.
was
fl Electrical _ Investigate reason for
off.Resetthe correct
power
power oss.
| time of dag.
• REPAIRAS
Domanual
diagnostics.
Do manual
diagnostics
to verifg
proper
function.
17
About the water softener system.
Service: Manually Initiated Electronic Diagnostics
F_]To enter diagnostics, press and hold the DATA button until the display appears as shown.
°d'-; -
LaSr_GE
WArS_MAt_GE_T SY_T_
Switch Turbine
Valve Minutes of cycle
position rernaining
........i-I r"li'l
""- Ij IjIj
count
Id "i,C id
rlt_
wArERMAt_G_ENTSrSr_
NOTE:Ifthe softener is in the middle of a regeneration, top part of the display shows the cycle
of regeneration and minutes of the cycle remaining. Iftwo cycle names are flashing, the valve
isintransition between thecycles.
A Thethree digits under WATERMANAGEMENTSYSTEMindicate water meter operation
asfollows:
!i_:000 (steady)= softwater not in use_.noflow through the meteE
--OPENANEARBYSOFTWATERFAUCET--
!;_ 000 to 140(continual)= repeats display for each gallon ofwater passing through the
meteE
_, _ Motor
! _ Sensor
I_ housing
I _ _ Turbine
-_1_ ------_Turbine
Valve _ support &
outlet _ shaft
I
I
WAT£eMAN4_NTS_rEM
--I
Clb,o
If you don't get areading in the display, with faucet open,pullthe sensorfrom the valveoutlet
port. Passa smallmagnet back and forth in front of the sensoEYoushould get a reading in the
display.Ifyou get a reading,shutoffwater supply,unhook the inand out plumbing andcheck
the turbine for binding.
B Thisdisplay segment (_x.i), in the following chart, indicates an open POSITIONswitch.
Usethe TOUCHor HOLDbutton to manually advance the valveinto each cycle and check
correctswitch operation.
CORRECTSWITCH
DISPLAYS VALVECYCLE STATUS
Valve in service, fill, brining, backwash
or fast rinse position,
Valve rotating from one position to anotheE
[_ Pressthe DATAbutton again, Thisdiagnostic display shows the total number of recharges(top)
since the timer was connected to electrical powe_
The number of days sincethe timer was connected to electrical power is shownin the bottom
part of thedisplay. If over 1999days, a (×10)indicator shows,meaning you must multiply the
number shown by 10.
[_ PressDATAonce again to return the presenttime to the display.
18
ge.com
Service: Manually Advance Regeneration Check
Thischeckverifies proper operation of the valve motor,brine tank fill, brine draw, regeneration
flow rates and other controller functions. First,make the initial checksand the manuallg initiated
electronic diagnostics.
NOTE:The face platedisplag must show a steady time (notflashing).
r_] Pressthe TOUCHor HOLDbutton and hold for three seconds.RECHARGENOWbegins
to flash asthe water softening sgstem enters the fill cgcle of regeneration. Remove the
brinewell cover and,using a flashlight, observefillwater entering the brine tank.
If water does not enterthe tank, look for an obstructed nozzle,venturi,fill flow plug,brine
tubing or brinevalve riserpipe.
r_l After observing fill,pressthe TOUCHor HOLDbutton to movethe water softening sgstem into
brining.A slow flow of water to the drainwill begin.Verifg brinedraw from the brine tank bg
shining a flashlight intothe brinewell and observinga noticeabledrop inthe liquidlevel.
NOTE:Besurea salt bridge isnot preventing salt contact with wate_
If the water softening systemdoesnot draw brine,check:
!i_nozzleand/or venturi dirtg ordefective.
ij_:,nozzleand venturi not seatedproperlg ongasket.
iJi:,restricted drain (checkdrain fitting and hose).
ij_:,defectivenozzleand venturi seal.
_ other inner valve defect (rotorseal,rotor & disc,wave washer,etc.).
NOTE:Ifwater sgstem pressure islow,an elevateddrain hose mag cause back pressure,stopping
brine draw.
r_ Again, pressthe TOUCHor HOLD button to move the softener into backwash. Look for a fast
flow of water from the drain hose.
A slow flow indicatesaplugged top distributor, backwash flow plug or drain hose.
r_ PressTOUCHor HOLDto move the water softening sgstem into fast rinse.Again lookfor a fast
drain flow.Allowthe water softeningsgstemto rinsefor afew minutesto flush out ang brine
that mag remain in the resintank from the brining cgcle test.
r_To return the water softening sgstem to service,pressTOUCHor HOLD.
19
About the water softener system.
Service: Regeneration and Heavy Duty Backwash
NOTE:Each of the following functions has a factorg-set default value. The defaults are: Regeneration start time
-2:00AM; Ha×imum dags between regenerations-O (displag shows dY-); Efficiencg mode-ON; Heavg dutg
backwash -OFF. The defaults are suitable for most installations. However, depending on water supplg qualitg,
household peak water use hours, etc., adjustment is available to meet specific needs. To make a change, read
and do the following.
Regeneration (Start) Time: Atthe 2:00 AH regeneration start time, the water softening sgstem begins
regeneration at that time, ending at about 4:00 AH.This is a good time in most households because water is not
in use(seeAutomatic Hard Water BypassDuringRegenerationsection).If a different time would be better for gour
needs,do stepsZ,2,3,5,7, 9 and 11 belowto changethe starting hour.
Maximum Days Between Regeneration: Thedefault setting (dY-)allows the timer to control regeneration
frequencg basedonwater usage readings from the water meteEItprovidesthe most economical operation.
You can set a maximum time (indabs)between regenerations.Forexample, nomore than three dabs will pass
without a regeneration occurring if gou set dY3 in the displag.A ! to 7 dab setting isavailable.To make a
change from the default setting, do steps Z,3, 4,5,7,9 and !1 below.
Efficiency Mode: Whenthis feature isON,the unit will operate at salt efficienciesof 4000 grainsof harness per
pound of salt or higheE(Hag recharge more often usingsmaller saltdosage and lesswater).When this isON,
the efficiencg icon_ will show in the lower right handcomer of the displag.To make a change forthe
default setting,dosteps !, 3,5,6,7,9 and !! below.
Heavy Duty Backwash: When setto ON,the backwash cgcleof regeneration will be10minutes longinstead
of the normal sevenminute length.This is beneficial on somewater supplieshigh in iron or sediment content.
Toconserve water,on clean supplies,be surethe default setting OFFshows.Tochange this setting, do steps !,
3,5,7,8,9and!1 below.
SET
Auto Regeneration When Capacity is Lo_. Thesoftener will regenerate at the regeneration time onlg.
Although the control hasa look-forward feature which anticipates normal demand, an unusuallg high usage
mag result in a lossof softening capacitg.Turning the feature ON will cause the softener to go into a
regeneration cgcle when 97% ofthe softening capacitg has been used.Tochange settings,do steps1, 3,5,7,9,
10 and 11 below.
[] Beginningfrom the presenttime displag, pressand hold in the SETbutton until _ begins to flash.
[_ Pressthe UPor DOWN button to displogthe desiredstart time.The UPbutton movesthe time ahead;the
DOWN button moves the time backward.
[] Pressthe SETbutton again,and _ flashes.
[_To seta maximum time {indabs) between regenerations, pressthe UPor DOWN button.
[] Pressthe SETbutton again andthe ONflashesand the efficiencg mode icon
shows in the lower right hand corner of the screen.
[_Use the UP or DOWN arrows to togglethe efficiencg mode either ONor OFF.
[] Pressthe SETbutton to displag _.
[_Use the UP button to change the displag to ON to increase the backwash time, if desired.
[] Pressthe SET button _ and_ alternatelg flashes.
[_Use the UPbutton toturn Auto Regeneration cgcle to ON.
[_ Pressthe SETbutton afinal time to return to present time of daB.
20
Setting: Nodel Code, 12 or 24 Hour Clock and Gallons or Liters Measured
Model Code: The timer must have the right model code set to operate the water softening system
correctly. The correct code setting for the GNSM48F isA-39.
If FRZ_] is flashing in the display, do steps 3,4, 6 and 8 below.
To check for the correct code setting for your model, and to reset it if needed, do steps 1, 2, 3, 4, 6
and 8 below.
NOTE:The hour clock and water measure have factory-set default values. The defaults are:
12 or 24 hour clock -12; Gallons or liters measure - gallons.
12 or24 Hour Clock: With 12 hr set, alltime displays are in standard clock time ...12:06 AMto 1!:59
PM.If 24 hr isset,time displaysare in military time ...0!60 (!:00 AM)to 0660(midnight).Tochange
from the 12hr setting,do steps 1,2,4, B,6 and 8.
Gallons or Liters Measure:Allwater flow rate and usagedisplays are in gallonswith the default
setting. If resetto _, the same displaysare shown inliters.Usesteps 1,2,4, 6,7
and 8to change.
[] Beginningfrom the presenttime display, pressand hold in the SETbutton until
(or as otherwise set)beginsto flash.
E_ pressand hold in the SET button again.
[_lf settingisother than A-39, usethe UP or DOWN button to setthe correct numbeE
[] Pressthe SETbutton again and _ flashes.
ge.com
[] Tochange the displayto _ usethe UPbutton. Usethe DOWNbutton to resetto 12 hE
[] Pressthe SETbutton and _ flashes.
[] Usethe UPbutton to change to the _ setting.Usethe DOWN button to return to the
gallon setting.
r_l pressthe SETbutton a final time to return to the present time display.
21
Care and cleaning of the water softening system.
Checking the Salt Storage Level and Refilling
Brine (salt dissolved in water)is needed for each
and every recharge. The water for making brine
is metered into the salt storage area by the
water softening system valve and control.
However, gou must keep the tank supplied
with salt.
When to refill with salt: Check the salt level a
few weeks after you install the water softening
system and ever Uweek after that. Refill when
the brine tank isfrom !/3 to !/2 full. Never allow
the water softening system to use all the salt
before you refill it. Without salt, you will soon
have hard water.
Cleaning Iron Out of the Water Softening Sgstem
Use clean water softening salts only, at least
99.5% pure. NUGGET,PELLETor coarse SOLAR
salts are recommended. Do not use rock, block,
granulated or ice cream making salts. They
contain dirt and sediments, or mush and cake,
and will create maintenance problems.
CAUTION: Water softening salt
with iron removing additives: Some salts
may have an additive to help the water
softening system handle iron in the water
supply. Although this additive may help to
keep the water softening system resin clean,
it maUalso release corrosive fumes that
weaken and shorten the life of some water
softening system parts. GE recommends
using only Diamond Crystal®Red,Out ®
brand salt.
Your water softening system takes hardness
minerals (calcium and magnesium) out of
the water. Also, it can control some (seethe
Specification Guidelines section) "clear water"
iron. With clear water iron, water from a faucet
is clear when first put into a glass. After 15 to 30
minutes, the water begins to cloud or turn rust
colored. A water softening system will nat
remove any iron that makes the water cloudy
or rusty as it comes from the faucet (called red
water iron).To take red water iron out of water,
or over the maximum of clear water iron,
an iron filter or other equipment is needed.
GErecommends using only Diamond Crustal®
Red,Out ®brand salts with Iron Fighter®additive
to help keep the resin bed clean of clear iron. If
your water supply has clear water iron, periodic
resin bed cleaning is needed. GErecommends
using Super Iron Out®brand resin bed cleaner
to thoroughly clean your resin bed if your iron
content is high. Clean the bed at least every six
months, or more often if iron appears in the soft
water between cleanings.
IMPORTANT:It is important to mix the resin bed
cleaner with water (following the manufacturer's
instructions), pour it into the brinewell tube
(seepage 5) and recharge the softener
immediately. Do not pour the resin bed cleaner
in with the salt, as it will not be as effective in
cleaning the resin, and can cause damage to
the softener if it isleft in the brine tank for an
extended period due to the corrosive gases
that are formed.
22
Before you call for service...
Troubleshooting Tips
Save time and money! Review the chart on this page first
and you may not need to call for service.
NO SOFTWATER- Most Common Problems:
Check the following before coiling for service:
• Not enough saltishould be at least 1/3 full.
• Bypass valve in "Bypass" positioniknob should be in the "OUT" (service)position.
• Hardness setting too low. Check hardness setting and adjust. Verify hardness of supply
water--from local water company, water test or call the GEAnswer Center.
• Salt BridgeJsalt solidifies above water level so that brine water is not in contact with
salt. See the Breaking a Salt Bridge section.
Problem Possible Causes What To Do
ge.com
No soft water Faucet or fixture where sample was *
taken not plumbed to soft water.
NOTE:Be sure sample is from o faucet
that does not mix soft and hard wate_
For example, o single lever kitchen faucet,
if the cold side is plumbed to hard wote_
Nosalt inthe brine tank or
salt bridged
Transformer unplugged at wall outlet or
power cableto softener not connected.
Fuseblown or circuit breaker popped
on circuit to electrical outlet.
Electrical outlet on a circuit that can
continuously be switched off
Manual bypass valve in bypass position • Be sure the bypass valve stem is positioned properly, with the
Valve drain hose pinched, plugged,
elevated too high or otherwise
restricted
Toconservesalt,the installermay haveisolatedsomefixtures
(outsidefaucets, toilets,etc.)from soft water.Fromthe outlet
of the water softening system,trace the water flow path,
in house plumbing. If soft water isnot directed to a faucet
or fixture where wanted,consult a plumbeE
Checkfor a saltbridgeor,if the tank is empty, refillwith
recommended salt. Press(for3 seconds)the TOUCHor HOLD
button to start an immediate regeneration and restore soft
water supply.
Checkfor a lossof electrical power to the water softening
system, due to any of theseconditions and correct asneeded.
With the power supply restored,observethe faceplate time
display and readProgramming the Controlsection.
NOTE:Theelectricaloutlet for thesoftenershouldbe
liveso it cannot be occidentally switched off
knob in the OUTposition. Observe instructions on the decal
at the end of the stem.
• Any restrictioninthis drainhosemay preventproper
operationofthe nozzleand venturi and reduce or prevent
brine draw during recharge.
Nozzleand venturi dirty, incorrectly
assembled or damaged
Referto CleaningtheNozzleand VenturiAssembly instructions.
With water pressureto the water softening system off,take the
nozzleassembly apart. Inspect, clean and replace asneeded.
Any foreign particle(s),scratches,nicks,etc.,in the passagescan
preventoperation.Besure holesin the gasketarecenteredover
holesinthe housing.
23
Before you call for service...
Troubleshooting Tips
Problem Possible Causes What To Do
Water hard sometimes Using hot water while the water , Avoid usinghot water during water softening sgstem
softening sgstem is regenerating recharge becausethe water heater will refillwith hard wate[
SeeAutomatic Hard Water BgpassDuringRechargesection,
page 13.
Control HARDNESSnumber setting , Pressand releasethe SETbutton until HARDNESSshows inthe
too low displag. Besurethe number shown isthe same as the actual
grains per gallon hardness of gour water supplg. Seethe Control
section if achange inthe setting is needed.
Grains of hardnessin gout water , Water hardnesscan changeover time, especiallginwellwate[
supplg have increased To check, have the water tested bg a water analgsislaboratorg
or call gour localwater department. Adjust the HARDNESS
number setting asneeded.
Water feels slipperg Absenceof hardness minerals , This is normal.Hardness in water givesit the abrasivefeel
after installation of gou mag have been accustomed to.Theslipperg feelisthe
water softening sgstem clean feel of soft wate[
Water softening sgstem Water softening sgstem is a , Does not use much saltto regenerate-verg efficient.
not using ang salt "demand" unit
Possible saltbridge , Seethe About the Water SoftenerSgstem section,page 14.
Possible plugged nozzle and venturi , Seethe About the Water SoftenerSgstem section,page 14.
Water is blue color Acidic water in copper plumbing , Havethe water tested at once.
after water softening
sgstem was installed
Water softening sgstem Meter turbine stuck , See the Service: Manuallg Initiated Electronics Diagnostics
not regenerating section for troubleshooting procedures, page 18.
, Callfor service.
Sensorwire not plugged into , Seethe Service:Manuallg Initiated ElectronicsDiagnostics
the control section for troubleshooting procedures,page 18.
, Callfor service.
No power to unit , Check the circuit breakerorfuses.
Mechanical defect , Callfor service.
Cloudiness on glassware Combination of soft water and , This iscalled etching andis permanent. To prevent this
(automatic dishwashers) too much detergent from happening, use lessdetergent if gou havesoft wate[
Wash glassware in the shortest cgclethat will get them clean.
Excessive/high level Valve drain hosepinched, , Ang restriction inthis drain hose mag prevent proper
of water in brine tank plugged, elevated too high operation of thenozzleand venturi and reduce or prevent
or otherwise restricted brine draw during recharge.
Nozzleand venturi dirtg, incorrectlg , Seethe Cleaningthe Nozzleand VenturiAssembly section,
assembled or damaged page 14.With water pressureto the water softening sgstem
off,take the nozzleassemblg apart. Inspect, clean and
replace as needed.Ang foreign particle(s),scratches, nicks,
etc.,in the passagescan prevent operation. Be sureholes
2/4 in the gasketare centeredover holesin the housing.
Problem Possible Causes What To Do
Salty tasting or Unit not sanitized • Complete theSanitization Proceduresonpage 12.
brown/yellow colored • At completion of recharge cgcle(approx.2hrs),runwater
water after installation from faucets to purgethe salty wateE
Lowwater pressure Checkpressure.
• Drain height 8' or less,pressureshouldbeminimum of 20 psi,
• Drain height above 8',pressureshouldbeminimum of 50 psi.
Restricted drain hose • Clean and reconnect hose.
• Check for kinksin drainline.
Brown/gellow Unit was idlefor a period of time • Complete the Sanitizotion Procedureson page 12.
colored water
Resinbeads showing Cracked distributor • Callfor service.
up in drinking water
and sink
ge.com
Soundsyou might hear Running water from the unit • Thisisnormal.
into a drain during recharge
Water has air bubbles Air in sgstem after installation • Will go awag after it runs for a while.
and is cloudy
Error Codeon control Wiring mag have worked loose • Seepage 16for details.
in the control
• Unplug transformer`
• Removecontrol cover,release clips on side.
• Checkfor loose/incorrect wiring connections to electronic
board orswitch. Reconnect asrequired.
• Reassemblecontrol cover`
• Plugin Transformer,
• Wait six minutes for Error Codeto reappear`
• IfErrorCodereappears,call for service.
25
Notes.
26
Parts list. go.corn
37
13
|
|
|
|
i
i
20-_,,.-_
(_-_. __..- j ,_.--18
21 ', _..e
999
29
23 .--._ g-_.
I
.0"
÷
!
, i':
24-
36
30
28 26
m
35
34 _ ?
33 .-_ _ 32
27_
25
27
Parts list.
110
151
f
139
137
136
135
106
124 --
lo7
wear strip
seal
cross-section
view
146
123
122
12_
08
25
130
145
/
\
143
28
110
147
Parts catalog.
GENERAL ELECTRIC PARTS CATALOG
G
N
S
M
4
8
F
REF. NO. GE PART NO. PART DESCRIPTION
3 WS35X10001 O-RING SEAL KIT
4 WS34X10006 DECAL
5 WSO7X10004 DRAIN HOSE - 20 FT
7 WS14X10002 DISTRIBUTOR TOP
8 WS14X10001 DISTRIBUTOR BOTTOM
9 WSOIXIO009 RESIN - 1 CU. FT.
10 WS32X10014 TANK RESIN - 10" x 47"
11 WS31XIO015 COVER BOTTOM
12 WS31XIO014 COVER FACEPLATE
13 WS21XIO015 TIMER
16 WS26XlO013 TRANSFORMER WITH CORD
17 WS31X10016 SHROUD AND BASE
18 WS33X10004 BASE
19 WS33XlO005 COVER, BRINE TANK
20 WS31X10017 COVER, BRINEWELL
21 WSO2X10021 NUT, #6-32
22 WS32X10002 BRINEWELL
23 WSO2X10022 SCREW #6-32
24 WS32X10013 TANK BRINE
25 WS18X10003 CLAMP HOSE
26 WS22X10016 ADAPTOR HOSE
27 WS22X10017 GROMMET
28 WS35X10035 GROUND CLAMP KIT
29 WS15X10005 BRINE VALVE ASM.
30 WS35X10003 FLOAT, STEM AND GUIDE ASM.
31 WSO3X10006 CLIP
32 WS15X10006 VALVE BODY, BRINE
33 WSO3X10007 CLIP
34 WSO3X10008 SCREEN
35 WSO7X10002 TUBING ASM.
36 WSO7X10003 TUBE BRINE
37 WS34X10007 DECAL
55 WS28X10003 RETAINER CLAMP
56 WS28X10007 CLAMP
101 WSO2XIO023 SCREW, #4-24 x 3/4
103 WS21XIO003 SWITCH
105 WSO2XlO024 SCREW, #10 x 2 5/8
106 WS31XIO013 COVER VALVE
107 WSO3X10034 WASHER WAVE
108 WS26X10010 ROTOR AND DISC
109 WS19X10010 CAP
110 WSO3XIO011 SEAL, O-RING 1" x 1/8"
iii WSI9XIO005 SUPPORT SCREEN
112 WSO3X10013 SCREEN
113 WS22X10036 FLOW PLUG, ,15 GPM
114 WSO8X10006 GASKET, NOZZLE/VENT
115 WSO3X10015 SCREEN CONE
103)
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
2
i
2
i
8
i
i
i
i
5
i
i
i
i
i
29
Parts catalog.
GENERAL ELECTRIC PARTS CATALOG
G
N
S
M
4
8
F
REF. NO. GE PART NO. PART DESCRIPTION
116 WS22X10021 PLUG, FILL FLOW, .3 GPM
117 WSO3X10017 NUT FERRULE
118 WS15X10034 NOZZLE/VENTU RI BODY
119 WSO3X10018 RETAINER
120 WSO3X10019 SEAL, O-RING 1/4" x 3/8"
121 WS15X10025 BODY VALVE
122 WSO3XlO020 SPRING
123 WS22X10029 PLUG, DRAIN SEAL
124 WSI5XI0036 NOZZLE/VENTU RI ASM.
125 WS03XI0043 SPRING BEARING
130 WS35X10020 SEAL KIT
132 WS22X10058 ADAPTOR, DRAIN HOSE
135 WS03X10033 CLIP, DRAIN
136 WS26X10008 CAM AND GEAR
137 WS26X10009 BEARING
138 WS26X10007 PLATE MOTOR
139 WS02X10028 SCREW, #6-20 x 3/8"
140 WS26X10006 MOTOR ASM.
141 WS02X10016 SCREW, #6-20 x - 7/8"
143 WS60X10011 TUBE INSTALLATION
145 WS60X10008 CLIP
146 WS28X10018 HARNESS WIRE SENSORASM.
147 WS19X10008 TURBINE SUPPORT
148 WS19X10009 TURBINE
150 WS03X10024 SEAL, O-RING
151 WS15X10026 VALVE BY-PASS ASM.
998 WS35X10048 INSTALL KIT - GNSM48F
999 49-50179 PM MANUAL USE & CARE/
INSTALLATION
(03)
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
3
1
2
2
2
1
1
1
1
1
1
1
3O
GEWater Softening System Warranty.
All warranty service provided by our SmartWater" Authorized Servicer
Network. To schedule service, call 800.952.5039 M.&) or 866.777.7627
(Canada). Please hove serial number and model number available when
calling for service.
Staple your receipt here.
Proof of the original purchase
dote is needed to obtain service
under the warrants.
For The Period Oh We Will Replace:
OneYear Any part of the Water Softening Sustemwhich fails due to a defect in materials orworkmanship.
From thedate of the Duringthis limited one-year warranty, GEwill also provide,free of charge, all labor and related
original purchase serviceto replace the defective par[.
ThreeYears Theelectronic monitor, if it fails due to a defect in materials orworkmanship. Duringthis
From thedate of the three-year limited warranty, Sou will be responsiblefor any laboror related servicecosts.
original purchase
TenYears A replacement brine tank or cabinet, if either fails due to a defect in materials orworkmanship.
From thedate of the Duringthis ten-year limited warranty, Uouwill be responsiblefor any labor or relatedservicecosts.
original purchase
What Is Not Covered:
[] Service trips to gout home to teach Sou how to use
the product.
[] Improper installation, delivers or maintenance.
[] Failure of the product if it is abused, misused, altered, used
commercially or used for other than the intended purpose.
[] Use of this product where water is microbiologically unsafe
or of unknown quality, without adequate disinfection before
or after the system. Systems certified for cyst reduction may
be used on disinfected water that may contain filterable
cysts.
[] Replacement of house fuses or resetting of circuit breakers.
[] Damage to the product caused bg accident, fire, floods or
acts of God.
[] Incidental or consequentialdamage causedbg possible
defects with this appliance, its installation or repair.
[] Product not accessibleto provide required service.
Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for
I EXCLUSION OF IMPLIED WARRANTIES--Vour sole and exclusive remedy is product repair as provided in this I
a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and an;] succeeding owner for products purchased for home use within
the USA. If the product is located in on area where service bbla GEAuthorized Servicer is not available, Sou may be
responsible for a trip charge or blOUma_j be required to bring the product to an Authorized GEService location for service.
InAlaska, the warranty excludes the cost of shipping or service ca!ls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warrants gives you
specific legal rights, and you may also have other rights which vary from state to state. To know what your legal
rights are, consult your local or state consumer affairs office or your state's AttorneLj General.
Warrantor: General Electric Company. Louisville, KV40225
I
I
]!
Consumer Support.
GEAppliances Website
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner's Manuals
or order parts online.
ge.com
Schedule Service ge.com
Expert GErepair service is only one step away from your doon Schedule your service at your convenience by
calling 800.GE.CARES(800.452.2757) during normal business hours.
RealLife Design Studio ge.com
GEsupports the Universal Design concept-products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. Fordetails of GE's Universal Design applications, including kitchen design ideas
for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC
(800.833.4322).
Extended Warranties
ge.com
Purchasea GEextendedwarranty and learn about special discounts that are available while your warranty
isstillineffect. You can purchase it on-line anytime, or call800.626.2224during normal businesshours.
GEConsumer Home Serviceswill stillbethere after your warranty expires.
Parts and Accessories ge.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or
by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since improper
servicing may cause unsafe operation.
Contact Us
If you are not satisfied with the service you receive from GE,contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GEAppliances, Appliance Park
Louisville, KY40225
ge.com
ge.com
]2
Register your new appliance on-line--at your convenience! Timely product registration will allow for
Register YourAppliance
' enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material, or detach and
use the form in this Owner's Manual.
Printed in the United States
Loading...
